StarTech.com StarView SV231 Manual de usuario

Manual Revision: 07/12/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV231

2 Port Professional PS/2 KVM Switch

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Front View.................................................................................................................................................... 2

Rear View...................................................................................................................................................... 3

Hardware Installation .............................................................................................................................. 4

Driver Installation...................................................................................................................................... 4

Conguration..........................................................................................5

Serial Data Link .......................................................................................................................................... 5

Automatic Calibration Button and Light .......................................................................................... 5

Manual Calibration and Settings Menu ............................................................................................ 5

Commands .................................................................................................................................................. 6

Transmitter Unit specic commands ................................................................................................. 6

Image Quality............................................................................................................................................. 7

Firmware Upgrade.................................................................................................................................... 7

Troubleshooting.....................................................................................8

Specications..........................................................................................10

Technical Support ..................................................................................11

Warranty Information............................................................................11

Instruction Manual

Introduction

Overview

The StarView SV231 is a computer switch that allows access to two IBM compatible

computers from one keyboard, mouse and monitor. Switching between computers

is as easy as pressing the push button or entering hot-key commands from your

keyboard. There is no interface card and software to install and the StarView is

independent of the computer operating system. The space-saving design enables you

to connect all the cables to the back of the SV231.

Automatic Mouse Conversion

The StarView Switch enables you to connect computers with PS/2 or serial mouse ports

(using adapters supplied with each SV231), and control both computers from one PS/2

mouse. The StarView automatically identies the mouse and switches to proper mouse

protocol.

Features

• Supports both PS/2 and serial mouse

• Cascade conguration expands system capability

• Auto scan automatically selects computers sequentially

• Supports Microsoft IntelliMouse (Pro), IntelliTrackball

• Hot-key functions allow easy computer access

• Built in buzzer for hot-key command conrmation.

• Keyboard states automatically saved and restored when switching computers

• Operating system independent, transparent to all applications

• True plug and play system conguration

• Keyboard and mouse can be hot plugged at any time

• High VGA resolution 1600x1200

• DDC2B compatible

• Power-free operation

Instruction Manual

Installation

Device Connection

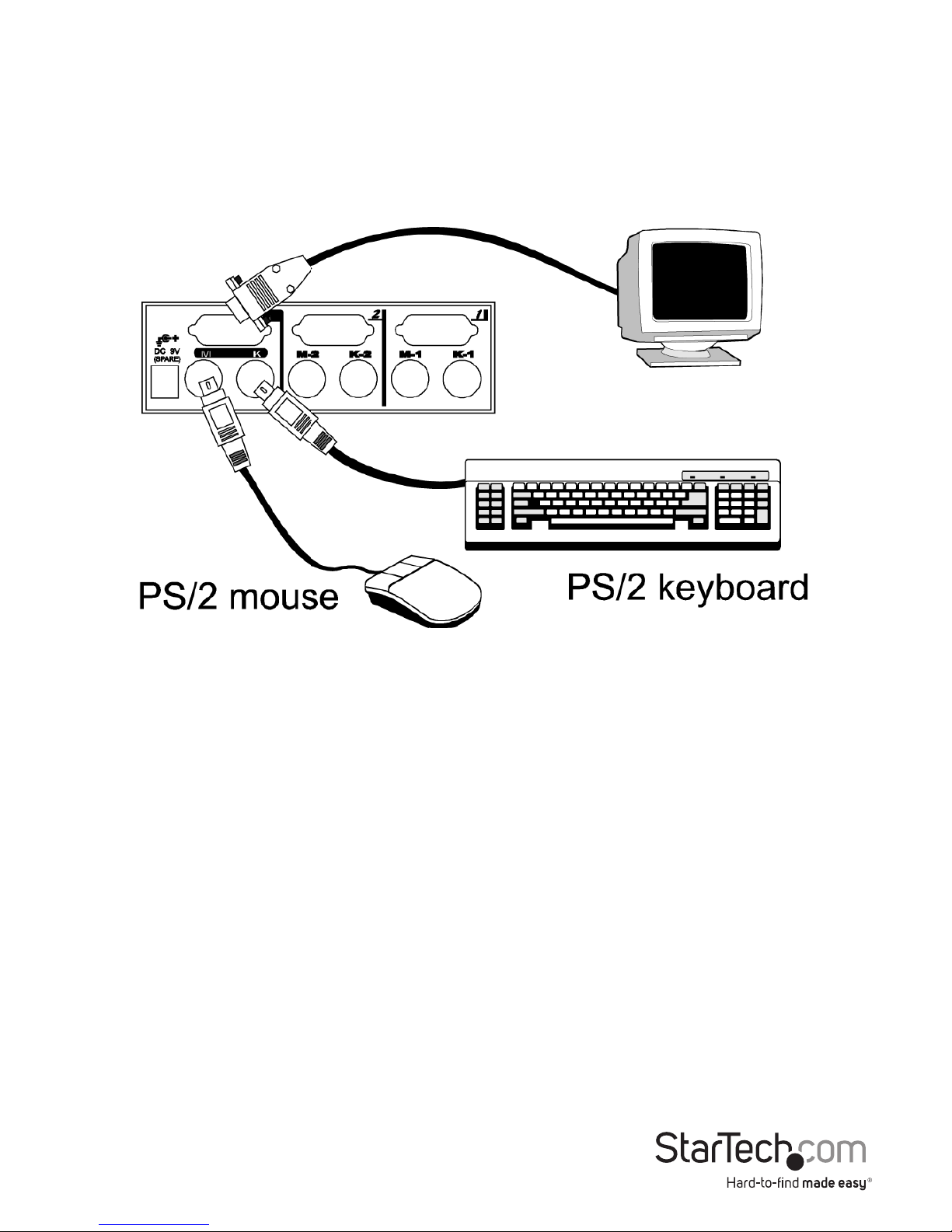

Turn your computers o. Connect a PS/2 keyboard to the mini-DIN-6 port with a

KEYBOARD icon and a PS/2 mouse to the mini-DIN-6 port MOUSE icon . Then connect

your VGA monitor cable directly to the HD-DB- 15 port of CONSOLE as shown in gure

The monitor connected to the HD-DB-15 VGA port of the CONSOLE must be capable of

synchronizing with the computer’s video signal. If you are uncertain about the monitor

type, please consult the monitor user’s manual. The StarView consumes negligible

power and is designed to run reliably without an external power adapter.

Computers Connection

Now you have two computers to connect to the StarView. Use a male-to-male

Mini-DIN-6 cable to connect from the rst PC’s keyboard port to the corresponding

KEYBOARD port; and, use another male-to-male Mini-DIN-6 cable from the PC’s mouse

port to the MOUSE port. Connect your computers VGA port to the HD-DB-15 port of

the StarView as shown in gure 2 using a VGA male-to-female cable. Follow the same

procedures for the second computer using the KEYBOARD and MOUSE port.

Instruction Manual

If your computer incorporates a serial mouse, a mouse adapter should be connected to

the computer’s mouse port as shown in gure 3.

(Note: use only the mouse adapter supplied with the SV231)

NOTE:

1. The StarTech.com SV231’s automatic mouse conversion system allows you to

connect computers using serial mice.

2. The mouse adapter can only be used on the PC side and will not work on the

CONSOLE side.

3. If your PC uses an AT style keyboard, you will need an“AT-to-PS/2 keyboard

adapter” at the PC side.

Instruction Manual

Initial Power-up

Make sure all computers and the StarView SV231’s are powered down during

installation. After connection, power up the computers. The StarView can be powered

from the computers. This procedure ensures the StarView receive computer settings

correctly when computer boots.

NOTE: You may hot plug any addittional powered-down computer to the StarTech.com

SV231 at any time after the initial power up.

Operations

Front Panel Operation

You may switch to a dierent computer by pressing the front panel push-button

directly or by issuing hot-key commands. The front-panel red indicator changes to

reect the computer port selected. The indicator ashes while in either Auto Scan or

Manual Scan mode.

Hot-key Commands

Hot-key command is a short keyboard sequence to select a computer or to activate

computer scan. StarTech.com interprets keystrokes for hot-keys all the time. A hot-key

sequence starts with two left Ctrl keystrokes followed by one or two more keystrokes.

A built-in buzzer generates a high-pitch beep for correct hot-key command; otherwise,

one low-pitch beep for error is generated and the bad key sequence will not be

forwarded to the selected computer.

• To select a computer: left Ctrl + left Ctrl + 1 Selects the computer

at port 1. Left Ctrl + left Ctrl + 2 Selects the computer at port 2.

NOTE: Do not use the keypad at the right of the keyboard.

• To start Auto Scan, automatically scan powered-on computers one by one at a xed

interval: left Ctrl + left Ctrl + F1. To abort the Auto Scan mode, press the left Ctrl

key twice. When Auto Scan detects any keyboard or mouse activity, it suspends the

scanning until activity stops; it then resumes with the next computer in sequence.

The length of the Auto Scan interval (Scan Rate) is adjustable, see below.

• Manual Scan enables you to manually switch back and forth between powered-on

computers left Ctrl + left Ctrl + F2 Press Up or Down to select the previous or the

next computer in sequence. Press any other key to abort the manual scan.

• To adjust Scan Rate which sets the duration before switching to the next computer

in AUto Scan: left Ctrl + left Ctrl + F3. The SV231 generates 1 to 4 beeps indicating

scan interval of 3, 8, 15, and 30 seconds respectively.

• To adjust keyboard typematic rate (characters/sec), this setting over-rides that of

BIOS and any operating systemL left Ctrl + left Ctrl + F4. The SV231 generates 1to 4

beeps corresponding to 10, 15, 20 and 30 characters/sec respectively.

Instruction Manual

Appendices

Specications

SV231

No. of computers supported 2

Cascade control PC number Up to 4*

Front panel button control 1

Hot plug-and-play Yes

Hot-key control Yes

Automatic scan interval 3, 8, 15, 30 seconds

Cable Length (Max) 30M(100ft) at CONSOLE 30M(100ft) at

VGA 1600 x 1200, DDC2B

Computer keyboard connector

mouse

monitor

PS/2

PS/2, serial (with adapter)

HD-DB-15 male

Computer keyboard connector

mouse

monitor

PS/2

HD-DB-15 female

Weight 420g

H x W x D (mm)

(in.)

size

40x124x70

1.6x4.9x2.7

Micro

Power Supply Optional (DC 9V, 500mA)

Instruction Manual

Troubleshooting

Ensure that all cables are well seated. Check that keyboard/mouse cables are not

swapped. Label and bundle the cables for each computer to avoid confusion when

connected to the StarView.

Symptom Causes Solutions

Keyboard or mouse does

not work

Improper power-up

sequence. Keyboard

or mouse not properly

intialized.

Press and hold down

the push button for 3

seconds, the SV231 will

re-initialize the keyboard

or mouse, wait for a few

seconds then plug it

back in.

Keyboard error on boot Loose keyboard

connection.

Make sure keyboard

cables are well seated.

Keyboard strokes shifted

The computer was in

shifted state when last

switched.

Press both SHIFT keys.

Auto Scan does not

switch PC automatically

and SV231 beeps.

All PC’s are o or only

one PC is turned on. Scan

mode works for power-on

computers only.

Turn computers on. Press

left Ctrl key twice to abort

Auto Scan mode.

The Up and Down keys do

not work in Manual Scan

All PCs are o or only

one PC is turned on. Scan

mode works for power-on

computers only.

Turn computers on. Press

any other key to abort

Manual Scan mode.

The SV231 fails to

function occasionally

Computers do not supply

enough power.

Add a power adapter

with minimum of DC 9V

500mA output rating to

the SPARE power jack.

Computer can not use

serial mouse

Loose mouse adapter

incorrect mouse adapter.

Secure the mouse adapter

to computers COM port.

Use only the mouse

adapter that comes with

the SV231

Instruction Manual

Symptom Causes Solutions

Not functional in cascade

conguration

In master/slave

conguration, the master

unit must have equal or

more PC ports than that

of slaves. If SV231 is a

slave , its master can be

SV231, SV431, SV831 or

SV1631.

SV231 can be a slave of

SV231, SV431, SV831,

and SV1631. If SV231 is a

master, the SV431, SV831

nor SV1631 can be its

slave.

Otros manuales para StarView SV231

Tabla de contenidos

Otros manuales de Cambiar de StarTech.com

StarTech.com

StarTech.com StarView SV431H Manual de usuario

StarTech.com

StarTech.com ST3300U3S Manual del sistema

StarTech.com

StarTech.com SV231UADVI Manual de usuario

StarTech.com

StarTech.com SV431DPU3A2 Manual de usuario

StarTech.com

StarTech.com D86A2-2-PORT-8K-KVM Manual de usuario

StarTech.com

StarTech.com VS123HD Manual de usuario

StarTech.com

StarTech.com C2-H46-UAC-CBL-KVM Manual de usuario

StarTech.com

StarTech.com POEEXT2GAT Manual de usuario

StarTech.com

StarTech.com 8STMSTMDP124DP Manual de usuario

StarTech.com

StarTech.com ST12MHDDCRP Manual de usuario

StarTech.com

StarTech.com SDOCK2U33HFW Manual de usuario

StarTech.com

StarTech.com MSTMDP122DP Manual de usuario

StarTech.com

StarTech.com 5G7AIBS-USB-HUB-NA Manual de usuario

StarTech.com

StarTech.com SV231DPUCA Manual de usuario

StarTech.com

StarTech.com SV431USBAE Manual de usuario

StarTech.com

StarTech.com ST122VGA Manual del sistema

StarTech.com

StarTech.com MSTMDP123HD Manual de usuario

StarTech.com

StarTech.com VS221HD20 Manual de usuario

StarTech.com

StarTech.com STARVIEW SV431DUSB Manual de usuario

StarTech.com

StarTech.com MSTDP122DP Manual de usuario

StarTech.com

StarTech.com SV221MICROUA Manual de usuario

StarTech.com

StarTech.com MSTCDP122HD Manual de usuario

StarTech.com

StarTech.com 5port Manual del sistema

StarTech.com

StarTech.com SV841HDI Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
