StarTech.com PDU08C13GB Manual de usuario

Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 09/27/2016

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PDU08C13GB.

PDU08C13GB

8-Port Rack-Mount PDU with C13 Outlets - 1U - 16 A

*actual product may vary from photos

Introduction

The PDU08C13GB is a cost-eective power distribution solution

that you can mount in your rack to deliver power to your rack-

mounted equipment. The PDU is constructed from durable steel and

mounts horizontally in your rack, taking up only 1U of space. The

PDU features a dual circuit breaker that is designed to protect your

equipment from power surges, and two reset buttons that you can

use to reset the PDU after a power surge.

Product diagram

C13 outlets Reset buttons

C20 power port

Mounting

holes Mounting

holes

Package contents

• 1 x rack-mount PDU

• 1 x 10 ft. (3 m) C19 to BS 1363 power cord

• 4 x screws

• 4 x cage nuts

• 1 x instruction manual

Requirements

• Power source

• 1U of space in a server rack

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/PDU08C13GB.

Install the rack-mount PDU

The rack-mount PDU takes up 1U of space.

1. Line up the Mounting holes on the rack-mount PDU with the

mounting holes on your server rack.

2. Use the provided screws and cage nuts or the mounting hardware

that came with your rack to attach the rack-mount PDU to your

server rack.

3. Connect the power cord to the C20 power port on the rack-

mount PDU and a power source. Make sure that you connect the

power cord directly to the power source and not another PDU.

4. Connect the devices in your server rack to the C13 outlets on the

rack-mount PDU.

Caution! The combined power draw of all of the devices attached to

the rack-mount PDU shouldn’t exceed 16 A, otherwise you will trip

the built-in circuit breaker.

Troubleshooting

What do I do if I trip the circuit breaker?

If you trip the circuit breaker, complete the following:

1. Make sure that the combined power draw of all of the devices

attached to the rack-mount PDU doesn’t exceed 16 A.

2. Press one of the Reset buttons on the rack-mount PDU.

Specications

Input C20

Output C13 (x8)

Voltage 100 to 240 V ac

Maximum current 16 A

Number of fuses 2

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Este manual sirve para los siguientes modelos

Otros manuales de Cambiar de StarTech.com

StarTech.com

StarTech.com SV431HU34K6 Manual de usuario

StarTech.com

StarTech.com C2-DH46-UA2-CBL-KVM Manual de usuario

StarTech.com

StarTech.com 8STSV211USB Manual de usuario

StarTech.com

StarTech.com MSTCDP122DP Manual de usuario

StarTech.com

StarTech.com ST122VGA Manual del sistema

StarTech.com

StarTech.com ENTERPRISE CLASS SV1653DXI Manual de usuario

StarTech.com

StarTech.com SV831DUSBAU Manual de usuario

StarTech.com

StarTech.com VS421CPNTA Manual de usuario

StarTech.com

StarTech.com HB30C5A2CST Manual de usuario

StarTech.com

StarTech.com StarView SV231USBGB Manual de usuario

StarTech.com

StarTech.com IES61002POE Manual de usuario

StarTech.com

StarTech.com 8STIES81GPOEW Manual de usuario

StarTech.com

StarTech.com MSTCDP122HD Manual de usuario

StarTech.com

StarTech.com DuraView RACKCONS1708 Manual de usuario

StarTech.com

StarTech.com ST7202USBGB Manual de usuario

StarTech.com

StarTech.com StarView SV431H Manual de usuario

StarTech.com

StarTech.com SV231DVGAU2A Manual de usuario

StarTech.com

StarTech.com SV441DUSBI Manual de usuario

StarTech.com

StarTech.com C2-H46-UAC-CBL-KVM Manual de usuario

StarTech.com

StarTech.com DS51072 Manual de usuario

StarTech.com

StarTech.com ST3300G3UA Manual de usuario

StarTech.com

StarTech.com IES101002SFP Manual de usuario

StarTech.com

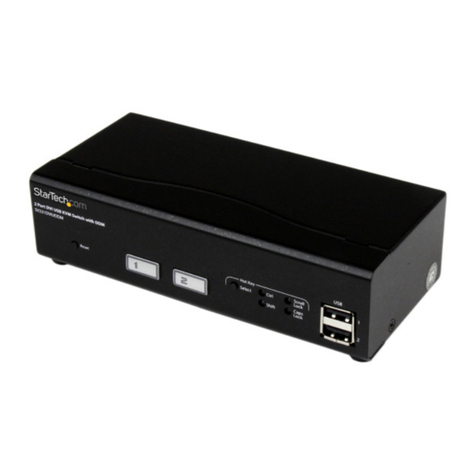

StarTech.com SV231DVIUDDM Manual de usuario
