IES51000

5 Port Unmanaged Industrial Gigabit

Ethernet Switch

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

Digital apparatus (ICES003)

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Top View ....................................................................................................................................................... 2

LED Indicators............................................................................................................................................. 2

DIP Switch Settings .................................................................................................................................. 3

Installation ..............................................................................................3

Wall Mounting............................................................................................................................................ 3

DIN-Rail Mounting.................................................................................................................................... 5

Hardware Installation .............................................................................................................................. 6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Packaging Contents

• 1 x Industrial Ethernet Switch

• 2 x Wall-Mount Brackets

• 1 x DIN-Rail Clip

• 4 x Screws

• 1 x Terminal Block

• 1 x Instruction Manual

System Requirements

• 12 – 58V DC power source (terminal block)

• 10/100/1000 Mbps compatible network devices

• Cat5 or better UTP Ethernet cabling

Product Diagram

Front View

Uplink Port Device Ports LED Indicators

Instruction Manual

Top View

LED Indicators

1 x P1 (Power) Solid (Green): Power is connected and functioning

O: No power input detected

1 x P2 (Power) Solid (Green): Power is connected and functioning

O: No power input detected

1 x ALM (Alarm) Solid (Red): Power failure detected

O: No alarm / alarm disabled

5 x Link / Act

Solid (Green): Link detected (no trac)

Flashing: Activity

O: No Link detected

5 x Speed Solid (Yellow): 1000 Mbps connection detected

O: 10/100 Mbps or no link detected

DIP Switches

Ground Connector

Redundant Terminal Block

Power w/ Alarm Relay

Instruction Manual

DIP Switch Settings

Installation

The Network Switch is designed to sit on a at surface, or be securely mounted to

either a wall or DIN-Rail using the included brackets. Please follow the instructions

below, depending on your preferred installation.

Wall Mounting

1. Attach the Wall-mount brackets to either the rear, or the side of the switch,

depending on your desired orientation.

Pin # Position Status

Pin 1 ON Enable power alarm

OFF Disable power alarm

Pin 2 ON Enable broadcast storm rate limit

OFF Disable broadcast storm rate limit

Pin 3 ON NOT USED

OFF NOT USED

Pin 4 ON NOT USED

OFF NOT USED

Pin 5 ON NOT USED

OFF NOT USED

Pin 6 ON NOT USED

OFF NOT USED

Instruction Manual

2. Determine the desired location and orientation of the switch on the wall, and mark

the bottom mounting notch location.

3. Depending on the mounting surface, use the appropriate tools and hardware to

install a mounting screw into the wall. There should be a gap of approximately 2

mm between the head of the screw and the wall surface.

4. Place switch back onto the wall with the mounting notch resting against the

previously installed screw, and mark the location for the top mounting notch,

ensuring that the switch is sitting level.

5. With the switch in place on the wall, install the second mounting screw and fully

tighten both so the device is held in place.

143.2

136.2

29.1

89.4

Instruction Manual

DIN-Rail Mounting

1. Attach the DIN-Rail mounting bracket to the switch.

2. Hook the unit over the DIN-Rail and push the bottom of the unit in until it clicks into

place.

Instruction Manual

Hardware Installation

1. Ground the device using the ground screw.

2. Power the switch from a DC power supply (input range 12 – 58V) by connecting the

positive and negative wires into the V+ and V- contacts of P1 on the terminal block

and tightening the wire clamp screws.

3. (Optional) Connect a redundant power supply connection to the contacts for P2.

4. (Optional) Connect the alarm relay as shown. By inserting the wires and set the DIP

switch of the respective Port Alarm to “ON”, the relay output alarm will detect any

port failures, and form a short circuit. The alarm relay out is “Normally Open”.

5. Connect your uplink (connection to an upstream network switch) and network

devices using RJ45 terminated Cat 5 or better network cabling.

Instruction Manual

Specications

Number of Ports 5

Compatible Networks 10/100/1000 Mbps

Industry Standards

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-

TX, IEEE 802.3ab 1000BASE-TX,

IEEE 802.1p QoS, IEEE 802.3az Energy-

Ecient Ethernet, IEEE 802.3ad Link

Aggregation

IP30 (Enclosure)

Connectors 5 x RJ-45 Female

Maximum Data Transfer Rate 2 Gbps (Full-Duplex)

Switching Architecture Store-and-Forward

Buer Size 128 KB

Full Duplex Yes

Auto MDIX Yes

Jumbo Frame Support Up to 9000 bytes

Flow Control IEEE 802.3x

Power Consumption 3.63W Max

Power 12 – 58V Terminal Block

Enclosure Material Metal

Operating Temperature -40°C to 75°C (-40°F to 167°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5~95% RH (Non-Condensing)

Dimensions 112.2 x 89.4 x 29.1 mm

Tabla de contenidos

Otros manuales de Cambiar de StarTech.com

StarTech.com

StarTech.com HB20A4AME Manual de usuario

StarTech.com

StarTech.com MSTDP124DP Manual de usuario

StarTech.com

StarTech.com SV431DVGAU2A Manual de usuario

StarTech.com

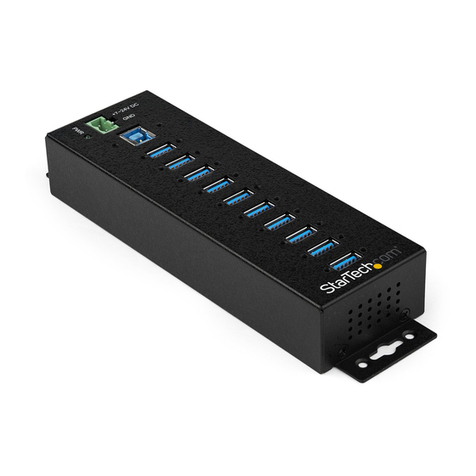

StarTech.com HB30A10AME Manual de usuario
