StarTech.com SV831HD Manual de usuario

Manual Revision: 09/28/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV831HD

SV1631HD

8 Port 1U Rack Mount USB PS2 KVM Switch

with OSD

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Installation ..............................................................................................1

Cascade Conguration............................................................................................................................ 2

Operating Your KVM Switch .................................................................2

Push Buttons............................................................................................................................................... 2

OSD Operations......................................................................................................................................... 3

OSD Function Keys ................................................................................................................................... 4

Hot Key Commands ...............................................................................7

Changing Your Conguration ..............................................................9

Keyboard Mapping (SV831HD, SV1631HD only)...................... 9

Troubleshooting.....................................................................................11

Specications..........................................................................................12

Technical Support ..................................................................................14

Warranty Information............................................................................14

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com 1U KVM switch. Our universal KVM switches

let you control either 8 (SV831HD) or 16 (SV1631HD) USB or PS/2 computers using only

one PS/2 keyboard, mouse, and monitor. Our slim 16-port PS/2 switch (SV1631D1U)

lets you connect 16 PS/2 computers using only one PS/2 keyboard, mouse, and

monitor. Switching between your PCs is easy thanks to pushbutton or hotkey

commands. These slim KVM switches take up only 1U of space in your cabinet and use

rear cable connections for maximum space eciency. Each KVM can be cascaded to

support 64 (SV831HD) or 136 (SV1631HD, SV1631D1U) computers and support both

Manual and Auto scan modes for easy monitoring of your PCs.

Packaging Contents

• 1 x StarView KVM Switch (SV831HD, SV1631HD, SV1631D1U)

• 1 x power adapter (9V 600mA DC)

System Requirements

• 1 x PS/2 mouse (6-pin mini-DIN male connector)

• 1 x PS/2 keyboard (6-pin mini-DIN male connector)

• 1 x HD-15 monitor (Male connector)

• SV831HD, SV1631HD: StarTech.com’s 2-in-1 USB KVM cables or 3-in-1 PS/2 KVM

cables

• SV1631D1U: StarTech.com’s 3-in-1 PS/2 KVM cables

Installation

This section will guide you through the hardware installation of your KVM switch.

Please read through this section carefully and complete each step in the order listed.

1. Make sure all computers and devices are powered o.

2. Plug a PS/2 keyboard, PS/2 mouse, and monitor into the labelled keyboard, mouse,

and monitor Console ports on the back of the KVM.

3. Attach each of your managed computers to your StarView KVM switch’s PC ports

using ultra-thin KVM cables. The SV831HD and SV1631HD are capable of using

either 2-in-1 USB or 3-in-1 PS/2 cables. The SV1631D1U uses 3-in-1 PS/2 cables.

Use the cables to connect one of the PC ports on the back of the switch to the

computer’s keyboard, mouse, and video ports. Note: These instructions are for a

single KVM switch only. For information on cascading multiple KVMs, see Cascade

Conguration below.

4. Plug the 9V DC power adapter into the power port on the KVM.

5. Turn on your computers.

Note: After the initial power up, you can hot-plug additional computers or slave KVM

switches without having to power down your KVM.

Instruction Manual

Cascade Conguration

You can connect a second level of KVMs to one or more of your Master KVM switch’s

PC ports. The KVM switches connected to the Master switch are know as Slaves. Once

connected, the KVM switches will automatically congure themselves as either Masters

or Slaves. You can only connect an equal or “smaller” KVM to the Master KVM. For

example, a 16-port Master KVM switch can have both 16-port and 8-port slaves. An

8-port Master KVM switch can only have 8-port KVM slaves or lower.

The 8-port KVM can support 64 PCs, with 8 8-port Slave KVMs, each connected to 8

PCs. The 16-port KVM can support 136 computers, with 8 16-port Slave KVMs, each

connected to 16 computers. The Slave KVM’s must be connected to the Console, not

the A~H ports.

To cascade your KVMs, use a 3-in-1 PS/2 KVM cable to connect one of your Master

switch’s PC ports to the Slave switch’s Console ports. When turning on your cascaded

switches, turn on the Master switch before turning on any of the others.

Operating Your KVM Switch

To toggle between computers, you can use the hot-key commands, OSD (On-Screen

Display) menu or by using the pushbuttons.

Push Buttons

The LEDs on the KVM switch indicate which computers are turned on (solid green)

and which computer is selected (solid red). The indicator ashes red when in Auto or

Manual Scan mode. You can press any of the corresponding pushbuttons to select the

active computer. On the 16 port models, Port 1 and Port A share the same pushbutton,

as do Port 2 and Port B, etc. To select Ports 1 through 8, press the pushbutton once. To

select Ports A through H, press and hold the pushbutton for two seconds. Alternatively,

if Port 1 is currently selected and you want to select Port A, you can press the

pushbutton once to switch to Port A.

The K/M Reset function recongures your system without powering down your

computers or your KVM switch. To reset the switch, press and hold the front-panel 1

and 2 buttons simultaneously.

The Auto-Scan function automatically scrolls through your connected computers. Press

and hold the frontpanel 7 and 8 buttons simultaneously to enter Auto Scan mode.

Instruction Manual

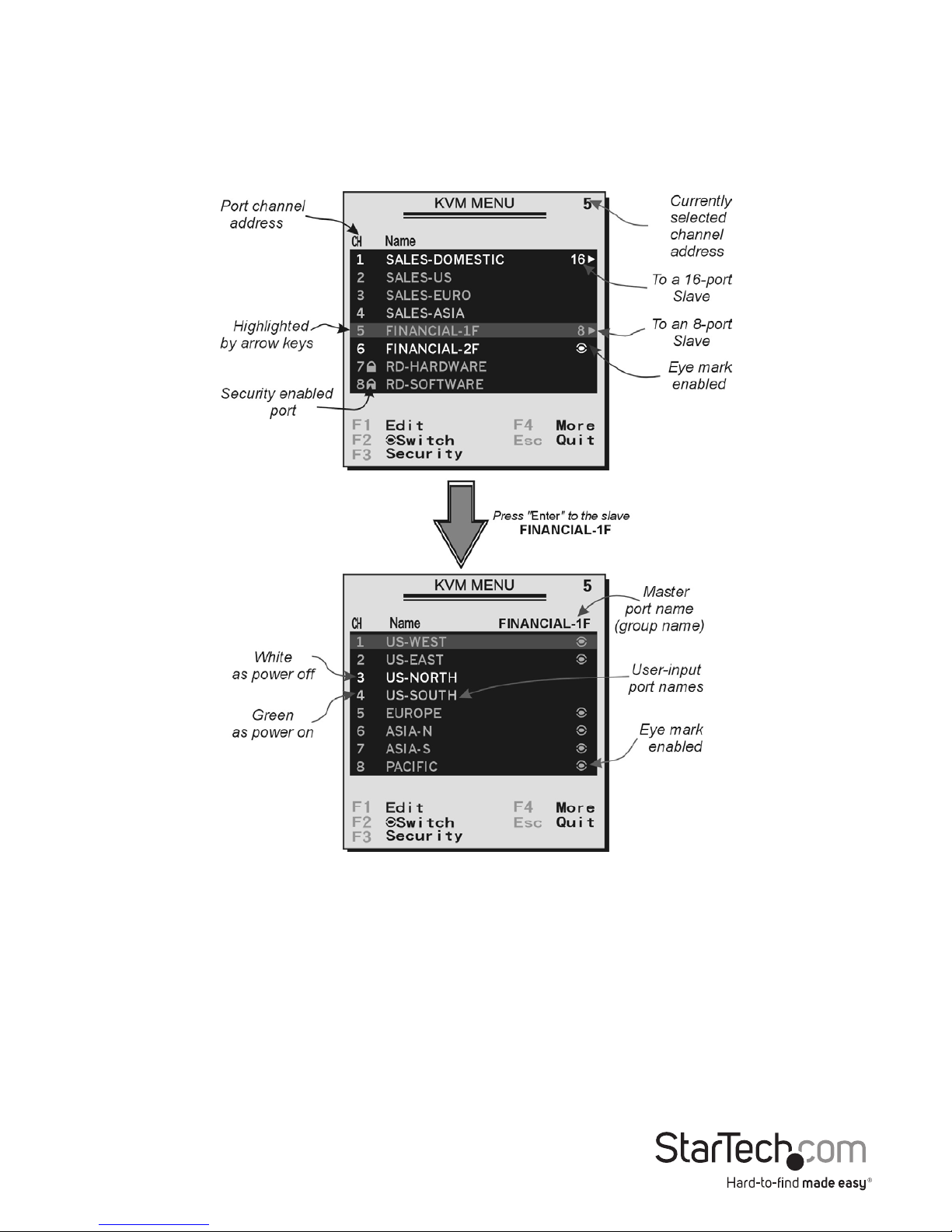

OSD Operations

By hitting the left <CTRL> key twice within two seconds, you may see the ‘Hotkey

Menu’if it is enabled (an OSD option). Or, by hitting the left <CTRL> key three times

within two seconds, you will see a ‘KVM MENU’ screen showing a list of the computers

with corresponding channel addresses, names and status.

The port number (or channel address) of the currently selected computer is displayed

in red in the top right of the screen.

The device name is green if the device has power and is ready for selection or white if

it has no power. The OSD menu automatically updates the color when it is activated.

On the 16-port models, use the <Page Up> and <Page Down> keys to view the other

8 computers.

Use the <UP>, <DOWN>, 1~8, or A~H keys to highlight a computer and <ENTER> to

select it.

Instruction Manual

Press <ESCAPE> to exit the OSD menu and remove the OSD menu from the screen.

A triangle mark on the right side of the screen indicates the port is cascaded to a

Slave KVM; the number at the left of the triangle mark shows the number of ports the

Slave has. With that port highlighted, press <ENTER> to bring up a screen listing the

computers connected to that Slave. The name of the Slave KVM will be shown at the

upper right corner of the OSD menu.

An eye mark on the right side of the screen indicates that the computer has been

selected to be monitored in Scan mode. You can switch this mark on and o using

function key <F2>.

Press <ESCAPE> to exit the OSD and to return to using the selected computer. The

computer name is shown on the screen.

OSD Function Keys

You can use the function keys when the OSD menu is active.

Function key <F1>

Edits the name of a computer or a Slave KVM. First, use the <UP> and <DOWN> arrow

keys to highlight a channel then press <F1> followed by name entry. Your name can

be up to 14 characters long. Valid characters are A to Z, 0 to 9, and the dash character.

Lowercase letters are converted to uppercase. Press <BACKSPACE> to delete a letter

one at a time. Non-volatile memory stores all name entries until you change, even if

the unit is powered down.

Function key <F2>

Marks a computer to be scanned by switching the eye mark on or o. First, use the

<UP> and <DOWN> arrow keys to highlight the device, then press <F2> to switch its

eye mark on or o. If Scan Type is Ready PC + Eye (see Function key <F4>), only the

powered and eye-marked computers will be displayed in Scan mode.

Function key <F3>

Locks a device (a computer or a Slave) from unauthorized access. To lock a device, use

the <UP> and <DOWN> arrow keys to highlight it, then press <F3>. Now, enter up to

4 characters (A to Z, 0 to 9, dash) followed by <ENTER> as new password. A Security-

enabled device is marked with a lock beside its channel number. To permanently

disable the security function from a locked device, highlight it, press <F3> then enter

the password.

If you want to access the locked device temporarily, simply highlight it and

press <ENTER>. Enter the password and you can access the device. The device is

automatically re-locked once you switch to another device. During Scan mode, OSD

skips the security-enabled device.

Instruction Manual

If you forget the password, the only way to permanently erase all passwords is to press

and hold pushbuttons 1 and 2, then press and hold pushbuttons 7 and 8. Release 7

and 8 then release 1 and 2.

Function key <F4>

More functions are available by hitting <F4>. A new screen pops up displaying the

functions described below. Most of them are marked with a triangle indicating

there are options to choose from. Using the <UP> and <DOWN> arrow keys, select

the function and press <ENTER>. Available options will be shown in the middle

of the screen. To select an option, use the <UP> and <DOWN> arrow keys then

press<ENTER> to select the option. You can press <ESCAPE> to exit at any time.

Auto Scan

In this mode, the KVM automatically switches from one power-on computer to the

next sequentially in a xed interval. During Auto Scan mode, the OSD displays the

name of the selected computer. When Auto Scan detects any keyboard or mouse

activity, it suspends the scanning until activity stops; it then resumes with the next

computer in sequence. To abort Auto Scan mode, press the left <CTRL> twice, or press

any front button. Scan Type and Scan Rate set the scan pattern. Scan Type (<F4>:

More\Scan Type) determines if scanned computers must also be eye mark selected.

Scan Rate (<F4>: More\Scan Rate) sets the display interval when a computer is selected

before selecting the next one.

Manual Scan

Scans through power-on computers using keyboard control. Scan Type (<F4>: More\

Scan Type) determines if scanned computers must also be eye mark selected. Press the

up arrow key to select the previous computer and the down arrow key to select the

next computer. Press any other key to abortthe Manual Scan mode.

Audio Stick

An optional multimedia module can be LINKed to the back of each StarView for

selecting microphone and stereo speaker signals. There are two options for Audio

Stick: On and O. When set to On, audio selection follows computer selection. When

set to O, audio selection stops following computer selection. O mode is useful if you

want to listen to a particular computer’s audio signal while operating other computers.

The non-volatile memory stores the Audio Stick setting.

Instruction Manual

Scan Type

Ready PC + Eye: In Scan mode, scans through only power-on and eye-marked selected

computers.

Ready PC: In Scan mode, scans through all power-on computers.

Eye only: In Scan mode, scans through any Eye-selected computer regardless of power

status.

The non-volatile memory stores the Scan Type setting.

Scan Rate

Sets the duration of a computer displayed in Auto Scan mode. The options are 3

seconds, 8 seconds,15 seconds and 30 seconds. The non-volatile memory stores the

Scan Rate setting.

Keyboard Speed

StarView oers a keyboard typematic setting that overrides the typematic settings in

the BIOS and Windows operating system. Available speed options are Low, Middle, Fast

and Faster as 10, 15, 20 and 30 characters/sec respectively. The non-volatile memory

stores the Keyboard Speed setting.

Hotkey Menu

When you hit the left <CTRL> key twice within two seconds, the Hotkey Menu appears

displaying a list of hot-key commands if the option is On. The Hotkey Menu can be

turned O if you prefer not to see it when the left <CTRL> key is hit twice. The non-

volatile memory stores the Hotkey Menu setting.

CH Display

Auto O: After you select a computer, the channel address and name of the computer

will appear on the screen for 3 seconds then disappear automatically. Always On: The

channel address and name of a selected computer and/or OSD status displayed on the

screen all the time. The non-volatile memory stores the CH Display setting.

Position

You can choose where the selected computer name and/or OSD status is displayed on

your screen during operation. The actual display position shifts due to dierent VGA

resolution, the higher the resolution the higher the display position. The non-volatile

memory stores the Position setting.

UL as Upper Left UR as Upper Right

LL as Lower Left LR as Lower Right

MI as Middle

Instruction Manual

Country Code for Sun (SV831HD, SV1631HD only)

Sun keyboards of dierent languages have dierent layouts. This KVM switch can

emulate a Sun keyboard for a specic language type (or country). Select the proper

country code that matches all your Sun computers.

Function Key <F5> (SV831HD, SV1631HD only)

Switches the Sun mark on or o. The Sun mark indicates that the port is connected to a Sun server. First, use

the <UP> and <DOWN> arrow keys to highlight the device, then press <F5> to switch its Sun mark on or o.

When a Sun-marked port is selected, the KVM will translate the keys from a PS/2 keyboard to a Sun keyboard.

For more information see Keyboard Mapping on page 10.

ESC: To exit the OSD, press the <ESCAPE> key

Hot Key Commands

A hot key command is a short keyboard sequence to select a computer, activate

a computer scan, etc. A hot-key sequence starts with two Left Control keystrokes

followed by one or two more keystrokes. A built-in buzzer generates a high-pitched

beep for correct hot-key sequences and a low-pitched beep for errors or bad key

combinations that will not be carried out.

The short form hot-key menu can be turned on as an OSD function (<F4>: More\

Hotkey Menu) every time the left <CTRL> key is pressed twice.

• Left Ctrl refers to the <CTRL> key located at the left side of the keyboard.

• 1~8/A~H refer to the number keys 1 to 8 at the upper row of the keyboard (Do

not use the keypad atthe right of the keyboard) and character keys A to H (case

insensitive).

Selecting a Computer

To select a computer by hot-key command you need to know the device’s channel

address, which is determined by the StarView connection.

For a computer connected to a Master KVM, the address is represented by the PC

port number (1~8 or A~H). For example, to access the PC plugged into port 7 of the

Master KVM switch, type:

left Ctrl + left Ctrl + 7

For a computer connected to a Slave KVM, you need to know the channel address of

the Slave unit (1~8) and then the channel address of the device (1~8 or A~H). (Please

note that only Master’s PC 1 to PC 8 ports can be connected to a Slave.) For example, to

access the computer plugged into port C of the Slave KVM Switch that is plugged into

Port 6 of the Master KVM, type:

left Ctrl + left Ctrl + 6 + C

Otros manuales para SV831HD

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de StarTech.com

StarTech.com

StarTech.com ST4202USB Manual de usuario

StarTech.com

StarTech.com ST4200USBM Manual de usuario

StarTech.com

StarTech.com StarView SV231 Manual de usuario

StarTech.com

StarTech.com SV431DHD4KU Manual de usuario

StarTech.com

StarTech.com VS221HD2VGA Manual de usuario

StarTech.com

StarTech.com VS721MULTI Manual de usuario

StarTech.com

StarTech.com 8STMSTCDP123DP Manual de usuario

StarTech.com

StarTech.com SV441DUSBI Manual de usuario

StarTech.com

StarTech.com DisplayPort SV231QDPU34K Manual de usuario

StarTech.com

StarTech.com SV231HDMIUA Manual de usuario

StarTech.com

StarTech.com SV431HDU3A2 Manual de usuario

StarTech.com

StarTech.com 8STMSTMDP123HD Manual de usuario

StarTech.com

StarTech.com ST4202USB Manual del sistema

StarTech.com

StarTech.com STARVIEW SV1631DUSB Manual de usuario

StarTech.com

StarTech.com P2DD46A22-KVM-SWITCH Manual de usuario

StarTech.com

StarTech.com CPNT410IR Manual de usuario

StarTech.com

StarTech.com 5G16AINDS-USB-A-HUB Manual de usuario

StarTech.com

StarTech.com ICUSB2324I Manual de usuario

StarTech.com

StarTech.com 5G7AINDRM-USB-A-HUB Manual de usuario

StarTech.com

StarTech.com ST3300U3S Instrucciones de instalación

StarTech.com

StarTech.com SV231HDMIUA Manual de usuario

StarTech.com

StarTech.com SV231DVIUA Manual de usuario

StarTech.com

StarTech.com CPNT410IR Manual de usuario

StarTech.com

StarTech.com 4PORT-8K-HDMI-SWITCH Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
