StarTech.com 8STIES51000POE Manual de usuario

Manual Revision: 04/13/2018

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IES51000POE

5 Port Gigabit Industrial Power over

Ethernet Switch with 4 PoE ports

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Overview ..................................................................................1

Front View................................................................................................1

Rear View...................................................................................................................................................... 1

LED Indicators............................................................................................................................................. 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

Installation ..............................................................................................3

Wall-Mounting ........................................................................................................................................... 3

Hardware Installation .............................................................................................................................. 3

Specications..........................................................................................4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Product Overview

Front View

Rear View

LED Indicators

LED Function

Power (1) Solid Green - power is on and normal

Uplink (1)

Solid Green – Connected at 1000Mbps

Solid Yellow – Connected at 100Mbps

Flashing Green - Ethernet Uplink activity at 1000Mbps

Flashing Yellow - Ethernet Uplink activity at 100Mbps

Flashing Yellow - Ethernet Uplink activity at 10M.

LAN (4)

Solid Green – Connected at 1000Mbps

Solid Yellow – Connected at 100Mbps

Flashing Green - Ethernet activity at 1000Mbps

Flashing Yellow - Ethernet activity at 100Mbps

Flashing Yellow - Ethernet activity at 10Mbps

PoE (4) Solid Green - Power over Ethernet function is enabled

OFF - PoE function is disabled, behaving as a regular LAN port

RJ45

RJ45DC Input

Instruction Manual

Introduction

The IES51000POE 5-Port Gigabit PoE Switch with 4 PSE ports lets you connect Gigabit

Ethernet and power to four PoE-enabled devices, or a mixture of PoE and

non-PoE components.

Packaging Contents

• 1 x Gigabit Ethernet PoE Switch

• 4 x Mounting Screws

• 1 x Set, Rubber Feet

• 1 x Universal Power Adapter

• 4 x Power Cords (NA / UK / EU / AU)

• 1 x Instruction Manual

Instruction Manual

Installation

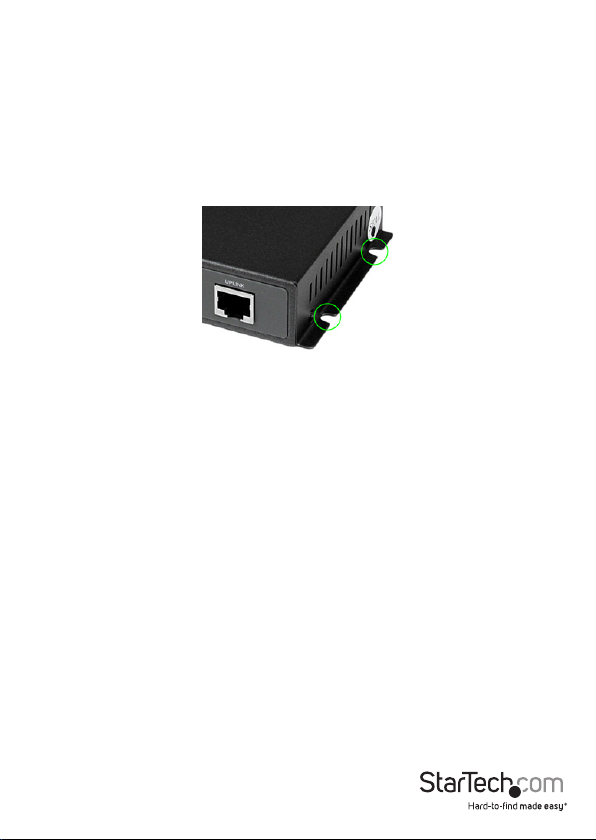

Wall-Mounting

The Network Switch is designed to sit on a at surface (such as a desktop) or mount to

a wall or similar surface. Skip to the Hardware Installation section below if you are not

wall-mounting the device.

1. Determine the desired location and orientation of the switch on the wall, and mark

both mounting notch location on one side of the integrated mounting bracket,

ensuring they are level.

2. Depending on the mounting surface, use the appropriate tools to install the

included screws into the wall, leaving a gap of approximately 2 mm between the

head of the screw and the wall surface.

3. Place switch back onto the wall with the mounting notches against the previously

installed screws and mark the location for the mounting notches on the opposite

side of the device.

4. With the switch in place on the wall, install the remaining two screws on the other

side so the device is held in place.

Hardware Installation

1. Plug one end of the universal power adapter into the DC connector on the side

panel of the Network Switch and the other end of the plug into an electrical outlet.

The Power LED on the front of the Switch should now be lit.

2. Connect a network cable to the Uplink port on the front panel of the switch, and

connect the other end of the cable into the RJ-45 port on your upstream switch or

router. The Uplink connection speed should auto-detect and the appropriate LEDs

will illuminate to show activity.

3. Connect your PoE or non-PoE devices to the remaining 4 ports on the rear panel

of the switch (e.g. computer, IP Phone, IP Camera, etc.). The switch will auto-detect

connection speed and whether PoE is required, and the appropriate LEDs will

illuminate and show activity.

Instruction Manual

Specications

Number of Ports 5 (4 POE)

Compatible Networks 10/100/1000 Mbps

Industry Standards

IEEE 802.3af Power Over Ethernet, IEEE

802.3 10BASE-T, IEEE 802.3u 100BASE-TX/

FX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x

PoE Output 48V DC, 15.4W (per-port)

Connectors 5 x RJ-45 Female

Maximum Data Transfer Rate 2 Gbps (Full-Duplex)

Switching Architecture Store-and-Forward

Buer Size 512 KB

Full Duples Yes

Auto MDIX Yes

Flow Control Half-duplex back-pressure and IEEE802.3x

full-duplex

Power Consumption 65W Max

Power Adapter 48V DC, 1.36A

Enclosure Material Steel

Operating Temperature 0°C to 50°C (32°F to 122°F)

Storage Temperature 0°C to 50°C (32°F to 122°F)

Humidity 10~90% RH (Non-Condensing)

Dimensions 130 x 90 x 28 mm

Weight 366g

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
