StarTech.com PCI330USB2 Manual de usuario

PCI USB 2.0 Card

PCI330USB2 Instruction Manual

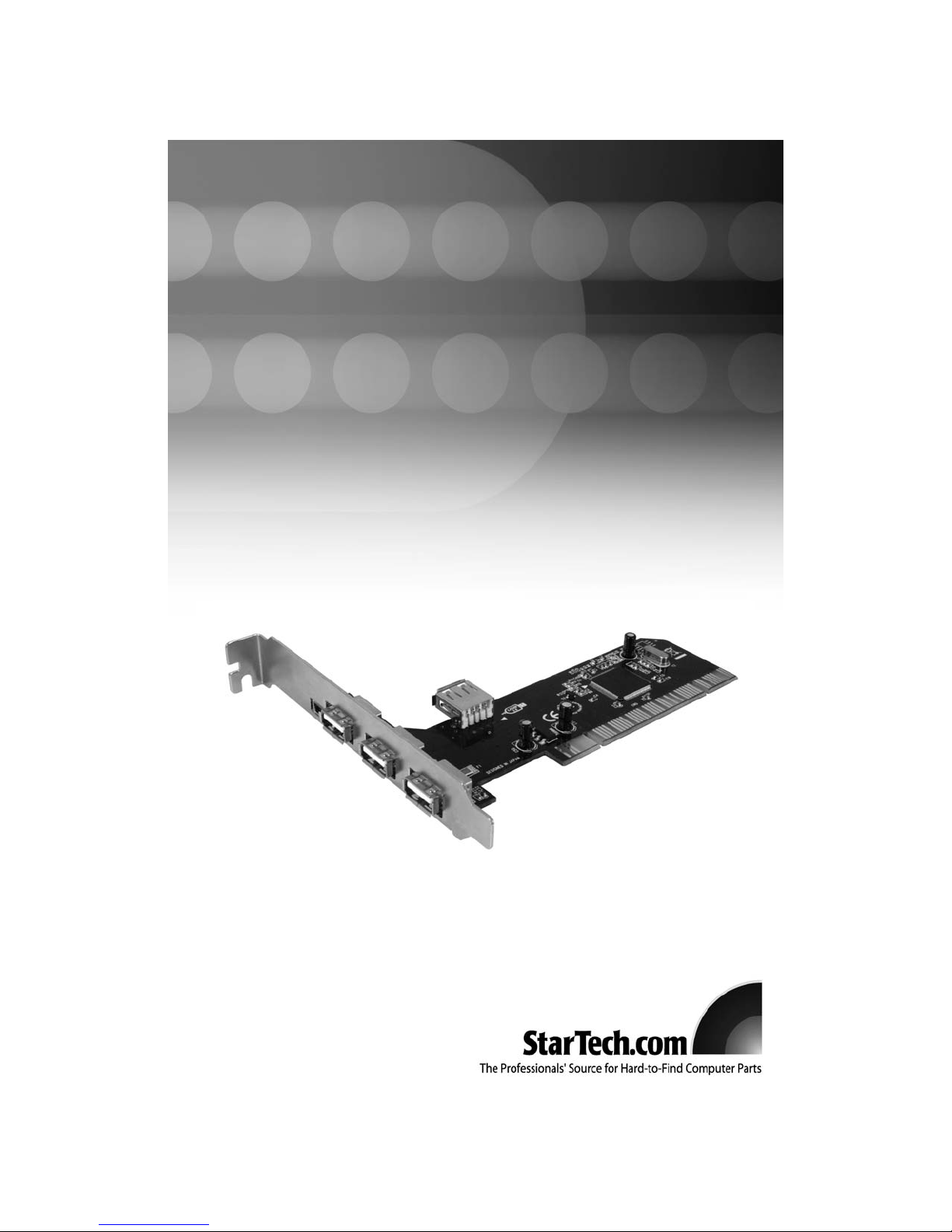

Actual product my vary from photo

3 Port PCI USB 2.0 Card

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Driver installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

To download Windows XP Service Pack 1 . . . . . . . . . . . . . . . . . . . . . .2

To download Windows 2000 Service Pack 4 . . . . . . . . . . . . . . . . . . . .3

Installing drivers in Windows ME/98SE/98 . . . . . . . . . . . . . . . . . . . . . .3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com 3 port PCI USB 2.0 card. This card allows you

to add 3 external USB 2.0 ports, in order to maximize the number of peripherals that can

be connected to your computer simultaneously using an available motherboard PCI slot.

FFeeaattuurreess

• Compliant with USB Specification Revision 2.0

• Maximum data transfer rate of 480Mbps

• Backwards compatible with USB 1.1 (12Mbps)

• Compliant with OHCI Specification for USB Rev 1.0a and 1.1

• Compliant with PCI Specification release 2.2

• Supports Win98SE, ME, 2000 & XP

BBeeffoorreeYYoouuBBeeggiinn

System Requirements

• Pentium class PC or higher with an available PCI slot

• USB peripherals

• USB cables

• CD-ROM/DVD-ROM (Required for Windows 98/98SE/ME driver installation)

Contents

This package should contain

• USB PCI card (1)

• Driver CD (1)

• Instruction manual (1)

Instruction Manual

IInnssttaallllaattiioonn

Hardware installation

1. Shut down all power connected to the computer, as well as all devices connected to

the computer peripherally (i.e. Printers, Monitors, Scanners etc.). Optional: As an

added step to ensure safe installation, unplug the power supply from the computer.

2. Remove the computer cover. For more detailed instruction on how to perform this

step, please refer to the documentation that was included with your computer at the

time of purchase.

3. Locate an empty PCI slot, removing the metal bracket covering the accompanying

empty port/socket.

4. Position the PCI USB card above the open PCI slot, ensuring that the card is aligned

with the entire slot. Insert the card firmly into the slot, distributing force evenly across

the length of the board. Once inserted, secure the card into the adjoining socket

(previously covered by metal bracket), using the correct size screw (please consult

documentation that accompanied purchase of computer).

5. Replace the computer cover.

6. If unplugged, plug computer and all peripherals back in to power source. Turn your

computer on.

7. Once the computer has fully booted, connect USB peripherals to the ports provided

(as necessary). If you are using Windows XP/2000, please ensure that your computer

has the most recent Service Packs installed. If the necessary updates have already

been installed, Windows will automatically detect that the PCI card has been installed,

and install the necessary drivers automatically.

If you are using Windows 98/98SE/ME, please see Driver Installation.

Driver installation

Please note that Microsoft EHCI drivers for Windows XP/2000 are not included with this

card. In order to acquire the necessary drivers, please ensure that you have installed

Windows XP Service Pack 1 or above (for Windows XP installations), or Windows 2000

Service Pack 4 or above (for Windows 2000). Once you have installed the appropriate

Service Pack on your system, Windows will automatically choose the correct driver for

your card.

To download Windows XP Service Pack 1:

1. Make sure you are connected to the Internet.

2. Click Start and select Windows Update.

3. Windows XP will launch Microsoft Internet Explorer and open the link to Microsoft

Windows Update. Please click on Scan for updates.

Instruction Manual

4. Microsoft Windows Update will list all available updates on the web. At Critical

Updates and Service Packs, select the most recent Service Pack available for

download.

5. Once The Service Pack is downloaded and installed into your system, you will need to

restart Windows before the Microsoft EHCI drivers are installed on your system.

To download Windows 2000 Service Pack 4:

1. Make sure you are connected to the Internet.

2. Click Start and select Windows Update.

3. Windows 2000 will launch Microsoft Internet Explorer and open the link to Microsoft

Windows Update. Please click on Scan for updates.

4. Click Review and install updates.

5. Scroll up and down the bottom screen to check the components that Microsoft

Windows has chosen for you to update. As these components are the most critical

components for your system, it is recommended that you install all of them

immediately. Windows 2000 Service Pack 4 should be included in the list if your

system has not been updated before. De-select any unnecessary downloads, and

choose Install now to start downloading.

6. Once Windows 2000 Service Pack 4 and any other components are installed, you will

be required to reboot your system before the EHCI drivers can be installed in your

system.

Installing drivers in Windows ME/98SE/98

1. Make sure the PCI USB card has been properly installed on your system.

2. If the controller card is installed correctly, a yellow exclamation mark will appear next to

one of the VIA Tech 3038 PCI to USB Universal Host Controller Item(s) under

Universal Serial Bus Controllers in Device Manager.

3. Insert the supplied Driver Installation CD into the CD-ROM drive.

4. Locate and execute the setup program by double-clicking on the SETUP.EXE file,

located in the D:\VIA\VT62X2 folder, of the Driver installation CD, assuming that your

CD-ROM drive is designated as the D:\ drive.

5. At the setup program, select Install USB Driver and press the Next button.

6. Follow the setup program instructions to finish installing the EHCI drivers. Once the

drivers are installed, you need to restart your Windows.

7. If you have installed the EHCI drivers correctly, the yellow exclamation mark next to the

item in Device Manager (described in step 2) will no longer be present, and the EHCI

driver will be added to Universal Serial Bus Controllers in Device Manager.

Instruction Manual

SSppeecciiffiiccaattiioonnss

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

ST4200USB

4 Port USB 2.0 Hub

ST7200USB

7 Port USB 2.0 Hub

ST4205USB

USB 2.0 4-port HUB

ST4205MINI

4 Port Mini USB 2.0 Hub

ST4205READ

3 Port USB 2.0 Hub with 16 in 1 Card Reader

Bus Type PCI 5V

Connectors 3 External USB Type A Female

1 internal USB Type A Female

Maximum Data Transfer Rate 480 Mbps

Chipset NEC Japan 0720102GC

OS Support Supports Windows 98SE / ME / 2000 / XP or later

Dimensions 127 x 120 x 20 mm

Net Wgt. 45g

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Rev: 16 October 2006 (Rev. A)

Tabla de contenidos

Otros manuales de Tarjeta PCI de StarTech.com

StarTech.com

StarTech.com PEXUSB312C2 Manual de usuario

StarTech.com

StarTech.com USB2HDCAPM Manual de usuario

StarTech.com

StarTech.com 8STPEXUSB3S44V Manual de usuario

StarTech.com

StarTech.com PLATEIDE2CF Manual de usuario

StarTech.com

StarTech.com PEX2S1P553B Manual de usuario

StarTech.com

StarTech.com PEX2EC35 Manual de usuario

StarTech.com

StarTech.com ECHDCAP Manual de usuario

StarTech.com

StarTech.com PEX1000SFP2 Manual de usuario

StarTech.com

StarTech.com PCI4S550N Manual de usuario

StarTech.com

StarTech.com PEX1000SFP2 Manual de usuario

StarTech.com

StarTech.com PEXUSB312C3 Manual de usuario

StarTech.com

StarTech.com ST1000BT32 Manual de usuario

StarTech.com

StarTech.com PEXSATA22 Manual de usuario

StarTech.com

StarTech.com PEX1394B3LP Manual de usuario

StarTech.com

StarTech.com PEXUSB311AC2 Manual de usuario

StarTech.com

StarTech.com PEXUSB312C3 Manual de usuario

StarTech.com

StarTech.com PEX1S1PMINI Manual de usuario

StarTech.com

StarTech.com PEXUSB3S2 Manual de usuario

StarTech.com

StarTech.com PEXSATA24E Manual de usuario

StarTech.com

StarTech.com PCI2S232485I Manual de usuario

StarTech.com

StarTech.com CB1S485 Manual de usuario

StarTech.com

StarTech.com PEXUSB3S7 Manual de usuario

StarTech.com

StarTech.com PEXUSB3S25 Manual de usuario

StarTech.com

StarTech.com PCI1394_2 Manual de usuario

Manuales populares de Tarjeta PCI de otras marcas

ERMA

ERMA SSI 1417 Manual de usuario

SIIG

SIIG CyberSerial Dual PCI Instrucciones de montaje

Moxa Technologies

Moxa Technologies CP-102E Manual de usuario

I-Bus

I-Bus IBC2602 Manual de usuario

Exsys

Exsys EX-60102 Manual de usuario

Chelsio Communications

Chelsio Communications T5 Series Manual de usuario

Conrad Electronic

Conrad Electronic 97 46 71 Manual de usuario

Micro Innovations

Micro Innovations USB650A Manual de usuario

KTI Networks

KTI Networks KF-310 Manual de usuario

Asus

Asus SpaceLink WL230 Manual de usuario

SIIG

SIIG SC2475 Manual de usuario

TRENDnet

TRENDnet TEW-703PI Manual de usuario

Belkin

Belkin F5D7000F Manual de usuario

Pericom

Pericom PI7C7100 Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-3548 Manual de usuario

Digium

Digium TE200 Series Manual de usuario

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manual de usuario

Western Digital

Western Digital FireWire PCI Adapter Manual de usuario
