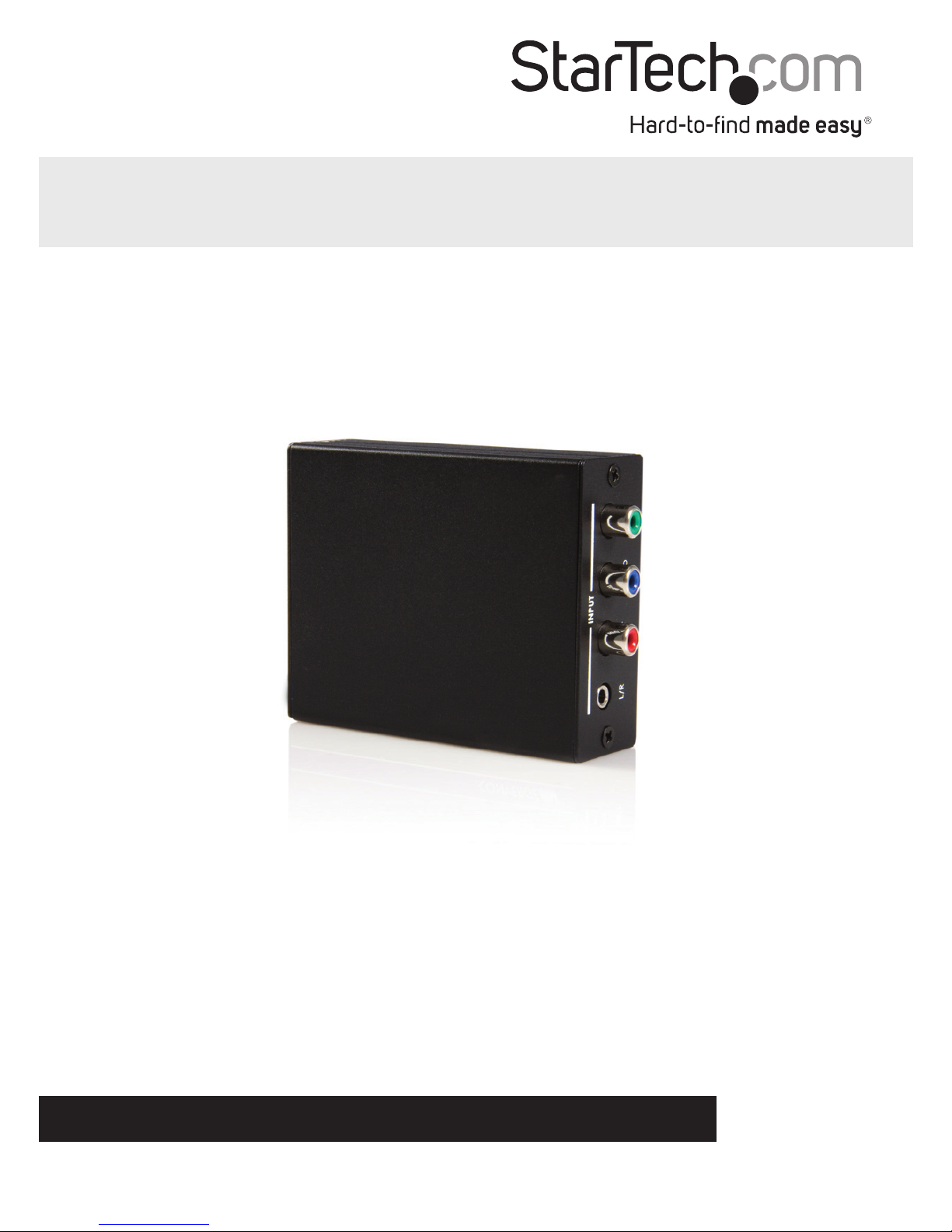

CPNTA2HDMI

Component to HDMI® Video Converter with

Audio

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

Hardware Guide .....................................................................................2

Front Panel................................................................................................................................................... 2

Rear Panel .................................................................................................................................................... 2

Specications..........................................................................................3

Installation & Connection .....................................................................4

To Front Panel............................................................................................................................................. 4

To Rear Panel............................................................................................................................................... 4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Converge AV Component with Audio to

HDMI Format Converter. This innovative device oers a simple, cost-eective way to

convert analog component video (YPbPr and YCbCr) and audio (digital or analog) to

HDMI, with support for resolutions of up to 1080p, and 5.1 channel audio.

Features

• Compliant with HDMI 1.2/HDCP 1.1/DVI 1.0

• Supports a maximum resolution of 1080p

• Supports digital and analog audio input

• Supports stand and high denition video output

Package Contents

• 3’ RCA Cable1 x Power Adapter

• Power Adapter

• RCA plus Audio to HDMI Converter

• Instruction Manual

Instruction Manual

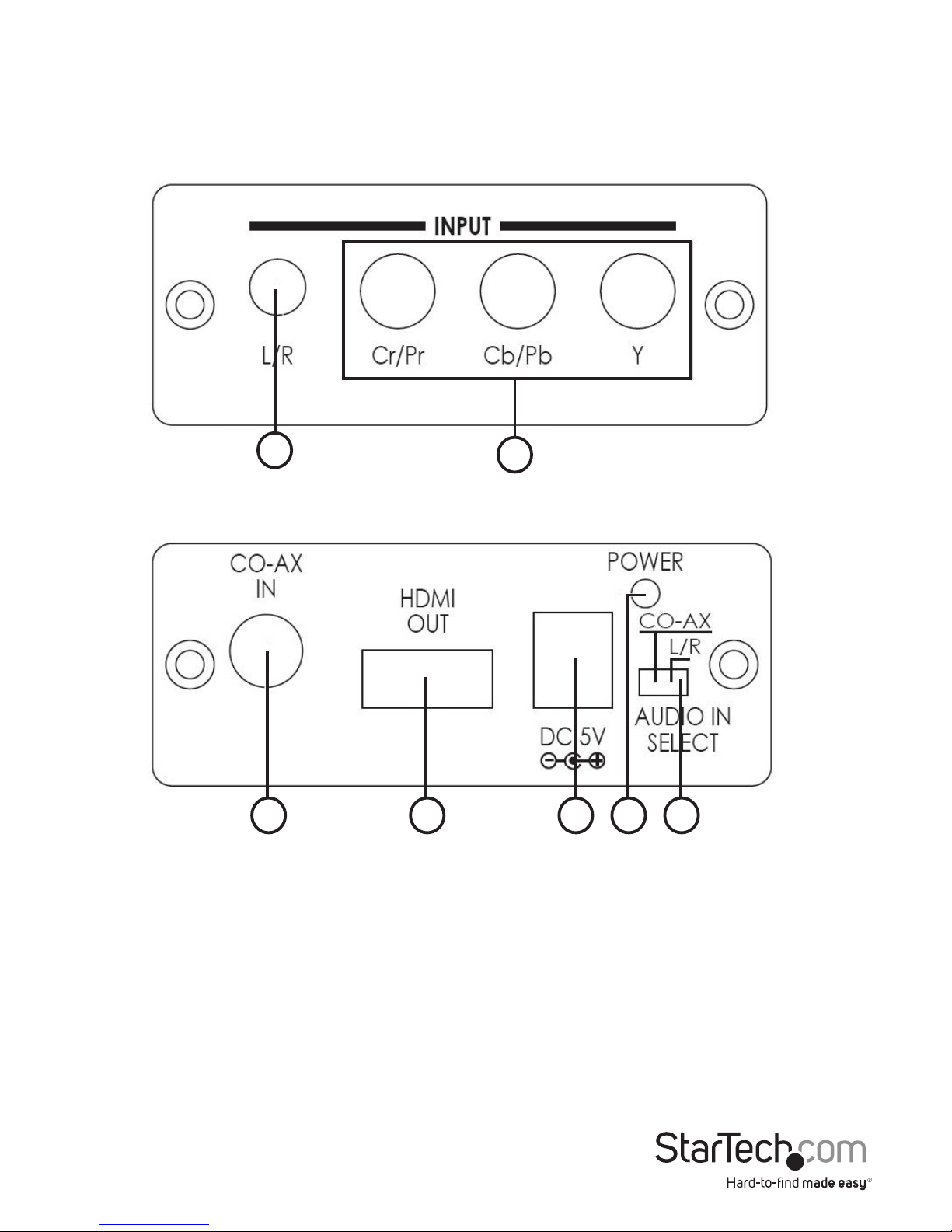

Hardware Guide

Front Panel

Rear Panel

1. L/R Audio Input:

Connect the L/R audio input port to the audio output port of the device

you wish to connect (e.g. DVD Player, Set Top Box, etc.)

2. YPbPr/YCbCr Input:

Connect the YPbPr/YCbCr input (3 RCA) ports to the video output

ports of the device you wish to connect (e.g. DVD Player, Set Top Box)

3 4 5 6 7

Instruction Manual

3. CO-AX Input:

Connect the CO-AX IN (coaxial audio input) port to the audio output

port of the device you wish to connect (e.g. DVD Player, Set Top Box)

using coaxial cable.

4. HDMI Output:

Connect the HDMI OUT (output) port to the HDMI input of an HDMI

display.

5. Power:

Plug the 5VDC power supply into the unit and connect the adapter to

AC wall outlet.

6. POWER LED Indicator:

The LED will illuminate when the power is connected.

7. AUDIO IN Selection:

Select the AUDIO IN (input) source between L/R and Coax inputs.

Specications

DVI Version DVI 1.0

HDCP HDCP 1.1

HDMI Version HDMI 1.2

Maximum Resolution 1080p @ 60Hz

Power 5V DC

Input Connectors

1 x 3.5mm analog audio (two channel)

1 x Digital Coax Audio

3 x Component RCA (YPbPr/YCbCr)

Output Connectors 1 x HDMI Connector

Instruction Manual

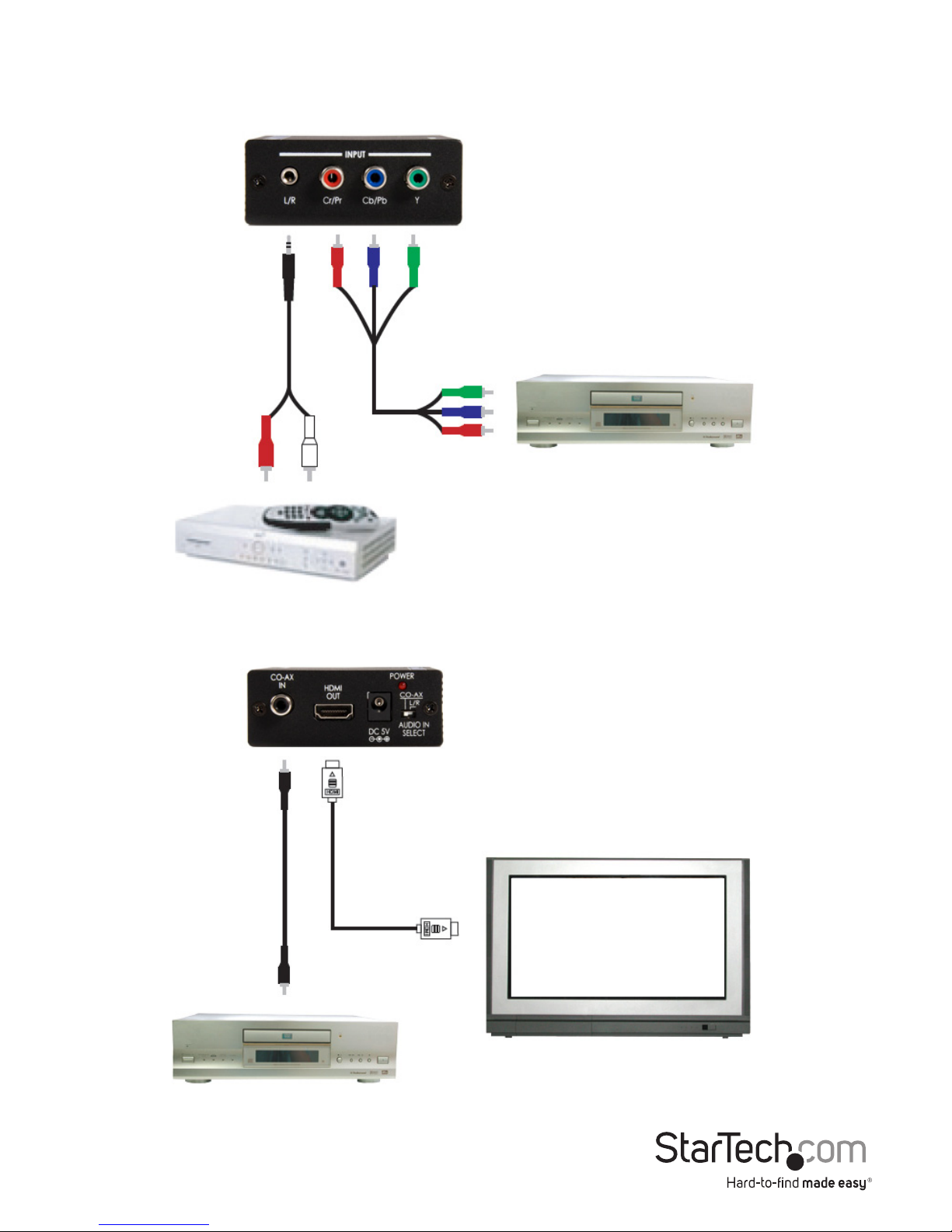

Installation & Connection

L/R

Audio

Cable

RCA Cable

Coaxial

Cable

HDMI

Cable

HD Display

DVD Player etc.

Set Top Box

To Front Panel

To Rear Panel

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
