2.5in Tool-less USB 2.0 to IDE SATA Hard

Drive Enclosure

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation ...................................................................................................................................... 4

Using the Storage Device ......................................................................4

Specications ..........................................................................................6

Technical Support ..................................................................................7

Warranty Information ............................................................................7

Instruction Manual

Introduction

The StarTech.com hybrid 2.5” USB 2.0 to IDE/SATA Hard Drive Enclosure lets you turn

almost any 2.5” laptop hard drive into a portable storage device. Compatible with

both IDE or SATA (1.5/3.0Gbps) hard drives, the enclosure oers a cost-eective and

convenient choice for a variety of uses including data backups, extra data storage, or

simply putting an “outdated” drive to good use.

Packaging Contents

• UNI2510U2V enclosure

• USB 2.0 split “Y” cable

• Software Installation CD

• Instruction Manual

System Requirements

• 2.5” IDE or SATA 1.5/3.0Gbps hard drive

• USB enabled computer system

• Microsoft® Windows® 2000/XP/Server 2003/Vista/7/Server 2008 (32/64-bit), or

Apple® Mac OS® 9.2 or later, or Linux®

Instruction Manual

Installation

WARNING: Hard drives require careful handling, especially when being transported. If

you are not careful with your hard disk, lost data may result. Always handle your hard

drive and storage device with caution.

Hardware Installation

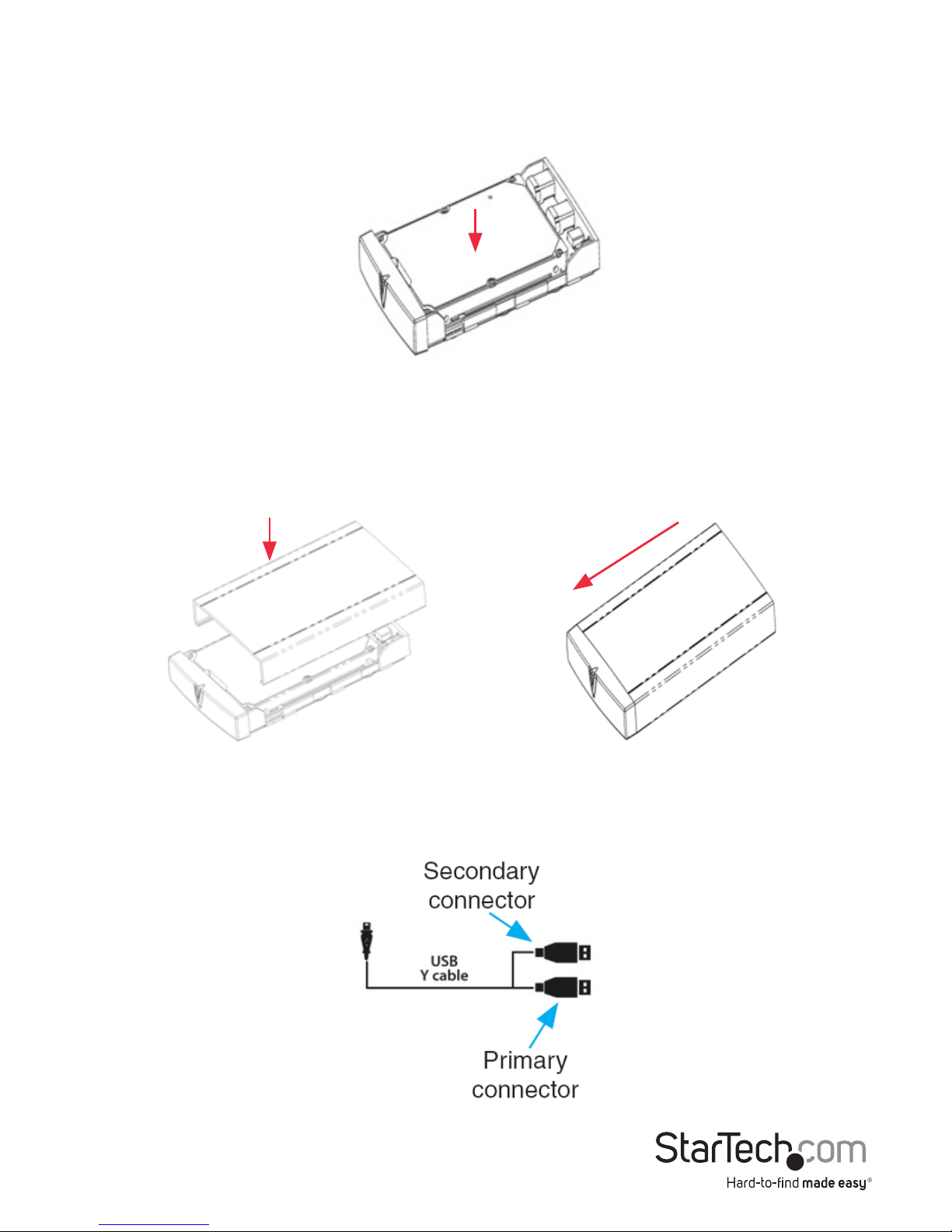

1. Slide the latch on the bottom of the enclosure to release the top cover.

2. Slide the top cover of the enclosure towards the rear.

Remove the top cover by lifting it up o the bottom portion of the enclosure (drive tray).

Instruction Manual

4. Place the 2.5” hard drive into the drive tray and slide it into the connector rmly. If

using an IDE hard drive, the connector is located towards the front of the drive tray,

while the SATA drive connectors are located towards the rear of the drive tray.

5. Place the top cover of the enclosure back onto the drive tray. Slide the top cover

towards the front of the enclosure and lock into place by sliding the latch on the

bottom to the lock position.

6. Connect the USB “Y” cable from the enclosure into the host computer system. Make

sure at least the Primary connector is plugged into the computer. If the drive does

not seem to get enough power, plug in the Secondary connector as well.

Instruction Manual

Driver Installation

Windows 2000/XP/Vista/7, Mac OS 9.2+, and Linux

No driver installation is required for these operating systems, as this enclosure is

natively supported, so the drivers are already installed.

Using the Storage Device

Windows 2000/XP/Server 2003/Vista/7/Server 2008

If you are using a brand new hard drive that does not contain any data, then you will

rst need to prepare the hard drive for use. From the main desktop, right-click on

“My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer

Management window, select Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the

correct hard drive) and then right-click in the section that says “Unallocated” and select

“New Partition”.

Instruction Manual

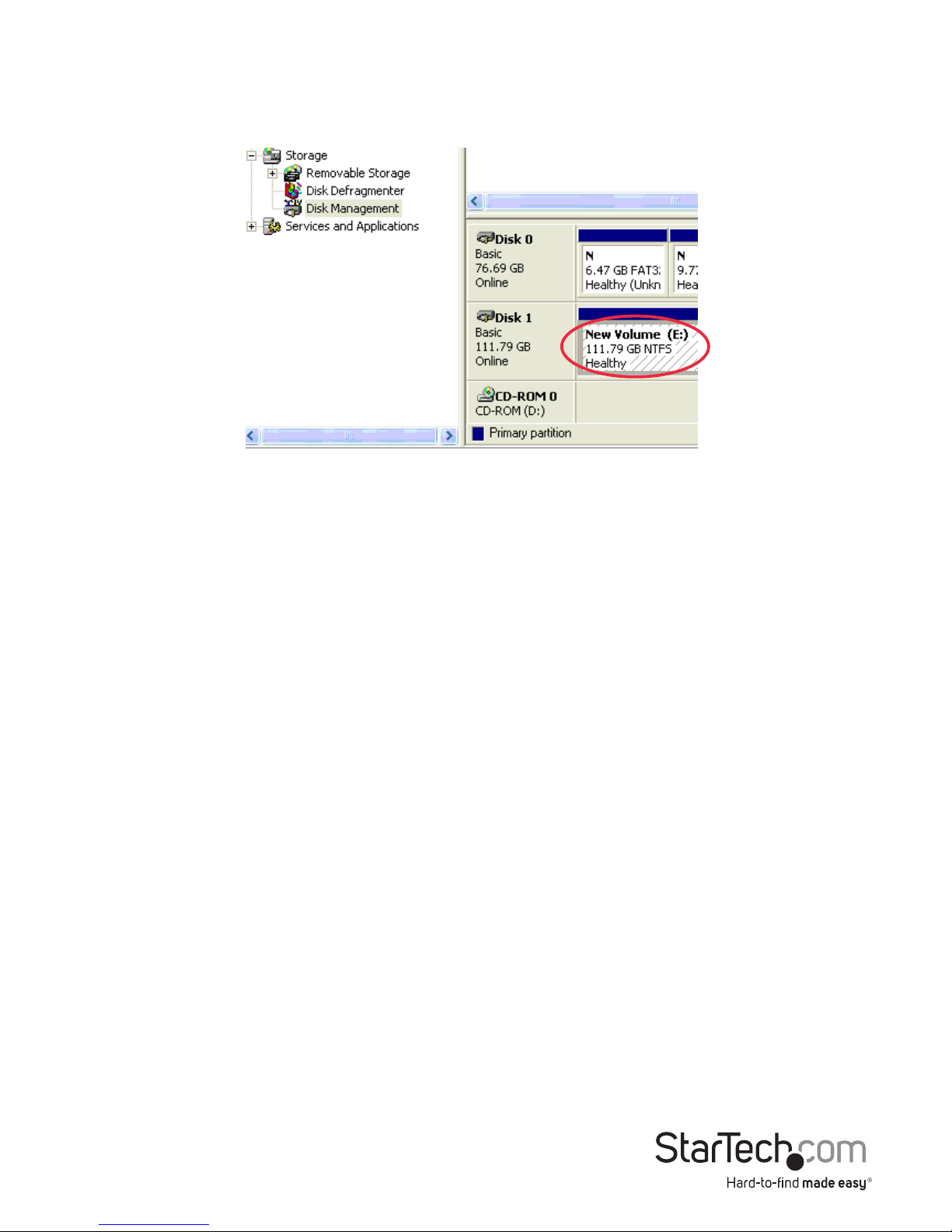

The New Partition Wizard will appear. Follow the instructions in the wizard to complete

setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive

letter assigned (i.e. E:). This drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the

drive should automatically show up with a drive letter assigned within My Computer.

Instruction Manual

Specications

Bus Interface USB 2.0

Connectors 1 x USB mini-B

Chipset ID JMicron JM20337

LEDs 1 x Power/Activity

Maximum Data Transfer Rate USB 2.0: 480Mbps

Compatible Hard Drives 2.5” EIDE or SATA 1.5/3.0Gbps, 9.5mm height

Power Adapter N/A

Dimensions 133.0mm x 78.0mm x 19.0mm

Weight 130g

Compatible Operating Systems

Windows 2000/XP/Server 2003/Vista/7/Server

2008 (32/64-bit), Mac OS 9.2 or later, Linux
