SAT2MSAT25

2.5” SATA to mSATA Solid State Drive

Enclosure/Adapter

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation...................................................................................................................................... 3

Using the Storage Device......................................................................4

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

The SAT2MSAT25 mSATA to 2.5in SATA Solid State Drive Converter turns an mSATA

(Mini SATA) mini SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA

drive can be used.

Featuring all of the standard mounting points that a normal 2.5in hard drive uses,

the converter can be installed into enclosures, hard drive docks or into desktop and

laptop computers. The unique design facilitates seamless data pass-through with no

conversion bottlenecks, enabling the mSATA drive to work as fast as it’s allowed by the

host system/interface.

Packaging Contents

• 1 x mSATA Adapter/Enclosure

• 2 x Mounting Screw

• 1 x Instruction Manual

System Requirements

• Full length mSATA (Mini SATA) Solid State Drive

Instruction Manual

Installation

WARNING! Hard drives and storage enclosures require careful handling,

especially when being transported. If you are not careful with your hard disk,

lost data may result. Always handle your hard drive and storage device with

caution. Be sure that you are properly grounded by wearing an anti-static

strap when handling computer components or discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such

as the computer case) for several seconds.

Hardware Installation

1. Open the enclosure casing by removing the four small screws on the bottom side

and removing the bottom panel.

2. Insert the mSATA drive into the slot connector at an angle. Make sure to properly

line up the notch in the slot connector with the notch on the mSATA drive

connector.

3. Once the mSATA drive is fully inserted into the slot, push the drive back against

*photos/screenshots are for reference only

Instruction Manual

the adapter board. Fasten the mSATA drive to the board with the small mounting

screws provided. Make sure not to over-tighten the screws, or you may damage the

mSATA drive.

4. Place the panel back on the enclosure and replace the 4 screws.

Driver Installation

No driver or software installation is required.

Instruction Manual

Using the Storage Device

Windows 2000/XP/Vista/7

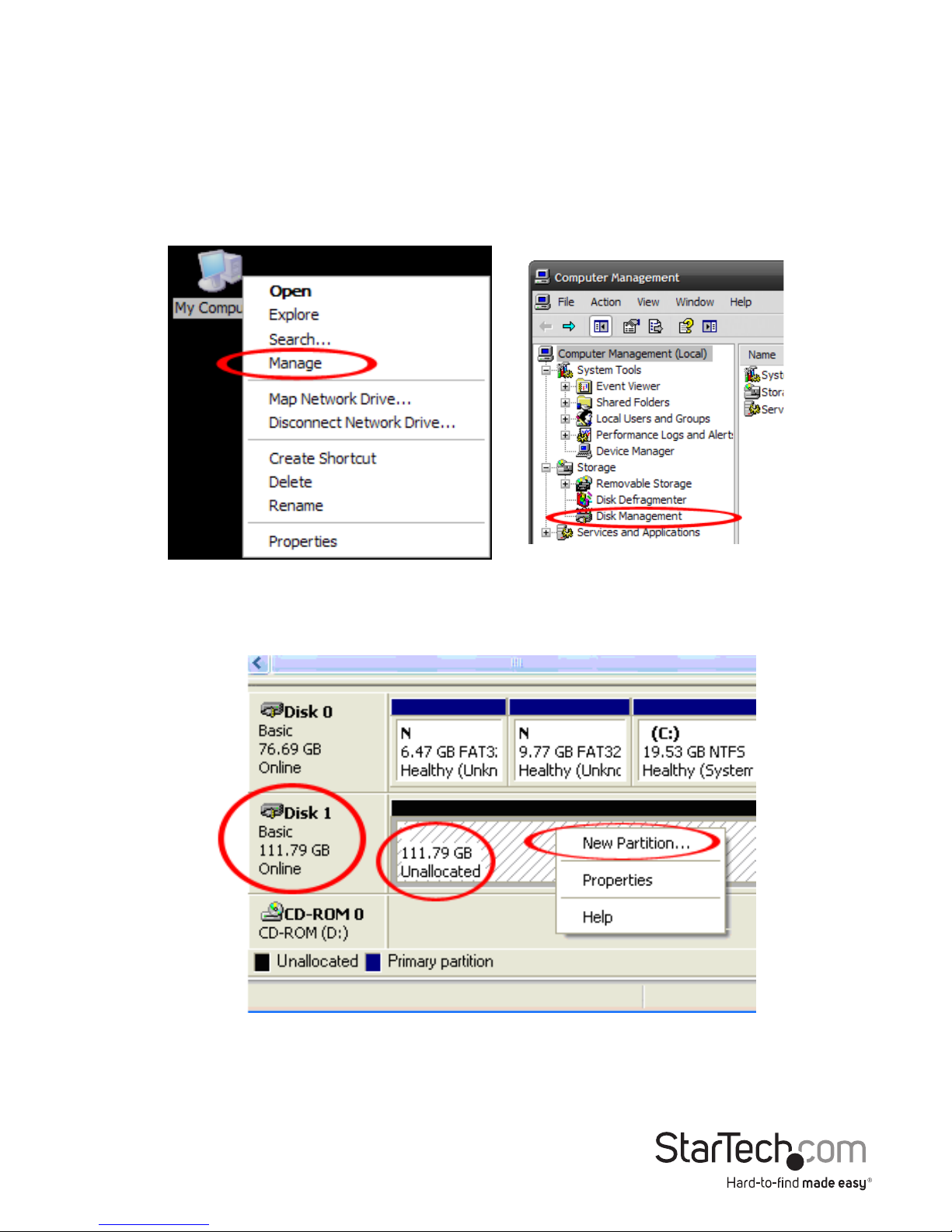

If you are using a brand new hard drive that does not contain any data, then you will

rst need to prepare the hard drive for use. From the main desktop, right-click on

“My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer

Management window, select Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the

correct hard drive) and then right-click in the section that says“Unallocated” and select

“New Partition”.

Instruction Manual

The New Partition Wizard will appear. Follow the instructions in the wizard to

complete setting up the drive. Once complete, the Disk should show up as “Healthy”

with a drive letter assigned (i.e. E:). This drive letter should now appear within My

Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the

drive should automatically show up with a drive letter assigned within My Computer.

Instruction Manual

Specications

Number of Drive Bays 1

Host Interface SATA

External Connectors 1 x 22-pin SATA Data + Power male

Internal Connectors 1 x 52-pin mSATA female

LEDs N/A

Compatible Drives 52-pin Full Length mSATA (Mini SATA)

Solid State Drive

Enclosure Material Aluminum, Plastic

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -10°C ~ 85°C (14°F ~ 185°F)

Humidity 5% ~ 95% RH

Dimensions (LxWxH) 98.0mm x 68.0mm x 9.8mm

Weight 50g

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
