StarTech.com SAT2510BU3 Manual de usuario

SATA Hard Drive Enclosure

2.5” SuperSpeed USB 3.0 to

SATA Hard Drive Enclosure

SAT2510BU3

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do

not represent an endorsement of a product or service by StarTech.com, or an endorsement

of the product(s) to which this manual applies by the third-party company in question.

Regardless of any direct acknowledgement elsewhere in the body of this document,

StarTech.com hereby acknowledges that all trademarks, registered trademarks, service

marks, and other protected names and/or symbols contained in this manual and related

documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Driver Installation.........................................................................3

Verifying Installation.....................................................................3

Using the Enclosure ....................................................... 4

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

This StarTech.com SuperSpeed USB 3.0 2.5” enclosure lets you connect

a standard 2.5” SATA hard drive through USB 3.0. Supporting data

transfer rates of up to 5 Gbps, this external HDD enclosure delivers

access to ﬁles at lightning fast speeds - 10x that of USB 2.0, and 60%

faster than eSATA (SATA revision 2). Backward compatible with USB

revisions 2.0 and 1.1 at speeds of 480Mbps and 12 Mbps respectively,

so the enclosure can be used with older systems that don’t support the

newest USB standard.

Packaging Contents

1 x SAT2510BU3 enclosure•

1 x USB 3.0 micro-B to A “Y” cable•

1 x Package of screws•

1 x Screw Driver•

1 x Carrying Pouch•

1 x Instruction Manual•

System Requirements

USB enabled computer system with available port•

2.5” SATA hard drive (9.5mm height only) with 7+15 SATA connector•

Microsoft• ®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit), or Apple®Mac OS®10.5/10.6, or Linux®

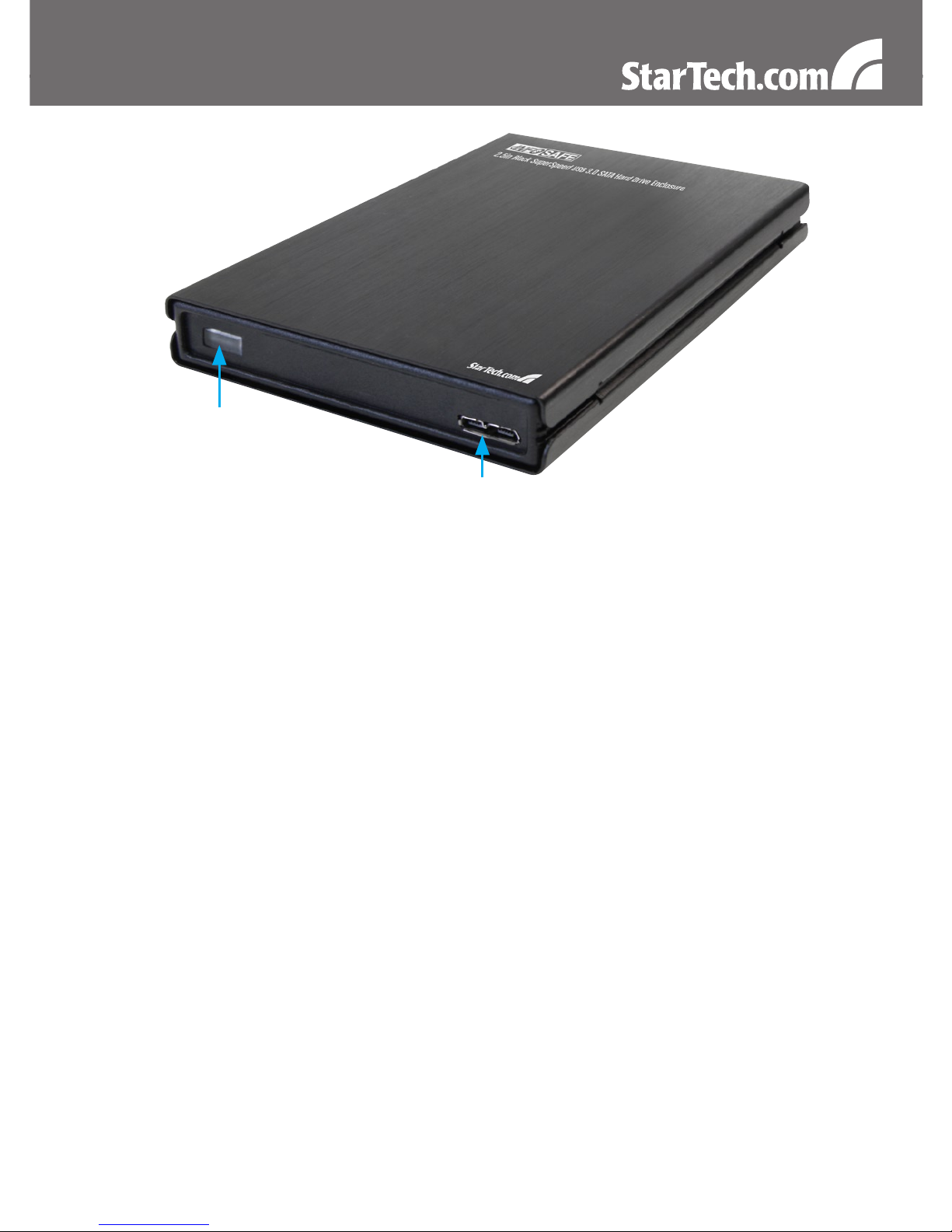

USB 3.0 micro-B

connector

Power/Activity

LED

Installation

WARNING: Hard drives require careful handling, especially when being

transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution.

Hardware Installation

Slide both the top and bottom covers of the enclosure off to reveal the1.

plastic frame of the enclosure.

Place a 2.5” SATA hard drive into the tray by angling the hard drive2.

towards the SATA hard drive connector on the circuit board. Slide the

hard drive into the connector and then lower the opposite end into the

tray.

Using the provided screws, fasten the hard drive to the frame of the3.

enclosure from the bottom side.

Place both the top and bottom covers back onto the enclosure, making4.

sure to line up the screw holes on the covers with the screw holes on

the side of the enclosure. Use the provided screws to fasten the covers

to the frame.

Using the provided USB 3.0 micro-B cable, connect the enclosure to5.

an available USB port on the computer system. This cable can be

connected to any type of USB type A port, not just USB 3.0 ports.

NOTE: A USB 2.0 micro-B cable can also be substituted for the USB3.0

cable, but will not allow for USB 3.0 speeds, if connected to a USB 3.0

port.

NOTE: Only the Primary connector is required

to be plugged into the computer system. The

Secondary connector may be required if the hard

drive cannot draw enough power from a single

port (i.e. USB 2.0 ports).

Driver Installation

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Verifying Installation

Windows 2000/XP/Server 2003/Vista/7

From the main desktop, right-click on “My Computer” (“Computer” in

Vista/7), then select Manage. In the new Computer Management window,

select Device Manager from the left window panel.

Double-click on the “Disk Drives” option. A new disk drive should be listed

under this category. It will typically contain the make/model of the hard

drive you have installed in the enclosure.

Using the Enclosure

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the main

desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Disk

Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to

conﬁrm it’s the correct hard drive) and then right-click in the section that

says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk should

show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter

should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB revision 3.0

Chipset ID ASMedia ASM1051

Connectors 1 x USB3.0 micro-B

LEDs 1 x Power/Activity

Compatible Hard Drives 2.5” SATA hard disk/solid state

drives, 9.5mm height

Maximum Data Transfer Rate USB 3.0: 5Gbps

Power Adapter None

Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)

Humidity 10 ~ 90% RH

Dimensions 113.0mm x 76.0mm x 14.0mm

Weight 63.5g

Compatible Operating

Systems

Windows 2000/XP/Server 2003/

Vista/Server 2008 R2/7 (32/64-

bit), Mac OS 10.5/10.6, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access our

comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial date

of purchase. During this period, the products may be returned for repair,

or replacement with equivalent products at our discretion. The warranty

covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration,

or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.
