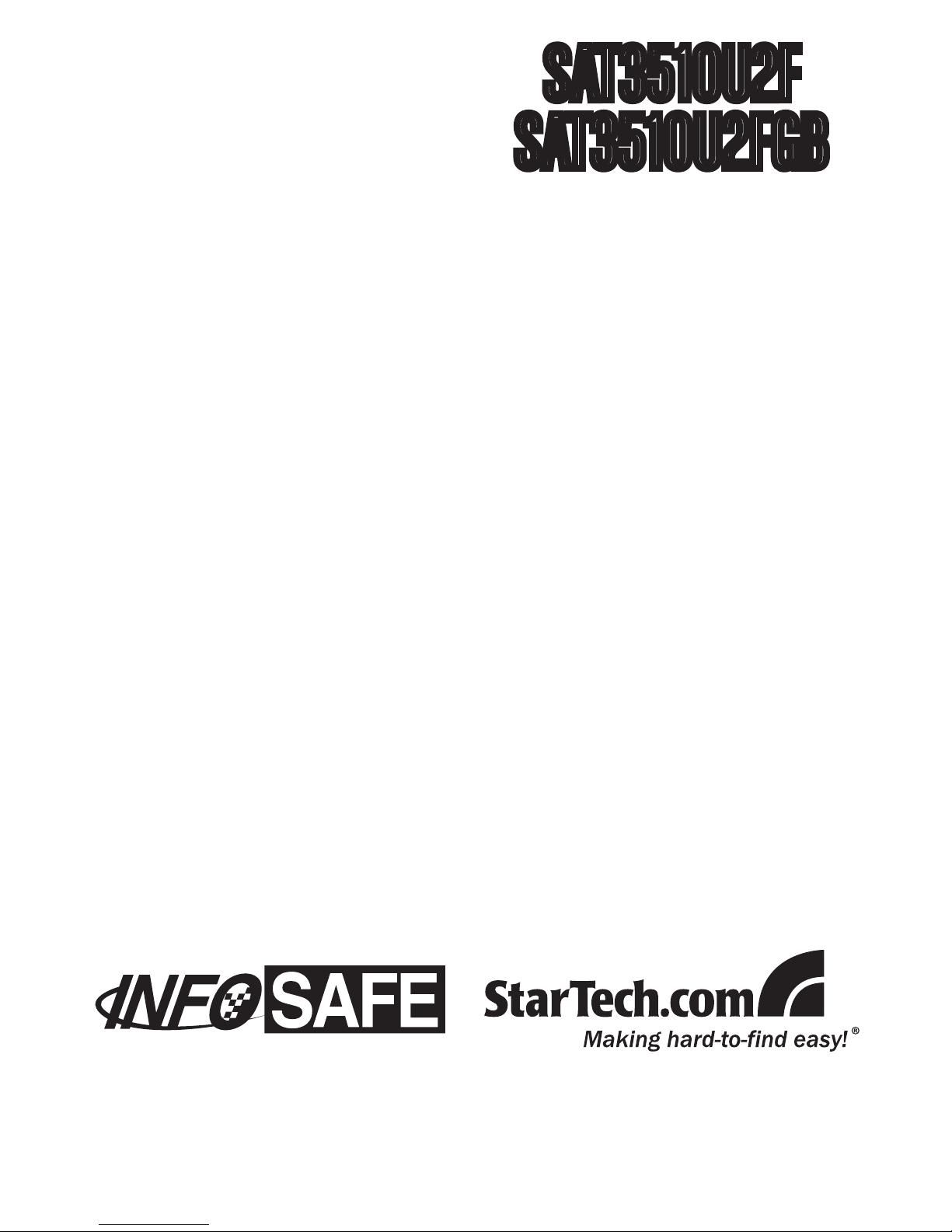

StarTech.com SAT3510U2F Manual de usuario

SATA Hard Drive Enclosure

3.5” USB, FireWire to SATA

External Hard Drive Enclosure

SAT3510U2F

SAT3510U2FGB

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Driver Installation.........................................................................3

Using the Enclosure ....................................................... 3

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

The SAT3510U2F External Hard Drive Enclosure supports both

USB 2.0 and FireWire 400 (IEEE1394a) host connections in a slim,

lightweight aluminum design.

Packaging Contents

1 x SAT3510U2F/GB hard drive enclosure•

1 x USB A-B cable•

1 x 6-pin FireWire cable•

1 x Power Adapter•

1 x Screw kit•

1 x User Manual•

System Requirements

USB and/or FireWire enabled computer system with available port•

Microsoft Windows• ®2000/XP/Vista/7, Mac OS®9.2/10.x, or

Linux®

Installation

WARNING: Hard drives require careful handling, especially when be-

ing transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution.

Hardware Installation

Remove the two small screws from either side of the rear panel of1.

the enclosure and then remove the rear panel bezel. The drive tray

should now slide out from the front side.

Place a 3.5” SATA hard drive into the drive tray and then slide it into2.

the 7+15 SATA connector on the rear panel.

Fasten the hard drive to the drive tray from the sides with the3.

supplied hard drive screws.

Hard Drive Screws

Retaining Screws

Slide the hard drive tray back into the enclosure and place the reawr4.

panel bezel over the rear panel. Fasten the two side screws for the

rear panel bezel.

Connect the power adapter from the enclosure to an available power5.

outlet and then turn the enclosure on, via switch on the rear panel.

Connect the enclosure to the host computer system via FireWire or6.

USB cable.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS 9.2/10.x, or Linux/Unix

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Retaining Screws

Using the Enclosure

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the

main desktop, right-click on “My Computer” (“Computer” in Vista), then

select Manage. In the new Computer Management window, select Disk

Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity

to conﬁrm it’s the correct hard drive) and then right-click in the section

that says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk

should show up as “Healthy” with a drive letter assigned (ie. E:). This

drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB 2.0

FireWire400 (IEEE1394a)

Connectors

1 x USB type B

2 x 6-pin FireWire

1 x DC power connector

LEDs 1 x Power/Activity

Chipset Oxford OXUF934SSA

Hard Drive Support 3.5” SATA 1.5/3.0Gbps,

up to 2TB in capacity

Maximum Data Transfer Rate USB: 480Mb/s

FireWire: 400Mb/s

Power Adapter 12VDC, 2A, center positive,

type N plug

Dimensions 208.0mm x 118.0mm x 30.0mm

Weight 400g

Compatible Operating

Systems

Windows 2000/XP/Vista/7,

Mac OS 9.2/10.x, Linux/Unix

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.
