StarTech.com InfoSafe UNI3510U2E Manual de usuario

3.5” External Hard Drive

Enclosure

3.5” eSATA/USB 2.0 to IDE/SATA

External Hard Drive Enclosure

with One-Touch Backup

UNI3510U2E / UNI3510U2EGB

UNI3510U2EB / UNI3510UEBGB

Instruction Manual

Manual Revision:06/17/2010

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Hardware Guide............................................................... 2

Front Panel ..................................................................................2

Rear Panel...................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................4

Software Installation ....................................................................4

Recognizing the Hard Drive ........................................... 6

Windows XP ................................................................................6

Windows Vista .............................................................................7

Speciﬁcations.................................................................. 9

Technical Support........................................................... 10

Warranty Information...................................................... 10

Introduction

This enclosure lets you turn almost any high capacity 3.5” Serial ATA

(SATA) or IDE hard drive into an eSATA (SATA only) or USB (SATA

or IDE) external hard drive, allowing you to customize your external

storage solution based on your preference of hard drive model and

manufacturer.

Packaging Contents

1 x Hard Drive Enclosure•

1 x USB Mini B Cable•

1 x eSATA Cable•

1 x IDE Cable•

1 x Driver CD•

1 x Enclosure Stand•

1 x Power Adapter•

1 x SP4 to LP4 Adapter Cable•

1 x SATA 7+15 pin cable•

System Requirements

Available USB 2.0 or eSATA port on computer system•

Microsoft• ®Windows®2000/XP/Vista/Server 2008 R2/7 (32/64-bit), or

Apple®Mac OS®9.x/10.x, or Linux®kernel 2.4.1.0 and above

Hardware Guide

Front Panel

Rear Panel

Power Button/LED1.

Backup Button2.

DC In Port1.

eSATA Port2.

Mini USB Port3.

Hard Drive Release Switch4.

Installation

Hardware Installation

Open the hard drive enclosure by pushing the rear panel release1.

button to the right and sliding the hard drive bracket out of the

external casing from the front.

If using an IDE/ATA hard drive, ensure that the hard drive you are2.

using is set to MASTER.

Pull the two tabs on either side of the hard drive holding mechanism3.

up, then connect the provided SATA or IDE data and power supply

cables to the rear ports of the drive.

SATA HDD4. : If you will be using the USB 2.0 interface to connect

to the enclosure, plug the SATA data cable into the port labelled

CN5 on the enclosure’s PCB board. If using the eSATA interface

to connect to the enclosure, plug the SATA data cable into the port

labeled CN6 on the enclosure’s PCB board. The locations of the

CN5 and CN6 ports are shown below. Plug the power connector

into the J1 port on the PCB board.

IDE HDD: Only the USB 2.0 interface is available for connecting

an IDE hard drive to the host computer. Plug the 40-pin IDE data

cable into the port labelled CN1 on the enclosure’s PCB board.

Plug the included 4-pin SP4 to LP4 power adapter cable into the J1

connector.

To mount the hard drive, place it into the holding tray and press the5.

tabs on either side down to secure the drive in the enclosure.

Slide the hard drive holding mechanism into the external casing,6.

ensuring that the release button on the rear panel returns to its

original, locked position.

Driver Installation

Windows®2000/XP/Vista, Mac OS®9.x/10.x, Linux Kernel®2.4.x +

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Software Installation

The following steps outline the procedure to install the software

included with your drive enclosure in Windows.

CN5

CN6

J1 CN1

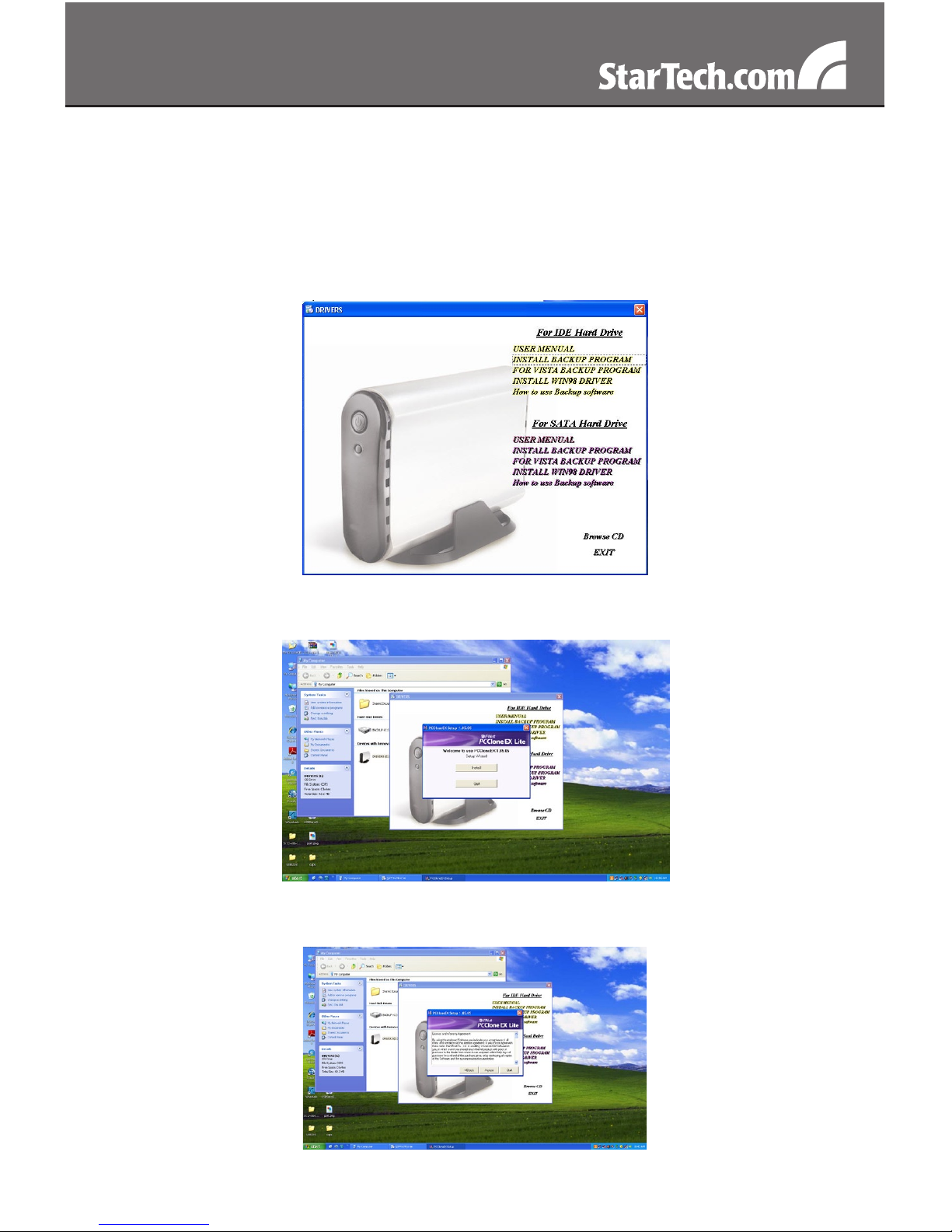

Insert the Drivers CD into your computer’s CD-ROM. Open the1.

DRIVERS.exe application to begin the installation process.

Once the installer is running, there are a number of options available2.

to you from the DRIVERS.exe home screen. To install the backup

software, click Install Backup Program under the heading that

corresponds with your drive-type (IDE or SATA).

The PCClone EX Lite Installer window will appear. Click Install to3.

proceed with the installation process.

The License and Warranty Agreement will appear. To continue, click4.

Agree.

Click Browse to designate the directory in which the software will5.

be installed. Once you have made your selection, click Install to

continue.

The installation will now take place. Once the installation is6.

complete, you may exit the DRIVERS.exe application.

Recognizing the Hard Drive

Windows XP

USB 2.0

If you are using the USB 2.0 interface to connect the hard drive

enclosure to your computer, no setup is required. Simply plug the hard

drive enclosure into an available USB port and turn the power on to

the hard drive enclosure. Open My Computer and the drive should be

visible under the heading “Devices with Removable Storage.”

eSATA

If you are using the eSATA interface to connect the hard drive

enclosure to your computer, there are two setup processes you can

follow. If the hard drive enclosure is powered on upon booting up

the computer, it will automatically detect the drive. Otherwise, if you

connect and power on the hard drive enclosure once the computer has

already been booted up, you will need to open the Device Manager

to scan for it. The following directions outline the necessary steps to

access your hard drive when the computer has already been booted

up:

Right click My Computer and click Manage.1.

In the left pane, select Device Manager.2.

In the Device Manager window, click the + next to the Disk Drives3.

icon. Since your drive was not powered on during the boot up

process, it should not yet be visible.

Turn on the hard drive enclosure. Once the power indicator is4.

illuminated, click the Scan button.

The Device Manager will scan for plug and play hardware. Once it5.

has completed the scan, your drive should be visible below the Disk

Drives heading.

Windows Vista

USB 2.0

If you are using the USB 2.0 interface to connect the hard drive

enclosure to your computer, no setup is required. Simply plug the hard

drive enclosure into an available USB port and turn the power on to

the hard drive enclosure. Open My Computer and the drive should be

visible under the heading “Devices with Removable Storage.”
