Instruction Manual

Table of Contents

Introduction .................................................................... 1

Package Contents .......................................................................1

Hardware Guide............................................................... 2

Rear Panel...................................................................................2

Hardware Installation...................................................... 2

Inserting a Hard Drive .................................................................2

Removing a Hard Drive ...............................................................4

Recognizing the Hard Drive ........................................... 5

Windows XP ................................................................................5

USB 2.0 ...................................................................................5

eSATA .....................................................................................5

Windows Vista™..........................................................................7

USB 2.0 ...................................................................................7

eSATA......................................................................................7

Safe Drive Removal......................................................... 8

Speciﬁcations ............................................................... 9

Technical Support........................................................... 10

Warranty Information...................................................... 10

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com InfoSafe 3.5” eSATA/USB 2.0

Removable SATA HD Enclosure. Supporting the latest generation of hard

drive storage (up to 1TB SATA hard drives), this enclosure allows the use

of any 3.5” SATA II (SATA /300) or SATA (SATA /150) and can be con-

nected to a host computer using either eSATA or USB.

Features

Built-in 40mm fan to provide efﬁcient cooling of enclosed hard drive•

Durable construction, comprised of metal and hard ABS material helps•

to minimize damage to the hard drive while in transit, and enhance

drive heat dissipation

Built-in stand offers stable vertical design offers optimal removal and•

insertion of hard drive

Rear power ON/OFF button•

Highly visible front LED lights indicate power and hard drive activity•

Plug and Play support•

Package Contents

1 x Enclosure•

1 x eSATA Cable•

1 x Manual•

1 x Power Adapter•

1 x Screw Pack•

1 x USB 2.0 Cable•

Instruction Manual

Hardware Guide

Rear Panel

Hardware Installation

Inserting a Hard Drive

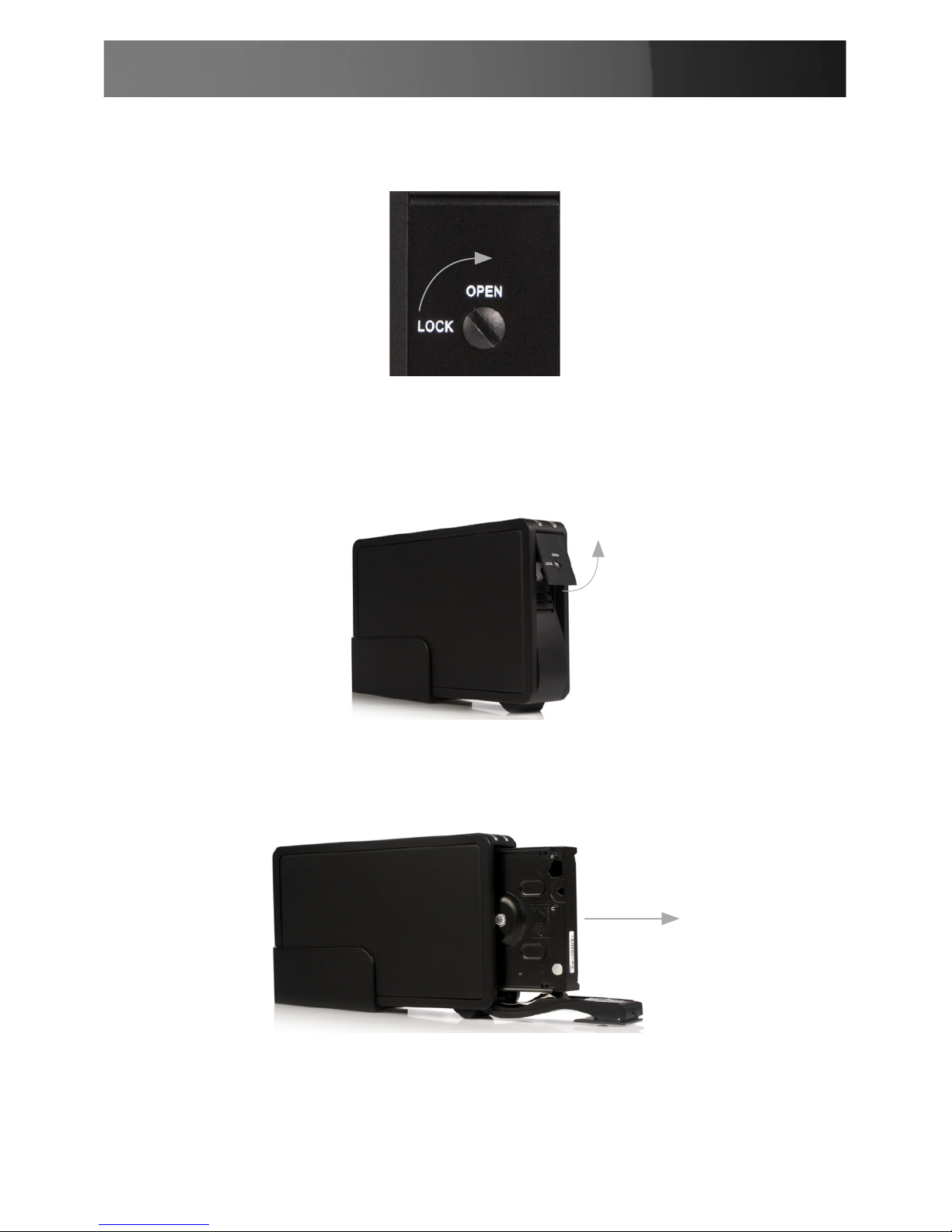

Unlock the keylock situated on the front of the SAT3510BU2E.1.

DC Power

Adapter Input

Power Button

USB Output

Fan

eSATA Output

Instruction Manual

Lift the handle on the front panel and pull the front panel door out from2.

the body (as shown below).

Place the hard drive into the SAT3510BU2E. The printed label on the3.

hard drive should be on the right hand side, with the SATA connector

on the lower half of the drive.

Push the door to slide the hard drive into place. Do not push the4.

hard drive into the enclosure by hand, otherwise it may not be properly

installed.

Turn the key lock into lock position to complete the physical installation.5.

Instruction Manual

Removing a Hard Drive

Unlock the key lock.1.

Lift the handle on the front panel and pull the front panel door out from2.

the body.

Carefully remove the hard drive from the enclosure.3.

Instruction Manual

Close the door. It is suggested that you lock the key lock.4.

Recognizing the Hard Drive

Windows XP

USB 2.0

If you are using the USB 2.0 interface to connect the hard drive to your

computer, no setup is required. Simply plug the hard drive into an avail-

able USB port and turn the power on to the SAT3510BU2E.

When you open My Computer the drive should be visible under the

heading Devices with Removable Storage.

eSATA

If you are using the eSATA interface to connect the hard drive to your

computer, there are two setup processes you can follow.

If the hard drive is powered on upon booting up the computer, it will

automatically detect the drive. Otherwise, if you connect and power on the

hard drive once the computer has already been booted up, you will need

to open the Device Manager to scan for it.

The following directions outline the necessary steps to access your hard

drive when the computer has already been booted up:

Instruction Manual

Right-click1. My Computer and click Manage.

In the left pane, select2. Device Manager.

In the Device Manager window, click the “+” next to Disk Drives. Since3.

the drive was not powered on during the boot up process, it should not

yet be visible.

Turn on the SAT3510BU2E. Once the power indicator is illuminated,4.

click the Scan button.

The Device Manager will scan for plug and play hardware. Once it has5.

completed the scan, your drive should be visible below the Disk Drives

heading.

Instruction Manual

Windows Vista™

USB 2.0

If you are using the USB 2.0 interface to connect the hard drive to your

computer, no setup is required. Simply plug the hard drive into an avail-

able USB port and turn the power on to the SAT3510BU2E. Open My

Computer and the drive should be visible under the heading “Devices with

Removable Storage.”

eSATA

If you are using the eSATA interface to connect the hard drive to your

computer, there are two setup processes you can follow.

If the hard drive is powered on upon booting up the computer, it will

automatically detect the drive. Otherwise, if you connect and power on the

hard drive once the computer has already been booted up, you will need

to open the Device Manager to scan for it. The following directions outline

the necessary steps to access your hard drive when the computer has

already been booted up:

Right-click1. Computer, and select Manage.
