StarTech.com SATDOCKCRH Manual de usuario

Serial ATA Hard Drive Dock

eSATA USB to SATA External

Hard Drive Dock with USB Hub

and Card Reader

SATDOCKCRH

SATDOCKCRHGB

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

Introduction

The SATDOCKCRH/GB combines the convenience of a SATA hard

drive docking station with a 13-in-1 card reader and 2-port USB hub,

and can be connected to a computer through either USB or eSATA.

Packaging Contents

1 x SATDOCKCRH hard drive dock•

1 x eSATA cable•

1 x USB cable (A-B)•

1 x Power Adapter•

1 x Instruction Manual•

System Requirements

USB and/or eSATA enabled computer system•

Microsoft Windows• ®2000/XP/Vista/7, Mac OS®X, or Linux®

eSATA

connector

USB

connector

Power

connector

Hard Drive slot

Drive Eject

button

USB hub Card Reader slot

Power

button/LED

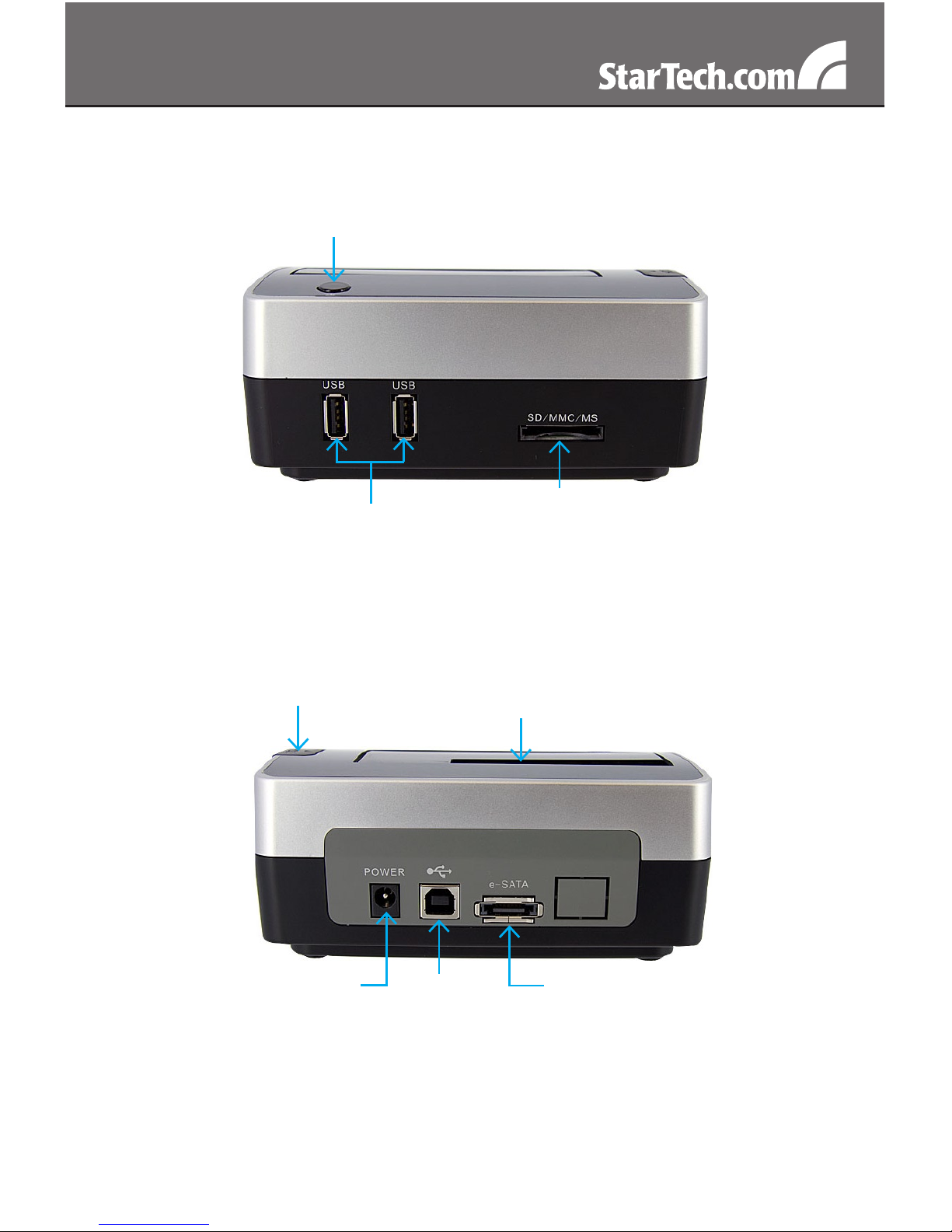

Front View

Rear View

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle storage devices with caution.

Hardware Installation

Connect the external power adapter from the hard drive dock to a1.

power outlet.

Insert a 2.5” or 3.5” hard drive into the top loading slot. Make sure2.

that the connectors on the hard drive are facing the same corner of

the slot that has a cutout in the door. The label on the hard drive

should face the front of the hard drive dock.

Connect the USB cable and eSATA cable from the hard drive dock to3.

the computer system.

NOTE: The hard drive dock can be used with only the USB connection,

if eSATA is not available on the computer system. The hard drive can

be used over eSATA alone, however to use the USB hub and/or card

reader, the USB must be connected.

Once all connections are made, press the power button on the top of4.

the hard drive dock.

To remove the hard drive, make sure it is currently not being5.

accessed by the computer then unmount or uninstall the disk drive

from the operating system (see documentation for your operating

system). Press the drive ejection button on the top of the hard drive

dock the release the drive. Then pull the drive from the slot.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS X, Linux

No driver installation is required for these operating systems, as the

hard drive dock, USB hub and card reader are natively supported, so

the drivers are already installed.

Specications

Bus Interface USB 2.0

SATA 3.0Gb/s

Connectors

1 x USB type B

1 x eSATA

2 x USB type A

1 x SD/MMC/MS card slot

LEDs 1 x Power/Activity

Hard Drive Compatibility 2.5” or 3.5” SATA 1.5/3.0 Gb/s

hard drive up to 1.5TB capacity

Flash Card Compatibility

•MS/MSPro

•SD/MMC

•MSDuo,MSProDuo,MS

Pro-HG Duo

•RS-MMC

•SDHC

•MSMicro

•Mini-SD,Micro-SD

•Micro-SDHC

Maximum Data Transfer Rate USB: 480 Mb/s

SATA: 3 Gb/s

Power Adapter 12VDC, 2.5A, center positive

Dimensions 145.0mm x 93.0mm x 65.0mm

Weight 413g

Compatible Operating

Systems

Windows 2000/XP/Vista/7,

Mac OS X, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
