StarTech.com PEX2S552B Manual de usuario

PCI Express Serial Adapter

Card

2-Port PCI Express to RS232

Serial Adapter Card

with Breakout Cable

PEX2S552B

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Driver Installation.........................................................................2

Verifying Installation.....................................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

Introduction

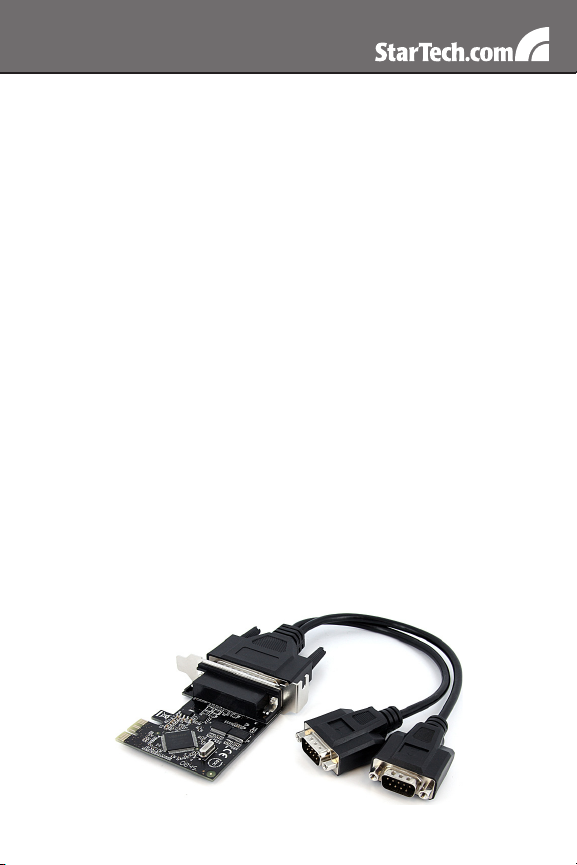

The StarTech.com PCI Express to RS232 Serial Adapter Card will

add two DB9 serial ports to any PC, using only one PCI Express

expansion slot. Featuring a native single chip design that provides

optimal reliability and speed, while reducing CPU load by as much as

48% over conventional serial cards that utilize a “bridge chip” design. A

cost-effective solution for connecting legacy serial devices to modern

PCIe enabled computers, and includes both a full proﬁle and low proﬁle

bracket to ensure compatibility with both standard and small form factor

computers.

Packaging Contents

• 1 x PEX2S552B card

• 1 x DB9 breakout cable

• 1 x Full Proﬁle Bracket

• 1 x Driver Installation CD

• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer system with available slot

• Microsoft®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit), or Apple®Mac OS®10.4/10.5, or Linux®

Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your PCI

Express card. StarTech.com recommends that you wear an anti-static

strap when installing any computer component. If an anti-static strap

is unavailable, discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer case)

for several seconds. Also be careful to handle the PCI Express card by

its edges and not the gold connectors.

Hardware Installation

1. Turn your computer off and any peripherals connected to the

computer (i.e. Printers, external hard drives, etc.). Unplug the power

cable from the rear of the power supply on the back of the computer

and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation for

your computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate

on the rear of the computer case (Refer to documentation for your

computer system for details.). Note that this card will work in PCI

Express slots of additional lanes (i.e. x4, x8 or x16 slots).

4. Insert the card into the open PCI Express slot and fasten the bracket

to the rear of the case.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and

reconnect all other connectors removed in Step 1.

Driver Installation

Windows 2000/XP/Server 2003

1. When the Found New Hardware wizard appears on the screen,

insert the Driver CD into your CD/DVD drive. If you are prompted

to connect to Windows Update, please select the “No, not this time”

option and click Next.

2. Select the option “Install Drivers Automatically (Recommended)” and

then click the Next button.

3. Windows should now start searching for the drivers. Once this has

completed, click the Finish button.

Windows Vista/7

1. When the Found New Hardware window appears on the screen,

click on the “Locate and install drivers software (recommended)”

option. If prompted to search online, select the “Don’t search online”

option.

2. When prompted to insert the disc, insert the Driver CD that

came with the card, into your CD/DVD drive and Windows will

automatically proceed to search the CD.

3. If a Windows Security dialog window appears, click the “Install this

driver software anyway” option to proceed.

4. Once the driver is installed, click the Close button.

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer”

in Vista/7), then select Manage. In the new Computer Management

window, select Device Manager from the left window panel.

Double-click on the “Ports (COM & LPT)” option. The appropriate

number of additional COM ports should be visible. The port(s) are

ready to connect to new devices.

Specications

Bus Interface PCI Express rev1.0a

(x1 slot connector)

Chipset ID Moschip MCS9901

Connectors 2 x DB9 male

(via breakout cable)

Supported Protcols RS232

Buffer 256-byte Tx/Rx FIFO (onchip)

Maximum Data Transfer Rate 250Kbps

Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)

Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Humidity 5 ~ 85% RH

Compatible Operating

Systems

Windows 2000/XP/Server 2003/

Vista/Server 2008 R2/7 (32/64-

bit), Mac OS 10.4/10.5, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
