StarTech.com USB31000SPTB Manual de usuario

Manual Revision: 07/24/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB31000SPTB

USB31000SPTW

USB 3.0 to Gigabit Ethernet Adapter with

USB Port - Black/White

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Side View...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Installation .............................................................................................3

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 3

Verifying Installation................................................................................................................................ 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

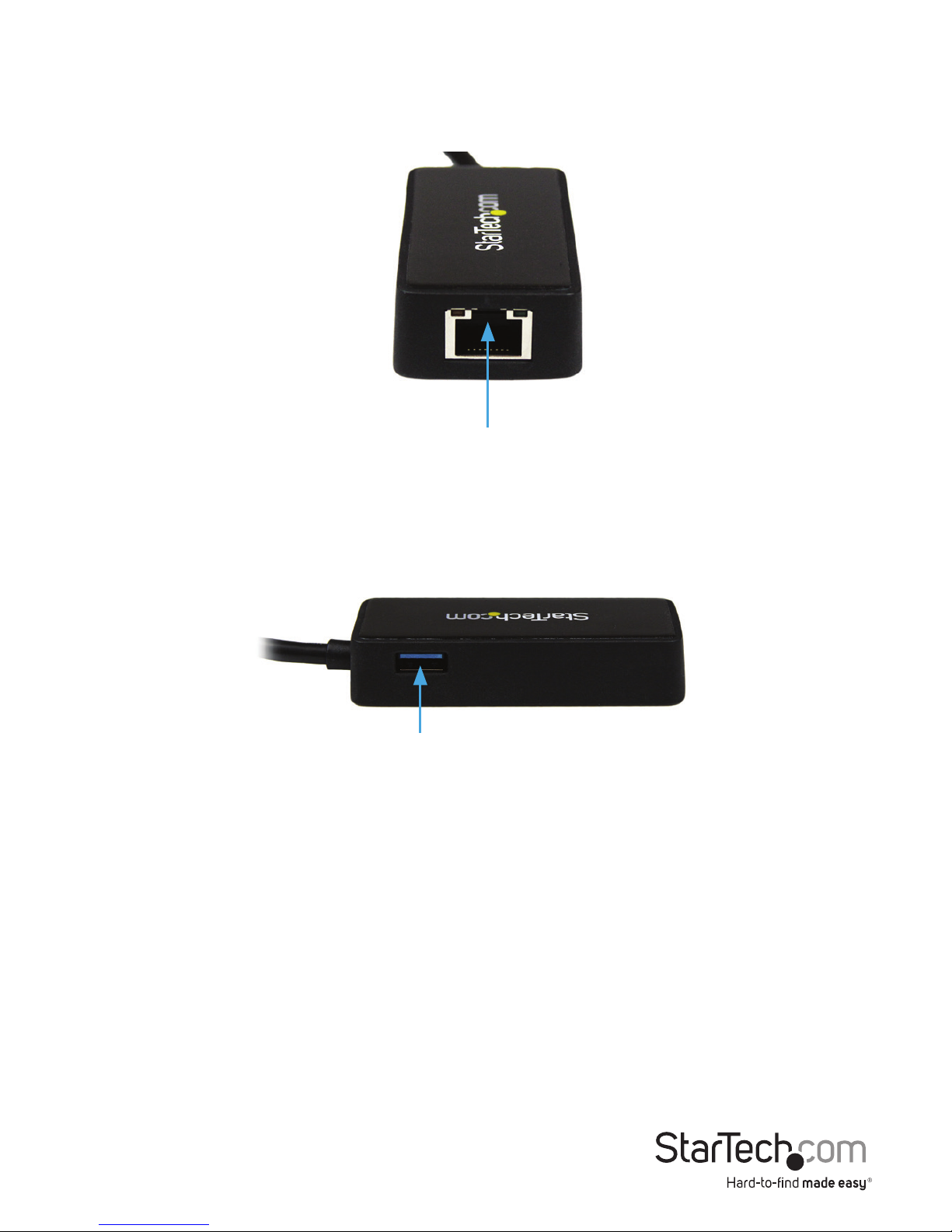

Product Overview

Front View

Side View

RJ45

USB 3.0

Instruction Manual

Introduction

The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network

port to your laptop or Ultrabook™ computer through a USB 3.0 port, and features an

integrated USB 3.0 pass-through port that keeps your USB port available for use with

other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully

compatible with IEEE 802.3i/u/ab standards.

An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC

leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also oers

backward compatibility with USB 2.0 systems (speed limited by USB bus).

The adapter supports features such as IPv4/IPv6 packet Checksum Ooad Engine

(COE) and TCP large send ooad to reduce the load on your CPU. Jumbo Frames,

full-duplex operation with 802.3x ow control and VLAN tagging are also supported,

making this an ecient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1 x USB 3.0 Network Adapter

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• Available USB port

• Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), Windows® Server 2008 R2,

2003(32/64), Mac OS 10.6 - 10.8, Linux kernel 2.6.25 ~ 3.5.0

Instruction Manual

Installation

Hardware Installation

1. Connect the USB 3.0 Network Adapter to an available USB port.

NOTE: If connected to a USB 2.0 host port, the pass-through port will only operate

at USB 2.0 speeds and network performance may be limited.

2. The host computer’s operating system should detect the hub immediately and

automatically install the USB drivers.

3. Once installation is complete, USB 1.x/2.0/3.0 devices should be able to be

connected to the hub and recognized.

Driver Installation

NOTE: The drivers for the USB Hub will be automatically installed by the host

computer’s operating system. Only the driver for the Ethernet port needs to be

installed.

Windows / Mac

1. Insert the provided CD into your DVD/CD-ROM drive.

2. Open the contents of the CD/DVD drive that the CD is in and browse to the

appropriate folder for your operating system.

3. Run the “Setup.exe” (Windows) application to launch the driver installation program

(mount “AX88179_178A.dmg” and run “AX88179_178A.dmg” for Mac OS), and

follow the on-screen instructions to complete the install

NOTE: You may be prompted to restart at the end of the install

Instruction Manual

Verifying Installation

Windows

1. Open the Device Manager by right-clicking on Computer, and then select Manage.

In the new Computer Management window, select Device Manager from the left

window panel (For Windows 8, open the Control Panel and select Device Manager).

2. Expand the “Network adapters”section. On a successful install, you should see the

following devices installed with no exclamation points or question marks.

Mac OS

1. Open the System Proler by clicking the Apple symbol in the top left corner,

selecting About this Mac, then select System Report

2. Expand the “Network” section. With the adapter connected, you should see the

following devices in the list.

Instruction Manual

Specications

Host Interface USB 3.0

Chipset ASIX - AX88179

VIA - VL811

Connectors

1 x RJ-45 Female

1 x USB 3.0 type A Male

1 x USB 3.0 type A Female

Maximum Data Transfer Rate USB 3.0: 5 Gbps

LAN: 2 Gbps (per port; Full-Duplex)

Supported Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE

802.3az

Supported Network Link Speeds 10/ 100/ 1000 Mbps

Ethernet Full Duplex Support Yes

Auto MDIX Yes

Power USB-Powered

Enclosure Material Plastic

Operating Temperature 0°C to 50°C (32°F to 122°F)

Storage temperature -20°C to 60°C (-4°F to 140°F)

Dimensions 82 x 35 x 17 mm

Humidity 5~85% RH

Weight 50g

Compatible Operating Systems

Windows® 8 (32/64bit), 7 (32/64),

Vista(32/64), XP(32/64),

Windows® Server 2008 R2, 2003(32/64),

Mac OS 10.x (Tested up to 10.8), Linux

kernel 2.6.25 ~ 3.5.0

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
