BlueNRG development kits

Introduction

This document describes the BlueNRG development kits and related hardware and

software components. The BlueNRG is a very low power Bluetooth

low energy (BLE)

single-mode network processor, compliant with Bluetooth specifications core 4.0. The

BlueNRG can act as master or slave.

There are two types of BlueNRG kits:

1. BlueNRG development platform (order code: STEVAL-IDB002V1)

2. BlueNRG USB dongle (order code: STEVAL-IDB003V1)

The BlueNRG software package includes a graphical user interface application to control

the BlueNRG through a simple ACI protocol.

www.st.com

Contents UM1686

2/70 DocID025464 Rev 5

Contents

1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 STEVAL-IDB002V1 kit contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 STEVAL-IDB003V1 kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 BlueNRG development kit setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 STEVAL-IDB002V1 motherboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.1 Microcontroller and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.2 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1.3 Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.4 Extension connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.5 Push-buttons and joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.6 JTAG connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.7 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.8 Daughterboard interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 BlueNRG daughterboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2.1 Current measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.2.2 Hardware setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.2.3 STM32L preprogrammed application . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3 STEVAL-IDB003V1 USB dongle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3.1 Microcontroller and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3.2 SWD interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.3.3 RF connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.3.4 Push-buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.3.5 User LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.3.6 Hardware setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.3.7 STM32L preprogrammed application . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3 GUI software description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 The BlueNRG graphical user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2.1 GUI main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DocID025464 Rev 5 3/70

UM1686 Contents

3.2.3 GUI ACI utilities window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.2.4 GUI Scripts window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.2.5 GUI Beacon window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.2.6 GUI RF Test window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4 Programming with BlueNRG network processor . . . . . . . . . . . . . . . . . 41

4.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.2 Software directory structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5 BlueNRG sensor profile demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

5.1 Supported platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5.2 BlueNRG app for smartphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5.3 BlueNRG sensor profile demo: connection with a central device . . . . . . . 45

5.3.1 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

5.3.2 Add service and characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

5.3.3 Set security requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.3.4 Enter connectable mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.3.5 Connection with central device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.4 BlueNRG sensor demo: central profile role . . . . . . . . . . . . . . . . . . . . . . . 47

5.4.1 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5.4.2 Discovery a sensor peripheral device . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5.4.3 Connect to discovered sensor peripheral device . . . . . . . . . . . . . . . . . . 48

5.4.4 Discovery sensor peripheral services and characteristics . . . . . . . . . . . 48

5.4.5 Enable sensor peripheral acceleration and free fall notifications . . . . . . 49

5.4.6 Read the sensor peripheral temperature sensor characteristic . . . . . . . 49

6 BlueNRG chat demo application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6.1 Supported platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6.2 BlueNRG chat demo application: peripheral & central devices . . . . . . . . 50

6.2.1 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2.2 Add service and characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2.3 Set security requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2.4 Enter connectable mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

6.2.5 Connection with central device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7 BlueNRG Beacon demonstration application . . . . . . . . . . . . . . . . . . . . 54

7.1 Supported platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents UM1686

4/70 DocID025464 Rev 5

7.2 BLE Beacon application setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.1 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.2 Define advertising data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.3 Entering non-connectable mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8 BLE remote control demo application . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.1 Supported platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.2 BLE remote control application setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.2.1 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.2.2 Define advertising data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.2.3 Add service and characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.2.4 Connection with a BLE Central device . . . . . . . . . . . . . . . . . . . . . . . . . 58

9 List of acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

10 Available board schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

DocID025464 Rev 5 5/70

UM1686 Getting started

1 Getting started

This section describes all the software and hardware requirements for running the BlueNRG

GUI utility as well as the related installation procedure.

1.1 STEVAL-IDB002V1 kit contents

This kit is composed of the following items:

•1 development motherboard

•1 BlueNRG daughterboard

•1 2.4 GHz Bluetooth antenna

•1 USB cable

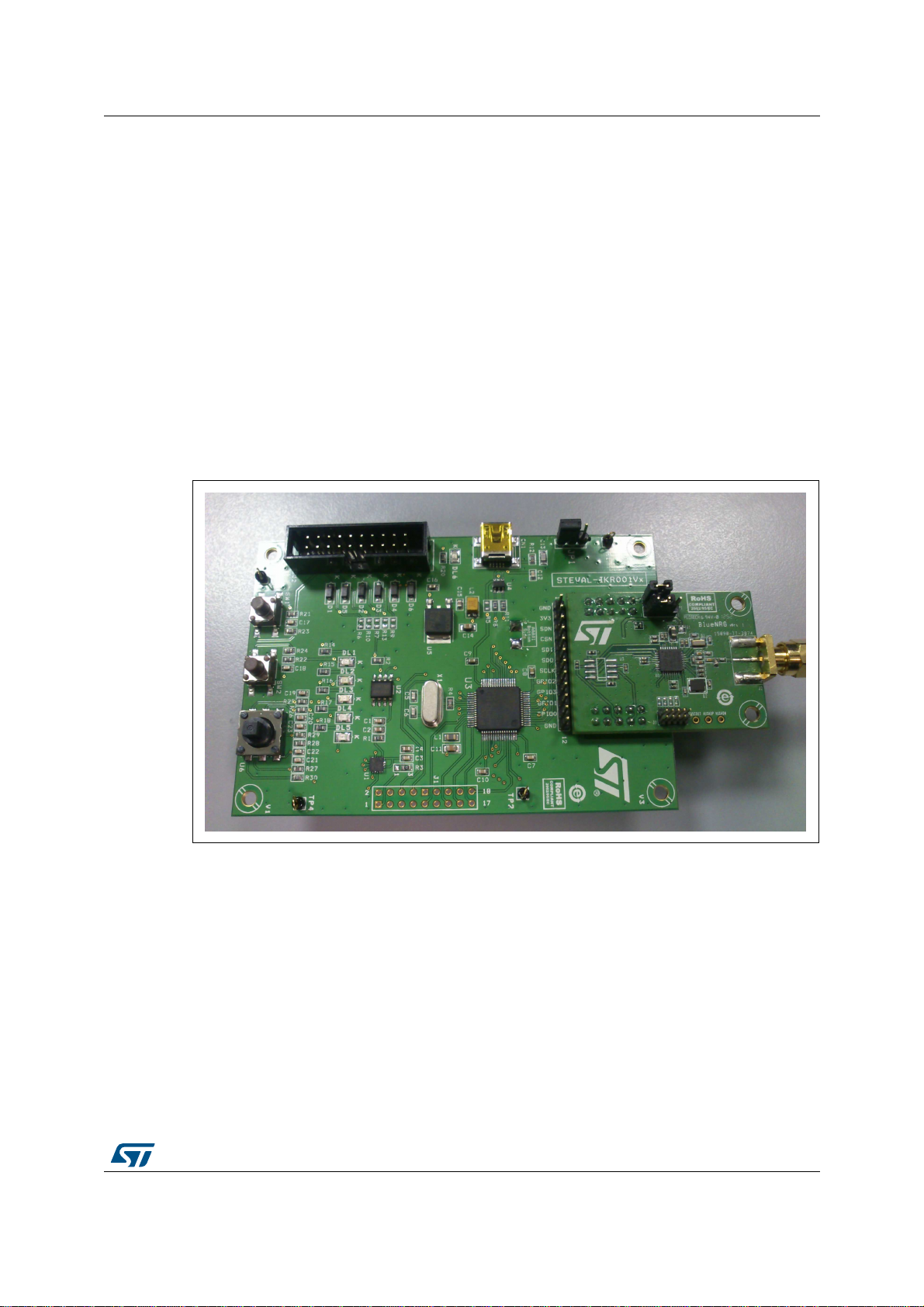

Figure 1. BlueNRG kit motherboard with the STEVAL-IDB002V1 daughterboard

connected

1.2 STEVAL-IDB003V1 kit

This kit is composed of the following items:

•1 USB dongle

Getting started UM1686

6/70 DocID025464 Rev 5

Figure 2. STEVAL-IDB003V1 BlueNRG USB dongle

1.3 System requirements

The BlueNRG graphical user interface utility has the following minimum requirements:

•PC with Intel

or AMD

processor running one of the following Microsoft

operating

systems:

– Windows XP SP3

– Windows Vista

– Windows 7

•At least 128 Mb of RAM

•2 USB ports

•40 Mb of hard disk space available

•Adobe Acrobat Reader 6.0 or later

1.4 BlueNRG development kit setup

•Extract the content of the BlueNRG_DK_-x.x.x-Setup.zip file into a temporary directory.

•Launch the BlueNRG-DK-x.x.x-Setup.exe file and follow the on-screen instructions.

Note: EWARM Compiler 7.40.3 or later version is required for building the BlueNRG_DK_x.x.x

demonstration applications.

DocID025464 Rev 5 7/70

UM1686 Hardware description

2 Hardware description

The following sections describe the components of the kits.

2.1 STEVAL-IDB002V1 motherboard

The motherboard included in the development kit allows testing of the functionality of the

BlueNRG processor. The board can be used as a simple interface between the BlueNRG

and a GUI application on the PC. The STM32L microcontroller on the board can also be

programmed, so the board can be used to develop applications using the BlueNRG. A

connector on the motherboard (Figure 1) allows access to the JTAG interface for

programming and debugging. The board can be powered through a mini-USB connector

that can also be used for I/O interaction with a USB Host. The board includes sensors, and

buttons and a joystick for user interaction. The RF daughterboard can be easily connected

through a dedicated interface.

This is a list of some of the features that are available on the boards:

•STM32L151RBT6 64-pin microcontroller

•Mini USB connector for power supply and I/O

•JTAG connector

•RF daughterboard interface

•One RESET button and one USER button

•One LIS3DH accelerometer

•One STLM75 temperature sensor

•One joystick

•5 LEDs

•One PWR LED

•One battery holder for 2 AAA batteries

•One row of test points on the interface to the RF daughterboard

Hardware description UM1686

8/70 DocID025464 Rev 5

Figure 3. Motherboard for the BlueNRG development kit

2.1.1 Microcontroller and connections

The board features an STM32L151RB microcontroller, which is an ultra low-power

microcontroller with 128 KB of Flash memory, 16 KB of RAM, 32-bit core ARM cortex-M3, 4

KB of data EEPROM, RTC, LCD, timers, USART, I

C, SPI, ADC, DAC and comparators.

The microcontroller is connected to various components such as buttons, LEDs and

connectors for external circuitry. The following table shows what functionality is available on

each microcontroller pin.

Table 1. MCU pin description versus board function

name Pin

Board function

LEDs DB connector Buttons /

joystick Acceler. Temperatur

e sensor USB JTAG Ext.

conn

VLCD 1

PC13 2 DB_SDN_RST

PC14 3 3

PC15 4 5

OSC_IN 5

OSC_O

UT 6

NRST 7 RESET 7

PC0 8 LED1

PC1 9 LED2

PC2 10 DB_PIN3

PC3 11 9

DocID025464 Rev 5 9/70

UM1686 Hardware description

VSSA 12

VDDA 13

PA0 14 11

PA1 15 13

PA2 16 15

PA3 17 17

VSS_4 18

VDD_4 19

PA4 20 SPI1_NSS

PA5 21 SPI1_SCK

PA6 22 SPI1_MISO

PA7 23 SPI1_MOSI

PC4 24 LED4

PC5 25 LED5

PB0 26 JOY_DOW

PB1 27 JOY_RIGH

PB2 28 18

PB10 29 INT1

PB11 30 INT2

VSS_1 31

VDD_1 32

PB12 33 DB_CSN

(1)

PB13 34 DB_SCLK

(1)

PB14 35 DB_SDO

(1)

PB15 36 DB_SDI

(1)

PC6 37 PUSH_BT

PC7 38 DB_IO0

(1)

PC8 39 DB_IO1

(1)

PC9 40 DB_IO2

(1)

PA8 41 JOY_LEFT

PA9 42 JOY_CENT

Table 1. MCU pin description versus board function (continued)

name Pin

Board function

LEDs DB connector Buttons /

joystick Acceler. Temperatur

e sensor USB JTAG Ext.

conn

Hardware description UM1686

10/70 DocID025464 Rev 5

2.1.2 Power

The board can be powered either by the mini USB connector CN1 (A in Figure 3) or by 2

AAA batteries. To power the board through USB bus, jumper JP1 must be in position 1-2, as

in Figure 3 (B). To power the board using batteries, 2 AAA batteries must be inserted in the

battery holder at the rear of the board, and jumper JP1 set to position 2-3.

When the board is powered, the green LED DL6 is on (C).

If needed, the board can be powered by an external DC power supply. Connect the positive

output of the power supply to the central pin of JP1 (pin 2) and ground to one of the four test

point connectors on the motherboard (TP1, TP2, TP3 and TP4).

PA10 43 JOY_UP

PA11 44 USB_D

PA12 45 USB_D

PA13 46 JTMS 16

VSS_2 47

VDD_2 48

PA14 49 JTCK 14

PA15 50 JTDI 12

PC10 51 DB_IO3_IRQ

(1)

PC11 52 DB_PIN1

PC12 53 DB_PIN2

PD2 54 LED3

PB3 55 JTDO 10

PB4 56 JNTRS

PB5 57 TSEN_INT

PB6 58 I2C1_SCL

PB7 59 I2C1_SDA

BOOT0 60

PB8 61 4

PB9 62 6

VSS_3 63

VDD_3 64

1. These lines are also available on the test point row

Table 1. MCU pin description versus board function (continued)

name Pin

Board function

LEDs DB connector Buttons /

joystick Acceler. Temperatur

e sensor USB JTAG Ext.

conn

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microcontrolador de ST

ST STM32F103 series Instrucciones de instalación y funcionamiento

ST SPC582B Series Instrucciones de instalación y funcionamiento

ST STM32L0x3 Manual de usuario

ST STM32H723 Manual de usuario

ST ST7LITE1 B Series Manual de usuario

ST VIP-M07SPI-ADIS Manual de usuario

ST STM32C0 Series Instrucciones de instalación y funcionamiento

ST ST7232A Manual de usuario

ST B-L462E-CELL1 Manual de usuario

ST P-NUCLEO-LRWAN2 Manual de usuario

ST STM32L053 Manual de usuario

ST STM32L1 Series Instrucciones de instalación y funcionamiento

ST UM2140 Manual de usuario

ST STM32F429I-DISCO Manual de usuario

ST STM32F072 Manual de usuario

ST UM2135 Manual de usuario

ST AN3154 Instrucciones de instalación y funcionamiento

ST STM32H74xI/G Manual de usuario

ST NUCLEO-WB55RG STM32WB Manual de usuario

ST X-NUCLEO-53L4A1 Manual de usuario

ST UM2708 Manual de usuario

ST STM32F072 Manual de usuario

ST STM32F100 Series Manual de usuario

ST STM8S Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
