ST CLT01-38SQ7 Manual de usuario

Industrial input/output expansion board based on

CLT01-38SQ7 and VNI8200XP for STM32 Nucleo

(X-NUCLEO-PLC01A1)

Version 1.0 (September 02, 2015)

Quick start guide

Overview 2

Introduction to the STM32 Open Development Environment

STM32 Nucleo industrial input/output expansion board

•Hardware overview

•Software overview

Documents & related resources

Setup & demo examples

Overview 3

Introduction to the STM32 Open Development Environment

STM32 Nucleo industrial input/output expansion board

•Hardware overview

•Software overview

Documents & related resources

Setup & demo examples

STM32 Open Development Environment

Fast, affordable Prototyping and Development 4

•The STM32 Open Development Environment (ODE) consists of a set of stackable boards

and a modular open SW environment designed around the STM32 microcontroller family.

www.st.com/stm32ode

Compatibility with multiple Development environments

STM32Cube development software STM32 Nucleo expansion boards

STM32 Nucleo development boards STM32Cube

expansion software

Power supply

through USB or

external source

Integrated debugging

and programming

ST-LINK probe

STM32 microcontroller

Complete product range

from ultra-low power to high-performance

ST Morpho and Arduino™ UNO R3

extension headers

STM32 Nucleo

Development Boards

•A comprehensive range of affordable development boards for the full STM32

microcontroller series, with unlimited unified expansion capability, and with integrated

debugger/programmer.

www.st.com/stm32nucleo

Move/ActuatePower InteractConnect

Sense

STM32 Nucleo

Expansion Boards

•Boards with additional functionality that can be plugged on top of the STM32 Nucleo

development board directly or stacked onto another expansion board.

DIL24 support for

new devices

X-NUCLEO-IKS01A1

Motion MEMS sensors

Environmental sensors

www.st.com/x-nucleo

STM32 Open Development Environment

Software components 7

www.st.com/stm32cube

•STM32Cube software (CUBE) - Set of free tools and embedded software bricks to

enable fast and easy development with STM32 that simplifies and speeds up

developers’ work

•PC-based STM32CubeMX for graphical configuration of the STM32.

•Hardware Abstraction Layer (HAL) for easy porting from one STM32 device to another and

middleware bricks for the most common functions.

•Alarge number of code use examples.

•STM32Cube expansion software (X-CUBE)

•All STM32 Nucleo expansion boards come with source code drivers and sample applications built

on top of CUBE HAL, which provides abstracted access to board functionalities through high-level

APIs.

•Compatibility with multiple Development Environments

•The STM32 Open Development Environment is compatible with a number of IDEs including IAR

EWARM, Keil MDK,and GCC-based environments.

STM32 Open Development Environment

Building block approach 8

Move / Actuate

Connect

Power

Sense

Process

Inertial modules, magnetometer

Proximity, microphone

Pressure, temperature, humidity, UV

Bluetooth LE, Sub-GHz radio

NFC, Wi-Fi, GNSS

Energy management & battery

General-purpose microcontrollers

Stepper motor driver

DC & BLDC motor driver

Audio amplifier

COLLECT

TRANSMIT

ACCESS

CREATE

POWER

PROCESS

Software

Secure microcontrollers

Touch controller

Operation Amplifier

Accelerometer, gyroscope

Translate

The building blocks Your need Our answer

Industrial input / output

www.st.com/stm32ode

Overview 9

Introduction to the STM32 Open Development Environment

STM32 Nucleo industrial input/output expansion board

•Hardware overview

•Software overview

Documents & related resources

Setup & demo examples

X-NUCLEO-PLC01A1 hardware description

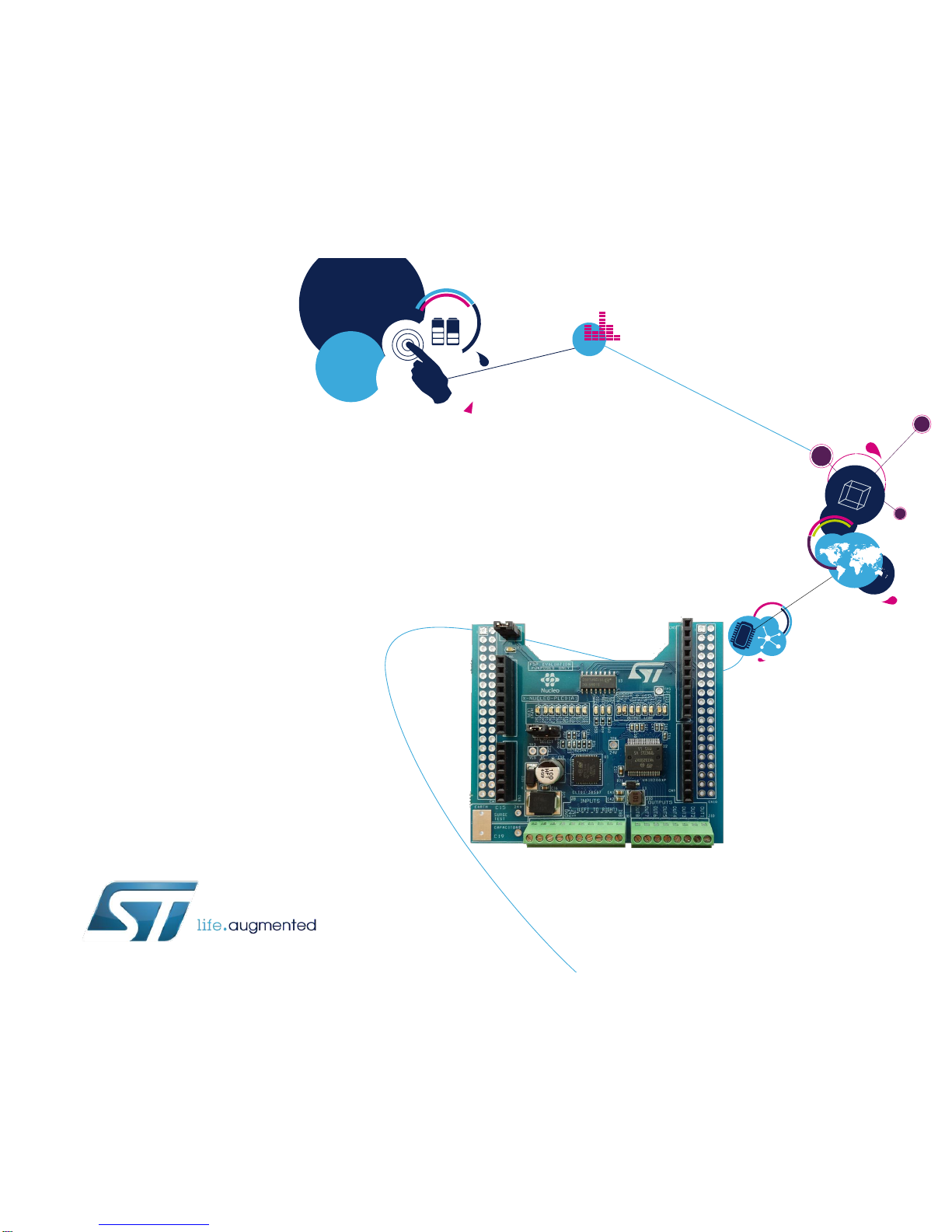

•The X-NUCLEO-PLC01A1 is an industrial input/output

evaluation board designed around the CLT01-38SQ7 and

VNI8200XP devices, allowing the expansion of the

STM32 Nucleo boards.

•The CLT01-38SQ7 and the VNI8200XP communicate

with the STM32 Nucleo board through a SPI link available

on the Arduino UNO R3 connector.

Industrial input/output expansion board

Hardware overview

Key products on board

CLT01-38SQ7

High-speed protected digital termination array

VNI8200XP

Octal high-side smart-power solid-state relay with

serial/parallel selectable interface on device

Arduino UNO R3 connector

VNI8200XP

CLT01-38SQ7

Order code: X-NUCLEO-PLC01A1

Latest info available at

X-NUCLEO-PLC01A1
