Speco HT-INTT5 Manual de usuario

Intensifier Series

Camera

HT-INTT5

200 New Highway

Amityville, NY 11701

631-957-8700

www.specotech.com

Please read this manual thoroughly before operation and keep

it handy for further reference.

Contents

3~4

Features --------------------------7

Operating Your Camera

* SET UP----------------------------------------------------------------9~11

Precautions

Troubleshooting

* SET UP LENS-----------------------------------------------------------12

5~6

* SHUTTER SPEED CONTROL ---------------------------------13~16

* BACK LIGHT-------------------------------------------------------------17

* AUTO GAIN (AGC) ----------------------------------------------------18

* WHITE BALANCE -------------------------------------------------19~20

* REDUCE NOISE--------------------------------------------------------21

* INTENSIFIER------------------------------------------------------------22

* CAMERA TITLE-----------------------------------------------------23~24

* DAY/NIGHT/SYNC ----- -------------------------------------------25~26

* MOTION DETECTION---------------------------------------------27~28

* PRIVACY------------------------------------------------------------------29

* REVERSE-----------------------------------------------------------------30

* DETAIL---------------------------------------------------------------------31

* DEFAULT/RETURN-----------------------------------------------------32

33~34

35~36

Specifications / Dimensions

Warranty

1 2

Features

♣SLC ( Speco Light Compensation )

When the image is in front of strong background lighting,

your camera allows you to get the best image.

♣OSD

Gives you full control of the camera’s advanced functions.

♣INTENSIFIER

1/3 inch density CCD and digital processor permit

high quality pictures to be captured in very low light

conditions.

♣REDUCE NOISE

A DSP chip removes image noise efficiently and

shows a clean image in low light conditions.

♣High Resolution

Horizontal resolution of 530TV lines is

achieved by using a SONY CCD having Double

Speed 410,000 pixels.

♣ELECTRONIC DAY/NIGHT

You can choose between having the camera always remain in

color or having it change into the B/W mode in low light

conditions.

♣Motion Detection

Built into the OSD. No external devices required.

♣MANUAL/DC LENS

You can use Auto Iris, Manual Iris and Fixed Iris lenses

3 4

Precautions

* Do not install the camera in extreme temperature conditions.

- Only use the camera under conditions where temperatures

are between -10℃and +50℃. Be especially careful to provide

ventilation when operating under high temperatures.

* Do not install or use the camera in an environment where

the humidity is high.

- It can cause the image quality to be poor.

* Do not install the camera under unstable lighting conditions.

-Severe lighting change or flicker can cause the camera

to work improperly.

* Do not drop the camera or subject them to physical shocks.

-It can cause malfunctions to occur.

* Do not expose the camera to radioactivity.

* Never allow the camera to face the Sun.

- It can damage the CCD.

5 6

Operating your camera

◈Functions ◈OSD Menu Setting

LENS OPTION

●DC ●MANUAL

SET UP MENU 1. When you control by Buttons on the Product, refer to the following

(OPTION)

SHUTTER

●OFF ●F/L ●MANUAL UP

WHITE BALANCE

●ATW ●AWC MANUAL●

BACKLIGHT

●OFF ●LOW ●MIDDLE ●HIGH

AGC

●OFF ●LOW ●MIDDLE ●HIGH

REDUCE NOISE

●OFF ●LOW ●MIDDLE ●HIGH

INTENSIFIER

●AUTO ●OFF

●CAMERA TITLE ●DAY/NIGHT ●SYNC

●MOTION DET ●PRIVACY ●REVERSE

●DETAIL ●DEFAULT ●PAGE 1

EXIT

SET DOWNUP RIGHT

LEFT

SET

LEFT RIGHT

DOWN

Operating your camera ( Option )

C. System Integration

CCD Camera

485(+)

•Please Observe Polarity!

1. When controlled by RS-485, Pelco-D protocol (Option), refer to the following.

A. DIP Switch Setting on the Camera

(Factory default : Camera Address = 01, Baud Rate = 2400bps) 485(-)

Receiver

•Up to 15 Cameras can be

controlled by 1 IR Remote

Controller & 1 Receiver. You

must set up each camera’s

address by DIP Switches for

proper addressing.

910

When you call Camera Address

->Push 0 Button

->Push 1 Button

->Push CAM Button

Power Connector

(DC12V in)

485(+),(-)

Baud Rate Setting

Buzzer On/Off

B. Receiver Setting to use with IR Remote Controller

(Factory default : Baud Rate = 2400bps, Chart is same as

above)

D. IR Remote Controller ( Optional )

- Can call and control each camera on the monitor by the following.

Multiflexer Monitor

SET buttonUP button

RIGHT button

DOWN

button

LEFT button

IR Remote

Controller

①②

Operating your camera -SET UP Operating your camera - LENS

1. Press the SET button to access the SETUP mode.

●SETUP menu is displayed on the monitor screen. 1) Setting up the LENS

Select the lens pressing the RIGHT button.

①On the SETUP menu screen, move the arrow indicator to the lens

using the UP or DOWN button.

②Select the desired feature using the LEFT or RIGHT button.

2. Select the desired feature using the UP or DOWN button.

●Each time you press the UP or DOWN button, the arrow

indicator moves up or down.

●Move the arrow indicator to the desired feature item.

3. Change the status of the selected feature using the LEFT

or RIGHT button.

4. When completed, move the arrow indicator to ‘EXIT’ and press

the SET button.

Notes

•●You can access submenu by using SET button.

•●For the mode with ’---’, you may not access submenu.

11 12

Operating your camera – SHUTTER SPEED CONTROL①

2) Shutter status and speed control

You can control brightness of the screen by the shutter speed.

①Press the SET button to display the setup menu and move the arrow

indicator to ‘SHUTTER’ using the UP or DOWN button.

②Set ‘SHUTTER’ to the desired mode using the LEFT or RIGHT

button.

▶OFF : Deactivation

▶When DC LENS selected, press SET button to control the

BRIGHTNESS.

Notes

▶FLK (1/100) : Flicker mode

●AUOT IRIS LENS(DC TYPE) is recommended

13 14

Operating your camera –SHUTTER SPEED CONTROL ②

▶MANUAL : When setting shutter speed manually.

You can select speed from ‘1/60’ to ‘1/200,000’sec ▶ELC : You can control the BRIGHTNESS.

③When completed, press ‘SET’

Notes

●Avoid pointing the camera directly at a fluorescent lamp.

●When the SHUTTER menu is set to FLK mode, the INTENSIFIER

will not work.

15 16

Tabla de contenidos

Otros manuales de Cámara de seguridad de Speco

Speco

Speco O2D60M Manual de usuario

Speco

Speco CVC605CMT Manual de usuario

Speco

Speco HINT13D7G Manual de usuario

Speco

Speco O8FB1M Manual de usuario

Speco

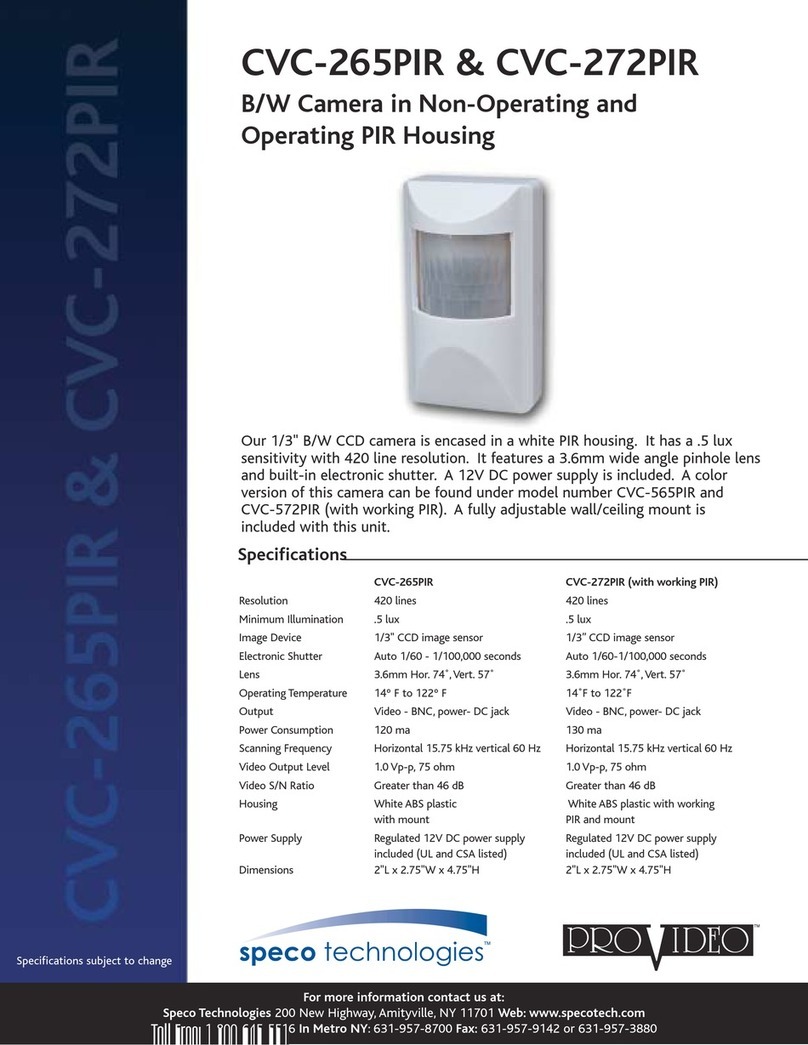

Speco CVC-265PIR Manual de usuario
