Speco CVC5300DPVF Manual de usuario

INSTRUCTION

MANUAL

PIR Sensor Camera

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/20/2012

CVC5300DPVF / CVC5300DPVFW

Contents

◑

Contents...................................................... 1

◑

Precautions ................................................. 2, 3

◑

Safety Instructions ...................................... 4

◑

Package Contents....................................... 5

◑

Camera Installation ..................................... 6-8

◑

Specications.............................................. 9

◑

Camera Dimension ..................................... 10

◑

Features...................................................... 11

◑

OSD Menu Details ...................................... 12-24

◑

Trouble Shooting......................................... 25

Do not install the camera in

extreme temperature conditions.

Do not touch the front lens of the

camera.

Never keep the camera pointed

directly at strong light.

Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially careful to provide

ventilation when operating under high

temperatures.

This is one of the most important parts of the

camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur. If exposed to radioactivity the CCD

will fail.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

This installation should be made by a qualified service person and

should conform to all local codes.

CAUTION : To prevent electric shock and risk of fire hazards:

☞Do NOT use power sources other than those specified.

Safety Instructions

Precautions for use

Please handle this camera carefully :

◑ This camera should be installed by qualied personnel only

◑There are no user serviceable parts inside

◑Do not disassemble this camera other than to make initial adjustments

◑Use a UL approved regulated 24 volt AC or 12 volt DC power supply

◑

Use appropriate low voltage power cable to prevent re or electrical shock

◑

Please insure that your installation area can support the weight of the camera

◑Do not use a strong or abrasive detergent when cleaning the camera

◑Do not install near cooling or heating device

Package Contents

Please make sure that the following items are included in the Package:

1) CVC5300DPVF, CVC5300DPVFW

• 1 Video Test Connector, Power Jack

• 2 Wrenches

• Set Screw

- 3 Tapping Screws 4x25

- 2 Hexagon Socket Screws M6x20

CAMERA INSTALLATION

jvuulj{Gwv~lyGjhislG

XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG

YUG~oluG|zpunGY[G}vs{zGhjGO[WG}GhP

ZUGjvuulj{G}pklvGjhislG

Tjvuulj{GiujGjhislG{vG{olGiujGqhjrUG

kjGXY}GwGz

wGpGaylk

jGaGORP

ishjraOTP

ylkORP

wGz

hjGY[}

CAMERA INSTALLATION

Compatibility

CVC5300DPVF, CVC5300DPVFW

INTWM INTPM JB03TG

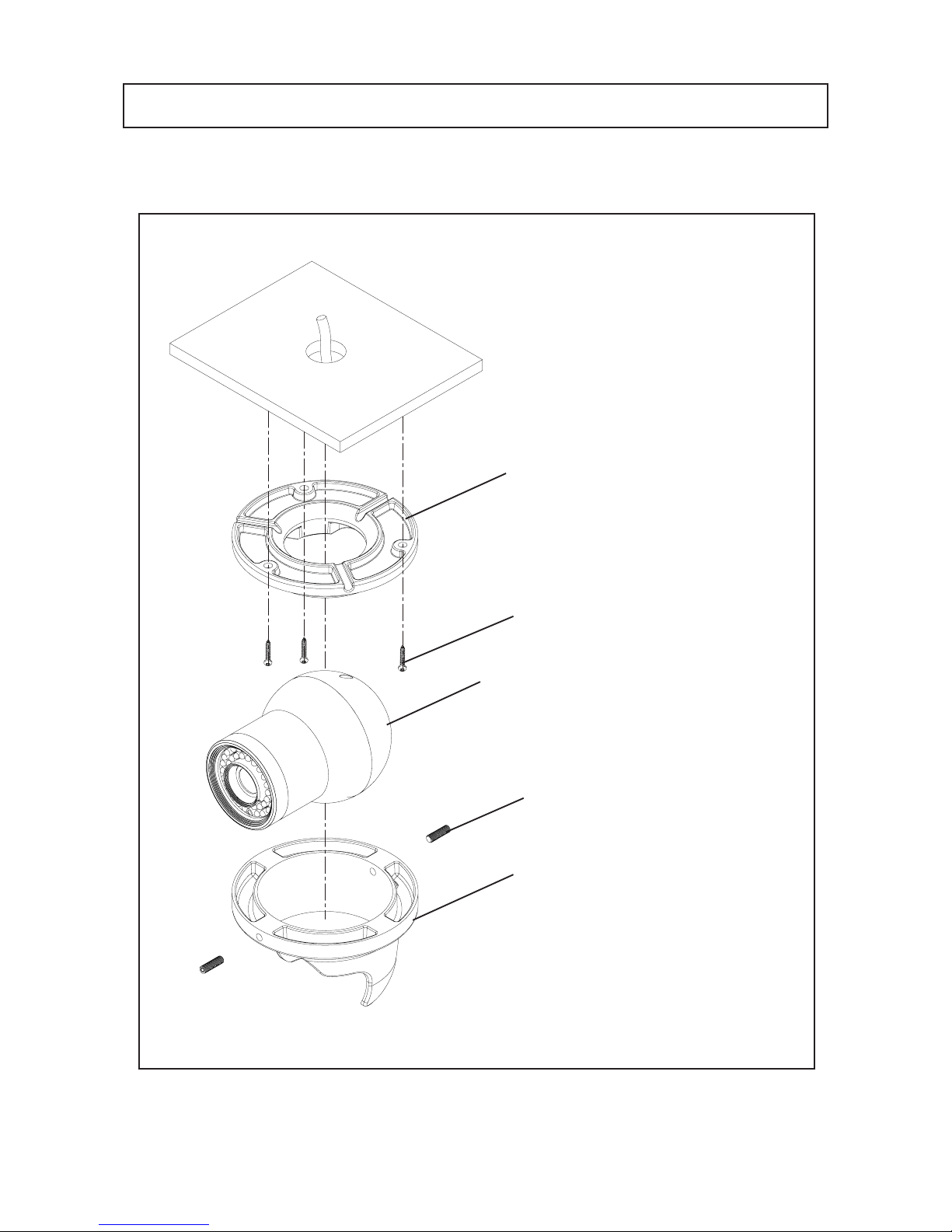

CAMERA INSTALLATION

1. CVC5300DPVF, CVC5300DPVFW

BALL DOME BASE

BALL DOME BODY

TAPPING SCREW 4X25, 3EA

BALL DOME ASSEMBLY

HEXAGON SOCKET SCREW M6X20, 2EA

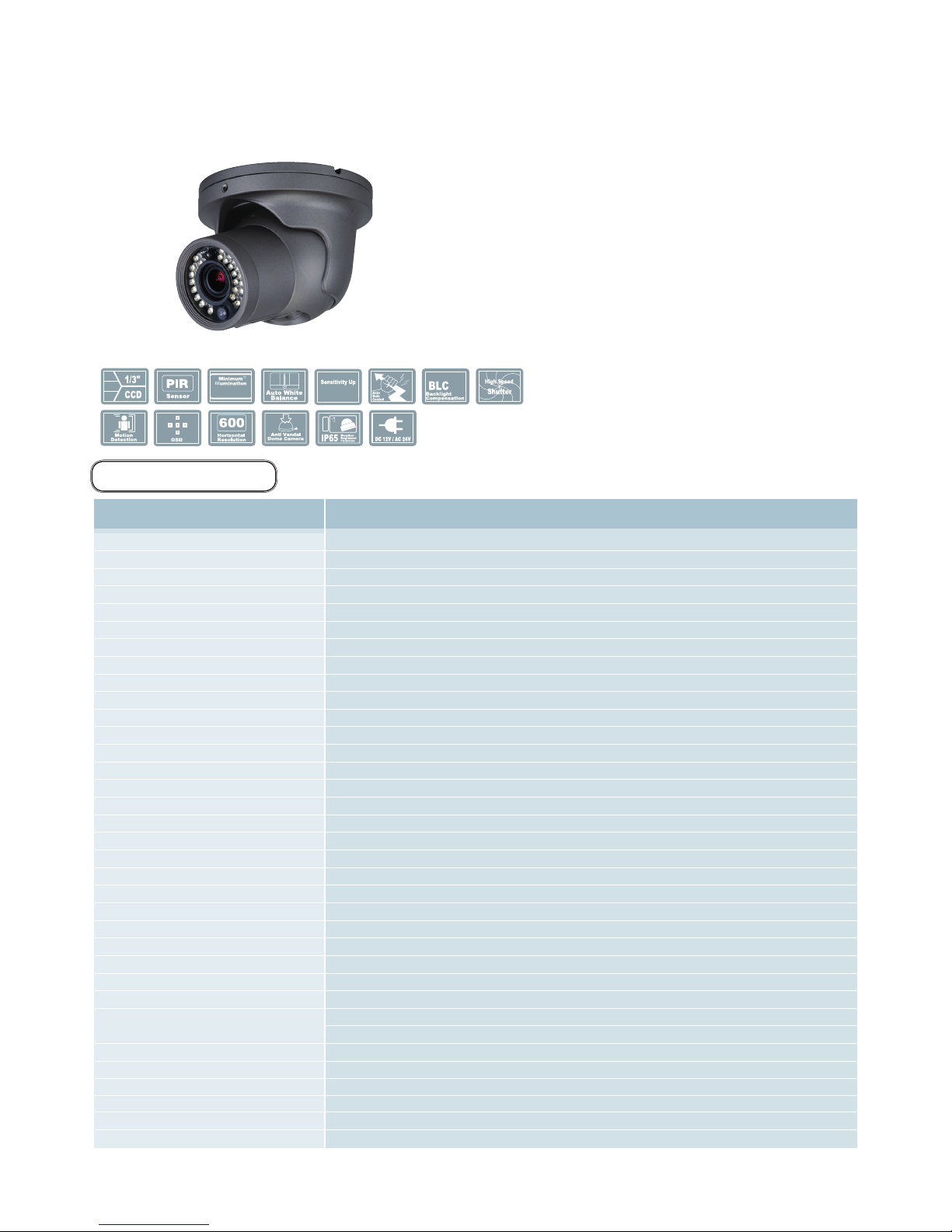

SPECIFICATIONS

PIR Sensor Weatherproof Dome Camera

DC Auto Iris Varifocal Lens(2.8mm-12mm)

1/3” Sony Super HAD ll CCD

NTSC, PAL

NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)

NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)

NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)

2:1 Interlace

Internal

600TV Lines

CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux

More than 52dB

CVBS: 1.0Vp-p / 75Ω

NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)

Available

On / Off (Level adjustable)

BLC / HLC / OFF

Color / BW / AUTO / EXT

Low / High / Off

ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)

Auto / Off (Selectable x2 ~ x512)

On / Off (8 Programmable Zones)

On / Off (12 Programmable Zones)

On / Off (Level adjustable)

On / Off (x1 ~ x16)

On / Off

On / Off (Level adjustable)

On / Off

DC 12V / AC24V(Dual Voltage)

DC 12V 250mA(CDS OFF,PIR OFF) / 600mA(CDS ON,PIR ON)

AC 24V 100mA(CDS OFF,PIR OFF),250mA(CDSON,PIR ON)

DC Auto Iris Varifocal Lens(2.8mm-12mm)

65 ft

-4˚F ~ +140˚F RH 95% Max.

5.47"(Dia) * 4.36"(H)

3.08 lbs

Image Pick-Up Device

TV System

Total Pixels

Effective Pixels

Scanning Frequency

Scanning System

Synchronization

Resolution

Minimum Illumination

S/N Ratio

Video Output

Electronic Shutter Speed

OSD

SSDR

BLC

Day & Night

Gain Control

White Balance

SENS-UP

Motion Detection

Privacy Masking

SSNR III (Digital Noise Reduction)

Digital Zoom

DIS (Digital Image Stabilizadion)

Sharpness

Filp / Mirror

Power Supply

Power Consumption

Lens

IR Distance

Operational Temp.

Storage Temp.

Dimension

Weight

MODEL CVC5300DPVF / CVC5300DPVFW

CVC5300DPVF

CVC5300DPVFW

600TV Lines

DC Auto Iris Varifocal

Lens(2.8mm-12mm)

True Day / Night Capability

ICR-IR Cut Filter Removable

White LEDs * 6pcs

IR LEDs * 24pcs

■

512x

0.00002Lux
