Speco O4P25X2 Manual de usuario

Quick Start Guide

O4P25X2

Welcome

Thank you for purchasing this PTZ camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 24VDC/AC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Overview

3 Overview

① Ethernet Connector (PoE++)

② 3.5mm Audio Out

③ 3.5mm MIC In

④ Alarm In/Alarm Out

⑤ 24VDC/AC Power Input Jack*

Ground

*24VDC Power adapter included

Installation

◆ Install SD Card

Please make sure the wall is strong enough to bear the dome

camera’s weight. Please make sure the camera is powered off

during installation.

ALARM

4 3 2 1

① Loosen the two screws of the dome. ② Open the cover and insert SD card.

Insert SD card

◆ Install the Speed Dome

② Drill the screw holes on the wall

according to the drill template. Then

insert the screw anchors into the holes.

③Attach the bracket to the wall

with four screws.

① Fasten the adpater to the bracket.

Adapter

④ Hook the safety wire to the bracket.

Then connect the cables. After that,

secure the speed dome to the bracket

with the screws .

8.0mm

78.5mm

100.0mm

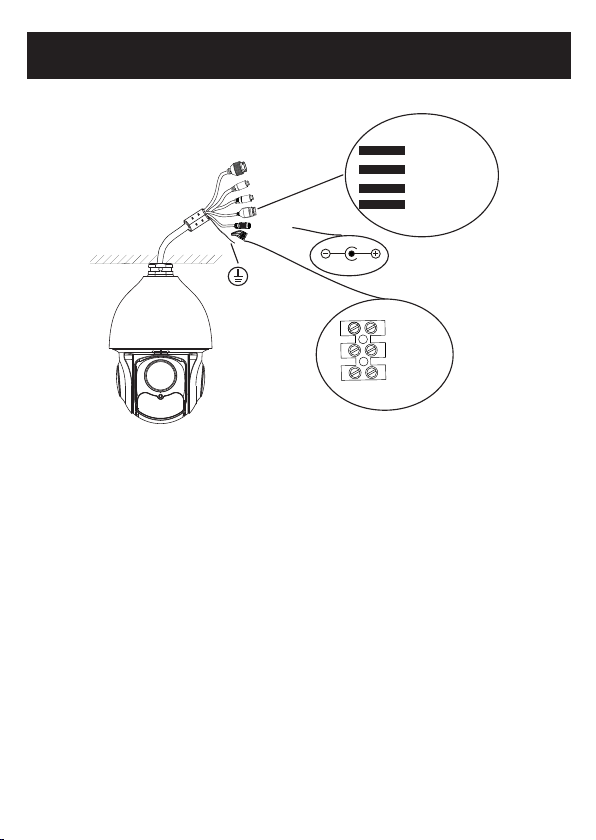

Cable Connection

HP Audio Out

Ethernet Port

MIC IN

Power

ALM-OPEN

ALM-COM

ALM-GND

ALM-IN1

24V A

24V B

Earth

DC24V

AC24V

Alarm Connection:

1. Alarm Input

a) There is one independent alarm input port (ALM-IN1) and

one grounding port (ALM-GND).

b)Alarm input(NO type): Connect DC5V~DC12V voltage

between the alarm input port( ALM-IN1) and the grounding port

(ALM-GND).

c) Alarm input(NC type): Disconnect the voltage between the

alarm input port(ALM-IN1) and the grounding port (ALM-GND).

ALARM

4 3 2 1

Connect to earth ground

2. Alarm Output

a) Support 1CH alarm output including OPEN, COM

connections.

b) Alarm output: One passive switch for user to connect alarm

devices; the alarm output state will be auto on/off according to

your setting.

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

5C :F2:0 7: 24:68 :B9

O4 P25X2

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.
