Sony SDT-9000 Series Manual de usuario

3-860-829-04(1)

1997 Sony Corporation

DDS Tape Drive

SDT-9000 Series

User’s Guide

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for error

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

VORSICHT

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

Contents

Introduction .......................................4

Product Features........................4

Precautions ................................5

Installation .........................................6

SCSI Connection/Setting the

SCSI ID/Option Switches......6

Mounting Holes........................7

Remodeling from 5.25" Model

to 3.5" Model .........................9

Orientation...............................10

Operation .........................................11

Location of 3 LEDs .................11

LED Indication for

Drive Status .........................12

Drive Operation.......................13

Emergency Cassette Removal

Procedure .............................14

Interface Implementation.................16

Supported SCSI Messages ......16

Supported SCSI Commands....16

Specification ....................................17

Product Specifications.............17

Third Party Support Contacts

(In the USA) ...............................19

Sony Contacts ..................................21

SDT-9000 DDS-3 Tape Drive

Conglatulation on your purchase of the Sony DDS-3 drive SDT-9000.

This drive is a high capacity data storage device using 4mm DAT (Digital

Audio Tape) technology. The SDT-9000 drive achieves high data

reliability through Read-After-Write, an additional level of Error

Correction Code, and other features.

The Sony SDT-9000 drive stores data on tape using a standard format

called DDS (Digital Data Storage), DDS-3, DDS-2, DDS-DC and DCLZ

formats. These formats are used by many other DDS tape drive

manufacturers, providing a broad range of compatible tape drives.

The Sony SDT-9000 is fully READ and WRITE compatible with the DDS-

3, DDS-2, DDS and DDS-DC format tapes.

Introduction

Product Features

• Supported Formats: DDS-3, DDS-2, DDS, DDS-DC and DCLZ

• High Burst Transfer Rate- 5MB/sec Asynchronous

10MB/sec Synchronous

• Large 2MB Buffer

• 3.5" Standard Height, 5.25" Half Height

• Embedded SCSI Interface

• Supports Variable or Fixed Record Length

• Supports SCSI-2 Sequential-access Devices Command Set

• Read After Write (RAW)

• Frame Rewrite Function

• Three Levels of Error Correction Code (ECC)

• Quick Search (200 times normal Read/Write speed)

• Random Read

• N-Group Write Option

• Dual Partition Option

• SCSI Disconnection/Arbitration

* Assuming 2:1 compression. Actual capacity and transfer rate may vary

since compression is depending upon data type.

Data Capacity

Transfer Rate

(sustained)

SDT-9000

(With Data Compression)

24 GB (typical)*

2.4 MB/sec (typical)*

Precautions

Installation

Avoid placing the drive in a location subject to:

– high humidity

– high temperature

– mechanical shock and vibration

– direct sunlight

Operation

* Do not move the drive while it is operating. Doing so may cause a

malfunction.

* Avoid exposing the drive to sudden changes from low to high in

temperature. This may cause water condensation to collect inside the

drive. If the ambient temperature should suddenly rise while the drive is

turned on, wait at least one hour before turning on the drive. If you

attempt to operate the drive immediately after a sudden increase in

temperature, a malfunction may occur.

* Do not turn off the drive while a tape is inside the drive.

Transportation

* Keep the original packing materials for possible future shipments of the

drive.

* Be sure to remove any tapes from drive prior to transportation. After

removing the drive from the computer, repack the drive into its original

packaging.

Installation

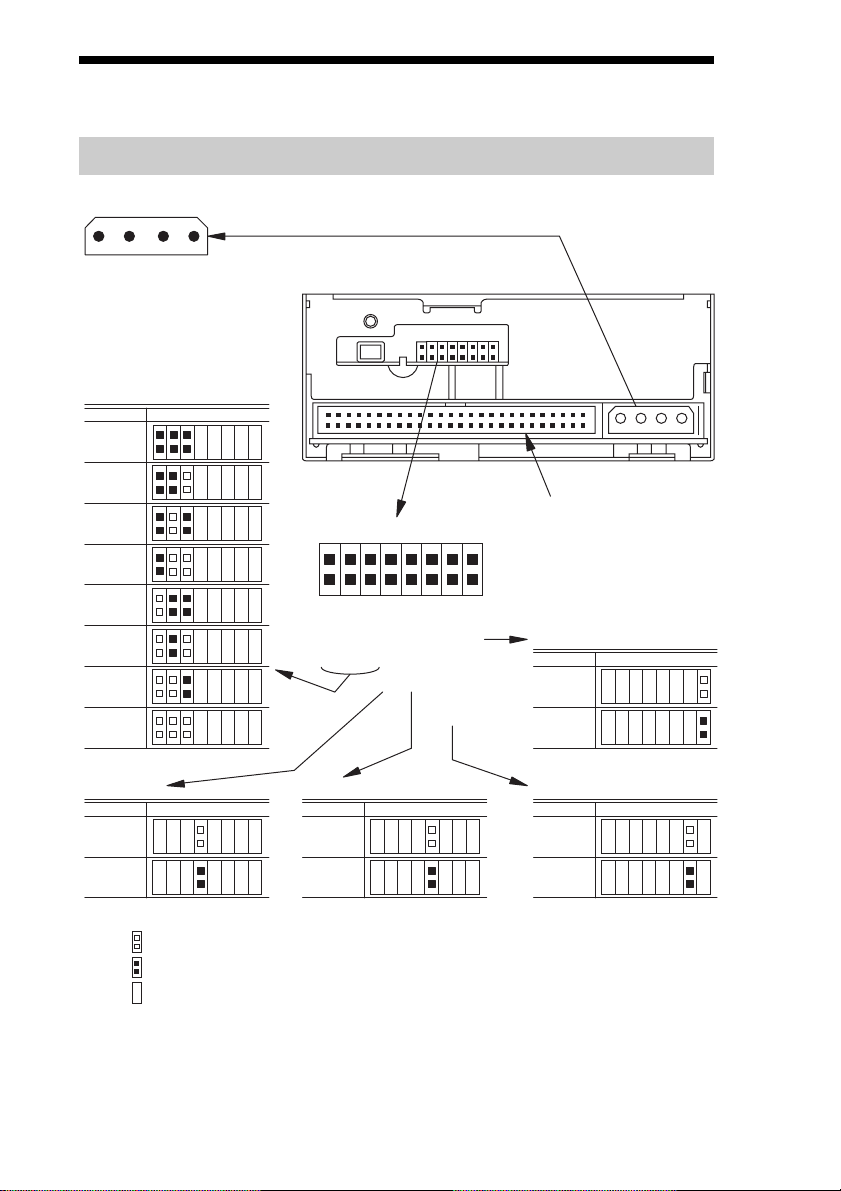

SCSI Connection/Setting the SCSI ID/Option Switches

Terminator OnSCSI ParityDC Disable

SCSI ID

SCSI ID 2

SCSI ID 1

SCSI ID 0

DC DISABLE

SCSI PARITY

RESERVED

TERMINATOR ON

TERMINATOR POWER

Jumpers

Note :

= OPEN/Jumper not installed

= CLOSED/Jumper

Don’t care

Terminator Power

SCSI ID

Terminators

Disabled

Enabled

SCSI Parity

Enabled

Disabled

Term Power

Provided

Not

Provided

Terminators

Enabled

Disabled

SCSI 50 pin Connector

(Non-shielded)

12 V

GND

5 V

Power Connector

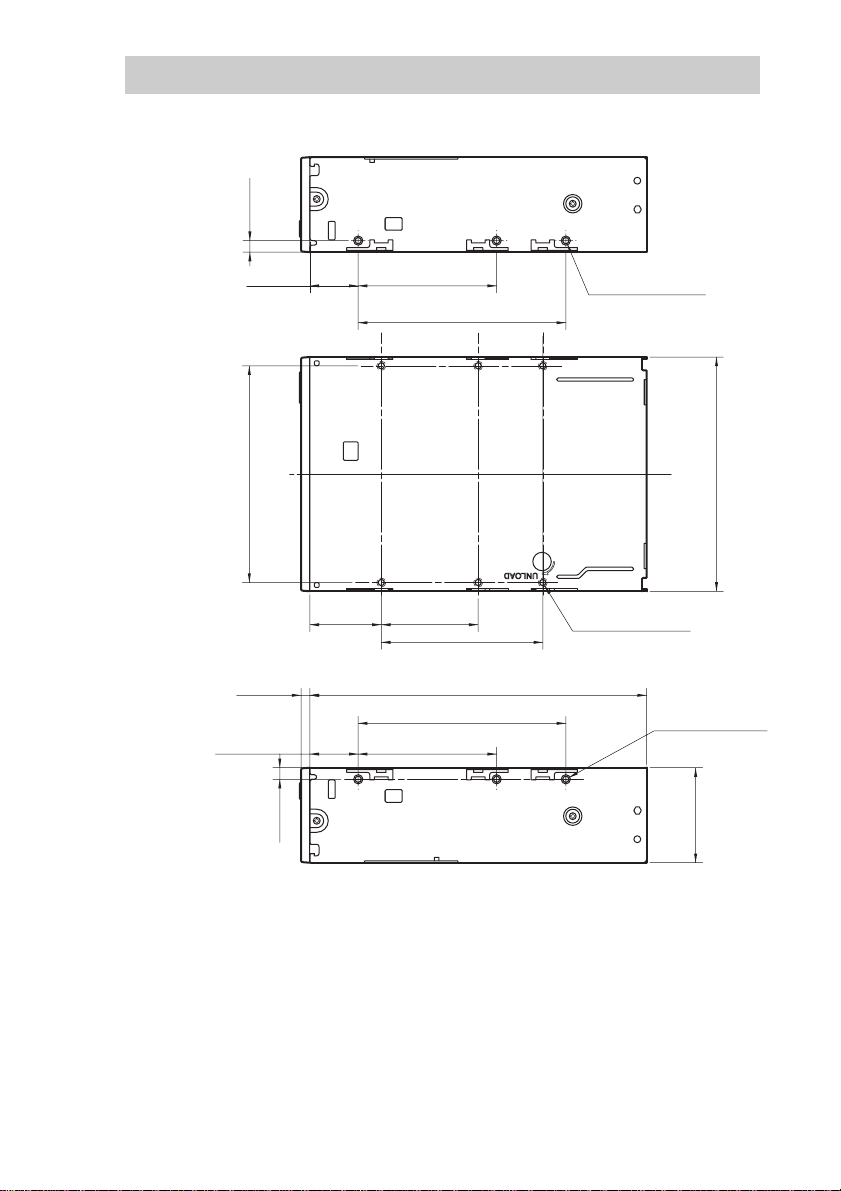

Mounting Holes

For 3.5" Standard Height (SDT-9000)

(0.83 in)

21±0.3mm (2.36 in)

60±0.3mm

(3.54 in)

90±0.3mm

(0.20 in)

5±0.3mm

(depth 0.12 in)

3-M3 (depth 3mm)

(3.70 in)

94±0.3mm

(4.00 in)

101.6±0.5mm

(1.22 in)

31±0.3mm (1.65 in)

42±0.3mm

(2.76 in)

70±0.3mm (depth 0.12 in)

6-M3 (depth 3mm)

(2.36 in)

60±0.3mm

(3.54 in)

90±0.3mm

(5.75 in)

146±0.5mm

(0.15 in)

3.8±0.5mm

(0.83 in)

21±0.3mm

(0.20 in)

5±0.3mm

(1.62 in)

41.2±0.5mm

(depth 0.12 in)

3-M3 (depth 3mm)

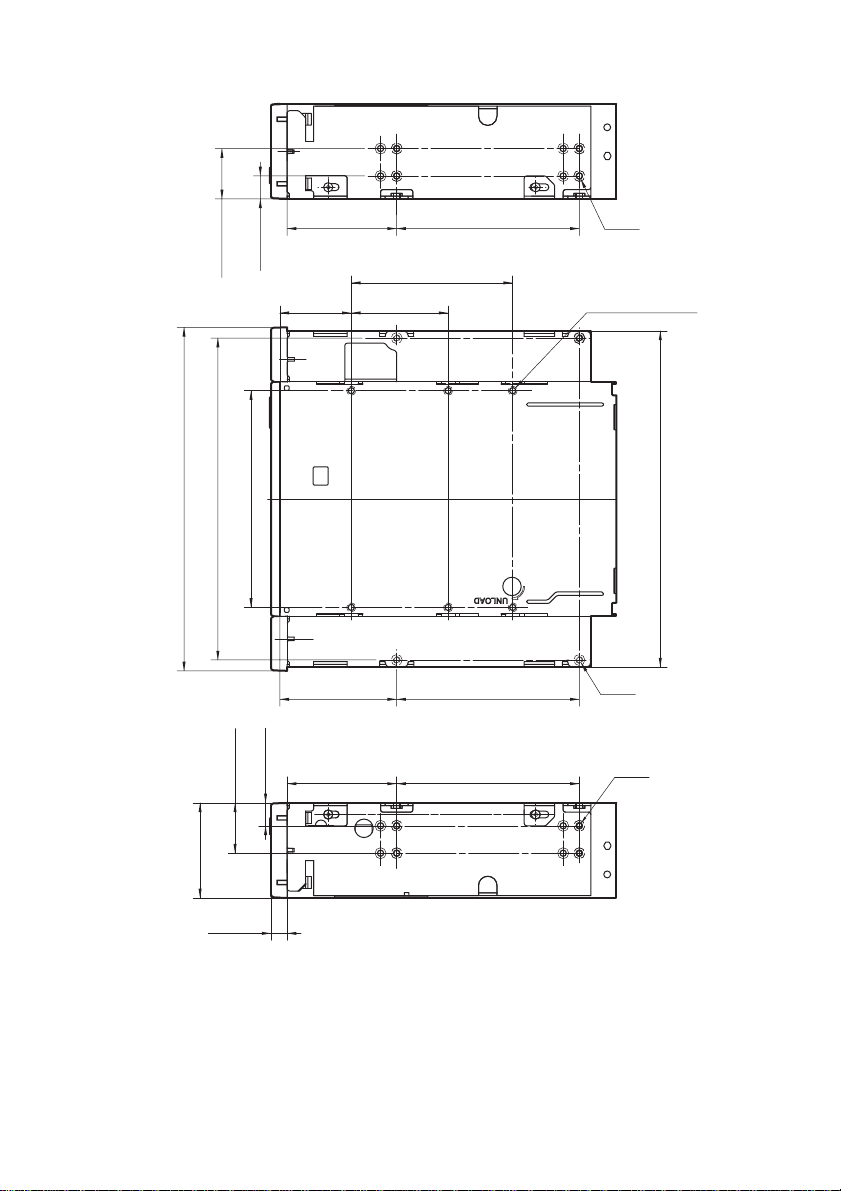

For 5.25" Half Height (SDT-9000/R)

4-M3

(5.75 in)

146±0.5mm

(3.70 in)

94±0.3mm

(1.22 in)

31±0.3mm (1.65 in)

42±0.3mm (2.76 in)

70±0.3mm

(3.12 in)

79.2±0.3mm

(2.00 in)

50.7±0.3mm

(5.50 in)

139.6±0.4mm

(5.87 in)

149±0.5mm

(depth 0.12 in)

6-M3 (depth 3mm)

4-M3

(3.12 in)

79.2±0.3mm

(1.87 in)

47.5±0.3mm

(0.39 in)

9.9±0.3mm

(0.86 in)

21.8±0.3mm

4-M3

(3.12 in)

79.2±0.3mm

(1.87 in)

47.5±0.3mm

(1.62 in)

41.2±0.5mm

(0.86 in)

21.8±0.3mm

(0.39 in)

9.9±0.3mm

(

0.28 in

)

7±0.3mm

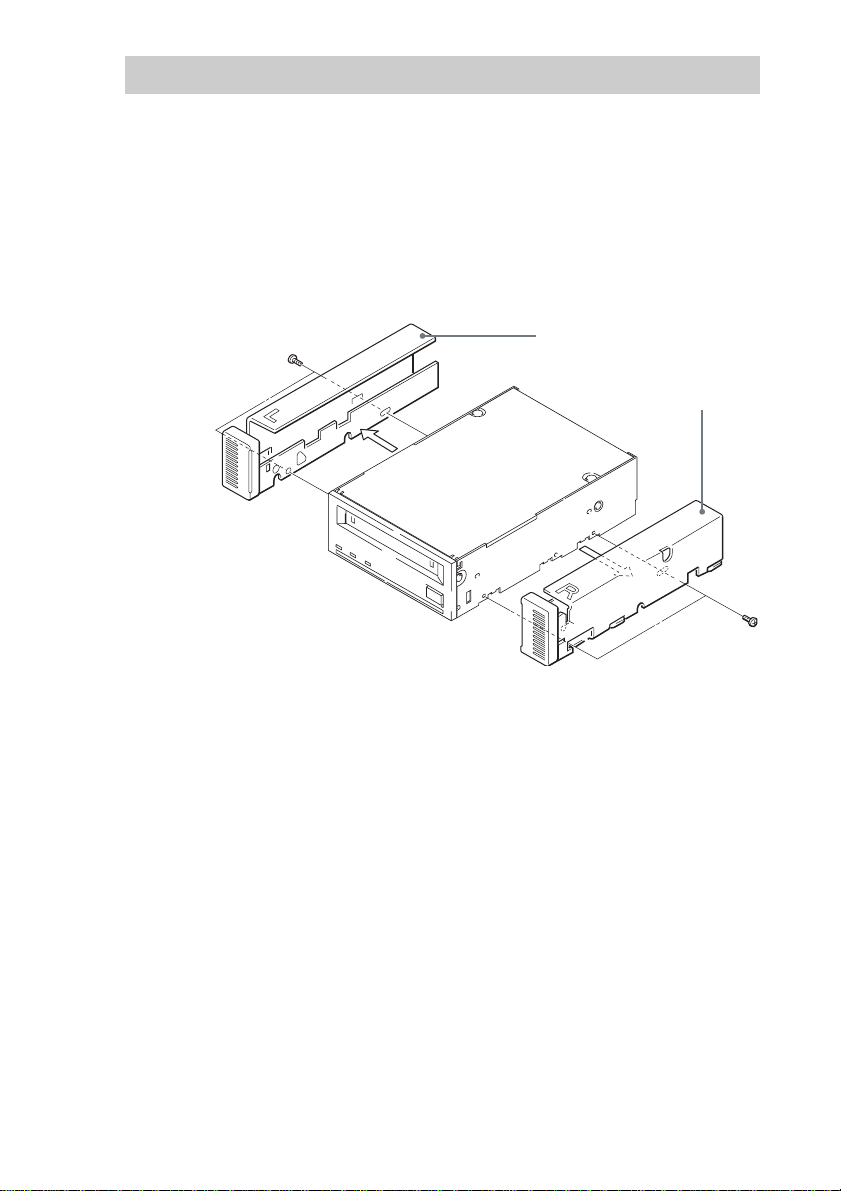

Remodeling from 5.25" Model to 3.5" Model

You can remodel the SDT-9000/R (5.25" model) to the SDT-9000 (3.5"

model) yourself.

1Remove the 2 screws for each side rail.

2Take the side rail off.

Side Rail (L)

Side Rail (R)

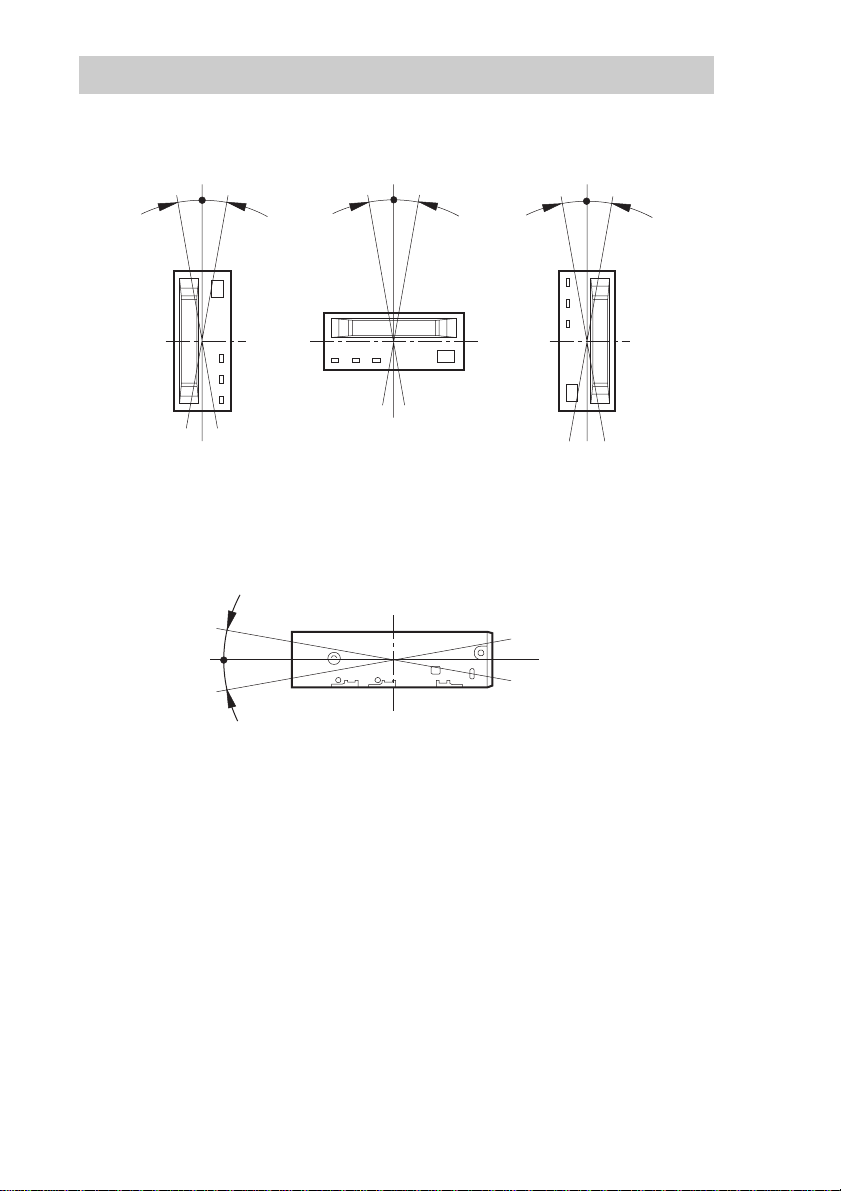

Orientation

10°10°
