MAS SD (USB)

RECORDING SYSTEM

Installation &

Operation Instructions

MAS Medical Ltd - Recording Systems

MAS Medical Ltd are principle suppliers of:

Fluoroscopy Video Recording Systems in Medicine

We Technically Advise and Contractually Support:

Hardware, Operation, Video Control and Video System Applications

Technical Support is Conveniently Available:

Telephone / Fax / Email / On-Site Service

OEM Trained, Service Engineer Attendance

High Quality Recordings allow High Quality replay with

PC or Laptop

Recording Media is inexpensive and compact

Unique features of the System are:

Auto control of recording linked X-Ray System

Annotation of patient details to the Recording

System Applications Include:

Speech Therapy, Barium Swallow

Paediatric Urography Study

Cardiac Study

Ultrasound

Principle components of the MAS SD Recording System:

Sony HVO-500MD Medical Grade Recorder

Sony LMD-2110MD Medical Grade Monitor

VCS-2 Lite Video Control System

Options:

Sound System

Opto-Isolation between System and X-Ray

Installation

The Sony HVO-500MD and Video Control System (VCS-2 Lite) are supplied with

comprehensive interface cabling. Care should be taken when removing the

equipment from the packaging.

Installation should only be carried out by a competent person and will normally

require an Appropriate X-Ray Engineer for connection of the Video Signal from X-Ray

or Ultrasound.

System Connections

Mains Power:

13 Amp Socket Outlets

Video In:

X-Ray 625 Line 50Hz Video Signal

(Video Input can be Opto-Isolated)

Video Out:

Monitor Line Video Signal

Audio In:

Pre-Amp Line Audio Signal

Audio Out:

Monitor Line Audio Signal

Keyboard:

Recorder USB 2

Control Signal –VCS-2 Lite / Recorder Interface:

VCS-2 Lite Control Cable interfaces Recorder Remote 1

Control Signal - VCS-2 Lite / X-Ray Interface:

VCS-2 Lite Video Control System requires a Fluoroscopic and a Radiographic Signal

from the X-Ray equipment to control Recorder Functions

VCS-2 Lite Passive X-Ray Interface Cable

Passive Interface connection requires isolated, normally open, relay or switch

contact from X-Ray equipment

BS-AP25 Cables are pre-wired to comply with IEC 601 part 1

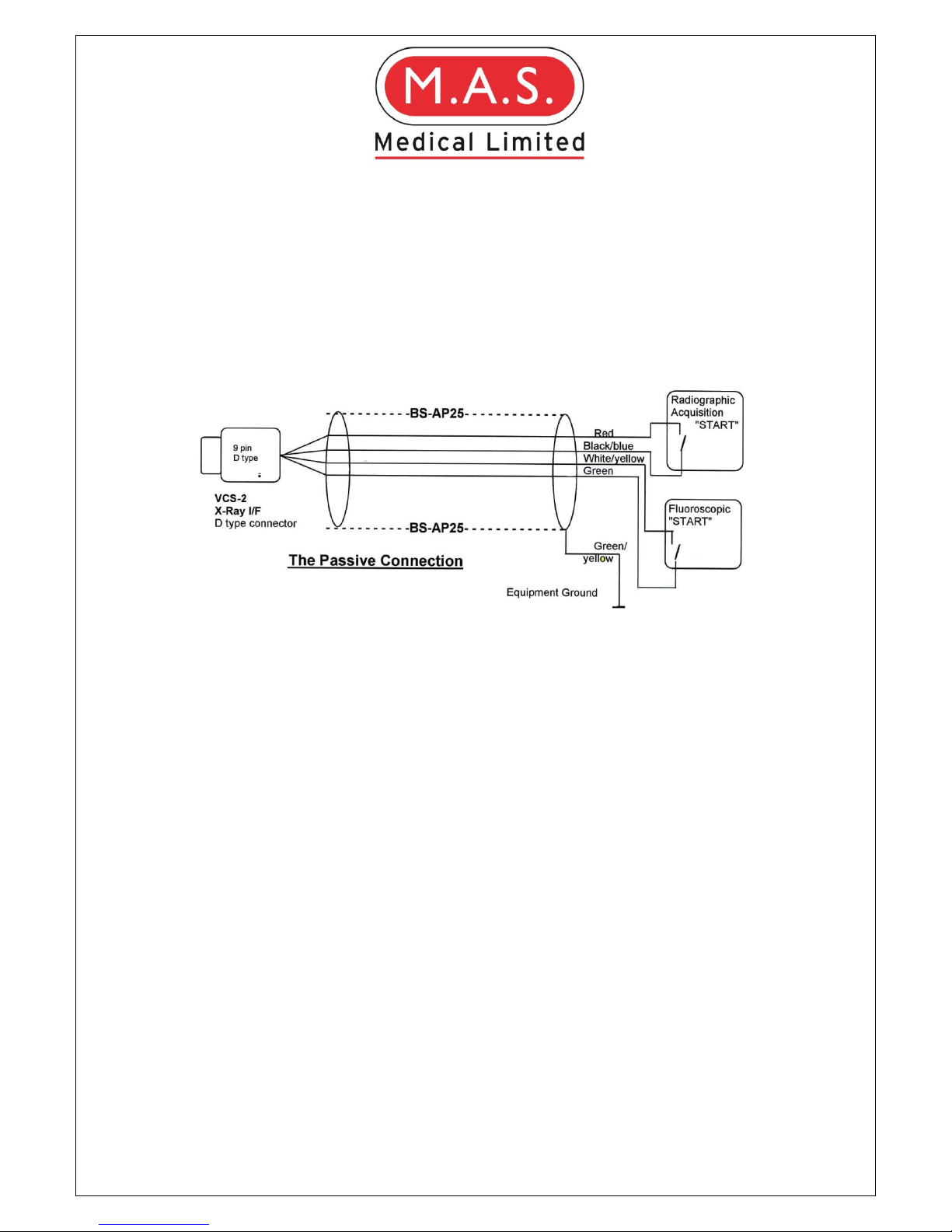

Connection of X-Ray Interface

Passive connection is made between X-Ray unit and the VCS-2 Lite Video Control

System.

Please Note

Passive Connection Cable

Damage to VCS-2 Lite results through improper use

DAMAGE INVALIDATES WARRANTY

Passive Interface (BS-AP25)

Isolated ‘NO’ (Normally Open) Relay or Switch Contact triggers both Fluoroscopic and

Radiographic Acquisition ‘Start’

Cable BS-AP25 provides a passive interface connection

BS-AP25 Passive Interface Cable / 25 Metre

Operation / Recording

Please Note:

Sony HVO-500MD is a Multifunctional / Multimedia Recorder. The following is a basic

guide to recording Video / Audio Events, and intended as an introduction to the

M.A.S. Medical SD Recording System

Reference to the HVO-500MD Manual details comprehensive Recorder options.

Quick Start Guide:

Connect mains power and confirm:

Sony Recorder is on

To confirm Format of Video Input Signal, press and hold ‘Enter’key, 5 seconds.

Repeat for other Video Input Signal options

VCS-2 Lite is on

VCS-2 Lite performs a 5 second System Test when power is applied

To disable the audible alert test, initially deselect Fluoro, Acq and Manual Buttons

Sony Monitor is on

Phono Pre Amp on (Sound Systems)

Select VCS-2 Lite ‘Fluoro’ or ‘Acq’ (Default to ‘Fluoro’)

X-Ray Image is displayed

Input Patient Information:

Select HVO-500MD

Select

Recording Preparation

Input Data either by the ‘On Screen’ or ‘Attached’ Keyboard

Select

Done

Recording Test:

Activation from X-Ray: Recording Start

Deactivation from X-Ray: Recording Pause

Select HVO-500MD

Stop

: Recording End

Save Recording to Optical Flash Disk

Select

Navigate to

Recording List

Enter

Navigate to

Play

Enter

Navigate to

Save To

Check Recordings for Save

Navigate to

Execute

Enter

Select Relevant Recording Media

Insert Relevant Media

Select

Execute

Select

Playback from HDD:

Navigate to

Recording List

Enter

Highlight recording to

Playback

Select

Play

Playback from Multimedia:

Recordings are replayed from PC or Laptop

Note - HVO-500MD does not have the functionality to replay from Multimedia

Specification

Video Recorder

Model: Sony HVO-500MD

Recording Media: USB Flash Drive

Recording File Save Format: MP4

Video Monitor

Model: Sony LMD-2110MD

Video Control System

Model: VCS-2 Lite

X-Ray Interface: Fluoroscopy / Acquisition

‘’NO’Contact Passive Interface

Power Supplies 230 V AC / 50 Hz

Mains Plug Fuse Rating

Recorder 3 A

Monitor 3 A

VCS-2 Lite 3 A

Opto-Isolator 5 A

Frequently Asked Questions

Sound Recording?

Sound can be Recorded with a Microphone and Pre-amp

Sound Systems are available from MAS Medical Ltd

Delete Recordings?

Recordings can be deleted from the Internal HDD

Edit Recordings?

Use of Video Editing Software enables Edit of Recording

Power Point Presentation?

Use of Power Point Software, enables addition of Video Clips to Presentation

Recording Media?

The SONY HVO-500MD records to USB Flash Drive

We recommend that good quality media from a reputable manufacturer are used

Video Play Back?

HVO-500MD (From Internal HDD Only)

PC with compatible Play Back Software

For further information, please contact MAS Medical Ltd

01484 721906
