Sony WX-C55 Manual de usuario

Other Specifications

CD player section

Signal-to-noise ratio 94 dB

Frequency response 5 – 20,000 Hz

Wow and flutter Below measurable limit

Laser Diode Properties

Material GaAlAs

Wavelength 780 nm

Emission Duration Continuous

Laser output power Less than 44.6 µW*

*This output is the value measured at a distance

of 200 mm from the objective lens surface on

the Optical Pick-up Block.

Cassette player section

Tape track 4-track 2-channel stereo

Wow and flutter 0.08 % (WRMS)

Frequency response 30 – 20,000 Hz

Signal-to-noise ratio

Cassette type Dolby B NR Dolby NR off

TYPE II, IV 67 dB 58 dB

TYPE I 64 dB 55 dB

Model Name Using Similar Mechanism NEW

CD Drive Mechanism Type MG-378X-121

Optical Pick-up Name KSS-521A

Model Name Using Similar Mechanism XR-C8820

Tape Transport Mechanism Type MG-25E-136

SERVICE MANUAL

US Model

E Model

WX-C55

CHANGER CONTROL AUDIO MASTER

MICROFILM

SPECIFICATIONS

– Continued on next page –

Section

DolbynoisereductionmanufacturedunderlicensefromDolbyLabo-

ratories Licensing Corporation.

“DOLBY” and the double-D symbol aare trademarks of Dolby

Laboratories Licensing Corporation.

AUDIO POWER SPECIFICATIONS (US Model)

POWER OUTPUTAND TOTAL HARMONIC DISTORTION

13 watts per channel minimum continuous average power into

4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more

than 1% total harmonic distortion.

Tuner section

Tuning range US model:

87.5 – 107.9 MHz

E model:

FM tuning interval:

50 kHz/200 kHz switchable

87.5 – 108.0 MHz

(at 50 kHz step)

87.5 – 107.9 MHz

(at 200 kHz step)

Antenna terminal External antenna connector

Intermediate frequency 10.7 MHz

Usable sensitivity 9 dBf

Selectivity 75 dB at 400 kHz

Signal-to-noise ratio 65 dB (stereo),

68 dB (mono)

Harmonic distortion at 1 kHz

0.7% (stereo),

0.4% (mono)

Separation 35 dB at 1 kHz

Frequency response 30 – 15,000 Hz

SECTION 6

DIAGRAMS

• IC500 µPD78058GC-B51-8BT (SYSTEM CONTROL)

Pin No. Pin Name I/O Pin Description

1 VSM I FM, AM common signal meter A/D conversion input

2 NIL I Not used. (Connect to ground in this set.)

3 SD-IN I Station detecter input (“H” : with SD)

4 AVSS — Analog ground

5 FM-ST I FM stereo input pin (“L” : stereo)

6 AM-ST I AM stereo input pin (“L” : stereo)

7 AVREF — Reference power supply for D/A conversion.

8 PLL-SI I PLL serial data input

9 PLL-SO O PLL serial data output

10 PLL-CKO O PLL serial clock output

11 PLL-CE O PLL serial chip enable output

12 AMS I Music with/without detection input at AMS. (“L” : with music, “H” : without music)

13 PLAY/AMS O Tape AMS control output

14 F/R O FWD/REV detection output (“H” : FWD, “L” : REV)

15 MTL O Metal control output (“H” : metal)

16 BUS-SI I Uni-link serial interface data input

17 BUS-SO O Uni-link serial interface data output

18 BUS-CKI I Uni-link serial interface clock input

19 BUS-CKO O Uni-link serial interface clock output

20 TAPE-MUTE O Tape mute control output

21 DOLON I/O Dolby control input/output

22 EQ-CE O Equalizer serial chip enable output (Not used in this set.)

23 EQ-CLK O Equalizer serial clock output (Not used in this set.)

24 DATA O Serial data output

25 VOL-CLK O Electronic volume serial clock output

26 VOL-CE O Electronic volume serial chip enable output

27 MUT O System mute control output

28 AMP-ON O Power amplifier power supply control output

29 AUX-MUT O AUX mute control output

30 C/B I/O Dolby B/C select control output (Not used in this set.)

31 PWR-SEL I Power select initial setting input

32 TEST I Test mode setting input

33 VSS — Ground

34 NIL I Not used. (Connect to ground in this set.)

35 POWER-ON O System power supply control output

36 TUN-ON O Tuner power supply control output

37 FM-ON O FM power supply control output

38 AM-ON O AM power supply control output (Not used in this set.)

39 NIL I Not used. (Connect to ground in this set.)

40 CM-ON O Capstan motor control output

41 TP-ON O Tape power supply control output

42 LM-EJ O Loading motor control output (Eject direction)

43 LM-LOD O Loading motor control output (Loading direction)

44, 45 POS1, 0 I Position signal detection input 1, 0

46 BEEP O Buzzer control output

47, 48 POS2, 3 I Position signal detection input 2, 3

49 REL I Reel stand rotation detection input

50 RC-IN1 I Rotary commanderA/D conversion input 1

51 SUB-CE O Sub serial chip enable output (Not used in this set.)

52 SUB-DATA O Sub serial data output (Not used in this set.)

53 SUB-CLK O Sub serial clock output (Not used in this set.)

6-1. IC PIN DESCRIPTIONS

Pin No. Pin Name I/O Pin Description

54 SYS-RST O System reset signal output

55 BUS-ON O Bus ON control output

56, 57 RE1, 0 I Rotary encoder input 1, 0

58 AD-ON O Power supply output for A/D conversion.

59 RAMBU I RAM reset detection input

60 RESET — Reset input

61 SIRCS I Remote control input (Not used in this set.)

62 BU-IN I Backup power detection input

63 NIL — Not used (Connect to ground in this set.)

64 ACC-IN I Accessory power supply detection input

65 DIMMER I Dimmer control input

66 TEL-MUTE I Telephone mute control input

67 KEY-ACK I Key input acknowledge

68 VDD — µ-con power supply

69 X2 O Main ceramic oscillator output (5 MHz)

70 X1 I Main ceramic oscillator input (5 MHz)

71 IC — Connect to ground in this set.

72 XT2 O Sub crystal oscillator output (32.768 kHz)

73 XT1 I Sub crystal oscillator input (32.768 kHz)

74 AVDD — Power supply for A/D conversion.

75 AVREF — Reference power supply for A/D conversion.

76, 77 KEY-IN0, 1 I Key input 0, 1

78 KEY-IN2 I Key input 2 (Not used in this set.)

79 RC-IN0 I Rotary commanderA/D conversion input 0

80 DSTSEL I Initial setting input of destination. (“H” : US model, “L” : E model)

• IC801 µPD78054GC-A32-8BT (CD SYSTEM CONTROL)

Pin No. Pin Name I/O Pin Description

1 LEDCLK — Not used in this set.

2 LEDCKO — Not used in this set.

3 LEDSO — Not used in this set.

4 AVSS — Analog ground

5 FL-CE0 O Display driver chip select output 0

6 FL-CE1 O Display driver chip select output 1 (Not used in this set.)

7 AVREF1 — Reference power supply for D/A conversion.

8 FL-RST O Display driver reset output (Not used in this set.)

9 FL-SO O Display driver data output

10 FL-CKO O Display driver clock output

11 SRDT — Not used in this set.

12 NCO — Not used.

13 SCLK — Not used in this set.

14 FL-BLK O Display driver blank control output

15 NIL — Not used. (Connect to ground in this set.)

16 UNISI I Uni-link serial interface data input

17 UNISO O Uni-link serial interface data output

18 UNICKI I Uni-link serial interface clock input

19 LINKOFF O Link off output

20 ILLON O Illumination power supply control output

21 CMDON O CD mechanism power supply control output

22 CD-ON O CD power supply control output

23 SP-SEL O Signal (L/R channel) select control signal output to spectrum analyzer control IC.

24 SP-C O Frequency select control signal output to spectrum analyzer control IC.

25 SP-B O Frequency select control signal output to spectrum analyzer control IC.

26 SP-A O Frequency select control signal output to spectrum analyzer control IC.

27 CDMUT O CD mute control output

28 EMPH-O O Emphasis control output

29 CD-RST O CD signal process IC reset output

30 XMODE — Not used in this set.

31, 32 NIL — Not used. (Connect to ground in this set.)

33 VSS — Ground

34 TBTGSEL I CD tracking balance, tracking gain auto adjustment select input.

35 – 39 NIL — Not used. (Connect to ground in this set.)

40 GFS I GFS signal detection input

41 SQ-SI I SUB Q data input

42 SQ-CKO O SUB Q clock output

43 NIL — Not used. (Connect to ground in this set.)

44 CD-SO O CD signal process serial data output

45 CD-LAT O CD signal process latch output

46 CD-CKO O CD signal process serial clock output

47 PH2 I 8/12 cm disc detection input

48 F-OK I Focus signal detection input

49 LD-ON O Laser on/off select control output

50 D-SW I Down switch detection input

51 PH1 I Disc insert detection input

52 L-SW I Sled limit switch input

53 LM-LOD O Loading motor control output (Loading direction)

54 LM-EJ O Loading motor control output (Eject direction)

55 PH3 I Disc detect sensor input

56 CTL1 O Driver IC control output

57 NCO — Not used.

Pin No. Pin Name I/O Pin Description

58 EESIO O Not used in this set.

59 EECKO O Not used in this set.

60 RESET — Reset input

61 SCOR I SCOR signal detection input

62 CNIN I Track jump count input

63 SELF-SW I Disc self store detection input

64 SENS I SENS signal detection input

65 DQSY — Not used in this set.

66 BUIN I Backup power supply detection input

67 BUSON I Bus on control input

68 VDD — µ-con power supply

69 X2 O Main ceramic oscillator output (5 MHz)

70 X1 I Main ceramic oscillator input (5 MHz)

71 IC — Not used. (Not used in this set.)

72 XT2 O Sub crystal oscillator output (Not used in this set.)

73 XT1 I Sub crystal oscillator input (Connect to ground in this set.)

74 AVDD — Power supply for A/D conversion.

75 AVREF — Reference power supply for A/D conversion.

76 NIL — Not used. (Connect to ground in this set.)

77 SP-IN I Spectrum analyzer control signal input from spectrum analyzer control IC.

78 TSTIN0 I LOAD/EJECT prohibition setting input

79 NCO — Not used.

80 LEDOE — Not used in this set.

34 34

WX-C55

6-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 35 for Waveforms and page 48 for IC Block Diagrams.

Note:

• Voltage and waveforms are dc with respect to ground

under no-signal conditions.

no mark : CD PLAY

∗: Impossible to measure

(Page 35)

35 35

WX-C55

6-8. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 48 for IC Block Diagrams.

Note:

• Voltage and waveforms are dc with respect to ground

under no-signal conditions.

no mark : CD PLAY

(Page 34)

(Page 37)

• Waveforms

(MODE : CD PLAY)

IC1 3(MDP)

2.6Vp-p

7.6µsec

IC1 @º (LRCK)

5.8Vp-p

22.7µsec

IC1 @™ (BCK)

5.7Vp-p

474nsec

16.89MHz

IC1 #¢ (XTAI)

3.2Vp-p

Approx. 200mVp-p

IC2 $™ (TEO)

Approx. 620mVp-p

IC2 1(FEO)

IC2 #¡ (RFO)

1.2Vp-p

37 37

WX-C55

6-12. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 51 for IC Block Diagrams.

Note:

• Voltage is dc with respect to ground under no-signal

condition.

no mark : CD PLAY

(Page 41)

(Page 46)

(Page 41)

(Page 35)

(Page 36)

40 40

WX-C55

6-14. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 50 for IC Block Diagrams.

Note:

• Voltage is dc with respect to ground under no-signal

condition.

no mark : FM

():AM

(Page 41)

(Page 42)

41 41

WX-C55

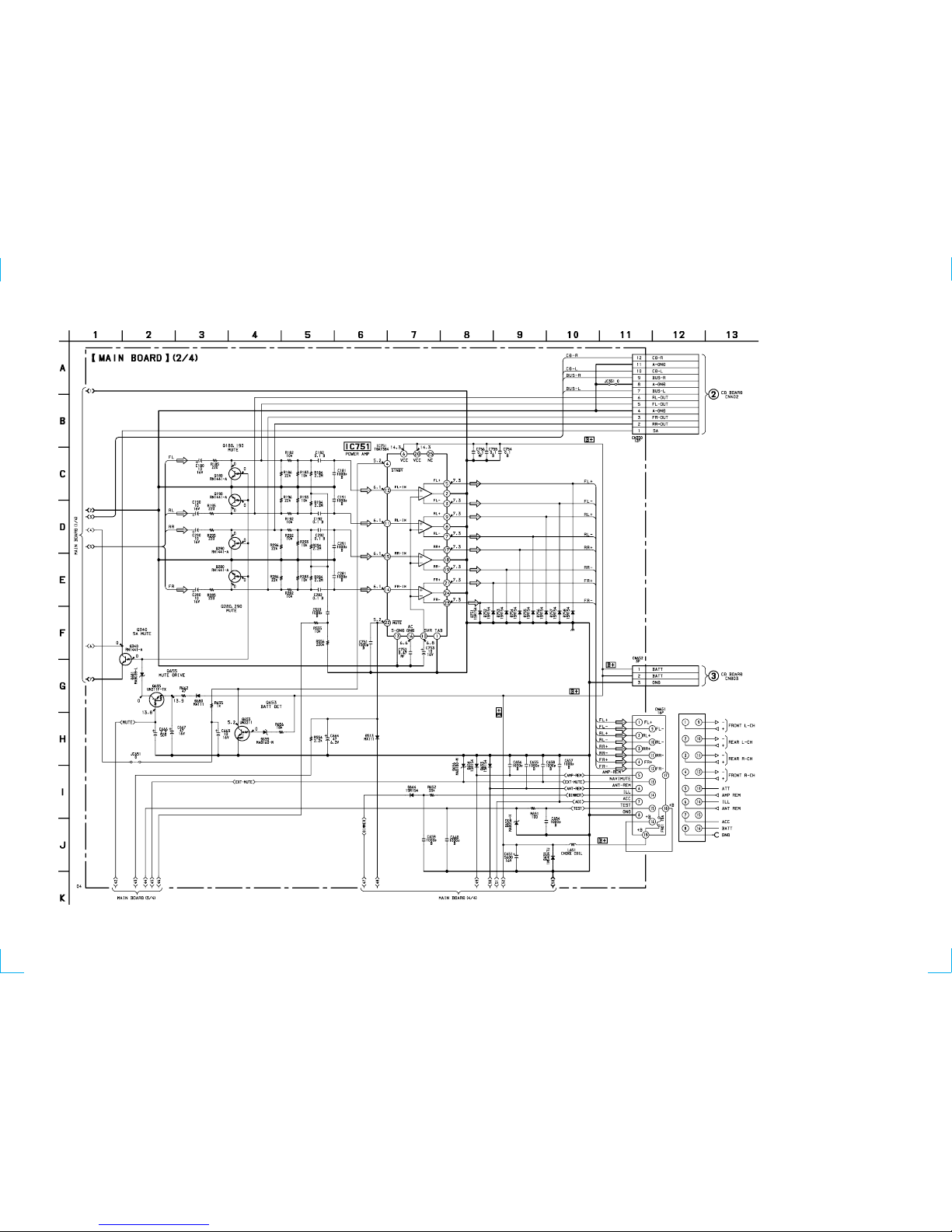

6-15. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) —

Note:

• Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

(Page 43)

(Page 42)

(Page 40)

(Page 37)

Tabla de contenidos

Otros manuales de Equipo de grabación de Sony

Sony

Sony HVR-M25C Manual de usuario

Sony

Sony DMW-S01NL Manual de usuario

Sony

Sony PCM-R300 Manual de usuario

Sony

Sony HXCU-FB70 Manual de usuario

Sony

Sony PCM-7040 Manual de usuario

Sony

Sony XE-90 MkII Manual de usuario

Sony

Sony RCD-W1 Operating Instructions (primary... Manual de usuario

Sony

Sony RCD-W2000ES - Cd/cdr Recorder Manual de usuario

Sony

Sony XDCAM EX PMW-EX30 Manual de usuario

Sony

Sony BKDS-7700 Manual de usuario

Sony

Sony PCM-D50 - Portable Linear Pcm Recorder Manual de usuario

Sony

Sony RCDW500C - Compact Disc Player Manual de usuario

Sony

Sony MSU-1000 Manual de usuario

Sony

Sony PCM-3348HR Manual de usuario

Sony

Sony SEG-2550 Manual de usuario

Sony

Sony AWS-750 Manual de usuario

Sony

Sony PFV-HD50A Manual de usuario

Sony

Sony CDR-W33 Manual de usuario

Sony

Sony CXFD-S03CP Manual de usuario

Sony

Sony APR-5001 Series Manual de usuario

Sony

Sony PCM-3348HR Manual de usuario

Sony

Sony RCD-W100 Manual de usuario

Sony

Sony ICD-SX813 Manual de usuario

Sony

Sony CFD-RS60CP Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
