ASYNCHRONOUS NETWORK I/F KIT

BKMA-7045

INSTALLATION MANUAL

1st Edition

Serial No. 10001 and Higher

BKMA-7045

!WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so. Refer all servicing to

qualified service personnel.

!WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung

dazu besitzen.

!AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin

de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les

réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)

BKMA-7045

Table of Contents

Manual Structure

Purpose of this manual ........................................................................................ 3 (E)

Related manuals................................................................................................... 3 (E)

Contents ............................................................................................................... 3 (E)

Trademark............................................................................................................ 3 (E)

1. Installation

1-1. Overview ...............................................................................................1-1 (E)

1-2. Board Installation ..................................................................................1-2 (E)

1-3. SCSI Setup ............................................................................................1-3 (E)

1-4. Names and Functions of Connectors/LED............................................1-4 (E)

1-5. Matching Connector and Cable.............................................................1-4 (E)

1-6. Installing the Software ..........................................................................1-4 (E)

2. Service Overview

2-1. Description of Internal Switches and Indicators ...................................2-1 (E)

2-1-1. IF-797 Board ........................................................................2-1 (E)

2-2. Specifications ........................................................................................2-4 (E)

3 (E)

BKMA-7045

Manual Structure

Purpose of this manual This manual is the installation manual of the BKMA-7045 Asynchronous Network

I/F Kit.

This manual is intended for use by trained system and service engineers, and

describes the information regarding installation.

Related manuals Besides this Installation Manual, the following manuals are available for the

BKMA-7045.

.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70

Maintenance Manual Volume 1 (Available on request)

This manual describes the information that premise the service based on parts

replacement (diagnostics, parts replacement, electrical alignment, and circuit

descriptions, etc.).

If this manual is required, please contact your local Sony Sales Office/Service

Center.

.MAV-70XGI/BKMA-7010/7020/7030/7040/7045/7050/7060/7070/PS70

Maintenance Manual Volume 2 (Available on request)

This manual describes the information that premise the service based on parts

replacement (parts list, block diagrams, schematic diagrams, board layouts, etc.).

If this manual is required, please contact your local Sony Sales Office/Service

Center.

.“Semiconductor Pin Assignments” CD-ROM (Available on request)

This “Semiconductor Pin Assignments” CD-ROM allows you to search for

semiconductors used in Communication System Solutions Network Company

equipment.

Semiconductors that cannot be searched for on this CD-ROM are listed in the

maintenance manual for the corresponding unit. The maintenance manual contains

a complete list of all semiconductors and their ID Nos., and thus should be used

together with the CD-ROM.

Part number: 9-968-546-XX

Contents The following is a summary of all the section for understanding the contents of this

manual.

Section 1 Installation

Explains the overview of the BKMA-7045, how to install the BKMA-7045 to the

MAV-70XGI, and the connector and cable information for peripheral equipment

connections, etc.

Section 2 Service Overview

Explains the function and factory setting of the switches and LEDs on the board and

the specifications of the BKMA-7045.

Trademark Ethernet is a registered trademark of Xerox Corporation.

1-1 (E)

BKMA-7045

1-1. Overview

The BKMA-7045 asynchronous network I/F kit can be connected to the gigabit Ethernet by attaching the

MAV-70XGI.

The BKMA-7045 needs to be used with a gateway PC. For the PCs that can be connected, contact your

local Sony Sales Office/Service Center.

The BKMA-7045 consists of the following components.

.IF-797 board (1)

.Slot label (1)

.Installation guide (1)

.Installation manual (1)

.Install software package for gateway PC (CD-ROM) (1)

Section 1

Installation

1-2 (E) BKMA-7045

3. Insert the BKMA-7045 into the expansion slot, and

then push the board levers in the directions of arrow

1to connect the board to the mother board securely.

4. Secure the BKMA-7045 to the unit with the two

screws securing the blank panel.

5. Stick the label of the used expansion slot number

(supplied with the BKMA-7045).

When removing the board, push the board levers in the

direction of arrow 2, and pull out the board toward you.

1-2. Board Installation

General Information

.Attach the board to the MAV-70XGI expansion slot. The

board needs to be attached to a lower empty slot.

.Stick the slot label (supplied with the BKMA-7045) after

the board installation to prevent the incorrect insertion

when the board replacing.

.Do not open the slot to keep the air-cooled effect of

MAV-70XGI. Be sure to attach the blank panel to the

vacant slot.

.It is not necessary to adjust after board installation/

replacement.

Procedure

1. Turn off power switches A and B of the MAV-70XGI.

2. Remove the two screws of the expansion slot and

remove the blank panel.

Keep the removed blank panel.

MAV-70XGI (Rear side)

MAV-70XGI

Blank panel

BVTT3 x6

BKMA-7045

Board lever Board lever

Install

Remove

BKMA-7045

Slot label

BVTT3 x 6

1-2. Board Installation

1-3 (E)

BKMA-7045

1-3. SCSI Setup

This section describes how to set the SCSI ID and SCSI termination on the MAV-70XGI menu.

Procedure

1. Open the “Service: Boards screen” menu. (Refer to the MAV-70XGI Operation Manual.)

2. Select “Select” using the and buttons and select the slot number into which the BKMA-7045

is inserted using the and buttons. Then press the [ENTER] button.

3. Select “SCSI ID” using the and buttons and select the SCSI ID using the and

buttons. Then press the [ENTER] button.

Perform a setting other than ones of other SCSI equipment connected to the same Gateway.

4. Select “TERMINATOR” using the and buttons and select either “ON” or “OFF” using the

and buttons. Then press the [ENTER] button.

Set “ON” only when either of two SCSI connectors is connected.

5. Select “Exit” using the and buttons and press the [ENTER] button.

1-3. SCSI Setup

>Select

-1- -2- -3- -4- -5- -6- *7*-8-

Rdy Rdy Non Non Rdy Rdy Rdy Rdy

Service : Boards Slot 7 SY MAIN

Exit

EXT232C

SCSI ID : [1]

: [OFF]

Service : Boards Slot 5 SCSI

> Exit

TERMINATOR

1-4 (E) BKMA-7045

BKMA-7045

SCSI

BUSY

I/F-BOARD

1 1 2

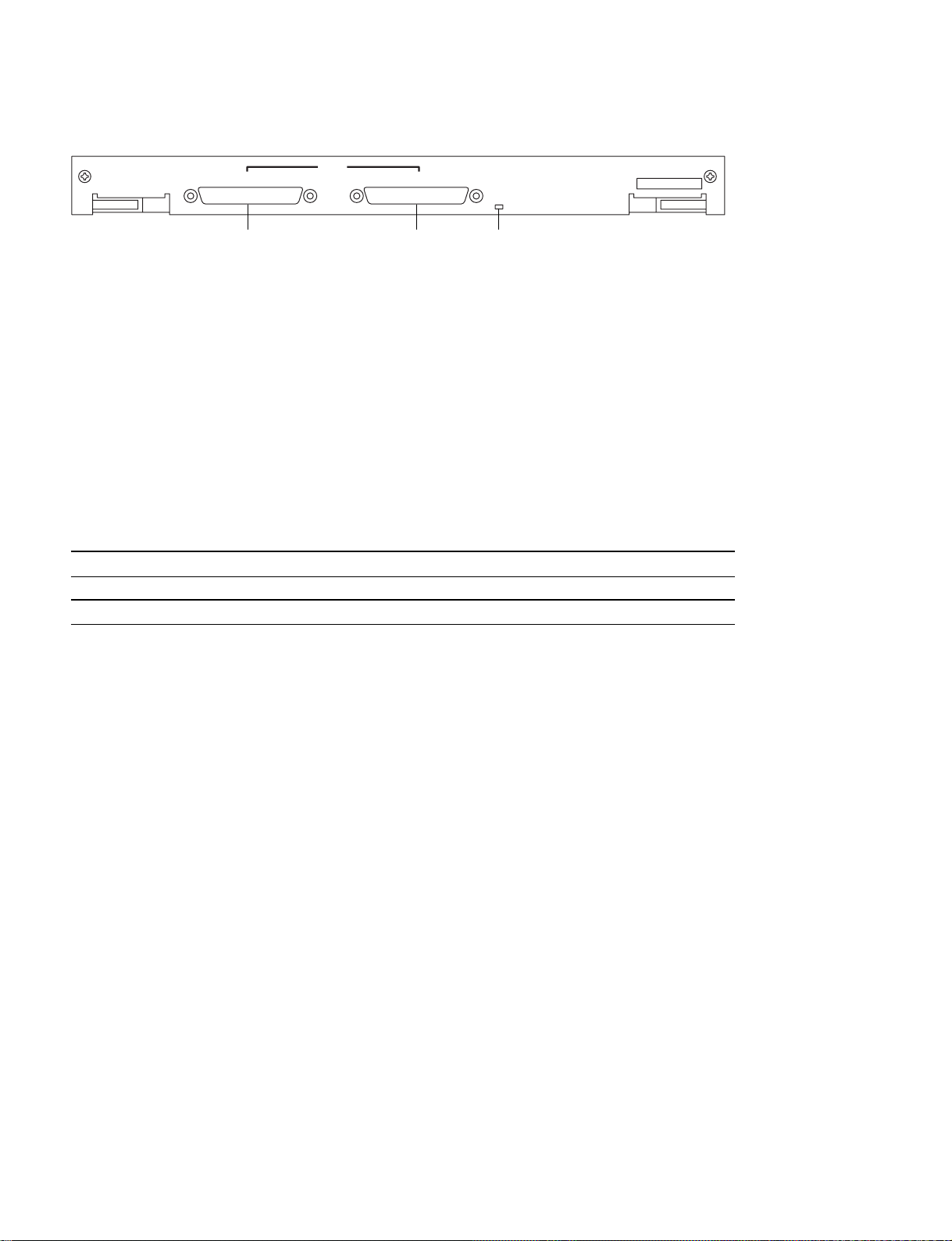

1-4. Names and Functions of Connectors/LED

1Gateway PC connection interface terminal : 68-pin wide SCSI connector

Dedicated interface for connecting a gateway PC and the MAV-70XGI

This is connected at the gateway PC and ULTRA2 (LVD) SCSI.

2Operation (busy) LED

SCSI busy LED

1-5. Matching Connector and Cable

When connecting cables to various connectors on the connector panel at the time of installing or servic-

ing, connect the following connector/cable or their equivalent.

BKMA-7045 Matching Connector/Cable

Panel Indication Connector/Cable Sony Part No.

SCSI Cable corresponding to ULTRA2 (LVD) SCSI 1-769-670-21

1-6. Installing the Software

Install the software in the CD-ROM supplied with the unit. (For the installing procedure, refer to the

“Readme” file in the CD-ROM.)

1-4. Names and Functions of Connectors/LED

1-5. Matching Connector and Cable

1-6. Installing the Software
