User Guide

SONOS USER GUIDE

Beam

The smart, compact soundbar for your TV—

• Play anything—music, TV, movies, podcasts, radio, audiobooks, and video games.

• Perfect size to wall-mount above or below your TV, or place on a credenza.

• Great for small to medium-sized rooms.

•Microphone on/off so you can use it hands-free.

• Quick and easy setup, with only one cable to connect to your TV.

• Expandable. Add a Sub and two Sonos speakers, like Play:1s, for 5.1 surround sound. For more

information, see Sonos home theater.

• Works with either or .

•SeeGetting started when you’re ready to add a Beam to your Sonos system.

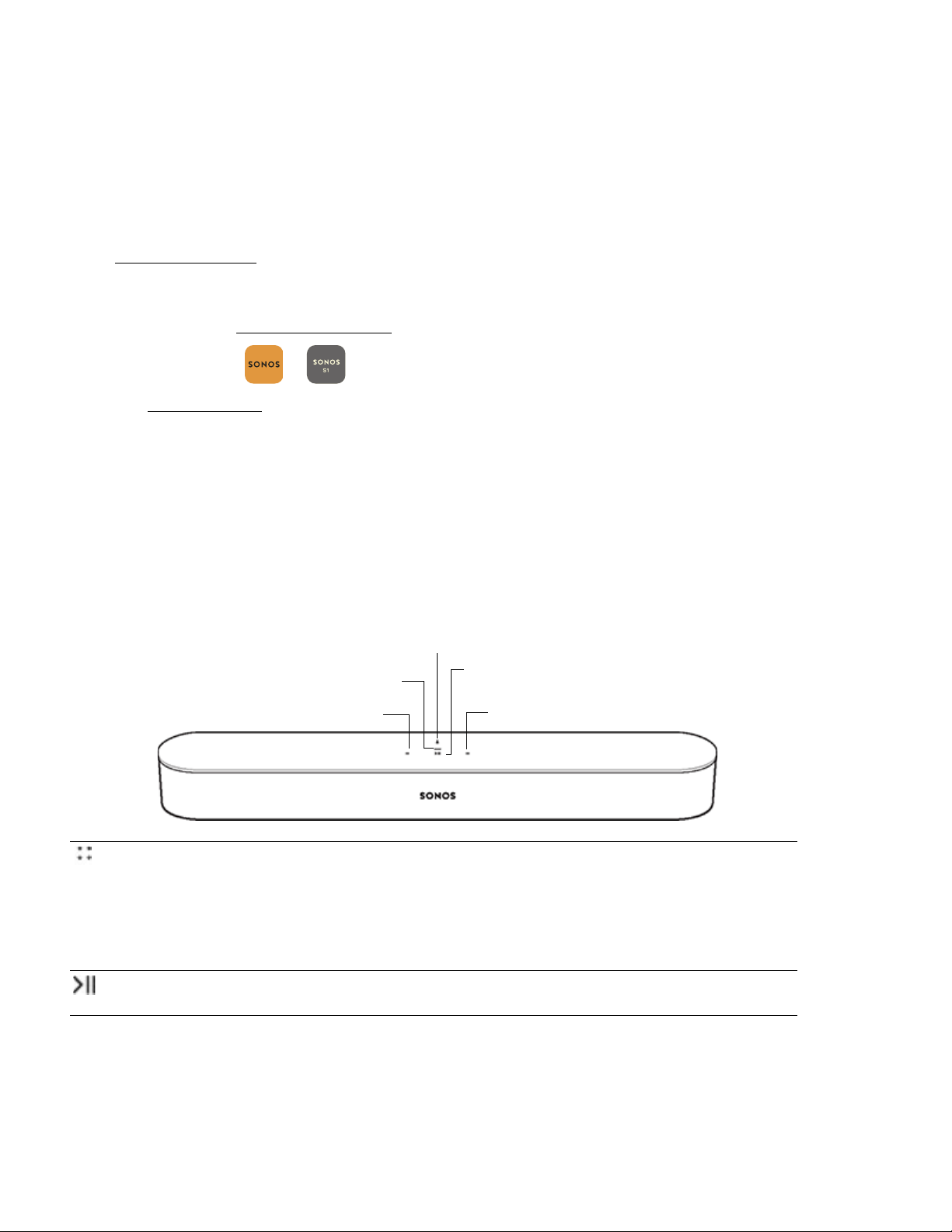

Controls and lights

Swipe, touch, tap, or ask—with Beam you’ve got choices on how to control sound.

• Use the touch controls—touch or swipe across the controls.

• Voice control—set it up and use your voice to turn the TV on or off, adjust the volume, or play music.

• Use the app.

• Use your TV remote control.

Volume control Touch for small adjustments or touch and hold to

quickly change the volume:

• Volume up (right)

• Volume down (left)

Note: You can also use the app, Alexa, or remote

control.

Play/Pause Touch to play or pause sound.

Microphone indicator

Volume down Volume up

Status light Play/Pause

SONOS USER GUIDE

Note: If you don’t want anyone (like a child) to control playback or change the volume using the speaker

touch controls, you can disable them in the room’s settings.

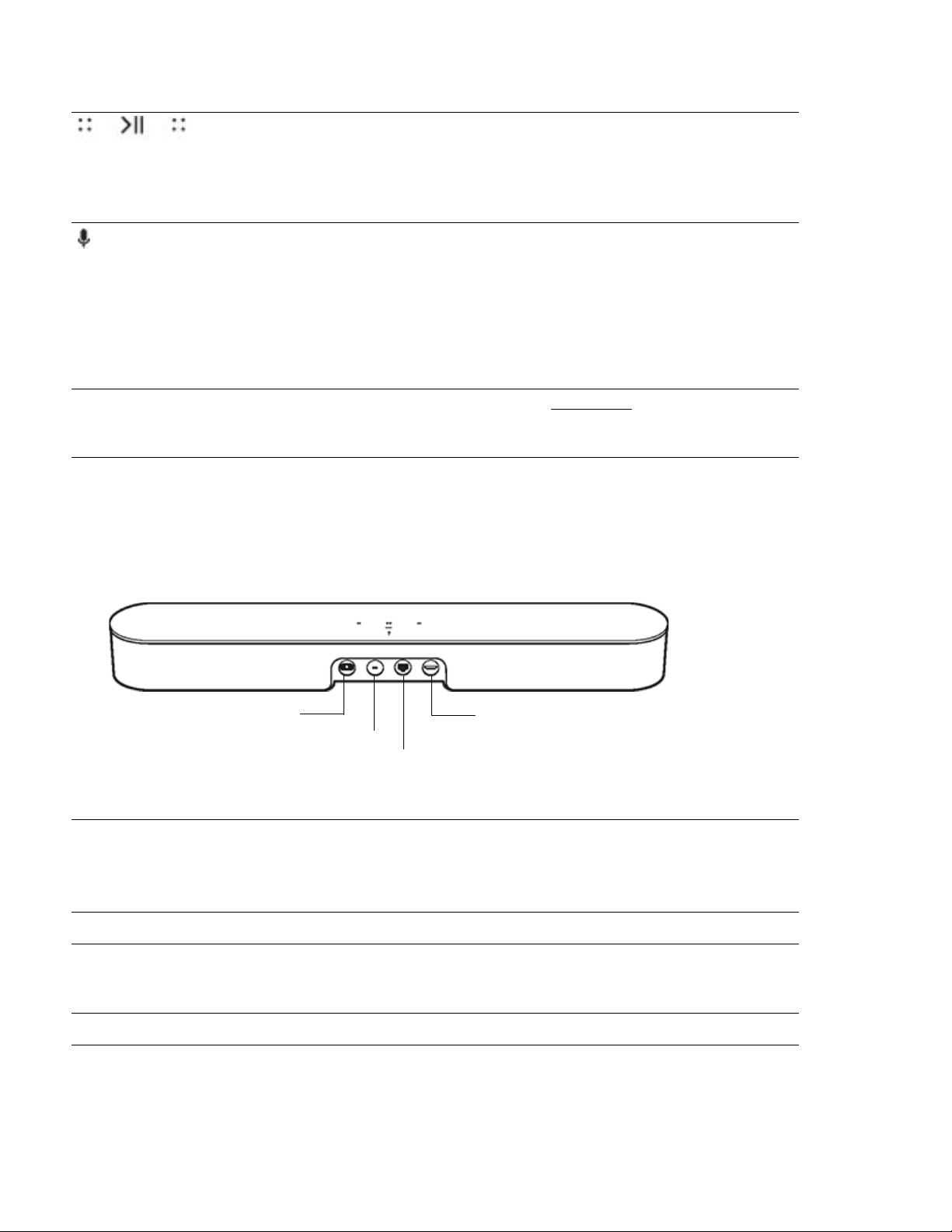

Connector panel

Next/Previous

(Music only)

• Swipe right across the touch controls to skip to the

next song.

• Swipe left to go to the previous song.

Note: You can’t skip forward or go back when listening

to a radio station.

Microphone

indicator

• Tap the microphone light to turn the microphone on

or off.

• When the light is on, voice control is on and you can

use voice commands.

• When the light is off, voice control is off.

Note: If the light is off, press and hold the Microphone

indicator to talk to Alexa. Release the button to

turn voice control off again.

Status light Indicates the status. Learn more

If the light is distracting, you can turn it off in your room’s

settings.

AC power (mains) input Use only the supplied power cord (using a third-party

power cord will void your warranty).

Note: Insert the power cord firmly until it is flush with

the speaker.

Join button Press to connect during setup.

Ethernet port Use an Ethernet cable if you want to connect to a router,

computer, or network-attached storage (NAS) device

(optional).

HDMI port Use to connect the soundbar to your TV.

HDMI port

Ethernet port

AC power (mains) input

Join button

SONOS USER GUIDE

Select a location

You can mount Beam to a wall above or below your TV or place it on a credenza.

Place on a credenza

• Place horizontally on a stable and level surface at least 2" (50mm) from the TV.

• Don’t place vertically or on its side.

• Don’t block the TV’s IR sensor.

• If put on a shelf, place at the front and keep 2" (minimum) clearance on both sides for best sound quality.

• Keep 1" (25mm) space (minimum) above Beam so you can reach the touch controls.

• For best sound quality, keep both ends of Beam at least 1' (30cm) from a wall or other obstruction.

Wall mount

To put Beam on a wall, see Wall mount.

Connect the cables

Before you start

1. Disconnect existing home theater or surround sound equipment from your TV.

2. Connect any external devices, like a cable box or DVD player, directly to your TV.

Connect the power cord

1. Insert the power cord firmly into Beam’s AC (mains) power port until it is fully connected.

2. Plug the other end of the power cord into an AC (mains) power source.

Caution: Use only the supplied power cord (using a third-party power cord will void your warranty).

Connect Beam to your TV

Use the HDMI cable to connect the soundbar to your TV. You may need the optical adapter too (the app lets

you know).

1. Fully insert the HDMI cable into Beam’s HDMI port.

2. Connect the HDMI cable to your TV. You have two choices:

Power cord

Power port

HDMI port

HDMI cable

SONOS USER GUIDE

•If your TV has an HDMI ARC port, connect the HDMI cable directly to the TV’s HDMI ARC port.

•If your TV doesn’t have an HDMI ARC port, attach the optical adapter to the HDMI cable and connect

it to the TV’s optical digital OUT port.

If your TV has an HDMI ARC port

HDMI ARC is a special port that looks like a standard HDMI port. Although they look the same, if you connect

to a standard HDMI port, you won’t hear sound.

1. On your TV’s audio OUT panel, look for an HDMI ARC port.

It may be on the back or side of your TV.

You’ll know it’s an ARC port if you see the word “ARC” on the label.

2. Connect the HDMI cable to the TV’s HDMI ARC port.

Note: If you can’t find the word “ARC” on the label, it isn’t the correct port. See If your TV doesn’t have an

HDMI ARC port.

If your TV doesn’t have an HDMI ARC port

You’ll need the optical audio adapter.

ARC HDMI

TV’s HDMI ARC port

Beam’s HDMI port

SONOS USER GUIDE

1. Remove the protective cap from the optical adapter.

2. Attach the optical adapter to the HDMI cable.

3. Connect the optical adapter to the TV’s optical digital OUT port.

Note: The optical adapter’s port is “D-shaped”—make sure the connector aligns correctly into the port.

Inserting the adapter incorrectly may damage the cable.

If you don’t have the app, download it from the app store. You’ll use it to set up and control your Sonos

system. See Getting started.

Microphone on/off

Touch to turn the microphone on and off. (If you don’t have a voice service installed, the microphone is

inactive.)

Optical adapter

HDMI cable

Remove the protective cap

TV’s optical digital OUT port

Beam’s HDMI port

Optical adapter attached to HDMI cable

SONOS USER GUIDE

When the microphone light is on, voice control is on and Alexa is ready to respond. When the microphone

light is off, voice control is off.

If you’ve installed a voice service and the microphone is off, you can still use voice commands. Just press and

hold while talking to Alexa—no need to start with a wake word. When you release the mic button, voice

control turns off again.

Wall mount

Guidelines

• Use the Beam wall mount kit. You can buy it on www.sonos.com. Follow the instructions in the kit.

• Keep 1" (25mm) space (minimum) above Beam so you can reach the touch controls.

• If you’re mounting above the TV, make sure you can reach the touch controls.

• For best sound quality, keep both ends of Beam at least 1' (30cm) from a wall or other obstruction.

Mount kit contents

• Wall mount bracket

• 4 wall anchors

• 4 wall screws

•2screws

Note: Don’t discard the template. It may look like packing material.

SONOS USER GUIDE

1. Tape the cardboard template to the wall above or below your TV. Use a level. Keep 1"(25mm) space

(minimum) for access to Beam’s touch controls. (Don’t install Beam vertically.)

2. Mark the center of the mounting holes and remove the template.

3. Use a 5/16" drill bit to drill pilot holes (see Wall mounting information)

4. Insert and secure the wall anchors (don’t use the anchors if drilling into wood).

SONOS USER GUIDE

5. Place the bracket on the wall and loosely tighten the wall screws to secure the bracket. Check with a level

and then tighten the screws.

6. Connect the power and HDMI cables to Beam.

SONOS USER GUIDE

7. Place Beam on the bracket.

8. Insert and tighten Beam to the bracket using the mounting screws.
