SOMFY Sonesse 40 RTS Manual de usuario

www.somfy.com

Sonesse®40 RTS

409 MHz-447 MHz

Ref: 5064832A

Installation instructions page 2

SOMFY hereby declares that this product complies with the essential requirements and

other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity is available at

the web address www.somfy.com/CE. Suitable for use in EU, CH and NO

ENKOZH

CONTENT

1 Introduction

2 Safety

2.1 General information

2.2 General safety advice

3 Installation

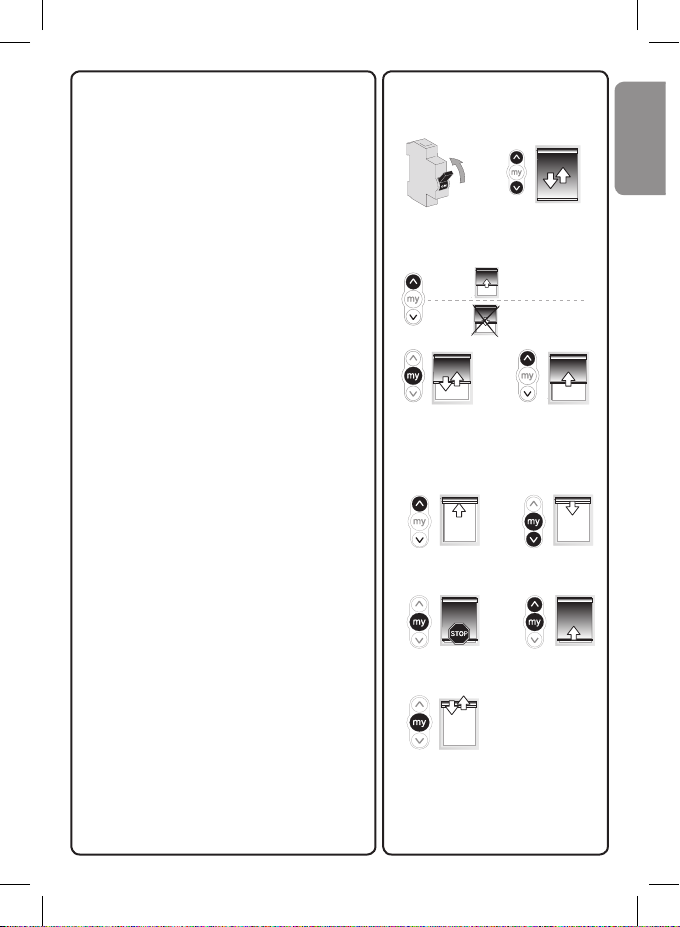

4 Commissioning

4.1 Programming the RTS transmitter

4.2 Checking the direction of rotation

4.3 Adjusting the end limits

4.4 Recording the RTS transmitter

4.5 Favorite position : MY position

Recording MY position.

5 Use

Up, Down, My

6 Sun function

7 Modifying the settings

7.1 End limit re-adjustement

7.2 Favorite position : MY position

Changing the MY position / Delete the MY position

7.3 Modifying the motor rotation direction

7.4 Modifying the wheel rotation direction

7.5 Replacement of a lost remote control

7.6 Adding/Deleting RTS transmitter

7.7 Adding/Deleting RTS sensors

7.8 Erase the memory of the motor

8 Troubleshooting

9 Technical data

10 Environment

1 Introduction

Product Description

The Sonesse®40 is a motor specially dedicated to interior applications.

The Sonesse®40 motor range can motorize all interior applications: Roller shades,

Venetian blinds, Roman shades, Pleated & cellular shades, Projection screens.

The Sonesse®40 is designed to ensure quiet operations.

Warning: The Sonesse® 40 isn’t compatible with wind functions.

2 Safety

2.1 General information

• ThisSomfyproductmustbeinstalledbyaprofessionalmotorisationandhomeautomation

installer, for whom these instructions are intended.

• Beforeinstallation,checkthatthisproductiscompatiblewiththeassociatedequipment

and accessories.

• Theseinstructionsdescribehowtoinstall,commissionandusethisproduct.

• Moreover,theinstallermustcomplywithcurrentstandardsandlegislationinthecountry

in which the product is being installed, and inform his customers of the operating and

maintenance conditions for the product.

• AnyuseoutsidethesphereofapplicationspeciedbySomfyisnotapproved.Such

use, or any failure to comply with the instructions given herein will invalidate the war-

ranty, and Somfy refuses to accept liability.

2.2 Specic safety advice

The safety instructions that must be observed, besides the usual rules, are

explained in these instructions and in the attached «Safety Instructions» document.

Never immerse the

motor in liquid!

Never drill holes in

the motor!

Avoid impacts!

Do not drop it!

3 Installation

Motor preparation

1) Fit the crown (a) and drive wheel (b) to the

motor.

2) Measure the length (L) between the end of the

drive wheel and the head end.

Tube preparation

1) Cut the tube to the required length.

2) Deburr the tube and remove the debris.

For smooth roller tubes, cut a notch with the

following measurements: e = 7 mm h = 10 mm

Motor/tube assembly

1) Slide the motor into the tube.

For smooth roller tubes, position the notch

previously cut on the crown.

2) Fix the tube to the motor with self-tapping

screws or steel pop rivets depending on the

dimension (L - 5 mm).

Mounting the motorized tube on the

brackets

Ifnecessary,screwthebracketinterfaceonthe

motor head.

1) Mountthemotorizedtubeontheendbracket(c).

2) Mountthemotorizedtubeonthemotorbracket(d).

Wiring

1) Switch off the power supply.

2) Connect the motor according to the

information in the table below.

L = …

Ø > 37

L = …

Ø > 37

OFF

2 x 1,5 mm 2 x 0,75 mm2

RANGE 1 Neutral 2 Live

220V/240V-50HZ Blue Brown

220V-60HZ Blue Brown

4 Commissioning

4.1 Programming the RTS transmitter

Switch on the power supply.

Press the UP and DOWN buttons simultaneously

on the RTS transmitter: the shade jogs (moves

upanddownbriey)andthetransmitteris

preprogrammed in the motor

4.2 Checking the rotation direction

1) Press the RTS transmitter UP button:

a) If the shade is raised (a), the rotation direction

is correct: move to the section entitled

«Adjusting the end limits».

b) If the shade is lowered (b), the rotation direction

is incorrect: move to the next step.

2) Press the RTS transmitter MY button until the

shade jogs: the rotation direction has been

 modied.

3)PresstheRTStransmitterUPbuttontocheck

the rotation direction.

4.3 Adjusting the end limits

The limits can be set in any sequence.

1) Press and hold the UP button to move the

shade to the desired Up position. If necessary

adjust the Up position, using the UP or DOWN

buttons.

2) Press the MY and DOWN buttons

simultaneously and release them once the

shade begins to move. The up limit is

memorized.

3) Press the MY button when it reaches the

desired Down position.

If necessary adjust the down position, using the

UP or DOWN buttons.

4) Press the MY and UP buttons simultaneously

and release them when the shade begins to

move.

The Down limit is memorized. The shade

moves up and will stop at its upper limit.

5)Toconrmtheendlimitspressandholdthe

MY button until the shade jogs.The end limits

are recorded.

1 2

4.4 Recording the RTS transmitter

After recording the end limits:

Pressbrieytheprogrammingbuttonontheback

of the transmitter. The shade jogs.

The transmitter is recorded.

1) Switch off the current.

2) Switch on the current. The shade jogs.

3) Simultaneously press the UP and DOWN

buttons on the RTS transmitter. The shade jogs.

4)Pressbrieytheprogrammingbuttononthe

 backofthetransmitter.Theshadejogs.

The transmitter is recorded.

4.5 Favorite position: MY position

Recording MY position.

To set the MY position, move the shade to the

desired position with the UP or DOWN button then

press the MY button until the shade jogs.

5 Use

Up, Down, My

1) To move the shade from a limit to the other

 limit,pressbrieytheUPorDOWNbutton.

2) To stop the shade, press the MY button.

3) To move the shade to the MY position, press

 brieytheMYbutton.

4) To tilt the slats, press and hold the UP or

DOWN button or use the scroll of the remote

control until the slats reach the desired position.

PROG.

1 2

3 4

PROG.

6 Sun function

For this function, you need a Telis Soliris

transmitter.

Bydefault,theSunfunctionisnotactive.

1) To activate the Sun function, press the SELECT

button on the Telis Soliris transmitter until the

shade jogs.

2) To disactivate the Sun function, press the

SELECT button on the Telis Soliris transmitter

until the shade jogs.

When the intensity of the daylight exceeds the

threshold set by the Soliris sensor RTS, a DOWN

order is sent to the shade after 2 min.

The shade goes to the MY position or to its down

limit if no MY position has been memorised.

When the intensity of the daylight falls

below the threshold set by the Soliris sensor RTS,

the shade stays at its position (MY or down limit).

The Wind function is not compatible with this

motor.

7 Modifying the settings

7.1 End limit re-adjustement

UP LIMIT

1) Press the UP button, to move the shade to the

limit to be readjusted.

2) Press and hold the UP and DOWN buttons

simultaneously until the shade jogs.

3) Press and hold the UP or DOWN button to

move the shade to the new desired position.

4)ToconrmthenewlimitpressandholdtheMY

button until the shade jogs.

DOWN LIMIT

1) Press the DOWN button to move the shade to

the limit to be readjusted.

2) Press and hold the UP and DOWN buttons

simultaneously until the shade jogs.

3) Press and hold the UP or DOWN button to

move the shade to the new desired position.

4)ToconrmthenewlimitpressandholdtheMY

button until the shade jogs.

7.2 Favorite position : MY position

1) Changing the MY position

To change the MY position go to the new desired

MY position with the UP and DOWN buttons then

press the MY button until the shade jogs.

2) Deleting the MY position

Press the MY button to move to this position

To delete the MY position, move to this position

and press the MY button until the shade jogs.

1 2
