SOMFY Maestria 50 RTS Instrucciones de funcionamiento
Maestria 50 RTS
Programming Guide
© copyright SOMFY Pty. Limited 2019
1
Maestria 50 RTS
Manual limit setting
*The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my
button to stop.
Obstacle detection works when the correct weight of the load bar is used in the application. Check with your
product manufacturer if the obstacle detection does not work.
1
Switch on the power to the motor
Only connect one motor at a time.
Power on the motor
3
To reverse the
direction of the
motor, press and
hold the my
button until the
product jiggles.
Press and hold
the Down
button to test
that the motor
direction is
correct.
Press for
5 secs
Continue to step 4
Reverse the direction of rotation
When using a multi-
channel RTS control,
remember to select the
desired channel prior
to programming.
Hold Up and
Down together
until it jiggles.
NO - The product
retracts while pressing
the Down button -
Continue to step 3
2 Check the motor's rotation direction
Press and hold the
Down button. Does
the product extend?
YES - The product
extends while pressing
the Down button -
Go to step 4
© copyright SOMFY Pty. Limited 2019
2

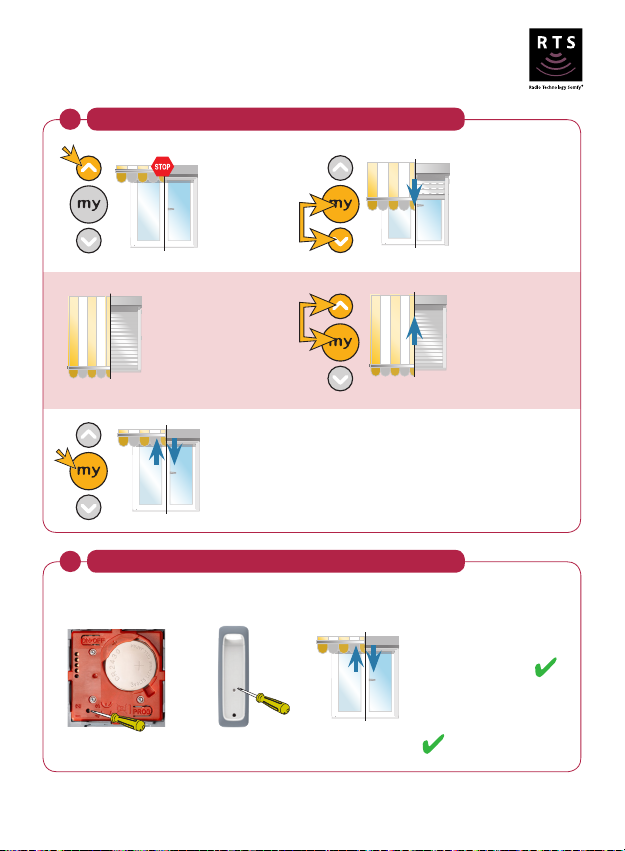

4Set limits
Maestria 50 RTS
Manual limit setting
5
Briefly press the
my and UP buttons
simultaneously. The
product will begin to
move, then stop at
the upper limit.
Programming the RTS control to the motor
Stop the product
at the lower limit.
Press and hold the
my button until
the motor jiggles.
*Move the
product to
the desired
top limit.
Briefly press the my
and Down buttons
simultaneously. The
product will begin to
move down.
Smoove RTS Situo RTS jiggle = control recorded
OR
Press the program button on the RTS control until the product jiggles.
Check functionality
Complete
© copyright SOMFY Pty. Limited 2019
3
Maestria 50 RTS
Manual limit setting
Maestria RTS
MANUAL LIMIT SETTING
Connect the motor
to a 240 Volt
power supply
START
Is the
transmitter
single or multi
channel?
Select the
required channel
Press & hold the
up & down buttons
on the transmitter
for 2 secs
The motor
jiggles?
Check the motor
direction
Is the direction
correct?
Single
Multi
Yes
*move the product
to the desired top
limit
Briefly press the
my & down
buttons
simultaneously
The product
will begin to
move down
Stop the product
at lower limit
Briefly press the
my & up buttons
simultaneously
The product
will begin to
move stop at
the upper
limit
Press & hold the
my button until the
motor jiggles
Press the program
button briefly
The motor
jiggles
END
Check power
supply
Check the motor
remote battery
Has the motor
been programmed
previously?
No
Refer to resetting
to factory
flowchart
Yes
No
Press & hold the
my button until the
motor jiggles
No
*The motor will move continuously if the
up or down buttons are held for more
than a few seconds. Use the stop button
to stop.
Obstacle detection works when the
correct weight of the load bar is used in
the application. Check with your product
manufacturer if the obstacle detection
does not work.
STOP = MY
Yes
© copyright SOMFY Pty. Limited 2019
4
Maestria 50 RTS
Semi-automatic limit setting
Note: Semi-automatic setting mode is only compatible with screens featuring a hard stop at the upper end limit.
The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my
button to stop.
Obstacle detection works when the correct weight of the load bar is used in the application. Check with your
product manufacturer if the obstacle detection does not work.
1
Switch on the power to the motor
Only connect one motor at a time.
Power on the motor
3
To reverse the
direction of the
motor, press and
hold the my
button until the
product jiggles.
Press and hold
the Down
button to test
that the motor
direction is
correct.
Press for
5 secs
Continue to step 4
Reverse the direction of rotation
When using a multi-
channel RTS control,
remember to select the
desired channel prior
to programming.
NO - The product
retracts while pressing
the Down button -
Continue to step 3
2 Check the motor's rotation direction
YES - The product
extends while pressing
the Down button -
Go to step 4
Hold Up and
Down together
until it jiggles.
Press and hold the
Down button. Does
the product extend?
© copyright SOMFY Pty. Limited 2019
5
Maestria 50 RTS
Semi-automatic limit setting
4Semi-automatic limit setting
5Programming the RTS control to the motor
Smoove RTS Situo RTS jiggle = control recorded
OR
Press the program button on the RTS control until the product jiggles.
Check functionality
Complete
Position the
screen at the
desired lower
limit.
Press my and
Up, the screen
raises. Press
my to stop the
screen.
Press and hold the
my button to save
the lower limit.
The motor will
jiggle.
© copyright SOMFY Pty. Limited 2019
6
Maestria 50 RTS
Semi-automatic limit setting
Maestria RTS
SEMI-AUTOMATIC LIMIT SETTING
Connect the motor
to a 240 Volt
power supply
START
Is the
transmitter
single or multi
channel?
The motor
begins to
raise the
screen
Select the
required channel
Press & hold the
up & down buttons
on the transmitter
for 2 secs
The motor
jiggles?
Check the motor
direction
Is the direction
correct?
*Move the product
to its lower limit
Briefly press the
up & my buttons
simultaneously
Single
Multi
Yes
Press the stop
button
Press & hold the
my button until the
motor jiggles
Press the program
button briefly
The motor
jiggles
END
Check power
supply
Check the motor
remote battery
Has the motor
been programmed
previously?
No
Refer to resetting
to factory
flowchart
Yes
No
Press & hold the
my button until the
motor jiggles
No
Automatic setting at UP end limit is only
compatible with screens featuring a hard
stop.
*The motor will move continuously if the
up or down buttons are held for more
than a few seconds. Use the stop button
to stop.
Obstacle detection works when the
correct weight of the load bar is used in
the application. Check with your product
manufacturer if the obstacle detection
does not work.
STOP = MY
Yes
© copyright SOMFY Pty. Limited 2019
7

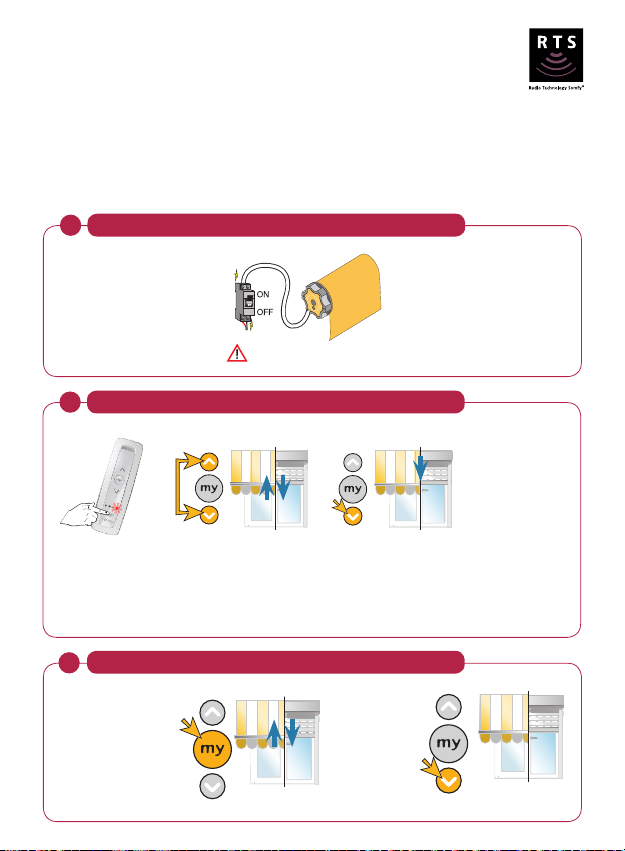

Maestria 50 RTS
Automatic limit setting
Note: Automatic mode is only compatible with screens fitted with hard up and lower stops.
The motor will move continuously if the Up or Down buttons are held for more than a few seconds. Use the my
button to stop.
Obstacle detection works when the correct weight of the load bar is used in the application. Check with your
product manufacturer if the obstacle detection does not work.
1
Switch on the power to the motor
Only connect one motor at a time.
Power on the motor
3
To reverse the
direction of the
motor, press and
hold the my
button until the
product jiggles.
Press and hold
the Down
button to test
that the motor
direction is
correct.
Press for
5 secs
Continue to step 4
Reverse the direction of rotation
When using a multi-
channel RTS control,
remember to select the
desired channel prior
to programming.
NO - The product
retracts while pressing
the Down button -
Continue to step 3
2 Check the motor's rotation direction
YES - The product
extends while pressing
the Down button -
Go to step 4
Hold Up and
Down together
until it jiggles.
Press and hold the
Down button. Does
the product extend?
© copyright SOMFY Pty. Limited 2019
8
Maestria 50 RTS
Automatic limit setting
4Automatic limit setting
Move the screen to
the halfway position.
Briefly press the Up and Down buttons.
The screen will jiggle.
Hold the Down button. The screen will lower until it detects the lower limit,
perform a brief upward movement and return to the lower limit position.
Press and hold the my button
until the motor jiggles.
5Programming the RTS control to the motor
Smoove RTS Situo RTS jiggle = control recorded
OR
Press the program button on the RTS control until the product jiggles.
Check functionality
Complete
© copyright SOMFY Pty. Limited 2019
9
Maestria 50 RTS
Automatic limit setting
Maestria RTS
AUTOMATIC LIMIT SETTING
Connect the motor
to a 240 Volt
power supply
START
Is the
transmitter
single or multi
channel?
The motor
performs a
jiggle
Select the
required channel
Press & hold the
up & down buttons
on the transmitter
for 2 secs
The motor
jiggles?
Check the motor
direction
Is the direction
correct?
*Move the product
to its half-way
position
Briefly press the
up & down buttons
simultaneously
Single
Multi
Yes
Hold the down
button
The product
will begin to
move down
detect the
lower limit,
performs an
upward
movement
and returns to
its lower limit
Press & hold the
my button until the
motor jiggles
Press the program
button briefly
The motor
jiggles
END
Check power
supply
Check the motor
remote battery
Has the motor
been programmed
previously?
No
Refer to resetting
to factory
flowchart
Yes
No
Press & hold the
my button until the
motor jiggles
No
Automatic setting at UP and LOWER
end limits is only compatible with
screens featuring a hard stop.
*The motor will move continuously if the
up or down buttons are held for more
than a few seconds. Use the stop button
to stop.
Obstacle detection works when the
correct weight of the load bar is used in
the application. Check with your product
manufacturer if the obstacle detection
does not work.
STOP = MY
Yes
