SolarEdge SE3K Manual de usuario

NOTE

This symbol denotes information intended to assist the

user in making optimum use of the product.

This symbol appears at grounding points on the SolarEdge

manuals and equipment.

CAUTION!

Denotes a hazard. It calls attention to a procedure

that, if not correctly performed or adhered to, could

result in damage or destruction of the product. Do

not proceed beyond a caution sign until the indicated

conditions are fully understood and met.

Turn ON/OFF the main circuit board AC switch and

wait 5minutes

WARNING!

Denotes a hazard. It calls attention to a procedure that,

if not correctly performed or adhered to, could result in

injury or loss of life. Do not proceed beyond a warning

note until the indicated conditions are fully understood

and met.

Turn ON/OFF the DC Safety Switch on Synergy

Manager and wait 5minutes

(Applicable only for models with DC Safety

Switch)

Do not cut cable connectors

OFF

SAVE THESE INSTRUCTIONS –This guide contains important instructions for the Three Phase Inverter with Synergy Technology that

should be followed during installation and maintenance. Using this equipment in a manner not specified in this guide by SolarEdge

may impair the protection provided by this equipment.

Legend

Use SolarEdge Designer

to design SE system

https://designer.solaredge.com

MAN-01-00784-1.3 1

Download SolarEdge Mapper

to map string Power Optimizers

Download

Installing the Power Optimizers 1

123456

2 MAN-01-00784-1.3

Scan QR code using Mapper

Complete site registration

and physical layout in the

Monitoring platform

stainless steel 9.5 N*m

10 mm

25 mm (P860,P960)

12.7 mm

10 mm

25 mm (P860,P960)

10 mm

25 mm (P860,P960)

10 mm

25 mm (P860,P960)

Install Power Optimizer

Installing the Optimizers

1123456

MAN-01-00784-1.3 3

Use a dual input optimizer (P800p)

for parallel connection of two PVs

or use a branch cable to connect

two PVs to a single input optimizer

2:1 series connection

Connect input from Module

Connect output to String

Installing the Power Optimizers 1

123456

4 MAN-01-00784-1.3

Check array polarity.

Verify 1±0.1V per optimizer

Example: 8 optimizers = ~8V

Connecting the PV Array

40 cm

10 cm

40 cm

116.8 cm

100.8 cm

CAUTION! Donot block Airflow

MAN-01-00784-1.3 5

40 cm

Maintaining Clearance 3

WARNING! Area

in front of the

inverter must be

kept clear for at

least one meter

20 cm

30 cm

Back to back

On metal back sheetOn mesh fence

Indoor Clearance

Outdoor Clearance

20 cm where annual average high temperature equals or above 25˚C

Keep more than 10°

Horizontal Installation

15 cm

5 cm

6 MAN-01-00784-1.3

Optional

Holes

Level provided template horizontally

Position provided template vertically

Mark holes

Optional unit -model dependent

Ø 9mm

Drill holes

Marking & Drilling Holes

9.3 cm

16.6 cm

18.7 cm

15.5 cm

9.3 cm

15.5 cm

CAUTION! Donot block airflow

Avoid wobbly installation by

adding back support

18KG

4 N*m

32KG

4 N*m 4 N*m

4 N*m

MAN-01-00784-1.3 7

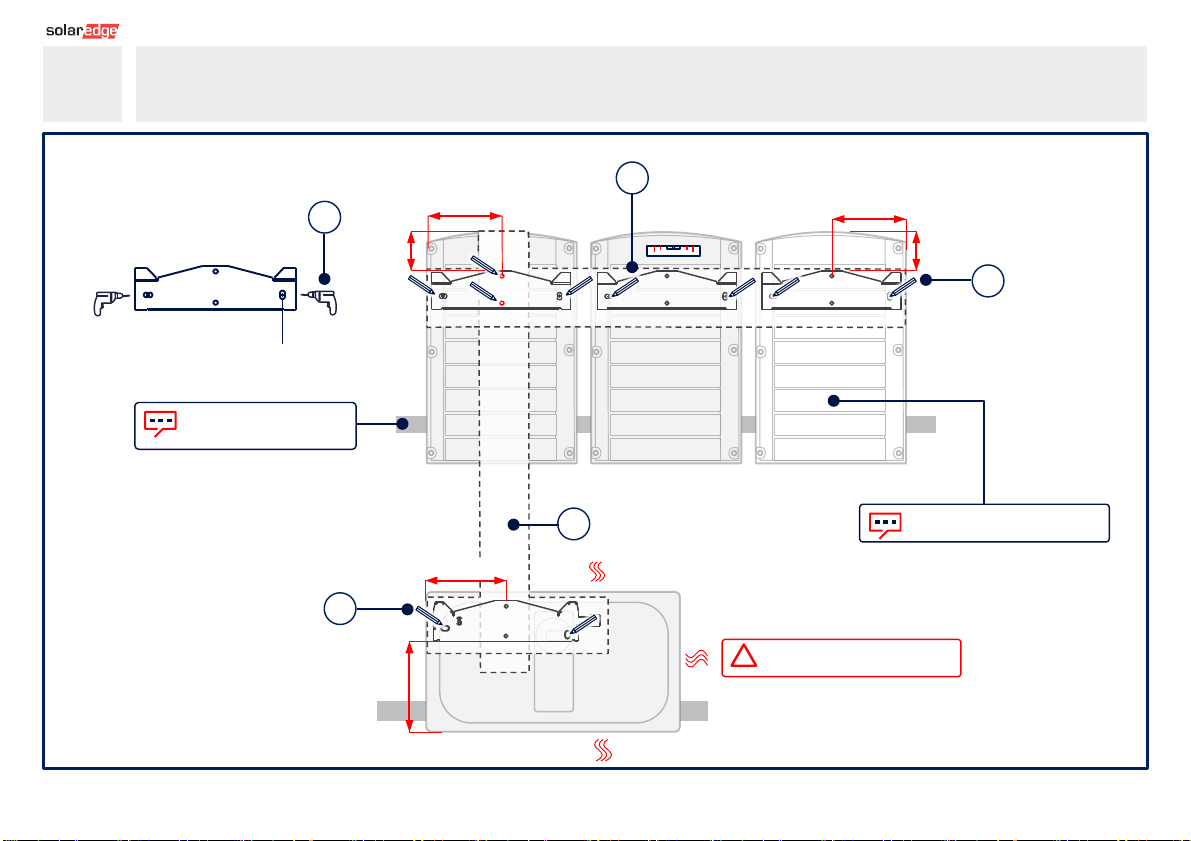

Mounting the Units 5

For left or right units, use

only the outer screw

1 2 3

CAUTION! Donot block airflow

8 MAN-01-00784-1.3

Connecting Interconnection Cables

Connect cables according to labels
