User Instruction Manual

IQSDA31

Dual Channel 3G/HD/SD-SDI Equalizing Distribution Amplifier

IQSDA33

3G/HD/SD-SDI Fan-out Distribution Amplifier

IQSDA31/IQSDA33 www.snellgroup.com Information and Notices

Information and Notices

information now allowed by statutory or judicial law or hereinafter granted, including without

limitation, material generated from the software programs which are displayed on the screen

such as icons, screen display looks etc.

Information in this manual and software are subject to change without notice and does not

represent a commitment on the part of Snell Limited. The software described in this manual is

furnished under a license agreement and can not be reproduced or copied in any manner

without prior agreement with Snell Limited or their authorized agents.

Reproduction or disassembly of embedded computer programs or algorithms prohibited.

No part of this publication can be transmitted or reproduced in any form or by any means,

electronic or mechanical, including photocopy, recording or any information storage and

retrieval system, without permission being granted, in writing, by the publishers or their

authorized agents.

Snell operates a policy of continuous improvement and development. Snell reserves the right

to make changes and improvements to any of the products described in this document

without prior notice.

Contact Details

Customer Support

For details of our Regional Customer Support Offices please visit the Snell website and

navigate to Support/Customer Support.

www.snellgroup.com/support/customer-support

Customers with a support contract should call their personalized number, which can be found

in their contract, and be ready to provide their contract number and details.

IQSDA31/IQSDA33 www.snellgroup.com Contents

Contents

Information and Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 Module Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1.1 IQSDA31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1.2 IQSDA33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Order Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2.1 IQSDA31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2.2 IQSDA33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Rear Panel Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.1 IQSDA31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.2 IQSDA33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.4.1 B-style Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.4.2 A-style Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.5 Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5.1 IQSDA31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5.2 IQSDA33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.1 IQSDA31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 IQSDA33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1 IQSDA31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.1.1 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.1.2 Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.2 IQSDA33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.1 Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.2 Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4. Card Edge LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

IQSDA31/IQSDA33 www.snellgroup.com Introduction

1. Introduction

1.1 Module Description

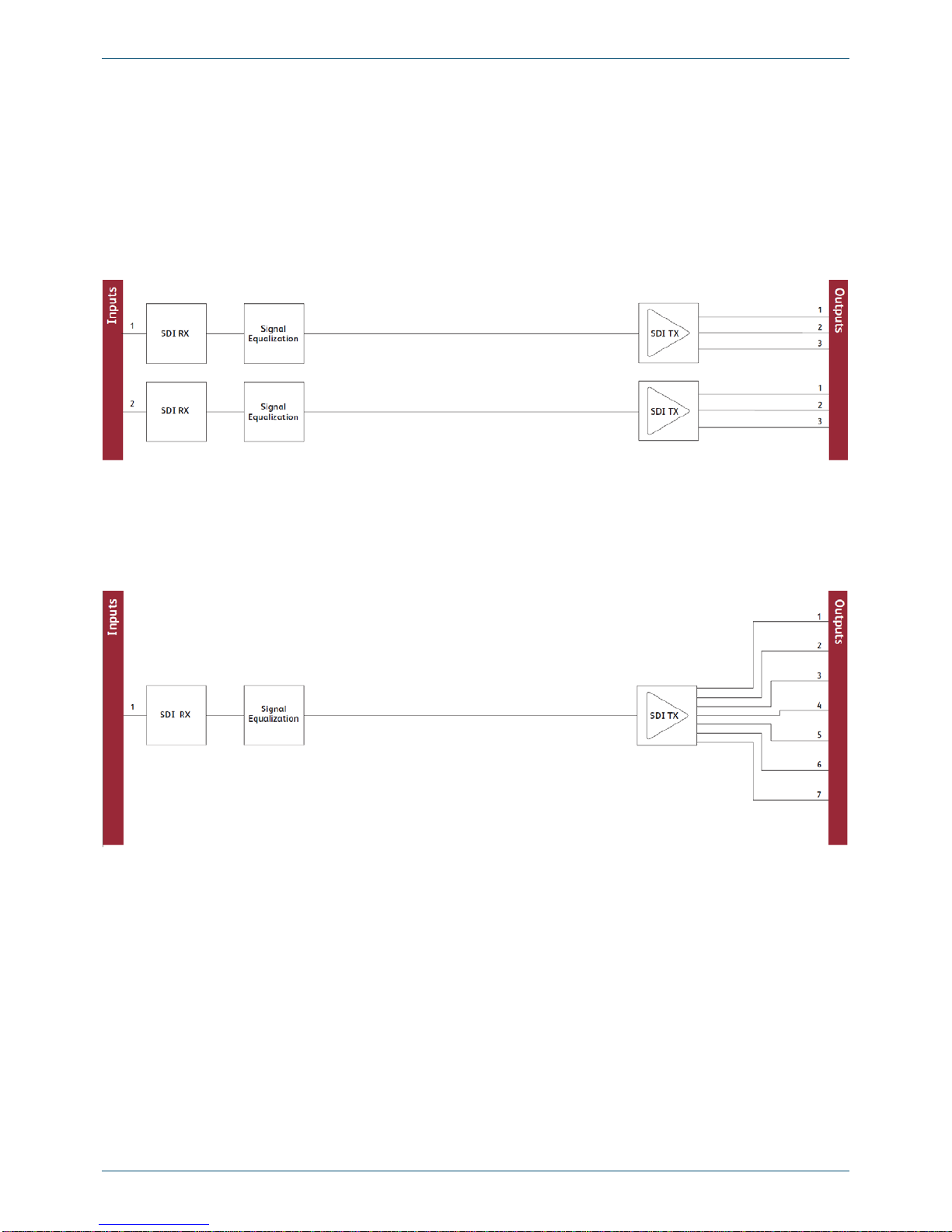

1.1.1 IQSDA31

The IQSDA31 provides dual inputs with 3 outputs per input for distribution of HD-SDI 3 Gbit/s

& 1.5 Gbit/s or 270 Mbit/s SD-SDI signals in a single width package. Its class leading input

equalization performance and non re-clocking distribution of wide-band signals makes it ideal

for all distribution applications.

1.1.2 IQSDA33

The IQSDA33 is a fan-out distribution amplifier for HD-SDI 3 Gbit/s, 1.5 Gbit/s or 270 Mbit/s

SD-SDI signals providing 7 equalized outputs of the input in a single width package. Its class

leading HD input equalization performance and non re-clocking distribution of wide-band

signals makes it ideal for fan out distribution applications.

IQSDA31/IQSDA33 www.snellgroup.com Introduction

1.2 Order Codes

The following product order codes are covered by this manual.

1.2.1 IQSDA31

1.2.2 IQSDA33

1.3 Rear Panel Views

The following rear panel types are available.

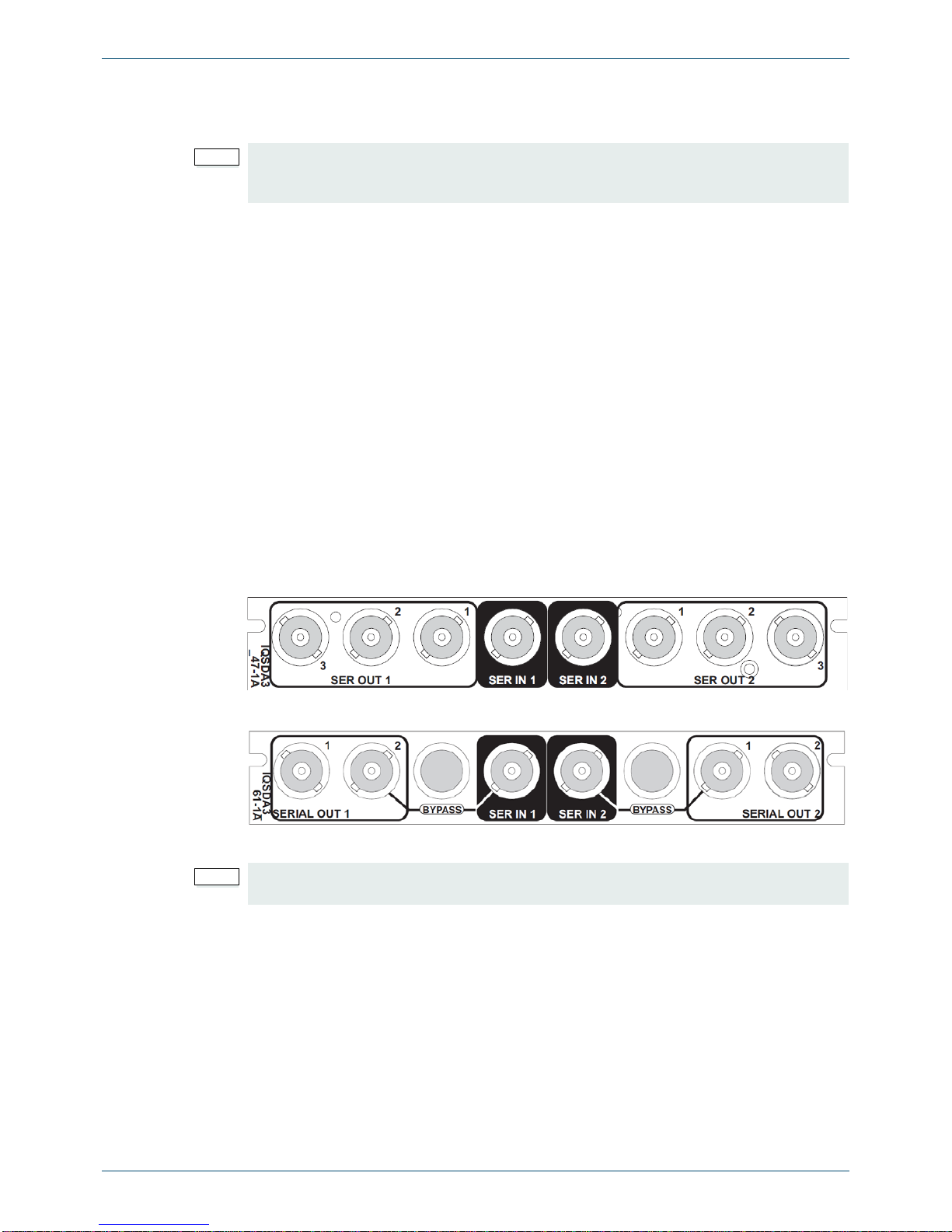

1.3.1 IQSDA31

IQSDA3147-1A(B)3

IQSDA3161-1A(B)3

Note:

Modules with “A” order codes (for example, IQSDA3147-1A3) can be fitted into either A- or

B-style enclosures. Modules with “B” order codes (for example, IQSDA3147-1B3) can only

be fitted into B-style enclosures. See page 7.

IQSDA3147-1A3

IQSDA3147-1B3 Dual Channel 3G/HD/SD-SDI Equalizing Distribution Amplifier.

2 inputs, 3 outputs per input.

IQSDA3161-1A3

IQSDA3161-1B3 Dual Channel 3G/HD/SD-SDI Equalizing Distribution Amplifier with

relay input bypass. 2 inputs, 2 outputs per input.

IQSDA3347-1A3

IQSDA3347-1B3 3G/HD/SD-SDI Fan-out Distribution Amplifier. 1 input, 7 outputs.

IQSDA3361-1A3

IQSDA3361-1B3 3G/HD/SD-SDI Fan-out Distribution Amplifier. 1 input, 6 outputs,

relay bypass.

Note:

The input signal will bypass the module and be routed to the respective output in the event

of module removal or power failure.

IQSDA31/IQSDA33 www.snellgroup.com Introduction

1.3.2 IQSDA33

IQSDA3347-1A(B)3

IQSDA3361-1A(B)3

Note:

The input signal will bypass the module and be routed to the respective output in the event

of module removal or power failure.

IQSDA31/IQSDA33 www.snellgroup.com Introduction

1.4 Enclosures

The module can be fitted into the enclosure types shown.

1.4.1 B-style Enclosure

Enclosure order codes: IQH3B-S-0, IQH3B-S-P

1.4.2 A-style Enclosures

Enclosure order code: IQH1A-S-P

Enclosure order codes: IQH3A-S-0, IQH3A-S-P

Enclosure order codes: IQH3A-E-0, IQH3A-E-P, IQH3A-0-0, IQH3A-0-P

Enclosure order code: IQH1A-S-P

Important:

Although IQ modules are interchangeable between enclosures, their rear panels are

enclosure specific. An IQH3B enclosure accepts modules with either “A” or “B” order

codes. An IQH3A or IQH1A enclosure accepts modules with “A” order codes only. See

page 5.

IQSDA31/IQSDA33 www.snellgroup.com Introduction

1.5 Feature Summary

The IQSDA31 and IQSDA33 provide the following features.

1.5.1 IQSDA31

• Dual channel 3G-HD, HD-SDI, SD-SDI and wide-band distribution amplifier

• Equalizes up to 80m at 3Gbit/s, 100 m at 1.5 Gbit/s and up to 250 m at 270 Mbit/s of

Belden 1694A cable

• Standards supported:

• 3G-HD to SMPTE424M

• HD-SDI to SMPTE292M

• SD-SDI to SMPTE259M-C

• Relay Bypass option available

• Extremely compact – up to 32 channels in 3RU – for use where space is at a premium

1.5.2 IQSDA33

• 3G-HD, HD-SDI, SD-SDI and wide-band distribution amplifier

• Equalizes up to 80m at 3 Gbit/s, 100m at 1.5 Gbit/s and up to 250m at 270 Mbit/s of

Belden 1694A cable

• Standards supported:

• 3G-HD to SMPTE424M

• HD-SDI to SMPTE292M

• SD-SDI to SMPTE259M-C

• Extremely compact – up to 7 outputs of the input in a single width allowing 16 modules

in 3RU or 4 in 1RU – for use where space is at a premium

IQSDA31/IQSDA33 www.snellgroup.com Technical Specification

2. Technical Specification

2.1 IQSDA31

Inputs and Outputs

Signal Inputs

SDI Inputs 2 x

Input Cable Length Up to 250 m Belden 1694A @ 270 Mbit/s

Up to 100 m Belden 1694A @ 1.5 Gbit/s

Recommended for local fan out distribution only at 3 Gbit/s

Signal Outputs

SDI Outputs x 3 per input

Controls

Indicators

Power OK (Green)

Card Edge Controls

Slew Rate Switch SD/HD

Specifications

Electrical 1.5 Gbit/s HD-SDI, SMPTE 292M

270 Mbit/s SDI, SMPTE 259M-C

Connector / Format BNC/ 75 Ohm panel jack on standard Snell connector panel

Return Loss >-15 dB (270 Mbit/s, 1.5 Gbit/s)

>-10 dB (3 Gbit/s)

Power Consumption

Module Power Consumption 3 W max (A Frames)

4 W max with relay rear (A Frames)

3PR(BFrames)

3 PR max with relay rear (B Frames)

IQSDA31/IQSDA33 www.snellgroup.com Technical Specification

2.2 IQSDA33

Inputs and Outputs

Signal Inputs

SDI Inputs 1 x

Input Cable Length Up to 250 m Belden 1694A @ 270 Mbit/s

Up to 100 m Belden 1694A @ 1.5 Gbit/s

Recommended for local fan out distribution only at 3 Gbit/s

Signal Outputs

SDI Outputs x 7 (6 on the Relay Bypass version)

Controls

Indicators

Power OK (Green)

Card Edge Controls

Slew Rate Switch SD/HD

Specifications

Electrical 1.5 Gbit/s HD-SDI, SMPTE 292M

270 Mbit/s SDI, SMPTE 259M-C / DVB-ASI

Connector / Format BNC/ 75 Ohm panel jack on standard Snell connector panel

Return Loss >-15 dB (270 Mbit/s, 1.5 Gbit/s)

>-10 dB (3 Gbit/s)

Power Consumption

Module Power Consumption 3 W max (A Frames)

3PR(BFrames)
