SMC Networks 7004VBR Manual de usuario

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no

responsibility is assumed by SMC for its use, or for any infringements of patents or other rights of third

parties which may result from its use. No license is granted by implication or otherwise under any patent or

patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

The products and programs described in this User Guide are licensed products of SMC. This User Guide

contains proprietary information protected by copyright, and this User Guide and all accompanying

hardware and documentation are copyrighted.

SMC does not warrant that the hardware will work properly in all environments and applications, and

makes no warranty and representation, either implied or expressed, with respect to the quality,

performance, merchantability, or fitness for a particular purpose.

Information in this User Guide is subject to change without notice and does not represent a commitment on

the part of SMC. SMC assumes no responsibility for any inaccuracies that may be contained in this User

Guide.

SMC makes no commitment to update or keep current the information in this User Guide, and reserves the

right to make changes to this User Guide and/or product without notice.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, recording, or information storage and retrieval systems, for any

purpose other than the purchaser's personal use, without the express written permission of SMC.

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

Trademarks

SMC® is a registered trademark; and EZ-Stream, EZ Connect, Barricade and EZ Hub are trademarks of

SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their

respective holders.

Compliances

FCC - Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with instructions, may cause harmful interference to

radio communications. However, there is no guarantee that the interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: To assure continued compliance, (for example - use only shielded interface cables when

connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

CAUTION STATEMENT:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 5 centimeters between the

radiator and your body. This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. Note: In order to maintain compliance with the limits of a Class B digital device,

SMC requires that you use a quality interface cable when connecting to this device. Changes or

modifications not expressly approved by SMC could void the user’s authority to operate this equipment.

Attach unshielded twisted-pair cable (UTP) to the RJ-45 port and shielded USB cable to the USB port.

iii

EC Conformance Declaration – Class B

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II

Calle Fructuos Gelabert 6-8, 2o, 4a

08970 – Sant Joan Despi

Barcelona, Spain

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1

Class B, and EN 50082-1. This meets the essential protection requirements of the European Council

Directive 89/336/EEC on the approximation of the laws of the member states relation to electromagnetic

compatibility.

Important Safety Notices

•Unplug this product from the AC power before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a dry cloth for cleaning.

•Route the power supply cords so that they are not likely to be walked on or pinched by items

placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles,

and the point where they exit from the product.

•Situate the product away from heat sources such as radiators, heat registers, stoves, and other

products that produce heat.

•To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not allow water or

any foreign objects to enter the interior. This may cause a fire or electric shock. In the event that

water or other foreign objects get into the product, immediately unplug the AC adapter from the

electrical outlet and contact Customer Service for inspection and/or repair/replacement options.

•Do not take apart the equipment. This may cause fire, electric shock or other injuries.

•Do not overload wall outlets and extension cords as this can result in a fire or electric shock.

•This product is for use with the AC adapter that comes with it. Use with any other AC power is

strongly discouraged as it may cause fire, electric shock, or damage to the equipment.

TABLE OF CONTENTS

1 | SYSTEM REQUIREMENTS 8

2 | EQUIPMENT CHECKLIST 8

3 | FUNCTIONS AND FEATURES 9

4 | PANEL LAYOUT 10

5 | HARDWARE INSTALLATION 10

6 | NETWORK SETTINGS AND SOFTWARE INSTALLATION 11

6.1 | Installing TCP/IP 11

6.2 | Setting up TCP/IP 11

6.3 | Obtaining an IP Address 12

6.4 | Configuring a Macintosh Computer 13

6.5 | Verifying Your TCP/IP Connection 13

7 | CONFIGURING YOUR BROADBAND ROUTER 14

7.1 | Browser Configuration 14

7.2 | Web Management 14

7.3 | Setup Wizard 15

7.3.1 | Time Zone 15

7.3.2 | Broadband Type 15

7.3.4 | Cable Modem 16

7.3.5 | Fixed-IP xDSL 16

7.3.6 | PPPoE xDSL 17

7.3.7 | PPTP 18

7.3.8| BigPond 18

7.4 | Advanced Setup – SYSTEM 19

7.4.1| Time Zone 19

7.4.2| Password Settings 20

7.4.3| Remote Management 20

7.5 | Advanced Setup - WAN 21

7.5.1| Dynamic IP 21

7.5.2| PPPoE 21

7.5.3| PPTP 22

7.5.4| Static IP 22

7.5.6| BigPond 23

7.6 | Advanced Setup - LAN 23

7.7 | Advanced Setup - NAT 24

7.7.1 | Virtual Server 24

7.7.2 | Special Applications 25

7.8 | Advanced Setup - FIREWALL 26

7.8.1 | URL Blocking 26

7.8.2 | MAC Filter 27

7.8.3 | Parental Control 28

7.8.4 | DMZ 29

7.8.5 | Advanced Firewall Settings 29

7.9 | DDNS (Dynamic DNS) 30

7.10 | UPnP (Universal Plug-and-Play) 30

7.11 | Tools 31

7.12 | Status 31

8 | TROUBLESHOOTING 32

9 | TERMINOLOGY 34

10 | TECHNICAL SPECIFICATIONS 38

11 | COMPLIANCES 39

12 | LEGAL INFORMATION AND CONTACTS 41

vii

1 | System Requirements

• Internet access from your local telephone company or Internet Service Provider (ISP) using

a DSL modem, cable modem, Dial-Up modem, or ISDN modem

• A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a

Gateway server address and DNS server address from your service provider

• A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or a

USB-to-Ethernet converter

• TCP/IP network protocol installed on each PC that needs to access the internet

• A Java-enabled web browser, such as Microsoft Internet Explorer 5.0 or above, or Netscape

Communicator 4.0 or above installed on one PC at your site for configuring the router.

2 | Equipment Checklist

After unpacking the Barricade™ Cable/DSL Broadband Router, check the contents of the box to be sure

you have received the following components:

• 1 Barricade™ Cable/DSL Broadband Router

• 1 EZ Installation Wizard and Documentation CD

• 1 Ethernet (CAT5-UTP/Straight-Through) Cable

• 1 Power Adapter

• 1 Quick Installation Guide

Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please

retain the carton and original packing materials in case there is a need to return the product.

Please register this product and upgrade the product warranty at SMC's Web site:

http://www.smc.com

3 | Functions and Features

Broadband Modem and NAT Router Connects multiple computers to a broadband (cable or DSL)

modem, and/or Ethernet router to access the Internet.

10/100 Mbps Ethernet Interface Provides a 10/100 Base-TX interface to connect to a DSL or cable

modem for broadband Internet access.

Auto-sensing Ethernet Switch Equipped with a 4-port auto-sensing Ethernet switch.

WAN type supported

The router supports some WAN types, Static, Dynamic, PPPOE,

PPTP, and Dynamic IP with Road Runner.

Firewall All unwanted packets from outside sources are blocked to protect

your intranet.

DHCP Server Supported All networked computers can retrieve TCP/IP settings

automatically from this device.

Web-based Configuration Configurable by any networked computer’s Web browser using

Netscape or Internet Explorer.

Network Filter Supported The Packet Filter lets you control access to a network by analyzing

the incoming and outgoing packets; this lets you either pass or halt

the packets based on the IP address or the source and destination.

Universal Plug and Play (UPnP)

Supported

Enables devices such as PCs, routers and printers to be plugged

into a network and ensure automatic recognition.

Virtual Server Supported Lets you make your Website, FTP site, and other services on your

LAN accessible to Internet users.

User Defined Application Sensing

Tunnel

Lets you define the attributes to support special applications that

require multiple connections like Internet gaming, video

conferencing, Internet telephony, and so on. This device can sense

the application type and opens a multi-port tunnel for it.

DMZ Host Supported Enables a computer to be fully accessible to the Internet. This

function is used when the special application sensing tunnel

feature is insufficient to allow an application to function correctly.

SNMP Supported SNMP (Simple Network Management Protocol) is a protocol that

lets users remotely manage a computer network by polling and

setting terminal values, and monitoring network events.

System Time Supported Lets you synchronize system time with the network time server.

Virtual Computers Supported The virtual computer lets you use the original NAT feature, which

lets you setup the one-to-one mapping of multiple global and local

IP addresses.

URL Blocking Supported Lets you block hundreds of Website connections by simply

entering a keyword.

Schedule Rule Lets you set a time schedule for different services.

Routing Table Supported Allows you to determine which physical interface address to use

for outgoing IP data grams. If you have more than one router and

subnet, enable the routing table to allow packets to find the proper

routing path and the different subnets to communicate with each

other.

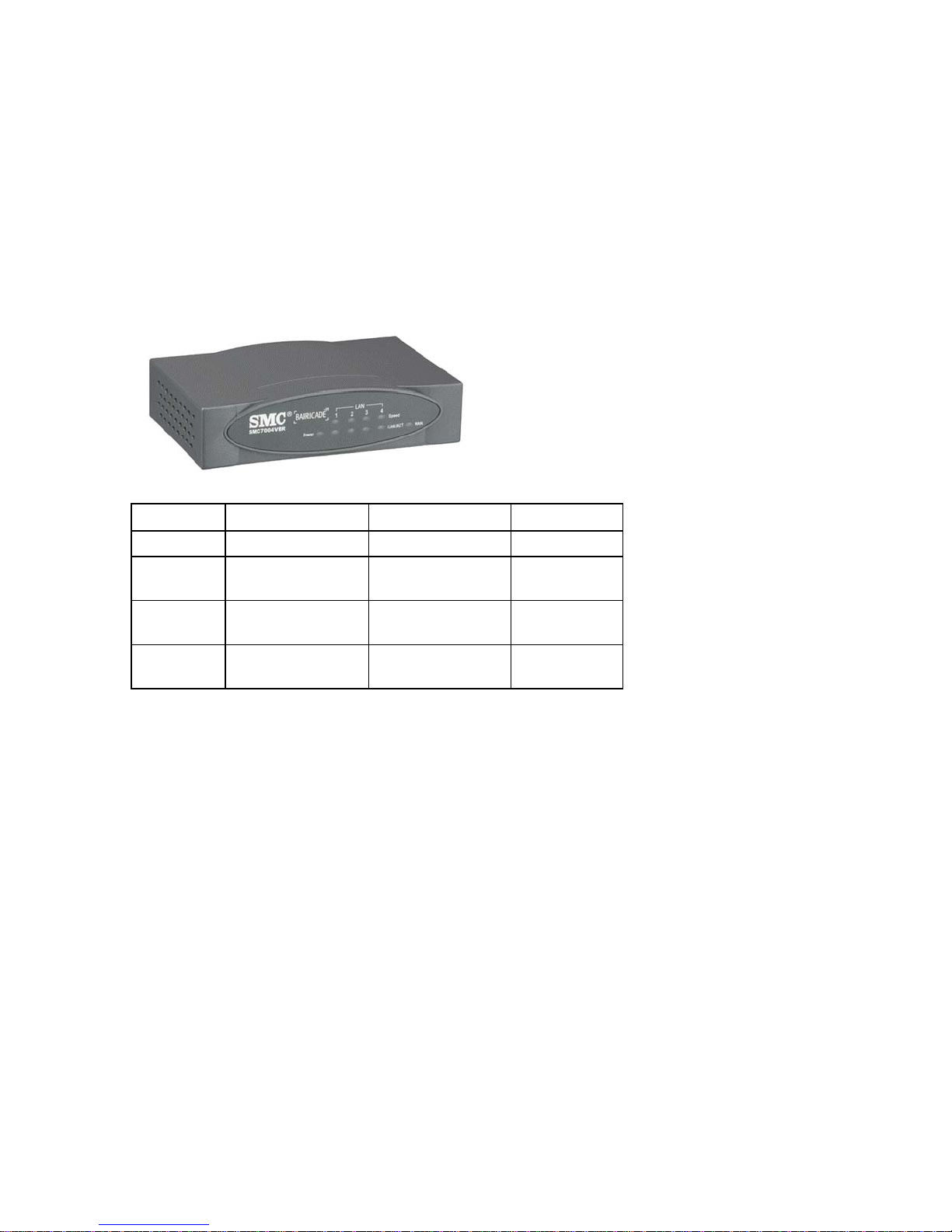

4 | Panel Layout

The following figure shows the front panel layout, which is followed by a table describing in detail the

status and function of each LED.

SMC7004VBR

LED ON OFF FLASHING

PWR Receiving power Not receiving power N/A

WAN Good WAN

connection detected

No WAN

connection detected

Transmitting or

receiving traffic

LINK/ACT Good LAN

connection detected

No LAN connection

detected

Transmitting or

receiving traffic

10/100

Mbps

LAN port operating

at 100 Mbps

LAN port operating

at 10 Mbps

N/A

5 | Hardware Installation

The router can be placed anywhere in your office or home. No special wiring or cooling

requirements are necessary. However, you should comply with the following guidelines:

• Place your router on a flat, horizontal surface

• Be sure to place your router away from any heating devices

• Avoid dusty and/or humid areas

1) Setup LAN Connection: Connect an Ethernet cable from your computer’s Ethernet port to one of

the LAN ports of the router.

2) Setup WAN Connection: Insert one end of the Ethernet cable into the WAN port on the back

panel of your router, and the other end to the cable/DSL modem. You may connect an analog

modem (optional) to function as a backup connection.

3) Power Up: The router automatically enters the self-testing phase once the power cord is plugged

into a wall outlet. When in self-testing phase, the M1 indicator LED illuminates for about five

seconds to indicate proper connection. The M1 LED flashes twice as soon as the self-testing phase

is completed. After the completion of the self-testing phase, the M1 LED should flash once per

second to indicate that the router is functioning properly.

Otros manuales para 7004VBR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de SMC Networks

SMC Networks

SMC Networks 7204BRB Manual de usuario

SMC Networks

SMC Networks FS1601 Manual de usuario

SMC Networks

SMC Networks TigerSwitch SMC6709FL2 Manual de usuario

SMC Networks

SMC Networks EZ-Stream SMC2304WBRA-AG Manual de usuario

SMC Networks

SMC Networks GS501 Manual de usuario

SMC Networks

SMC Networks SMCFS501 Manual de usuario

SMC Networks

SMC Networks EZ Switch SMC-EZ1016DT Manual de usuario

SMC Networks

SMC Networks EZ Switch SMCFS1601P Manual de usuario

SMC Networks

SMC Networks GS1601 Manual de usuario

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Manual de usuario

SMC Networks

SMC Networks EZ Switch SMCGS1610 Manual de usuario

SMC Networks

SMC Networks SMC108DT Manual de usuario

SMC Networks

SMC Networks SMCFS1601 - FICHE TECHNIQUE Manual de usuario

SMC Networks

SMC Networks Barricade Plus SMC7004FW Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC7003ADSL Manual de usuario

SMC Networks

SMC Networks ADSL2 Barricade N Pro SMC7904WBRA-N Manual de usuario

SMC Networks

SMC Networks TigerSwitch 100 SMC6724L3 Manual de usuario

SMC Networks

SMC Networks Barricade SMC7401BRA Manual de usuario

SMC Networks

SMC Networks 7904BRB3 FICHE Instrucciones de funcionamiento y seguridad

SMC Networks

SMC Networks SMCWBR14-3GN Manual de usuario

SMC Networks

SMC Networks 7901WBRA2 FICHE Manual de usuario

SMC Networks

SMC Networks Console Manual de usuario

SMC Networks

SMC Networks FS26 Manual de usuario

SMC Networks

SMC Networks 7004VBR Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
