SMC Networks VQ100 Series Manual de usuario

Wide variations of wiring

Single Valve Unit

Manifold

L plug connector

M plug connector

Grommet

Plug-in unit manifold

Plug lead unit manifold

Outstandingly high speed,

stable response, and long

service life.

ON: 3.5 ms, OFF: 2 ms, Dispension accuracy 앐1 ms

(With light/surge voltage suppressor; supply

pressure 0.5 MPa)

200 million cycles or more (Factors determined in a

life test by SMC)

Compact yet provides a

large flow capacity

Body width: 9.8 mm

C: 0.055 dm3/(s·bar)(Standard, high pressure type)

C: 0.14 dm3/(s·bar) (Large flow type)

: Option

Option

External non-leak

Latching

Negative COM

Normally open

Vacuum

Copper-free

The fluid contacting section is copper-free and the

standard style can be used as it is.

3 Port Solenoid Valve

Series VQ100

4-12-1

V100

SYJ

S070

VKF

VQZ

VFN

Manual Override Operation

If the manual override is manipulated, since any connected

equipment will be activated, make sure to be done only after no

danger is confirmed.

Non-locking push type (Tool required)

Locking type (Tool required)

Option

Push-locking type (Tool required)

Latching type

Note) Ensure the locking type manual override is unlocked before

using.

Attaching and detaching connectors

앬To attach a connector, hold the lever and connector unit

between your fingers and insert straight onto the pins of the

solenoid valve so that the lever’s pawl is pushed into the

groove and locks.

앬To detach a connector, remove the pawl from the groove by

pushing the lever downward with your thumb, and pull the

connector straight out.

Note) GENTLY pull the lead wire, otherwise it may cause contact failure or

disconnection.

Crimping of lead wires and sockets

Peel 3.2 to 3.7 mm of the tip of lead wire, enter the core wires

neatly into a socket and crimp it with a special crimp tool. Be

careful so that the cover of lead wire does not enter into the

crimping part. (Crimping tool part no.: DXT170-75-1)

Lead wire 0.2 to 0.33 mm2

(Max. cover diameter: ø1.7 mm)

Socket

Crimping area

Core wire

crimping area

Hook Insulation

Core wire

Attaching and detaching lead wires with sockets

앬Attaching

Insert the sockets into the square holes of the connector (with

A, C, and B indication) and continue to push the sockets all the

way in until the lock by hooking into the seats in the connector.

(When they are pushed in, their hooks open and they are

locked automatically.) Then confirm that they are locked by

pulling lightly on the lead wires.

앬Detaching

Pull and detach the lead wire, pressing in on the end of the

hook of the socket through the side hole using a stick with thin

end (about 1 mm). To reuse the socket, extend the hook

outward.

Connector

Lead wire

Socket

Hook

When operating the lock with the driver, use a watchmakers’

screwdriver and turn lightly.

[Torque 0.1 N·m or less]

Caution

Lead wire

Socket

Part no. DXT170-71-1

0.2 to 0.33 mm2

(Max. cover diameter: ø1.7 mm)

Cover

Convex

part

Convex

part

Pin Connector

Part no. AXT661-12

Lever

Hook

TURN PUSH

OFF

TURN

Set

TURN PUSH

Reset

TURN PUSH

Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2.

•It is turned ON by pushing the button in the

direction indicated by the arrow until it hits the

end and is turned OFF by releasing the button.

•If the manual override is turned clockwise and

the mark is adjusted to 1, it will be locked in

the ON state.

•If the manual override is turned,

counterclockwise and mark is adjusted to 0,

locking will be released and the manual

override will return.

•If the manual override is turned clockwise and

the mark is adjusted to 1, it will be backed to

the reset condition. (Passage P A)

•If the manual override is turned

counterclockwise and the mark is adjusted

to 0, it will be back to the reset condition.

(Passage A R) (Reset state at the time of

shipment.)

Warning

How to Use Plug Connector

Caution

Precautions

4-12-3

Series VQ100

V100

SYJ

S070

VKF

VQZ

VFN

Wiring specifications

앬Lead wires are connected as follows. Connect them to the

power supply side.

DC positive common

DC negative common

앬Plug connector lead wire length

앬How to order connector assembly

Nil 300 mm

600 mm

1000 mm

2000 mm

3000 mm

Lead wire length

SOL.

(–) Black

(+)

(+) Red

(–)

Lead wire color

Single

Blue

Lead wire color

Single

SOL.

Red

Lead wire color

Set

Reset

COM

Latching

SOL.

Lead wire color

Set

Reset

COM

Latching

SOL.

Lead wire color

Set

Reset

COM

Latching

SOL.

Single solenoid (DC) Latching solenoid (DC)

A (–) set

C (+) COM

B (–) Reset

SOL.

Simultaneous energization

protection circuit

Single solenoid (AC) Latching solenoid (AC)

A Set

B Reset

SOL.

C COM

A (–)

(+)

C (+)

(–)

SOL.

B-C

ON (Reset)

Passage

Indicator light Single

A-C ON

OFF

Passage

P A

A R

Indicator light

Orange

———

P  A

A  R

Orange

Green

Latching type

A-C

ON (Set)

Indicator light

• ON (Set): Orange

• (Reset: Green) Indicator light

• ON (Set): Orange

• (Reset: Green)

M plug connector L plug connector

DC positive common

• Single

AXT661-14A-

• Latching

AXT661-13A-

DC negative common

• Latching

AXT661-13AN-

100 VAC

• Single

AXT661-31A-

• Latching

AXT661-32A-

200 VAC

• Single AXT661-34A-

• Latching

AXT661-35A-

100 VAC, 200 VAC

Only connector and sockets

(3 pcs.)

AXT661-12A

Precautions

Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2.

Simultaneous

energization

protection circuit

Simultaneous

energization

protection circuit

(–) Black

(+) Red

(–) White

(+) Red

(–) Black

(+) White

Note) Single type:

No polarity

The lead wire length of the valve with lead wire is 300 mm.

When ordering a valve with a lead wire of 600 mm or longer, be

sure to indicate the model number of the valve without

connector and connector assembly.

Note 1) Single: No polarity

ON: Orange light lights.

Note 2) Setting side energizing: Orange

light lights.

Resetting side energizing: Green

light lights.

With wrong wiring preventing

ability (stop diode)

With surge voltage suppresser

(ZNR/Surge absorbing diode)

Note 3) A (set) side energizing: P A

B (set) side energizing: A R

Note 4) Negative common specifications

is applicable.

How to Use Plug Connector Light/Surge Voltage Suppressor

Caution

Latching Type

Caution

Yellow Yellow

Blue Red

Gray Gray

For latching type, set energizing side and reset the energizing

side are indicated with orange and green respectively.

∗( ) and the broken line: Large flow type

The latching solenoid is equipped with a self-holding mechanism,

which permits a movable iron core in the solenoid to hold the “set”

position. Therefore there is no need to energize continuously.

1. Make sure ON and OFF signals are not energized

simultaneously.

2. 10 ms energizing time is necessary for self-holding.

3. Please consult with SMC if using in a place with high vibrations

(10 G or more) or high magnetic fields.

4. Even though this valve is held on to reset position (passage: A

R), it may switch to the set position during transportation or

due to impact when mounting valves, etc. Therefore, check the

initial position by means of power supply or manual override

prior to use.

Series VQ100

4-12-4

Caution

2. Wiring specifications

Black

Brown

Red

Orange

Yellow

Pink

Blue

Purple

Gray

White

Yellow

Orange

Yellow

Pink

Blue

Purple

Gray

Orange

Red

White

Black

Red

Black

White

Black

White

Terminal No./Lead Wire Color

SOL.

COM

Pin no.

1 station

2 stations

3 stations

4 stations

5 stations

6 stations

7 stations

8 stations

9 stations

10 stations

11 stations

12 stations

13 stations

14 stations

15 stations

16 stations

17 stations

18 stations

Electrical wiring specifications

510

16 11

20 17

Multi-connector pin arrangement

Pin no.

Positioning key

For obtaining the flow rate, refer to page 4-1-6.

DIN rail mounting bracket

Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2.

Removal

1. Loosen the clamp screw of the end plate on both sides.

2. Lift the (a) side of the manifold off the DIN rail and slide it in the

direction of the (2) side.

Mounting

1. Hook side (b) of the manifold base on the DIN rail.

2. Press down side (a) and mount the end plate on the DIN rail.

Tighten the clamp screw on the side.

Proper tightening torque of thread: 0.8 to 1.2 N·m

Lead wire color

Dot

marking

Terminal

no.

Lead

wire color

How to Use Circular Connector

(For plug-in manifold: For VV3Q11)

Caution

How to Connect/Disconnect DIN Rail

How to Calculate the Flow Rate

1. Attaching and detaching connectors

If the manual override is manipulated, since any connected

equipment will be activated, make sure to be done only after no

danger is confirmed.

(a)

(1)

(b)

(2)

(a)

(2)

(b)

(1)

Precautions

Body

Ring Positioning key

4-12-5

Series VQ100

V100

SYJ

S070

VKF

VQZ

VFN

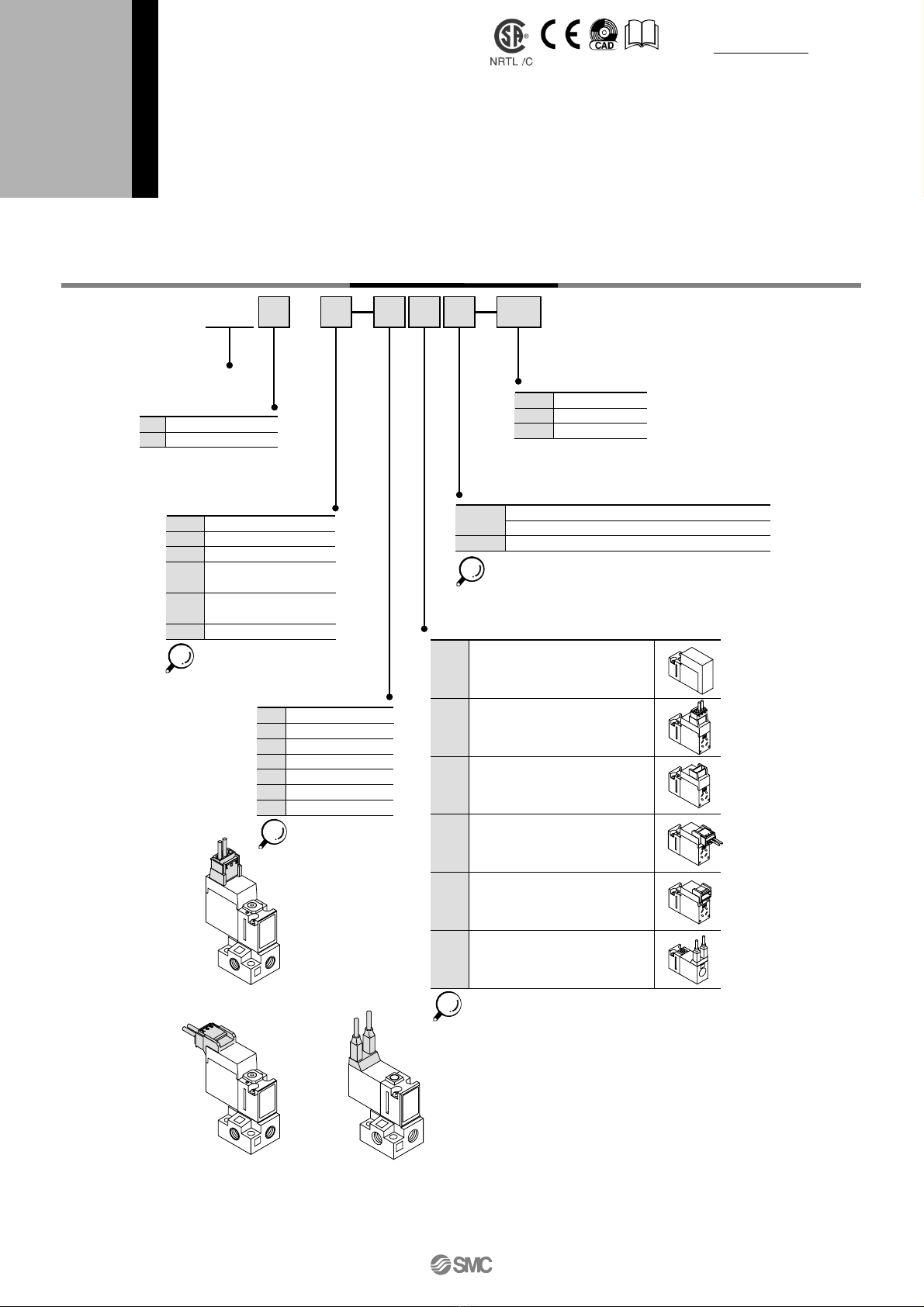

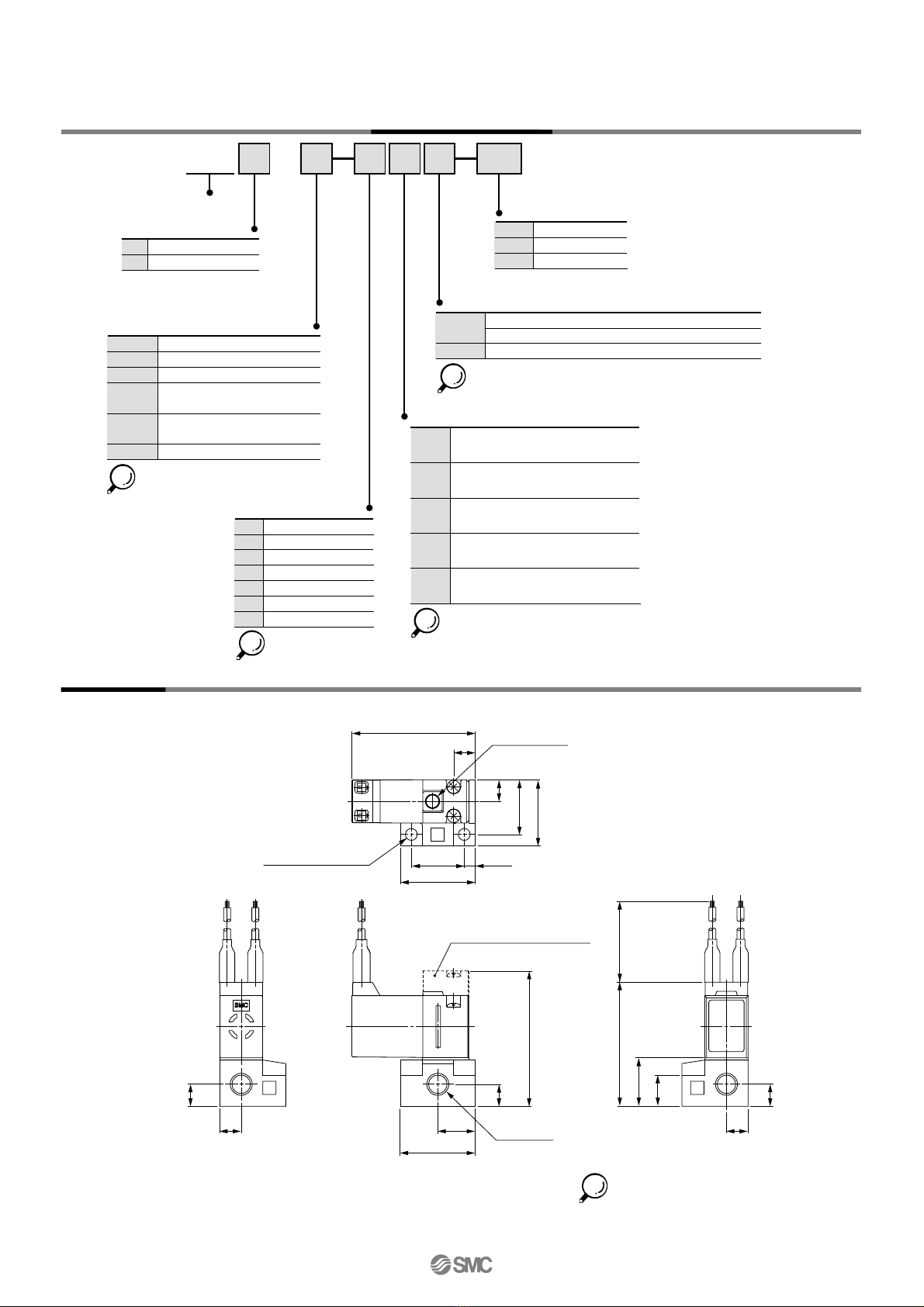

How to Order Valves

100 VAC (50/60 Hz)

200 VAC (50/60 Hz)

110 VAC (50/60 Hz)

220 VAC (50/60 Hz)

24 VDC

12 VDC

Other

Coil rated voltage

N.C. (Normally closed)

N.O. (Normally open)

Type of actuation

Series VQ

Compact 3 port valve

Without sub-plate

With sub-plate

Nil

Port size

Non-locking push type (Tool required)

Latching type: Push-locking type (Tool required)

Locking type (Tool required)

Nil

B∗

Manual override

Standard type (1 W)

High pressure type (1.5W)

Low wattage type (0.5 W)

Latching type,

Positive COM

Latching type,

Negative COM

Large flow type

Nil

Function

Electrical entry

L plug connector

M plug connector Grommet

3 Port Solenoid Valve

Series VQ100

VQ1 1 0 5 F

∗Option

Note) Except latching and

large flow type.

For the special volt-

ages, please consult

with SMC.

∗Option

Note) Latching manual override: Push-locking type only.

Grommet

Note) Grommet: No latching type, AC and large flow

L∗

N∗

U∗

Note)

L plug connector, With lead wire

With light/surge voltage suppressor

Plug-in,

With light/surge voltage suppressor

(Only for plug-in manifold)

L plug connector, Without connector

With light/surge voltage suppressor

M plug connector, With lead wire

With light/surge voltage suppressor

M plug connector, Without connector

With light/surge voltage suppressor

For details about the applicable products

conforming to international standards,

visit us at www.smcworld.com.

Note) Normally open type is

available only with

standard type. (1 W)

4-12-6

Standard Specifications

Valve construction

Fluid

Maximum operating pressure

Minimum operating pressure

Allowable voltage fluctuation

Coil insulation type

Item

Flow

characteristics

1  2

2  3

C[dm3/(s·bar)]

Response time (1)

Ambient and fluid temperature

Lubrication

Manual override

Mounting orientation

Shock/Vibration resistance (4)

Enclosure

Weight

Coil rated voltage

Power consumption (Current)

1 W (42 mA)

Electrical entry

3 port direct operated poppet (NC)

Air/Inert gas

0.5 W (21 mA)

Valve specificationsElectricity specifications

Standard type

(1 W)

ON: 3.5 ms, OFF: 2 ms

ON: 3.5 ms, OFF: 2.5 ms

(A)

Clean Series

How to order manifold

10 VQ110 

Clean Series

JIS Symbol

Normally closed

(P)

(R)

(A)

Latching type

High pressure type

(1.5W)

Low wattage type

(0.5 W)

0.7 MPa 0.8 MPa 0.7 MPa

0.055

0.22

0.014

0.083

0.28

0.021

0.042

0.27

0.011

0.045

0.28

0.012

1.5 W (63 mA)

(P)

(R)

(A)

(P)

(R)

Normally open

Clean series is available for both standard

and option specifications.

–10 to 50°C

Not required

Non-locking push type/Locking type (Tool required)

Unrestricted

150/30 m/s2

Dustproof

12.6 g (L/M plug connector, Without sub-plate)

24 V, 12 V

±10% of rated voltage

Class B or equivalent

0 MPa (–0.1 MPa )

Grommet

Plug-in, L plug connector, M plug connector

(With light/surge voltage suppressor)

Note 1) Based on JIS B 8374-1993. With light/surge voltage suppressor (Use clean air),

Dispersion accuracy ±1 ms

Note 2) Use dry air to prevent condensation when operating at low temperatures.

Note 3) Locking style: Option

Note 4) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial

direction and at the right angles to the main valve and armature in both

energized and de-energized states every once for each condition. (Values at

the initial period)

Vibration resistance

:No malfunction occurred in a one-sweep test between 45 and 2000 Hz. Test

was performed at both energized and de-energized states in the axial

direction and at the right angles to the main valve and armature. (Values at

the initial period)

Note 5) In vaccum applications, use 10- Clean Series which can use with 3 (R) port vacuum and 1 (P)

port vaccum release pressure. (Differential pressure between 3 (P) and 1 (P) is up to the

maximum operating pressure for each type.)

Type

(2)

(3)

(5)

4-12-7

3 Port Solenoid Valve Series VQ100

V100

SYJ

S070

VKF

VQZ

VFN

VQ110L-VQ110U-

0.6 MPa

Power

consumption

(Current)

VQ110- 

Latching type AC type

Type

Item

0.7 MPa

0.042

0.27

0.011

0.045

0.28

0.012

0.14

0.26

0.036

0.14

0.25

0.036

0.04

0.11

0.009

0.044

0.3

0.011

Electrical entry (1)

Valve specificationsElectricity specifications

Option

Model

Maximum operating pressure

Ambient and fluid temperature

Response time (2)

24 VDC

12 VDC

100 VAC

110 VAC

200 VAC

220 VAC

2VQ120-

0.5 MPa

—

1  2

(3  2)

2  3

(2  1)

Flow

charac-

teristics

C[dm3/(s·bar)]

0 MPa(—100 MPa )

5 ms or less

1 W (42 mA)

1 W (83 mA)

0.6 VA (6 mA)

0.65 VA (5.9 mA)

1.2 VA (6 mA)

1.3 VA (5.9 mA)

15 ms or less

—

0.5 VA (5 mA)

0.55 VA (5 mA)

1.0 VA (5 mA)

1.1 VA (5 mA)

5 ms or less

0.7 W (29 mA) (3)

0.7 W (58 mA) (3)

5 ms or less

1 W (42 mA)

1 W (83 mA)

Plug-in, L plug connector, M plug connector

(With light/surge voltage suppressor)

Note 1) Grommet is available only for normally open type (without light/surge voltage suppressor).

Normally open type is available only with 1 W DC specifications.

Note 2) With light/surge voltage suppressor based on JIS B 8374-1993 (clean air).

Note 3) Inrush: 3.1 W (10 ms after energized.), Holding: 0.7 W

Note 4) In vacuum applications, use 10- Clean Series which can use with 3 (R) port vacuum and 1 (P)

port vacuum release pressure. (Differential pressure between 3 (P) and 1 (P) is up to the

maximum operating pressure for each type.)

Note 5) In the case of 1 (P) port vacuum, and 3 (R) port vacuum release, use VQ120 (Normally open

type). In this case, 10- is not required.

Note 6) ( ) values insides denote the air passage for normally open type.

(6)

(4)(5 )

(6)

Normally open

type

Large flow type

Series VQ100

4-12-8

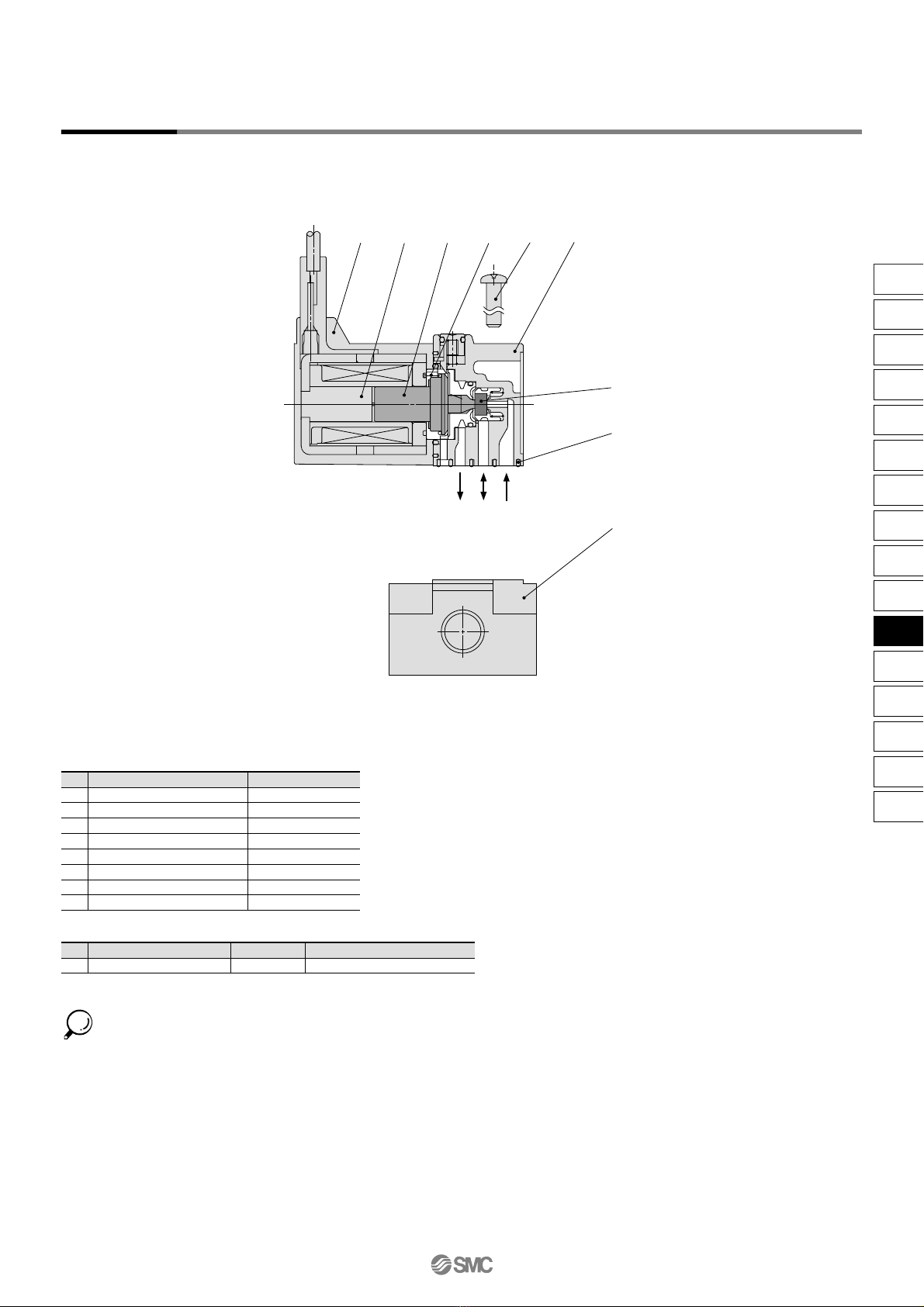

Construction

No.

Description Material

—

Resin

Stainless steel

Stainless steel, Resin

Stainless steel

NBR

Carbon steel

NBR

Component Parts

No.

Description Material

ZDC

Part no.

AXT662-1- (1: M5, 2: M3)

Replacement Parts

RAP

(For N.C. valve)

Solenoid coil

Body

Fixed iron core

Movable iron core assembly

Return spring

Poppet

Round head combination screw

Interface gasket

Sub-plate

Note) 1 set includes: 1 gasket and 2 screws.

Purchasing order is available in units of 10 pieces.

Optional parts

• Gasket, screw: VQ100-GS-5

qertuw

4-12-9

3 Port Solenoid Valve Series VQ100

V100

SYJ

S070

VKF

VQZ

VFN

Grommet

VQ10-G-M5 (M3)

Dimensions

How to Order Valves

VQ1 1 0 5 L M5

Coil rated voltage

Type of actuation

Series VQ

Compact 3 port valve

Without sub-plate

With sub-plate

Nil

Port size

Non-locking push type (Tool required)

Latching type: Push-locking type (Tool required)

Locking type (Tool required)

Nil

B∗

Manual override

Standard type (1 W)

High pressure type (1.5W)

Low wattage type (0.5 W)

Latching type,

Positive COM

Latching type,

Negative COM

Large flow type

Nil

L ∗

N ∗

U ∗

Function

Electrical entry

29.2

6.1 Manual override

4.9

12.4

14.8

12 3.7

18.1

2-ø2.7 mounting hole

(4.1)

4.9 9.7

(18.1)

(5.9)

30.7

3-M5, (M3)

Locking type manual override

≅300

(Lead wire length)

(5.9)

4.9

1N.C. (Normally closed)

N.O. (Normally open)

100 VAC (50/60 Hz)

200 VAC (50/60 Hz)

110 VAC (50/60 Hz)

220 VAC (50/60 Hz)

24 VDC

12 VDC

Other

Note) Normally open type

is available only with

standard type. (1 W)

∗Option

Note) Except latching and large

flow type.

For the special volt-

ages, please consult

with SMC.

Note) Grommet: No latching type, AC

and large flow

∗ Option

Note) Latching manual override: Push-locking type only.

L plug connector, With lead wire

With light/surge voltage suppressor

L plug connector, Without connector

With light/surge voltage suppressor

M plug connector, With lead wire

With light/surge voltage suppressor

M plug connector, Without connector,

With light/surge voltage suppressor

Grommet

•(): M3

• Broken line: Locking type manual override

Note)

Series VQ100

4-12-10

M plug connector

VQ10-M-M5 (M3)

L plug connector

VQ10-L-M5 (M3)

A P

3-M5, (M3)

Manual override

2-ø2.7

(4.1)

(5.9)

(Lead wire length)

Latching, AC,

Large flow type

Locking type manual override

4.9 4.9

4.9

12.4

14.8

9.7

3.7

18.1

6.1

31.5

36.5≅300 (Lead wire length)

35.7

(31.5)

41.6≅300

30.7

Latching, AC,

Large flow type

3-M5,(M3)

(4.1)

(5.9)

Lead wire color: Red

Lead wire color: Black

Locking type manual override

4.9

9.7

36.7

41.7 ≅300 (Lead wire length)

(30)

30.7

Manual override

2-ø2.7 12

4.9

12.4

14.8

3.7

18.1

6.1

35.1

Mounting hole

•(): M3

• Broken line: Latching, AC and large flow capacity

•One dot chain line: Locking type manual override and push-locking

type manual override (latching)

•(): M3

• Broken line: Latching, AC and large flow capacity

•One dot chain line: Locking type manual override and push-locking

type manual override (latching)

Dimensions

4-12-11

3 Port Solenoid Valve Series VQ100

V100

SYJ

S070

VKF

VQZ

VFN

Otros manuales para VQ100 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de SMC Networks

SMC Networks

SMC Networks SX90 Series Manual de usuario

SMC Networks

SMC Networks VQD1000 Series Manual de usuario

SMC Networks

SMC Networks VP4 Series Manual de usuario

SMC Networks

SMC Networks SJ 1000 Series Manual de usuario

SMC Networks

SMC Networks VHS20 Series Manual de usuario

SMC Networks

SMC Networks VHS20-D Series Manual de usuario

SMC Networks

SMC Networks VQC4000 Manual de usuario

SMC Networks

SMC Networks S070 Series Manual de usuario

SMC Networks

SMC Networks EX250-SAS7 Manual de usuario

SMC Networks

SMC Networks EX12 SMJ1 Series Manual de usuario

SMC Networks

SMC Networks JSY1000-E Series Manual de usuario

SMC Networks

SMC Networks EX600-SPR1A Manual de instrucciones

SMC Networks

SMC Networks EX600-SPN4 Manual de usuario

SMC Networks

SMC Networks VFR6000 Series Manual de usuario

SMC Networks

SMC Networks ASP Series Manual de usuario

SMC Networks

SMC Networks MPCXX-XXX-XXX-XX-DUT01607 Manual de usuario

SMC Networks

SMC Networks VXF2 Series Manual de usuario

SMC Networks

SMC Networks EX250-SPR1 Manual de usuario

SMC Networks

SMC Networks AV2000~5000-A Series Manual de usuario

SMC Networks

SMC Networks IL201 Series Manual de usuario

SMC Networks

SMC Networks AXTS040 3 X2 Series Manual de usuario

SMC Networks

SMC Networks XLA Series Manual de usuario

SMC Networks

SMC Networks VP31 5 Series Manual de usuario

SMC Networks

SMC Networks XGTP Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
