SMART-AVI SM-DVN-2S Manual de usuario

TECHNICAL SPECIFICATIONS WHAT’S IN THE BOX

VIDEO

Fornat DVI Dual Link; DVI Single-Link; VGA

Host Interface (2) DVI-I 29-pin (female)

User Console

Interface (1) DVI-I 29-pin (female)

Max Resolution

DVI Dual-Link: 2560 x 1600;

DVI Single-Link: 1920 x 1200;

VGA: 1920 x 1080

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft

Output Cable Length Up to 20 ft

USB

Signal Type USB 2.0, 1.1, and 1.0

w/ internal hub

Input Interface (2) USB Type B

Output Interface (2) USB 1.1 Type A for KVM Devices

(2) USB 2.0 Type A Transparent

AUDIO

Audio Input (2) 3.5mm stereo audio (female)

Audio Output (1) 3.5mm stereo audio (female)

POWER

Power Requirements 12V DC, 2A power adapter with

center-pin positive polarity

ENVIRONMENT

Operating Temp 32° to 104° F (0° to 40° C)

Storage Temp -4° to 140° F (-20° to 60° C)

Humidity 0-80% RH, non-condensing

CONTROL

Front Panel Push Buttons with LED indicators

RS-232 Via Serial @ 115200 bps

Hot Keys Via Keyboard

OTHER

Emulation Keyboard, Mouse and Video

PART NO. QTY DESCRIPTION

SM-DVN-2S 1 2-port, SH DVI-I KVM Switch

PS12VDC2A 112-VDC, 2-A power adapter with

center-pin positive polarity.

1Quick Start Guide

DESIGNED

AND MADE

IN THE USA

NOTICE

The information contained in this document

is subject to change without notice. iPGARD

makes no warranty of any kind with regard

to this material, including but not limited to,

implied warranties of merchantability and

tness for a particular purpose. iPGARD

will not be liable for errors contained

herein, or for incidental or consequential

damages in connection with the furnishing,

performance, or use of this material. No

part of this document may be photocopied,

reproduced, or translated into another

language without the prior written consent

from iPGARD, Inc.

20170518

Toll Free: (888)-994-7427

Phone: (702) 800-0005

Fax: (702)-441-5590

WWW.iPGARD.COM

A full manual can be downloaded from

www.ipgard.com/SM-DVN-2S/

SM-DVN-2S

Advanced KVM Switch

SINGLE-HEAD 2-PORT

DVI-I DUAL LINK KVM SWITCH

WITH USB 2.0 SHARING

Quick Start Guide

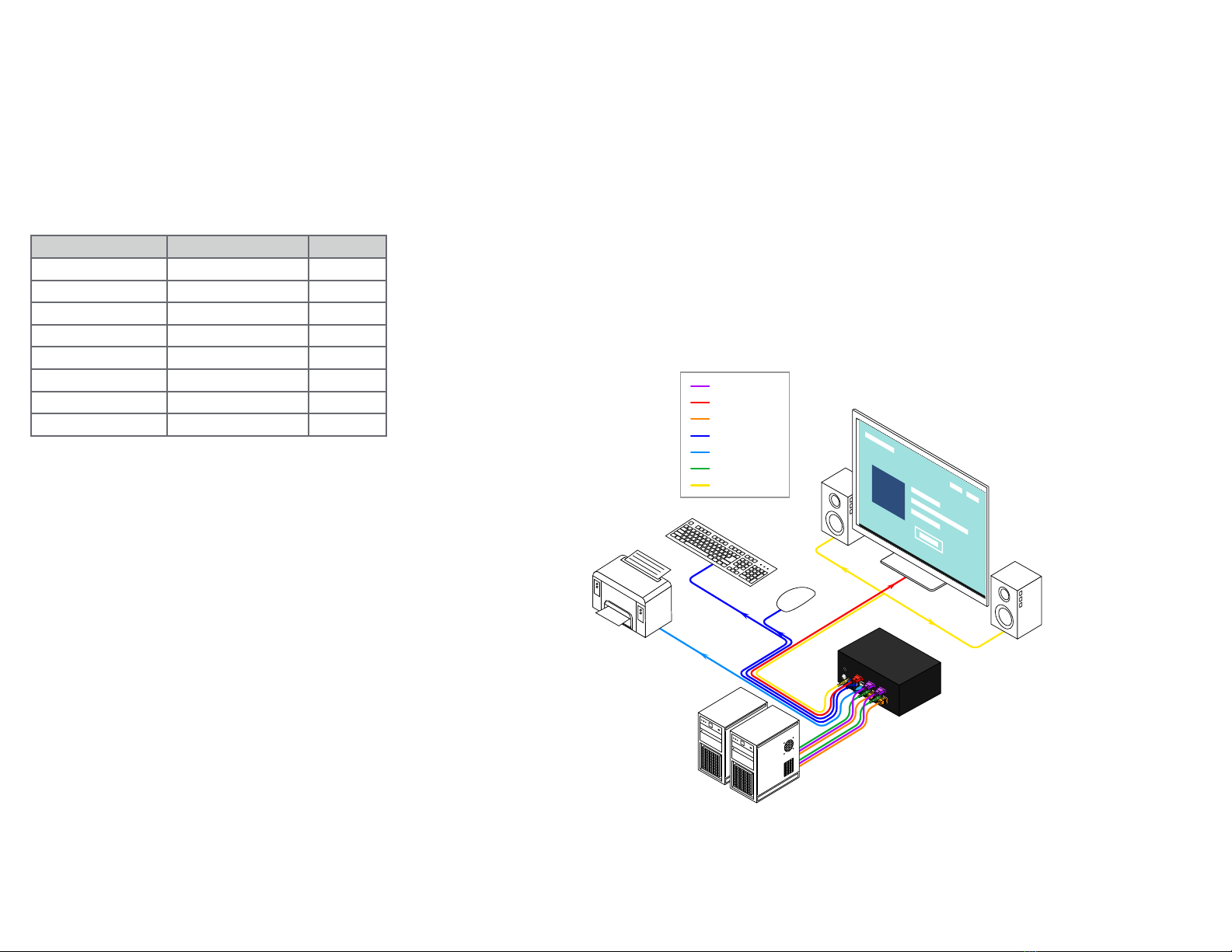

HARDWARE INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use DVI cables to connect the DVI output ports from each computer to the corresponding

DVI-I IN ports of the unit.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the

respective USB ports of the unit.

4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of

the computers to the AUDIO IN ports of the unit.

5. Connect monitors to the DVI-I OUT console ports of the unit using DVI cables.

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

8. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and

then turn on all the computers.

Note: You can connect up to 2 computers to the 2 port KVM.

DVI IN

DVI OUT

USB IN

USB K/M OUT

USB 2.0 OUT

AUDIO IN

AUDIO OUT

VGA SUPPORT

To use the SM-DVN with a VGA device, the monitor must also support analog signals. Once this

is afrmed, you can connect the VGA monitor and PC to the SM-DVN using passive VGA to DVI

adapters.

There are three ways to control

the KVM Switch: Keyboard HotKeys, RS-232

Serial Commands, and Front Panel Buttons.

The settings for the serial connection are as

follows: Baud rate: 115200; Data Bits: 8;

Parity: None; Stop Bits: 1; Flow Control: None.

The following commands can be used:

Users are able to customize the keys that

trigger Hotkeys. The following keys are

allowed: CT (Left/Right), Alt, Shift (Left/

Right), Caps Lock, Scroll Lock, F1-F12

Change HK Trigger

HK + HK + X + desired hotkey

View Current HK Trigger

Use the RS-232 command: //??<CR>

Default HotKey Trigger

CT (Left)

Chart Key

[CT] = Ctrl

<CR> = Carriage Return (Enter Key)

[HK] = Current Hot Key Trigger

Command Hotkey RS-232

Switch KVM [CT][CT][#]<CR> //m[#]<CR>

Audio Only [CT][CT]a[#]<CR> //a[#]<CR>

KM Only [CT][CT]c[#]<CR> //c[#]<CR>

USB Only [CT][CT]u[#]<CR> //u[#]<CR>

Learn EDID [CT][CT]e<CR> //e<CR>

Trigger Hotplug [CT][CT]h<CR> //h<CR>

Reset Software [CT][CT]r//r<CR>

Get Port Status N/A //??<CR>

SYSTEM CONTROL

CUSTOM HOTKEY TRIGGERS
