SMART-AVI SPS-1000 Manual de usuario

SPS-1000

8-Port HDMI, DVI, VGA, and Composite

Switch with Integrated Scaler

Quick Start Guide

4-port HDMI, 2-port VGA, DVI and

composite video switch

with IR and stereo audio support

(325 foot signal extension)

GENERAL

Video Input (4) HDMI, (2) VGA, (1) DVI, (1)

Composite

Control (1) RS-232, (1) RJ-45, (1) IR

3.5mm

Audio Input (7) 3-Pin Phoenix Connector

Video Output HDMI (local), RJ-45 (remote)

Audio Output RCA, SPDIF Digital Coaxial

Video Resolutions Up to 4K (3480x2160 @ 30Hz)

TECHNICAL SPECIFICATIONS

PHYSICAL

Dimensions 17.25”W x 1.9”H x 7.85”D

Weight 5 lbs.

Operating Temp. 0° - 40° C

Storage Temp. -20° - 60° C

Relative Humidity 20%-90% (no condensation)

Power Consumption 14W (max)/1.8W (standby)

800.AVI.2131

Tel: (818) 503-6200 |Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

NOTICE

The information contained in this

document is subject to change without

notice. SmartAVI makes no warranty of

any kind with regard to this material,

including but not limited to, implied

warranties of merchantability and fitness

for particular purpose.

SmartAVI will not be liable for errors

contained herein or for incidental or

consequential damages in connection

with the furnishing, performance or use

of this material.

No part of this document may be

photocopied, reproduced, or translated

into another language without prior

written consent from SmartAVI

Technologies, Inc.

PART NO. QTY DESCRIPTION

SPS-1000-S 1 8-Port Multi-Platform

Presentation Switcher

SPS-RXS 1 Receiver over CAT5e/6/7

PS12VDC 1 Power Supply / Adapter

PS5VDC 1 Power Supply / Adapter

Quick Start

Guide 1 Installation Setup/Part listing

WHAT’S IN THE BOX

SPS-RX

Dimensions 4”W x 1”H x 4”D

Weight 0.8 lbs.

Operating Temp. 0° - 40° C

Storage Temp. -20° - 60° C

Relative Humidity 20%-90% (no condensation)

Power Consumption PS5VDC or POE (Ethernet)

The SPS-1000 is designed to provide a variety of

control options to fit virtually any application.

With RS-232 and LAN connections, users can

control the device from a remote laptop. (The

SPS-RX receiver unit is equipped for both RS-232

and LAN signals, as well.) The SPS-1000 also

features front-panel buttons for easy switching

right from the device itself, as well as an IR re-

mote to switch between inputs and manage

other basic functions.

FEATURES

 Eight video inputs, including four HDMI inputs,

two VGA inputs, one DVI input and one RCA input

 One local HDMI output, with one local SPDIF digi-

tal coaxial audio output and one local RCA stereo

audio output

 Up to 325 feet of signal extension over

Cat5e/6/7 cables with receiver unit using

HDBaseT technology and POE (Power over

Ethernet)

 Scales output resolutions up to 1080p

 Two HDMI ports with bypass to support 4K Ultra

HD input and output

 Supports control via: RS-232, IR remote, front-

panel buttons, and TCP/IP

 Seven Phoenix audio ports for each of the digital

video inputs, with automatic audio embedding

 Supports SPDIF and stereo audio

CONNECTING THIS PRODUCT

1. Turn off all devices.

2. Connect signal source devices to the SPS-1000 switcher’s appropriate input ports (HDMI, DVI, VGA,

etc…).

3. Connect SPS-1000 to local display via HDMI AND/OR SPS-RX with RJ-45 CAT5 cable.

**OPTIONAL: Connect SPS-1000 to stereo audio output device via 3.5mmm audio jack.**

**OPTIONAL: Connect SPS-1000 to computer via RS-232 cable for additional command support.**

4. Power on signal source devices.

5. Power on display (remote or local).

6. Connect SPS-1000 to power device and turn it on.

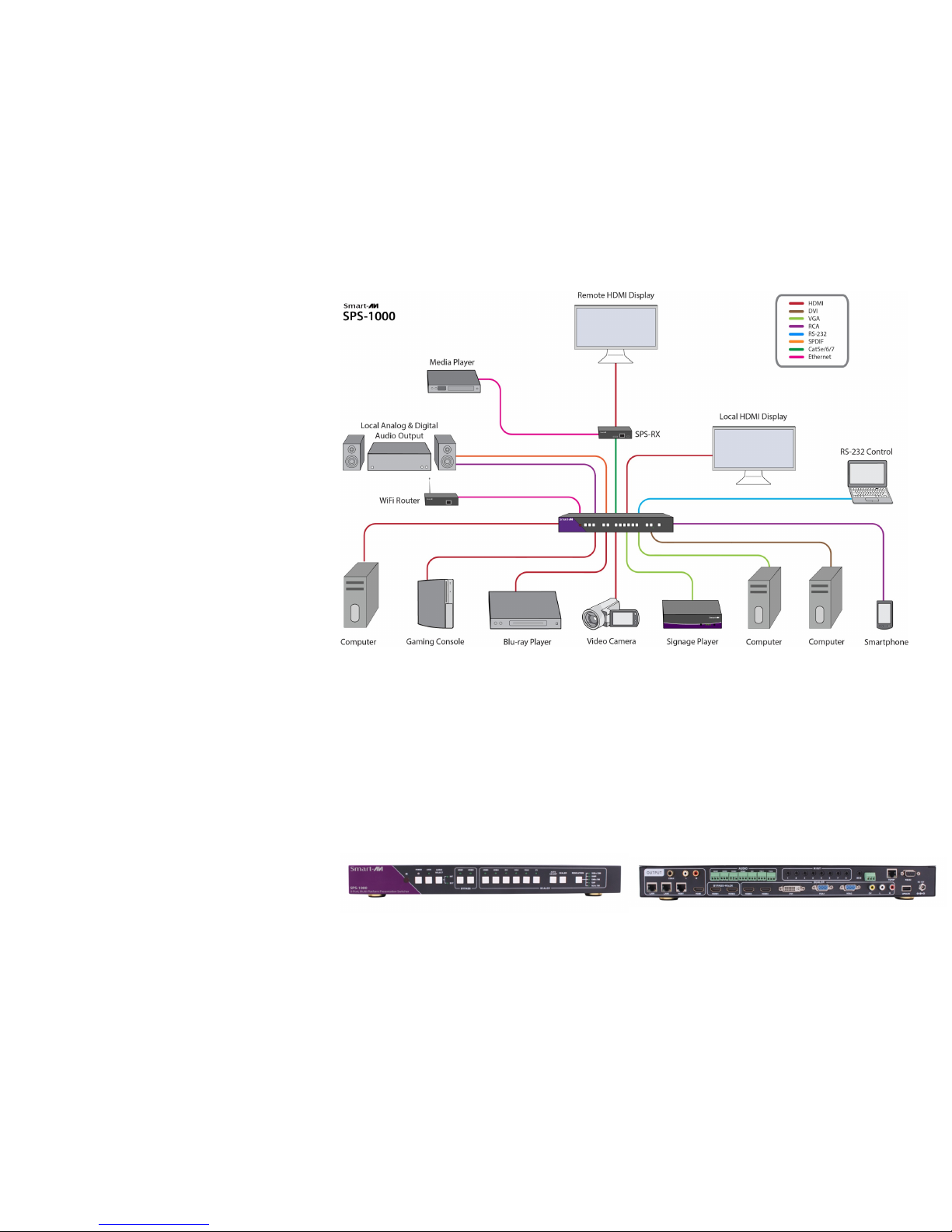

FRONT BACK

INSTALLATION DIAGRAM
