SMART-AVI V2V-AV2H-01 Manual de usuario

S-Video and Composite to HDMI Converter

V2V-AV2H-01

Installation

Manual

What’s in the Box?

PART NO. QTY DESCRIPTION

V2V-AV2H-01 1 SVideo, Composite Video and Audio to HDMI

Converter

PS5VDC2A 1 5 Volt 2 Amp Power Supply

Technical Specications

OTHER

Power External 100-240 VAC/5VDC2A @10W

Dimensions 5.25 in W x 3.5 in H x 1 in D

Weight 0.71 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

NOTICE

The information contained in this document

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

Rack Mountable Option

Our SmartRack is the perfect solution to allow

virtually all SmartAVI devices to be custom mounted

in a standard 19” server rack. The SmartRack is fully

adjustable and can secure/organize several devices.

HDMI VIDEO

Format HDMI 1.3b [Deep Color, xvYcc color space

supported]

DVI Compliance Single-link DVI-D 1.1

HDCP Compliance 1.0/1.1

Video Bandwidth Single-link 340MHz [10.2Gbps]

Resolution 480i,480p,720i,720p,1080i,1080p

Output Interface (1) HDMI[7.1ch audio & video]

Connector Type A[19-pin female]

Maximum Distance 25 ft.

COMPOSITE VIDEO

Input Format NTSC/PAL/SECAM

Output Formats NTSC/PAL/SECAM

Resolution 800 x 600, 1024 x 768,

up to 1280 x 1024@60Hz

Input Interface (3) RCA Female

V2V FAMILY

AUDIO

Signal Type Stereo Unbalanced

Ouput Interface Left/Right RCA (Female)

S-VIDEO

Input Format NTSC/PAL/SECAM

Resolution 800 x 600, 1024 x 768,

up to 1280 x 1024@60Hz

Input Interface (1) S-Video Female

V2V-AV2H-01

HDMI DISPLAY AND SPEAKERSS-VIDEO/COMPOSITE

VIDEO SOURCE

Introduction

The V2V-AV2H-01 Converts S-Video or Composite Video

and Stereo Audio to HDMI.

Applications

•Home Theater

•PC Networking

•Conference Center Systems

•Point of Sale

•Camera Surveillance

•Video Phone

•Control Room Systems

•Recording Studios

Features

•One S-Video Signal Input

•One AV Signal Input

•R/L Audio Sgnal Input

•One HDMI Signal Output

•HDMI Signal 720p/60HZ Output

•Adaptive PAL / NTSC standard

•LED Indicators

•Easy to install within minutes

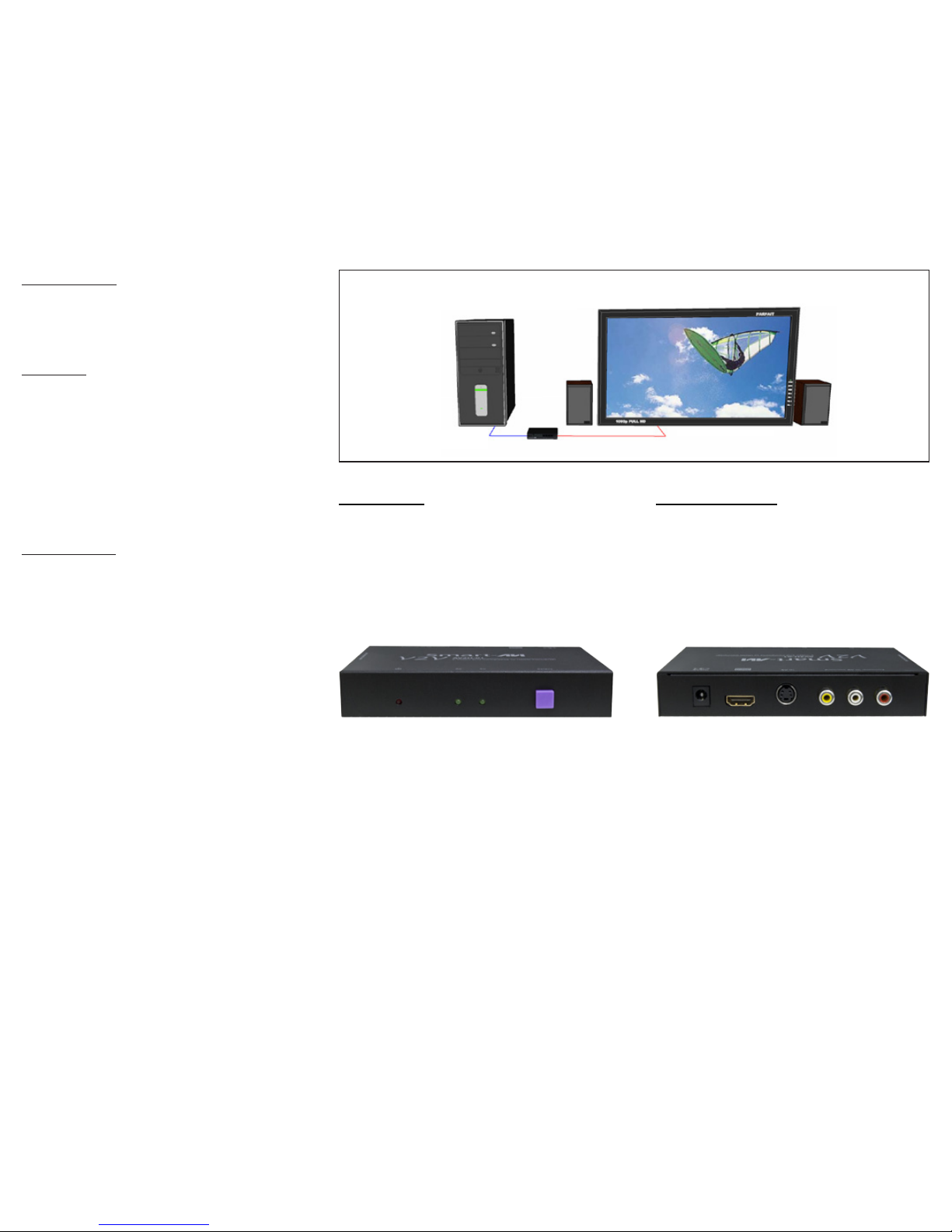

Product - Installation Diagram

Installation

1. Connect a composite or S-Video input device.

2. Connect an HDMI display to the HDMI output on

the V2V-AV2H-01.

3. Connect the power cord to the V2V-AV2H-01.

4. Power on the input device and the display.

Button Function

Use the front panel button to switch between

Composite and S-Video, indicated by the LEDs.

V2V-C2V-01 Front V2V-C2V-01 Rear
