SMART-AVI DVX500 Manual de usuario

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties

of merchantability and fitness for any particular

purpose.

Smart-AVI will not be liable for errors contained

herein or for incidental or consequential damages

in connection with the furnishing, performance or

use of this material.

No part of this document may be photocopied,

reproduced or translated into another language

with

out prior written consent from Smart-AVI.

The DVX500 extends any DVI-D signal,

with keyboard and mouse to 500ft with

UTP Cat5e cable

DVX500

www.smartavi.com

User Manual

2840 N. Naomi Ave.

Burbank, California 91504

Phone: (818) 565-0011

Facsimile: (818) 565-0020

Technical Specifications

Input/Output Signal

Pin # Signal Pin # Signal

1 T.M.D.S Data 2- 16 Hot Plug Detect

2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-

3 T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+

4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield

5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-

6 DDC Clock 21 T.M.D.S Data 5+

7 DDC Data 22 T.M.D.S Clock Shield

8 Analog Vert. Sync 23 T.M.D.S Clock+

9 T.M.D.S Data 1- 24 T.M.D.S Clock -

10 T.M.D.S Data 1+

11 T.M.D.S Data 1/3 Shield C1 Analog Red

12 T.M.D.S Data 3- C2 Analog Green

13 T.M.D.S Data 3+ C3 Analog Blue

14 +5V Power C4 Analog Horz Sync

15 GND C5 Analog Ground

Resolutions

Supported by the internal EDID configuration

640 x 480 85 Hz

800 x 600 85 Hz

1024 x 768 85 Hz

1152 x 870 75 Hz

1280 x 768 75 Hz

1280 x 960 60 Hz

1280 x 1024 60 Hz

1600 x 1200 60 Hz

Resolution Refresh Rate

Introduction

The DV500 extends any DVI-D signal with PS/2 mouse

and keyboard up to 500ft with single UTP Cat5 cable.

Features

 Top Image Quality at all Resolutions.

 Video Resolutions up to 1600 x 1200 @

60Hz (1280 x 1024 @ 75Hz). on all distances

up to the maximum distance.

 User selectable: DCC-Information used from

the remotely located monitor, from the locally

located Monitor or from an internal DDC

Table.

 Basic device to remotely locate Touch Screen

and Sound.

 PS/2 Mouse.

 Maximum Screen Resolution on all distances:

500 ft w/ STP Cat5e.

 Compatible with all operating systems.

Applications

 Perfect Image Quality at all Resolutions.

 Call Centers (co-locate user’s computers).

 Industrial (protection against pollution).

 Information Terminals & Kiosks.

 Airports (air traffic control, passenger

information systems).

 Medical - using computer tomographs generates

strong magnetic fields, which make it impossible

to use monitors.

Installation

To install your DVX500

1. Turn off computer and monitor.

2. Connect your keyboard, monitor(s) and mouse

to the remote unit (depending on device type).

Please insure that the mouse and keyboard are

connected properly.

3. Using the supplied CPU KVM cable, connect the

keyboard, monitor(s) and mouse connectors on

the computer. Please insure that the mouse and

keyboard are connected properly.

4. Connect a shielded Cat 5e cable

between the DVX500-TX and the DVX500-RX

7. Connect the power supplies to the transmitter

and receiver.

8. Turn on the monitor and computer.

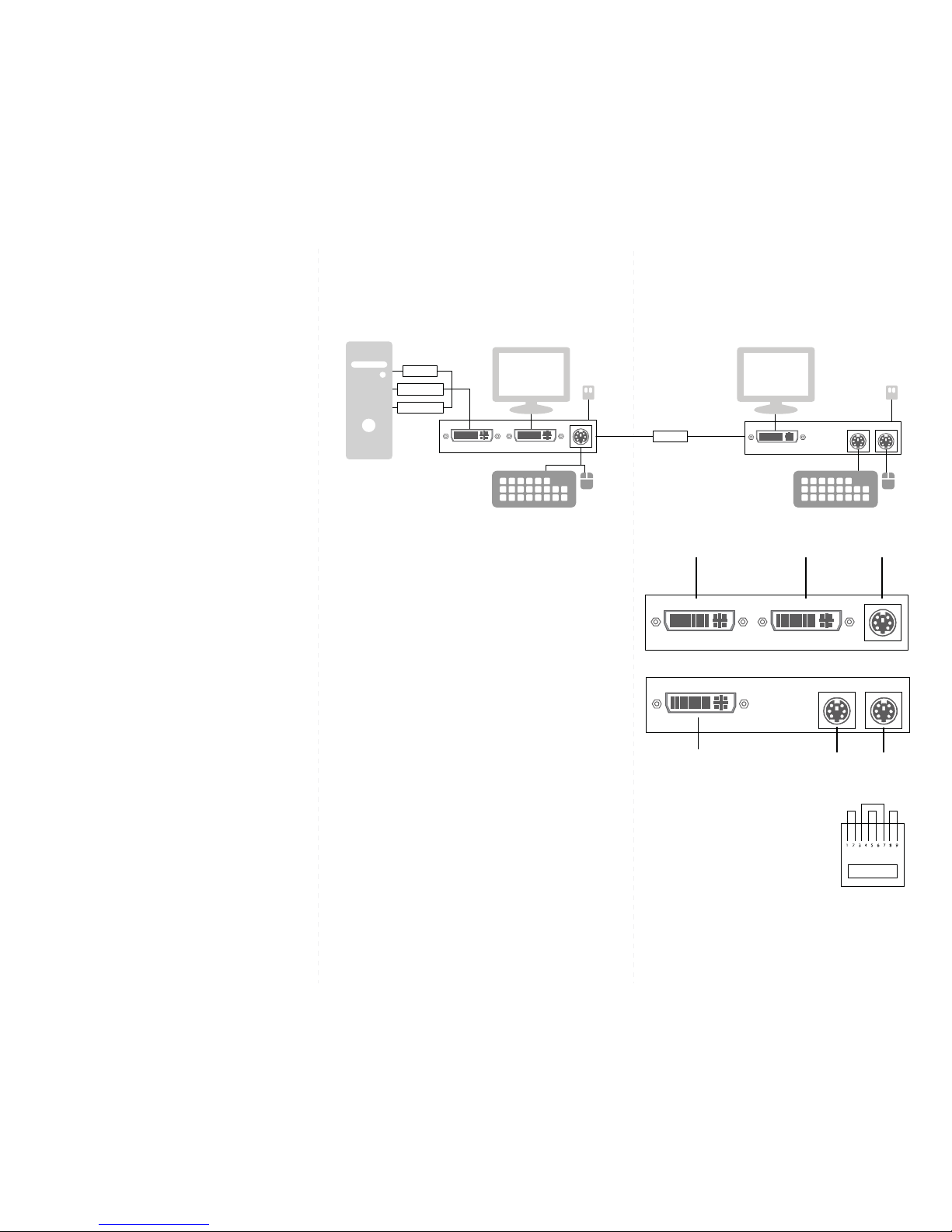

Installation Diagram

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

4 - Pair, (stranded) Foil Shielded

Prepairing System CAT5e Cable

Keyboard MouseDVI

DVI In DVI Out

PS/2 Mouse

/ Keyboard

Power 5V Power 5

UTP Cat5e

Keyboard Mouse

OutputInput

PS/2 Keyboard

PS/2 Mouse

DVID

DVI

DVX500 Transmitter DVX500 Reciever
