SMART-AVI HDX-100 Manual de usuario

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or

for incidental or consequential damages in connection

with the furnishing, performance or use of this material.

No part of this document may be photocopied,

reproduced or translated into another language with

out prior written consent from Smart-AVI.

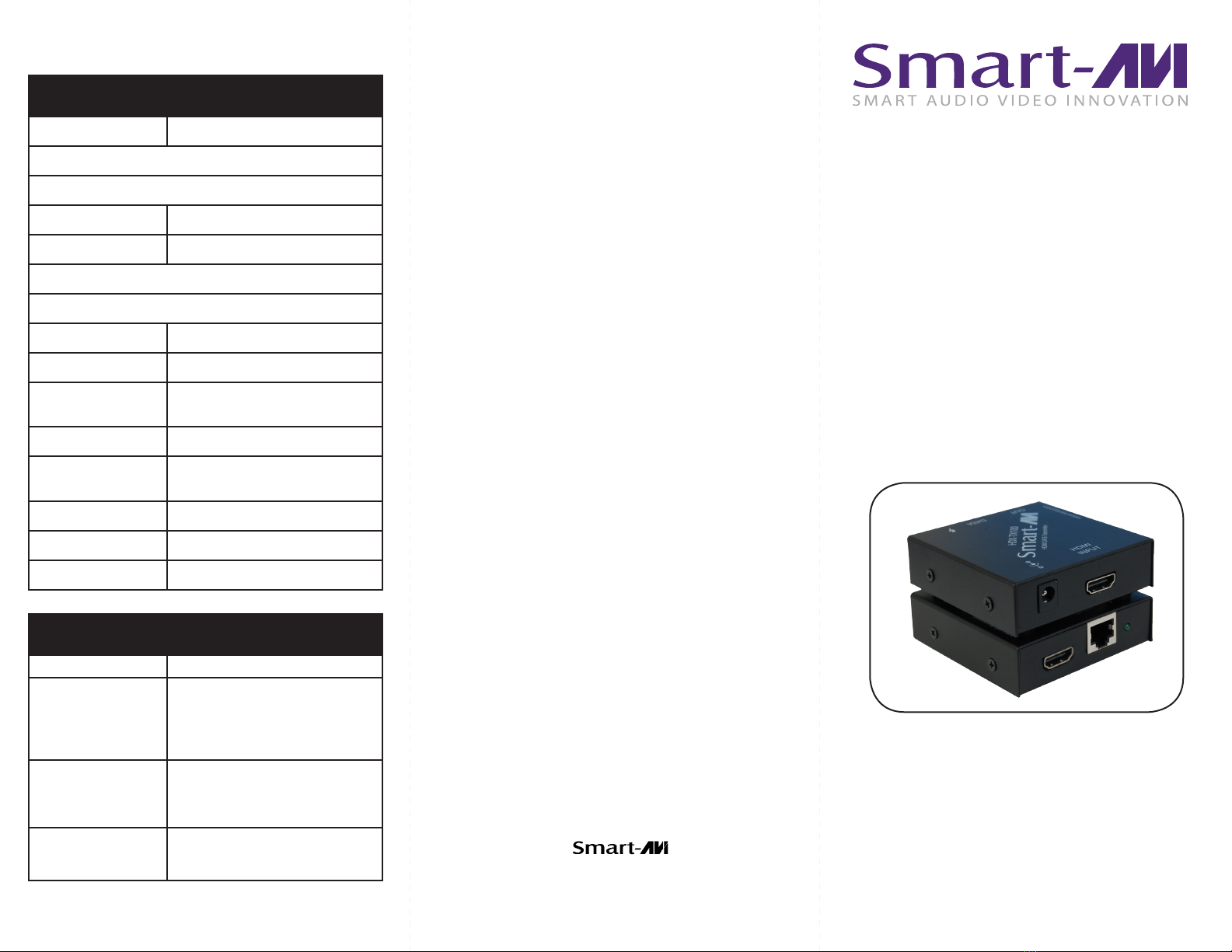

HDMI Extender

HDX-100

User Manual

SmartAVI, Inc. / Twitter: @smartavi

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

http://www.SmartAVI.com

HDX-100 Specications

Function/Model HDX-100

VIDEO INPUT

Bandwidth 1.65Gps

Connector HDMI Connector x1

HDMI OUTPUT DISPLAY

HDMI Connector x 1

RJ45 Jack x 1

Max. Resolution 1920 x 1200 or

480p/720i/720p/1080i/1080p

Bandwidth 1.65Gps

Storage

Temperature

-20˚C~60˚C

Power adaptor PS5VDC2A

Housing Metal

Dimension(mm) 2.75”W x 3.875”L x 1”H

Order Info

Part No. Description

HDX-100S HDMI Extender over CAT6

up to 150 feet.

Includes: [HDX-TX100,

HDX-RX100 &

2x(PS-PS5VDC2A)]

HDX-TX100S HDMI over CAT6 STP

Transmitter.

Includes: [HDX-TX100 and

PS5VD2A-WLLMNT]

HDX-RX100S HDMI CAT6 STP Receiver.

Includes: [HDX-RX100 and

PS5VD2A-Wall Mount]

TECHNICAL SPECIFICATIONS

HDMI Extender over CAT6 STP

150 Feet over CAT6 STP

HDX-TX100

HDMI Source HDX-RX100

Qty Description Part Number

1HDX Transmitter, HDMI over

CAT6 STP Cable HDX-TX100

1HDX Receiver, HDMI over

CAT6 STP Cable HDX-RX100

1 PowerSupply 5VDC 2A PS5VDC2A

WHAT’S IN THE BOX?

Please check the contents of the package before beginning

installation.

INSTALLATION AND OPERATION

Connecting the Splitter/Extender:

1. Connect the HDX-100 to the Component/TV/Monitor

with HDMI cable (included with the unit).

2. Connect HDX-TX100 to HDX-RX100 via CAT6 STP.

3. Connect HDX-RX100 to display.

4. Connect the power.

• Compact Transmitter/Receiver Units

• Local HDMI Output

• Perfect Image Quality at all Resolutions

(1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)

• Video Resolutions up to 1920 x 1200 at 60H

(1280 x 1024 at 75Hz) on all Distances to the

Maximum Limit

• Bandwidth to 1.65Gps

• Unit Operates Regardless of Local Monitor

Connectivity

• Distances up to 150 Feet using CAT6 STP Cabling

• Compatible with all Operating Systems

• Plug-and-Play – No Software Required

FEATURES

The HDMI signal transmission unit is placed near the HDMI

source. Connect the HDMI source to the transmission unit,

which will extend the signal up to 150 feet over a single

CAT6 STP cable.

INTRODUCTION HDX-100

Connection Diagram
