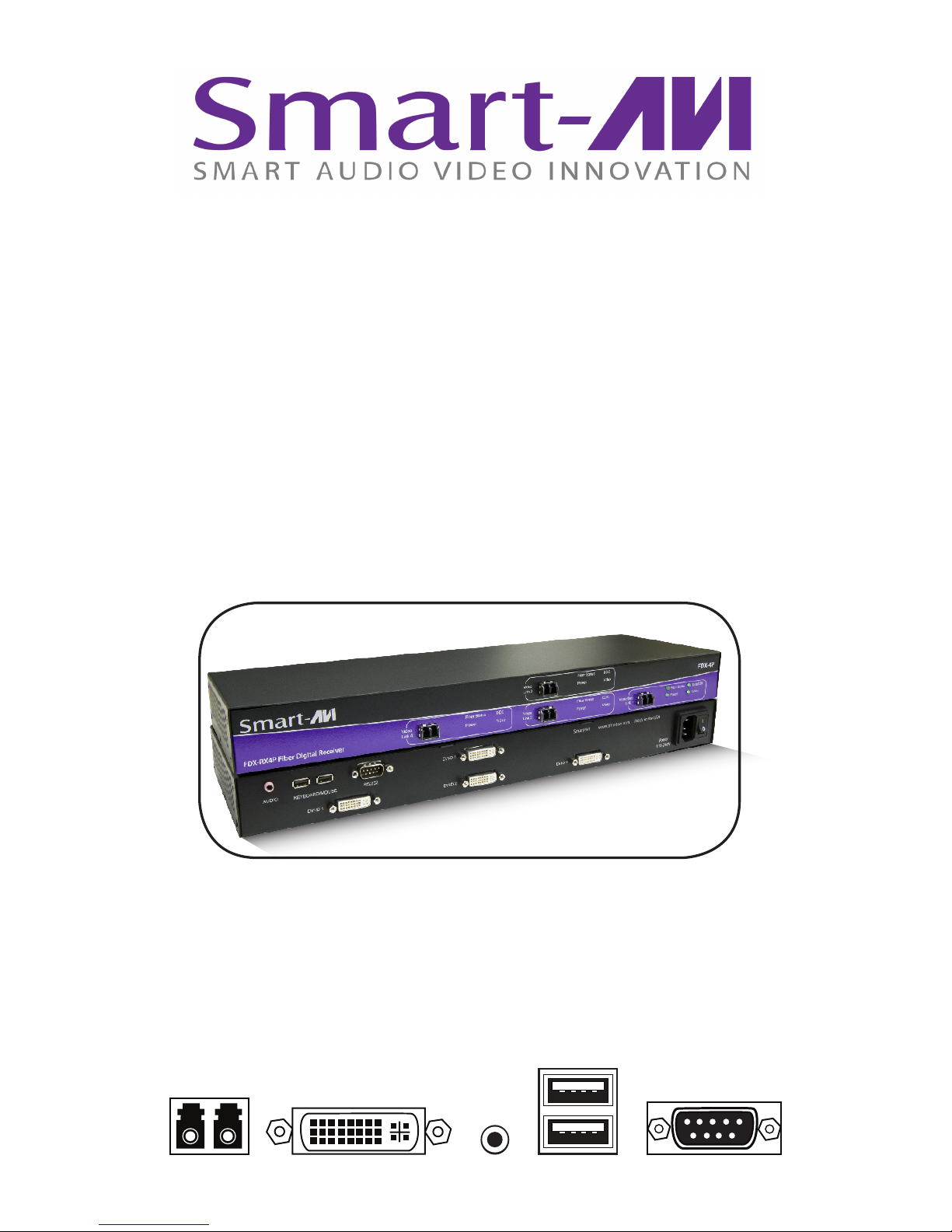

Installation
Manual
Quad DVI-D Extender, with Audio
and USB Keyboard and Mouse
FDX-M4U
2www.smartavi.com
Introduction
The FDX-M4U consists of a transmitter and receiver that extend
four DVI-D outputs, with audio, USB keyboard and mouse, and RS-232
control. For exceptional quality and security, ber optic extension is the
best solution. The FDX-M4U can go the distance with multi-mode ber
optic cabling with a reach of up to 1,400 feet.
The SmartAVI FDX-M4U is capable of supporting four DVI-D
monitors, with USB 1.1 keyboard and mouse, stereo audio with serial
(RS-232) control. The system includes a transmitter and receiver, which
are connected by four ber optic cables.
Features
• Quad channel DVI-D, audio and USB keyboard and mouse
with RS-232 control
• Top Signal Quality over Multimode Fiber (up to 1,400 feet)
• Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
• Customizable/Programmable DDC Table for Mac/PC
• Supports all USB 1.1 Keyboards and Mice
• Fiber Plug Type LC
• Compatible With all Major KVM Switches
• Supports Mac, PC, and Linux DVI
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Rack Mountable Solution
• Plug-and-play
3
www.smartavi.com
Applications
MEDICAL FIELD
Inthemedicaleldwheresensitiveelectronicdevicesareused,isolating
workstation computers can be a matter of safety. The FDX-M4U allows
the workstation computers to be housed in a central location, away
from sensitive devices.
INDUSTRIAL WORK AREAS
In industrial work areas that may be too harsh for a workstation
computer, the FDX-M4U can consolidate the computers into a safe
location.
SECURE COMPUTING
When it comes to security, the FDX-M4U is an excellent deployment
option. With the FDX-M4U, devices can be centralized and secured
from public access. This, combined with the intrinsic security of ber
optic cable, make the FDX-M4U one of the most secure KVM solutions
available.
INFORMATION KIOSKS/DISPLAYS
As with most information booths and kiosks, there is a risk of damage
or theft. The FDX-M4U is the best way to secure computer hardware,
by consolidating it to a secure location away from public access.
FILM/MUSIC RECORDING STUDIOS
When recording with sensitive cameras and microphones, computers
are often too noisy to be used in the immediate vicinity. The FDX-M4U
isolates the computers into another room, maintaining the silence that
recording artists require.
4www.smartavi.com
FDX-M4U Receiver Rear
Why Fiber Optic?
SmartAVI has created a full line of ber optic extender products,
understanding that this technology is superior to traditional
cabling.
Fiber optic cables are:
• capable of transmitting over very long distances with no
signal loss.
• immune to electromagnetic interference. In situations where
there is considerable interference, ber optic cabling is the
only solution.
• much more secure because they cannot be easily tapped. For
this reason, military and law enforcement agencies use ber
optic cables for the transmission of sensitive data.
• relatively inexpensive and small enough to be routed through
small spaces.
5
www.smartavi.com
What’s in the Box?
PART NO. QTY DESCRIPTION
FDX-TXM4P 1 Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Transmitter
FDX-RX4MU 1 Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Receiver
Power Cable 2 CCPWR06USA
Technical Specications
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (4) DVI-D 29-pin female
Output Interface (RX) (4) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 10K Ohm
Connector 3.5mm Stereo Mini Female
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
USB
Signal Type OHCI/UHCI (USB 1.1)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
OTHER
Power Internal 110-240 VAC
Dimensions 17 in W x 7 in H x 1.75 in D
Weight 8.0 lbs.
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
RS-232 Data up to 115,000 bps
6www.smartavi.com
Installation
1. Turn o the computer, displays, and speakers.
2. Connect the DVI extension cables, USB cable, and audio cable
(not included) to the computer and to the ports on the FDX-
TXM4P.
3. Connect the displays to the DVI connectors on the FDX-M4U.
4. Connect USB mouse and keyboard ONLY to the USB connectors
on the FDX-M4U.
5. Connect speakers to the audio connector on the FDX-M4U.
6. Connect the FDX-TXM4P to the FDX-M4U with a multimode
ber-optic cable (see opposite page).
7. Connect the power cord and power on the FDX-3000TX and the
FDX-M4U.
8. Power on the computer, displays and speakers.

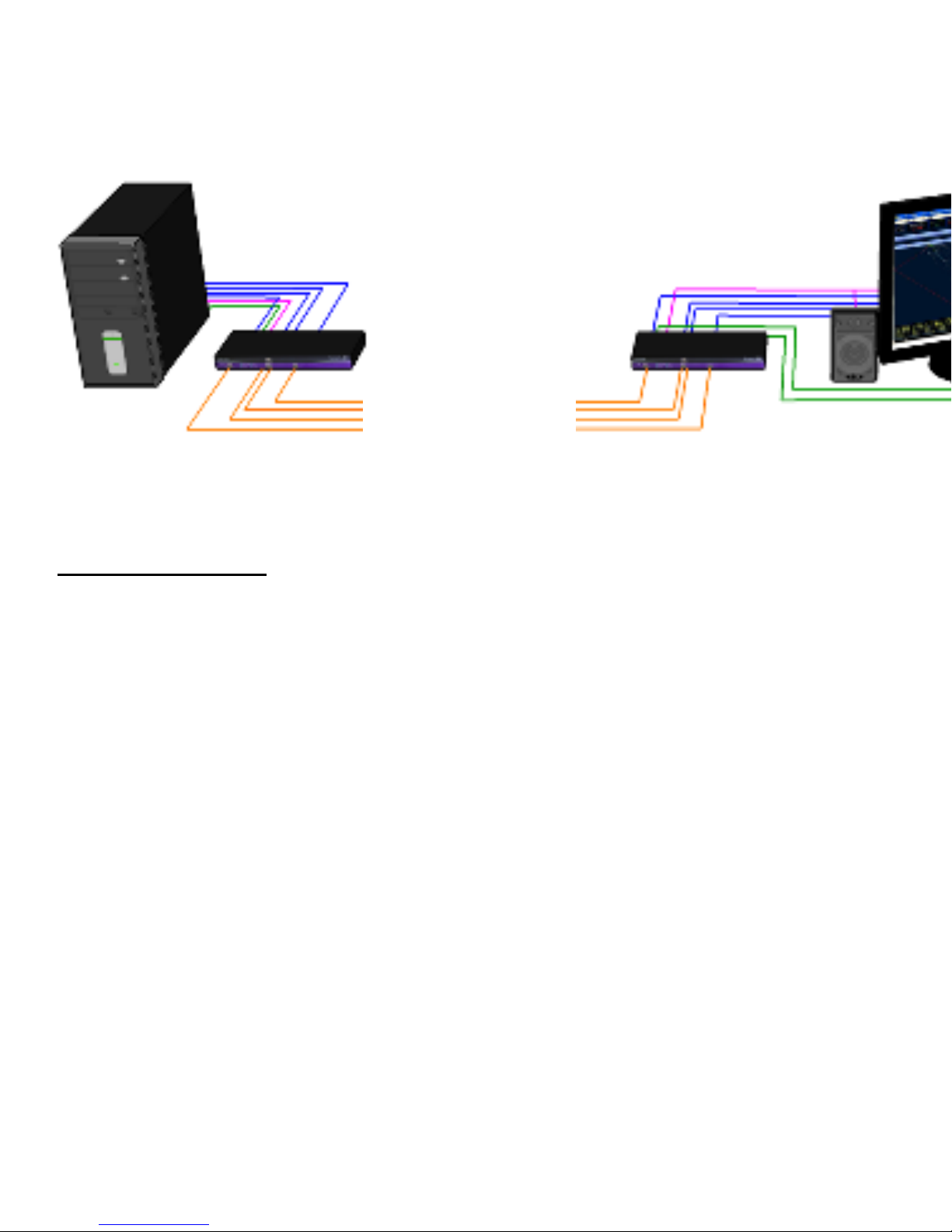

Product - Installation Diagram
FDX-
M4U
FDX-M4U
Transmitter
Computer
Stereo Speakers
Up to 1,400 feet
(400 m) over 4
ber optic cables
7
www.smartavi.com
Fiber-Optic Cable Specications
OPTICAL
Fiber Type Single, multi mode
Connector Type LC Type
Wavelength 1310 nm/1550 nm (Dual wavelength)
Data Rate 5 Gbps (2.5 Gbps per single wavelength)
Transmission Power -5 dB Min.
Receiver Sensitivity -21 dB Max
Distance 500 m Max.
4 DVI-D Displays
USB Keyboard USB Mouse
Stereo Speakers
www.smartavi.com
© Copyright 2015 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 574-5581
http://www.SmartAVI.com
