Simplicity Express Series Manual de usuario

Parts Manual

Rev. 5/00

TP 400-2247-02-EX-SMA

14.5HP GEAR TRACTORS

Mfg. No. Description

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 1415G (Export)

1693732 Express, 115G (Export)

15.5HP HYDRO TRACTORS

Mfg. No. Description

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 1416H (Export)

1693734 Express, 116H (Export)

EXPRESS SERIES

LAWN TRACTORS & MOWER DECKS

17HP HYDRO TRACTORS

Mfg. No. Description

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 1417H (Export)

1693736 Express, 117H (Export)

MOWER DECKS

Mfg. No. Description

1693464 38” Mower Deck

1693588 38” Mower Deck (Export)

1693527 44” Mower Deck

1693591 44” Mower Deck (Export)

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

Table of Contents

TP 400-2247-02-EX-SMA

This Manual Covers The Following Products:

14.5HP GEAR TRACTORS PAGES

Mfg. No. Description

1693452 Express, 14.5HP Gear 1-13, 22-33

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

15.5HP HYDRO TRACTORS PAGES

Mfg. No. Description

1693458 Express, 15.5HP Hydro 1-7, 14-33

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

17HP HYDRO TRACTORS PAGES

Mfg. No. Description

1693525 Express, 17HP Hydro 1-7, 14-33

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

MOWER DECKS PAGES

Mfg. No. Description

1693464 38” Mower Deck 32-39

1693588 38” Mower Deck (Export)

Mfg. No. Description

1693527 44” Mower Deck 32, 33, 40-45

1693591 44” Mower Deck (Export)

LAWN TRACTOR COMPONENTS PAGES

Frame & Front Axle Group . . . . . . . . . . . . . . . . . . . . . .2

Steering Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Engine - 14.5HP, 15.5HP & 17HP B&S Intek . . . . . . . .6

Gear Transaxle - Peerless Model MST 205-515A

Transmission Drive & Carrier Group . . . . . . . . . . .8

REFERENCE: Service Parts

- Peerless Model MST 205-515A Transaxle . . . .10

Hydro Transaxle - Tuff-Torq Model K51

Transmission Drive & Carrier Group . . . . . . . . . .14

REFERENCE: Service Parts

- Tuff Torq K51 Transaxle . . . . . . . . . . . . . . . . . .18

Controls & Linkage Group . . . . . . . . . . . . . . . . . . . . .22

Hood, Grille & Dash Group . . . . . . . . . . . . . . . . . . . .24

Seat & Seat Deck Group . . . . . . . . . . . . . . . . . . . . . .26

Electrical Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Wheels & Tires Group . . . . . . . . . . . . . . . . . . . . . . . .30

Decals Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

MOWER DECK COMPONENTS PAGES

38” Mower Decks - Housing, Arbors & Blades . . . . .34

38” Mower Decks - Clutch & Support . . . . . . . . . . . .36

38” Mower Decks - Height Adjustment . . . . . . . . . . .38

44” Mower Decks - Housing, Arbors & Blades . . . . .40

44” Mower Decks - Clutch & Support . . . . . . . . . . . .42

44” Mower Decks - Height Adjustment . . . . . . . . . . .44

Part Number Index . . . . . . . . . . . . . . . . . . . . . . . . . .46

Torque Specification Chart . . . . . . . .Inside Back Cover

TP 400-2247-02-EX-SMA

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985478_985495

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

TP 400-2247-02-EX-SMA

Frame & Front Axle Group

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

1 1720101 1 FRAME ASSEMBLY

2 1715015 1 PLUG, Hole

3 1715016 1 PAD, Footrest, R.H.

4 1714417 1 PAD, Footrest, L.H.

5 1704351 12 FASTENER, Plastic, Ratchet

6 1935255 4 SPEED NUT, Tinnerman Lug Type, 5/16-18

7 1715796 1 WRAPPER, Rear Frame (Gear Models Only)

8 1930591 4 CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 3/4

9 1715795 1 WRAPPER, Rear Frame (Hydro Models Only)

10 1924856 2 CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1/2 (Hydro Models Only)

11 1719951 1 BRACKET, Speed Control (Hydro Models Only)

12 1920328 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2

13 1918431 3 WASHER, 1/2

14 1709235 1 BUSHING

15 1930644 2 NUT, Hex Flange Hd, 1/2-13, 2-Way Lock

16 1717189 1 CARRIER, Transmission (Hydro Models Only)

16 1717458 1 CARRIER, Transmission (Gear Models Only)

17 1717286 1 SPACER

18 1713400 1 TORSION BAR (Gear Models Only)

18 1717424 1 TORSION BAR (Hydro Models Only)

19 1919439 1 NUT, ESNA Hex Lock, 3/8-16

20 1924356 1 WASHER , 3/8

21 176440 6 BUSHING

22 1719868 1 SPACER

23 1719869 1 HITCH, J-Hook

24 1922918 1 CAPSCREW, Hex Hd, 3/8 - 16 x 3-1/4 G5

Thread Lock (#271 Loctite)

on items 12 and 24.

TP 400-2247-02-EX-SMA

Steering Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985474

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

TP 400-2247-02-EX-SMA

Steering Group

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

1 1719810 1 CAP, Steering Wheel

2 1719471 1 STEERING WHEEL

3 1714400 1 TUBE, Flex

4 1960540 1 PIN, Spring, 5/16 x 2-1/2 (Domestic Only)

5 1719472 1 SHAFT & PINION ASSEMBLY, Steering

6 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

7 1703508 1 PLATE, Steering, Mounting

8 1928352 2 NUT, Hex Flange Whiz Lock, 3/8-16

9 1920415 1 CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

10 1922611 1 WASHER, 3/8

11 1930645 3 NUT, Hex Flange Whiz Lock, 3/8-16

12 1931335 1 CARRIAGE BOLT, 5/16-18 x 1

13 1611710 3 KLIPRING

14 1721472 1 ARM, Steering, L.H.

15 1960160 2 WASHER, 3/4

16 1960114 4 WASHER, 3/4

17 1721542 2 SPINDLE ASSEMBLY

18 1713791 2 SPACER

19 1721473 1 ARM, Steering, R.H.

20 1713454 1 TIE ROD

21 1960268 2 CARRIAGE BOLT, 3/8-16 x 1-1/4

22 1710437 1 SPACER

23 1935048 1 NUT, Hex Flange Lock, 5/16-18

24 1713469 1 DRAG LINK

25 1664847 1 CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3/4

26 1713375 1 STEERING GEAR ASSEMBLY

27 1666001 1 BUSHING

28 176440 1 BUSHING

29 1919314 1 PIN, Cotter, 3/16 x 1-1/4

See

Transmission

Group

See

Electrical

Group

Furnished

by Engine

Mfr.

Torque to

15-20 in. lbs.

Service Only

Furnished

by Engine

Mfr.

Apply anti-seize

to muffler bolts.

Replaced by

Ref #9

TP 400-2247-02-EX-SMA

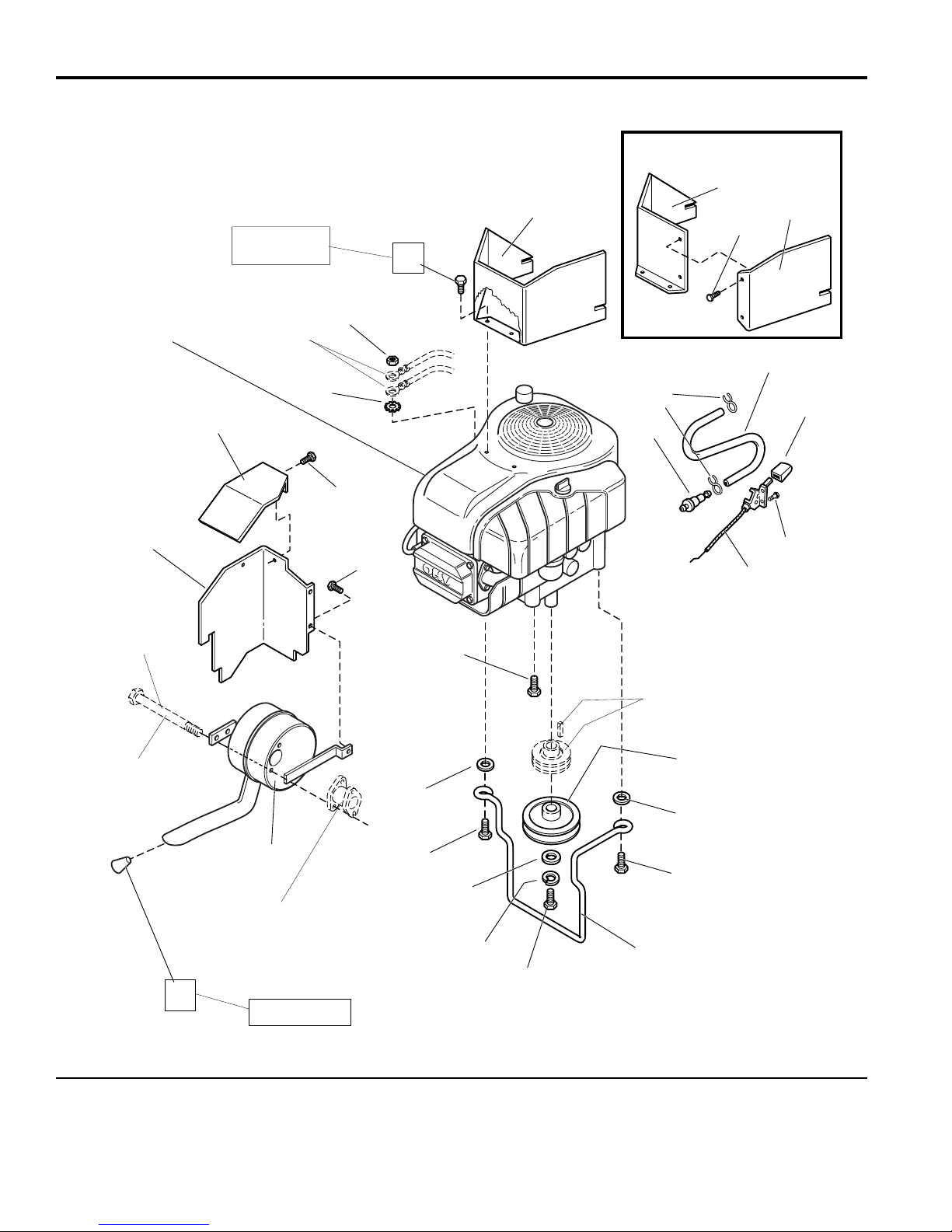

Engine - 14.5HP, 15.5HP & 17HP B&S Intek

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985469_985470_985559

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

TP 400-2247-02-EX-SMA

Engine - 14.5HP, 15.5HP & 17HP B&S Intek

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Obtain repair parts from your local Briggs & Stratton Distributor.

** Replaced by Reference 9.

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

1693458 Express, 15.5HP Hydro

1693589 Express, 15.5HP Hydro (Export)

1693668 Express, 15.5HP Hydro (Export)

1693734 Express, 15.5HP Hydro (Export)

1693525 Express, 17HP Hydro

1693641 Express, 17HP Hydro (Export)

1693670 Express, 17HP Hydro (Export)

1693736 Express, 17HP Hydro (Export)

1 1720040 1 SHIELD, Muffler Side

2 1720039 1 SHIELD, Muffler Top

3 1960001 2 CAPSCREW, Hex Washer Hd, Plastite, #10 - 14 x 5/8

4 1924856 1 CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1/2

5 * 1 ENGINE, 14.5HP B&S INTEK

5 * 1 ENGINE, 15.5HP B&S INTEK

5 * 1 ENGINE, 17HP B&S INTEK

6 920427 1 LOCKWASHER, External Tooth, 3/8

7 916950 1 NUT, Hex, 3/8-16 NC-2B

8 1931648 2 CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 1/2

9 1721131 1 BAFFLE, Heat

10 173206 1 FUEL FILTER

11 1960112 2 HOSE CLAMP

12 1657575 1 HOSE, Fuel, 1/4 ID x 1/2 OD x 12

13 1719768 1 KNOB, Throttle (Red)

14 1960498 2 CAPSCREW, Plastite Hex Washer Hd, 1/4-10 x 5/8

15 1707388 1 CONTROL, Throttle

16 1719456 1 PULLEY (with Hub)

17 1933263 3 WASHER, 7/16

18 930598 3 CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 1-1/2

19 1719460 1 GUIDE, Belt

20 1960370 1 CAPSCREW, Hex Hd, 7/16-20 x 2-1/2

21 1918199 1 LOCKWASHER, 7/16

22 960361 1 CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 2

23 1719458 1 MUFFLER ASSEMBLY

24 1719961 1 SCREEN, Exhaust

25 1720037** 1 BAFFLE, Heat

26 1960034** 1 CAPSCREW, Plastite Hex Washer Hd, #10-14 x 1/2

27 1720046** 1 BAFFLE, Engine, LH

Transmission Drive & Carrier Group — Peerless Model MST 205-515ATransaxle

21 23

2626

31 32 33

35 32

38 38

3131

14 15

2525

TP 400-2247-02-EX-SMA

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985471

The above parts group applies to the following Mfg. Nos.:

1693452 Express, 14.5HP Gear

1693586 Express, 14.5HP Gear (Export)

1693666 Express, 14.5HP Gear (Export)

1693732 Express, 14.5HP Gear (Export)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Simplicity

Simplicity

Simplicity SNAPPER 250 Z Manual de usuario

Simplicity

Simplicity Coronet Series Instrucciones de funcionamiento

Simplicity

Simplicity RTH Series Manual de usuario

Simplicity

Simplicity Regent Series Manual de usuario

Simplicity

Simplicity System 4108 Manual de usuario

Simplicity

Simplicity 273 Hoja de datos

Simplicity

Simplicity Broardmoor 2600, 1600, LT Series Manual de usuario

Simplicity

Simplicity 2690879 Manual de usuario

Simplicity

Simplicity 2500 Series Manual

Simplicity

Simplicity 500 Series Manual de usuario

Simplicity

Simplicity 1321PPE Mower Manual de usuario

Simplicity

Simplicity 13.5HP Manual de usuario

Simplicity

Simplicity 5022285 Manual de usuario

Simplicity

Simplicity Regent Series Manual

Simplicity

Simplicity 1570PS Manual de usuario

Simplicity

Simplicity TP 113 4470 02 Manual de usuario

Simplicity

Simplicity 2690810 Manual de usuario

Simplicity

Simplicity 1319 Manual de usuario

Simplicity

Simplicity Regent Series Manual de usuario

Simplicity

Simplicity 4208 Series Manual de usuario

Simplicity

Simplicity 4208 Series Manual de usuario

Simplicity

Simplicity 1695266 Manual de usuario

Simplicity

Simplicity Zipper 1033 Manual de usuario

Simplicity

Simplicity ZT4000 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
