Simplicity 1694769 Manual de usuario

Parts Manual

Rev. 03/2005

Citation

Series Zero Turn Riders & Mower Decks

TP 400-4197-00-CI-S

. No. Descri

tion

21HP Product

1694768 Citation, 21HP Zero Turn Rider

. No. Descri

tion

HP Product

1694769 Citation, 23HP Zero Turn Rider

. No. Descri

tion

Mower Decks

1694770 48" Mower Deck

1694771 52" Mower Deck

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Main Frame & Front Caster Group ...................................................................................................................... 4

Rear Bumper Group ............................................................................................................................................. 6

Engine & PTO Group ........................................................................................................................................... 8

Instrument Panel Group ....................................................................................................................................... 10

Pump Drive Group ............................................................................................................................................... 12

Motion Control Group ........................................................................................................................................... 14

Hydraulic Group ................................................................................................................................................... 18

Hydraulic Tank Mount Group ............................................................................................................................... 20

Electrical Group - Early Models ........................................................................................................................... 22

Electrical Group - Later Models ........................................................................................................................... 24

Seat Mount & Floor Group ................................................................................................................................... 26

Fuel Tank & Mount Group .................................................................................................................................... 28

Parking Brake Group ........................................................................................................................................... 30

Rear Suspension Group ...................................................................................................................................... 32

Deck Lift Group .................................................................................................................................................... 34

Wheel & Tire Group ............................................................................................................................................. 38

Decals - Brand & Model ....................................................................................................................................... 40

Decals - Safety & Operation ................................................................................................................................ 42

48" & 52" Mower Deck - Hanger Chains ............................................................................................................. 44

48" & 52" Mower Deck - Housing, Cover, Spindle & Blade ................................................................................. 46

48" & 52" Mower Deck - Pulleys, Belts & Idler Arm ............................................................................................. 48

48" & 52" Mower Deck - Rollers .......................................................................................................................... 50

48" & 52" Mower Deck - Spindle Service Parts Group ........................................................................................ 52

Main Frame & Front Caster Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

197frm0

The above parts group applies to the following Mfg. Nos.:

2005 4

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.

Main Frame & Front Caster Group

Footnotes

1 503849958 1 MAIN FRAME ASSEMBLY

2 503861365 1 PIVOTING FRONT END ASSEMBLY

3 5025284 1 NUT, 3/4-16 Hex Nylon Lock

4 502526552 1 BOLT, 3/4-16 X 6-1/2"

5 5047489 1 SPACER, .75 X 1.00 X 2.38

6 5022852 1 PIVOT BEARING

7 5045990 2 FRICTION PLATE

8 5025303 8 SCREW, 5/16-18 X 1 FLAT HD SC

9 5025057 4 NUT 5/16-18 Hex Nylon Lock

10 5021072 1 GREASE SEAL

11 5025104 1 NUT, 3/4-16 Hex Slotted

12 5021073 2 CAP

13 5047049 2 CASTER YOKE

14 502520310 1 COTTER PIN, 1/4" x 1-1/4"

15 5020884 2 BEARING, Tapered Roller

16 5025160 3 WASHER, 3/4" SAE

The above parts group applies to the following Mfg. Nos.:

2005 5

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

Rear Bumper Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

197bmp0

The above parts group applies to the following Mfg. Nos.:

2005 6

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.

Rear Bumper Group

Footnotes

1 - - MAIN FRAME (See Main Frame Group)

2 503861732 1 BUMPER

3 5023484 6 PLUG, PANEL, 1.25 BLACK

4 502501810 4 BOLT, 1/2-20 X 1-1/4"

5 5025397 4 NUT, 1/2-20 Hex Nylock Flange

6 5025158 2 WASHER, 1/2" SAE

The above parts group applies to the following Mfg. Nos.:

2005 7

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

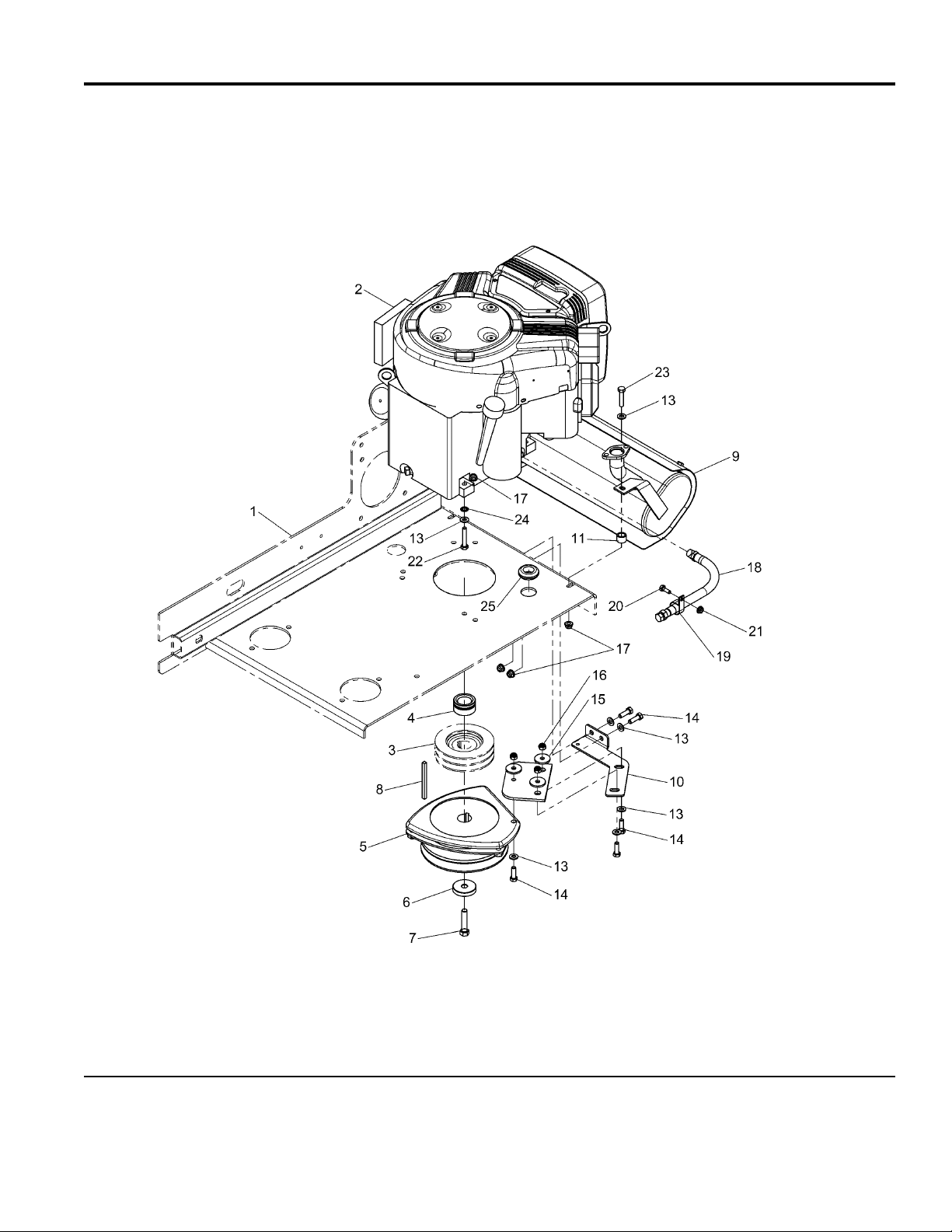

Engine & PTO Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

197engb0

The above parts group applies to the following Mfg. Nos.:

2005 8

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.

Engine & PTO Group

Footnotes

1 - - MAIN FRAME (See Main Frame Group)

2 * 1 ENGINE, 21HP Briggs & Stratton (Model# 385777, Type# 0115-E1)

2 * 1 ENGINE, 25HP Briggs & Stratton (Model# 386777, Type# 0114-E1)

3 - 1 CRANKSHAFT PULLEY (See Pump Drive Group)

4 5046845 1 SPACER, 1.13 X 1.75 X .97

5 5023432 1 CLUTCH

6 5045475 1 SPACER, .45 X 1.88 X .38

7 5044853 1 BOLT, CRANKSHAFT, 7/16" X 2"

8 505040728 1 KEY, 1/4" SQ. X 3-1/2"

9 5023389 1 MUFFLER

10 503861857 1 CLUTCH ANCHOR PLATE

11 5047027 2 SPACER, .51 X .75 X .56

12 5043636 1 CLUTCH ANCHOR PAD

13 5025155 11 WASHER, 5/16" SAE

14 50250118 5 BOLT, 5/16-18 X 1"

15 5044617009 3 WASHER, Clutch Anchor

16 5025057 3 NUT 5/16-18 Hex Nylon Lock

17 5025392 8 NUT, 5/16-18 Hex Nylock Flange

18 5048681 1 OIL DRAIN HOSE

19 5021500 1 CLAMP, Vinyl Insulated

20 50250106 1 BOLT, 1/4-20 X 3/4"

21 5025126 1 NUT, 1/4-20 Hex Serrated Flange

22 502501114 4 BOLT, 5/16-18 X 1-3/4"

23 502501112 2 BOLT, 5/16-18 X 1-1/2"

24 5025188 4 WASHER, 5/16" Internal Tooth Lock

25 5021379 1 GROMMET, 7/8"

* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2005 9

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S

Instrument Panel Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

197ins0

The above parts group applies to the following Mfg. Nos.:

2005 10

1694768 - Citation

1694769 - Citation

TP 400-4197-00-CI-S
