Simplicity Pacer Series Transaxle Manual de usuario

Parts Manual

Rev. 07/2003

Pacer

Series Transaxle Drive Walk-Behind Mower

TP 400-3886-00-PA-S

. No. Descri

tion

HP Tractors

1694494 Pacer, 13HP Briggs & Stratton 34" Cut

. No. Descri

tion

Mower Decks

1694287 34" Mower Deck

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

TRACTOR / MOWER DECK COMPONENTS PAGES

Engine Deck & Handle Bars Group ....................................................................................... 4

Engine & PTO Group ............................................................................................................ 6

Transaxle SERVICE PARTS ................................................................................................. 8

Transaxle, Mount & Drive Idler Group ................................................................................... 10

Controls Group ...................................................................................................................... 12

Fuel Supply Group ................................................................................................................ 14

Fuel Tank Group ................................................................................................................... 16

Electrical Schematic .............................................................................................................. 18

Wheel & Tire Group ............................................................................................................... 20

Decals - Brand, Model, Safety & Instruction .......................................................................... 22

34" Mower Deck - Housing, Arbors & Blades ........................................................................ 24

34" Mower Deck - Frame, Caster & Shield ............................................................................ 26

34" Mower Deck - Belt, Idler Arm & Hitch .............................................................................. 28

34" Mower Deck - Height Adjustment & Roller Bar ............................................................... 30

34" Mower Deck - Grass Mulcher .......................................................................................... 34

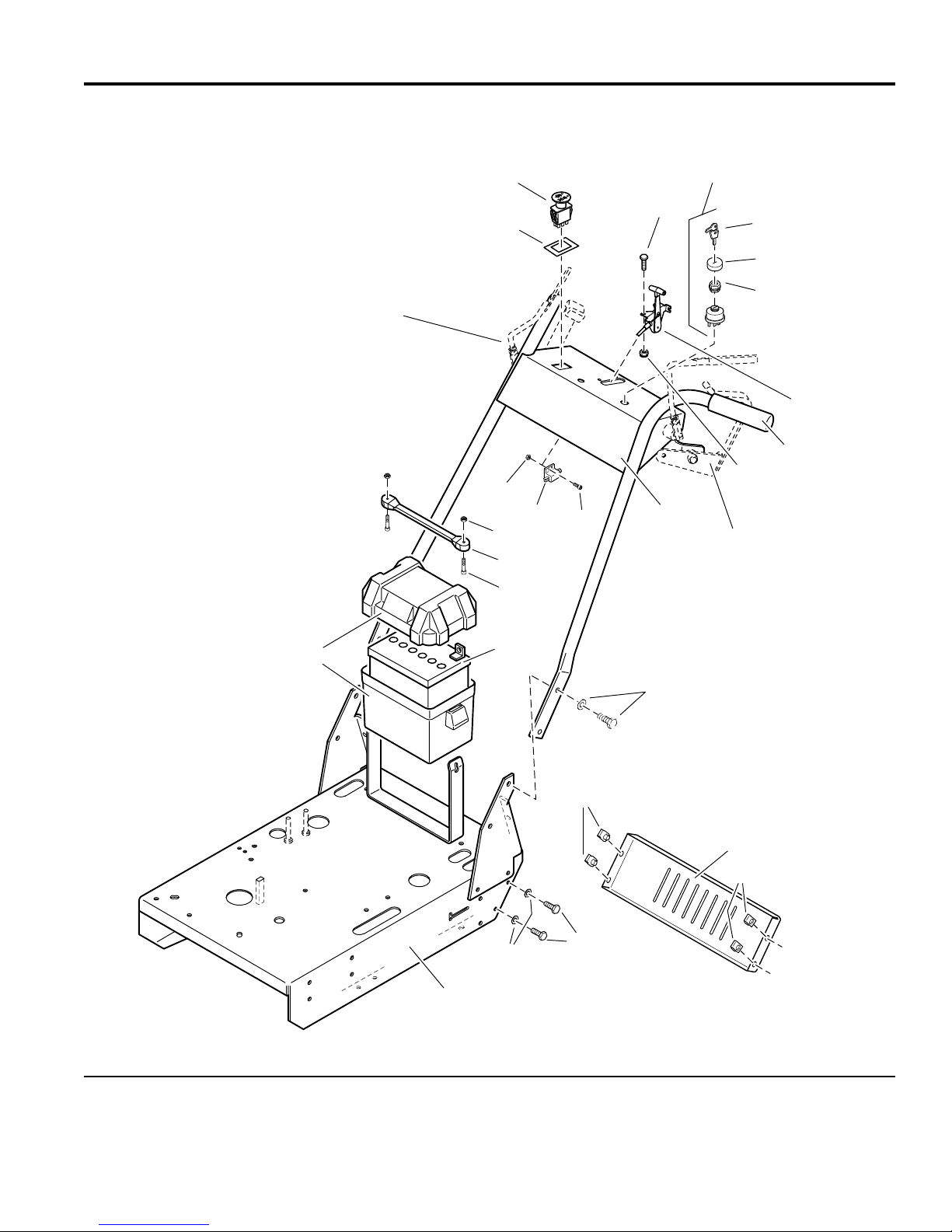

Engine Deck & Handle Bars Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

See Controls Group

See Fuel Tank

Group

See Controls Group

FI0000

The above parts group applies to the following Mfg. Nos.:

2003 4

1694494 - Pacer

TP 400-3886-00-PA-S

PART NO. DESCRIPTIONREF NO. QTY.

Engine Deck & Handle Bars Group

Footnotes

1 5022180 1 SWITCH, PTO

2 5022222 1 SWITCH RETAINER RING

3 50250106 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

4 5020927 1 SWITCH, Ignition, Complete (includes Ref 5 - 7)

5 5022789 1 KEY, Ignition, Molded (set of 2)

6 5022790 1 COVER

7 5022791 1 PLASTIC NUT

8 5047629 1 CABLE, Throttle Control

9 5021841 2 FOAM GRIP

10 5025095 2 NUT, Hex Nylon Lock, 1/4-20

11 503847905 1 HANDLE BAR ASSEMBLY

12 50251794 2 SCREW, Phillips Head, #10-24 x 1/2

13 5021769 1 SWITCH, NC

14 5025029 2 NUT, Hex, #10-24

15 5025271 2 NUT, Hex Nylon Lock, #10-24

16 5021670 1 RUBBER STRAP

17 5025270 2 SCREW, Phillips Head, #10-24 x 1

18 1685215 1 BATTERY, 12Volt (340 CCA)

19 5046188 1 BATTERY BOX

20 5022308 4 BODY CLIP, 5/16-18

21 503847735 1 REAR SHIELD

22 50250116 4 CAPSCREW, Hex Head, 5/16-18 x 3/4

23 5025155 4 WASHER, 5/16

24 503848157 1 ENGINE DECK ASSEMBLY

The above parts group applies to the following Mfg. Nos.:

2003 5

1694494 - Pacer

TP 400-3886-00-PA-S

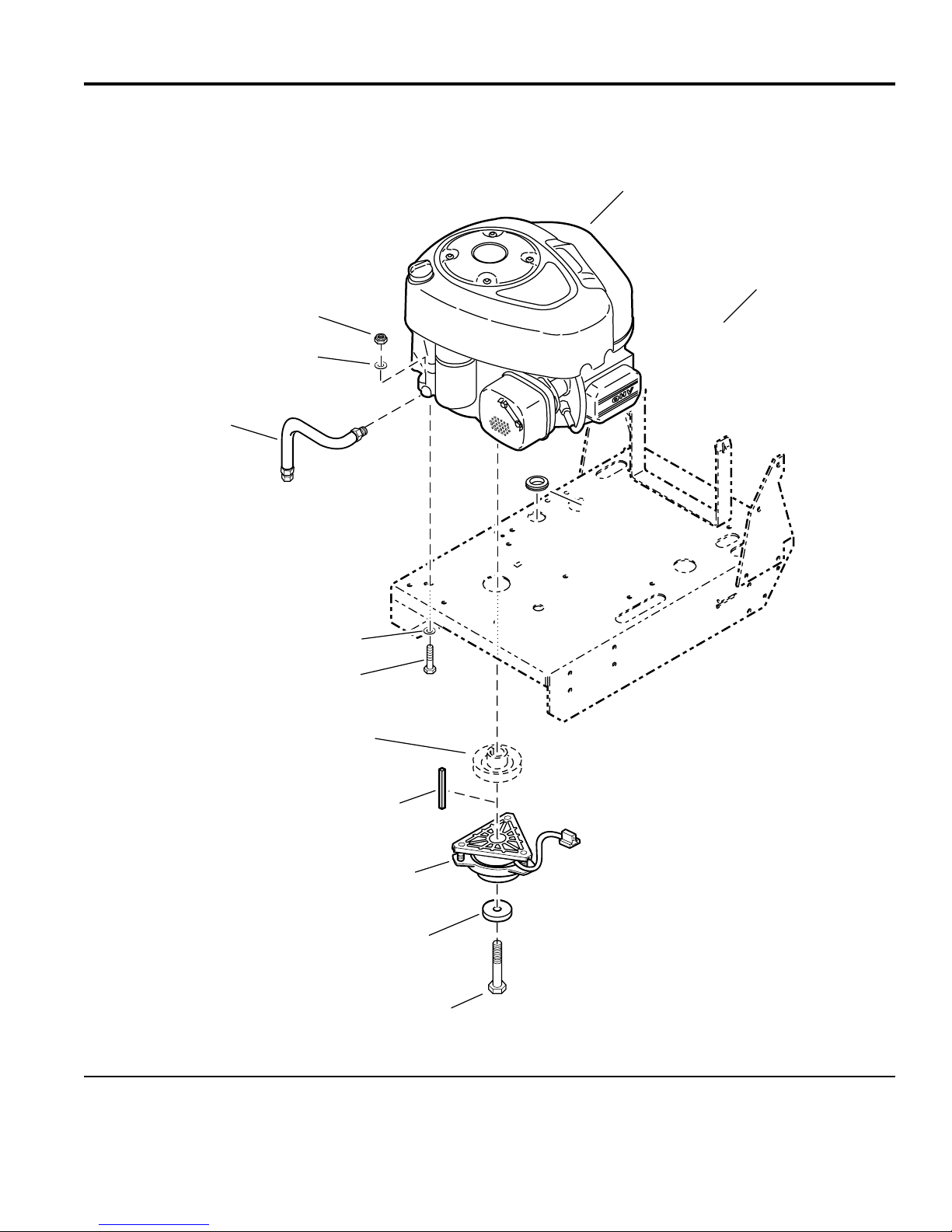

Engine & PTO Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

See Transaxle, Mount

& Drive Idler Group

Not Shown

FI0001

The above parts group applies to the following Mfg. Nos.:

2003 6

1694494 - Pacer

TP 400-3886-00-PA-S

PART NO. DESCRIPTIONREF NO. QTY.

Engine & PTO Group

Footnotes

1 * 1 ENGINE, 13HP Briggs & Stratton, Model 28

2 50211783 1 FUEL FILTER

* 1 OIL FILTER

* 1 FOAM PRE-CLEANER

*1AIRFILTER

* 1 SPARK PLUG

*1MUFFLER

* 1 EXHAUST MANIFOLD

* 1 EXHAUST DEFLECTOR

* 2 EXHAUST MANIFOLD GASKET

3 5021379 1 GROMMET

4 5047632 1 CRANKSHAFT BOLT, 7/16 x 2-3/4

5 5042132 1 CLUTCH RETAINER

6 1717664 1 ELECTRIC CLUTCH

7 50504073 1 KEY, 1/4 Sq. x 2

8 502501120 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2

9 5025155 5 WASHER, 5/16

10 5048681 1 OIL DRAIN HOSE

11 5025057 4 NUT, Hex Nylon Lock, 5/16-18

* See your local Briggs & Stratton engine dealer for service parts.

The above parts group applies to the following Mfg. Nos.:

2003 7

1694494 - Pacer

TP 400-3886-00-PA-S

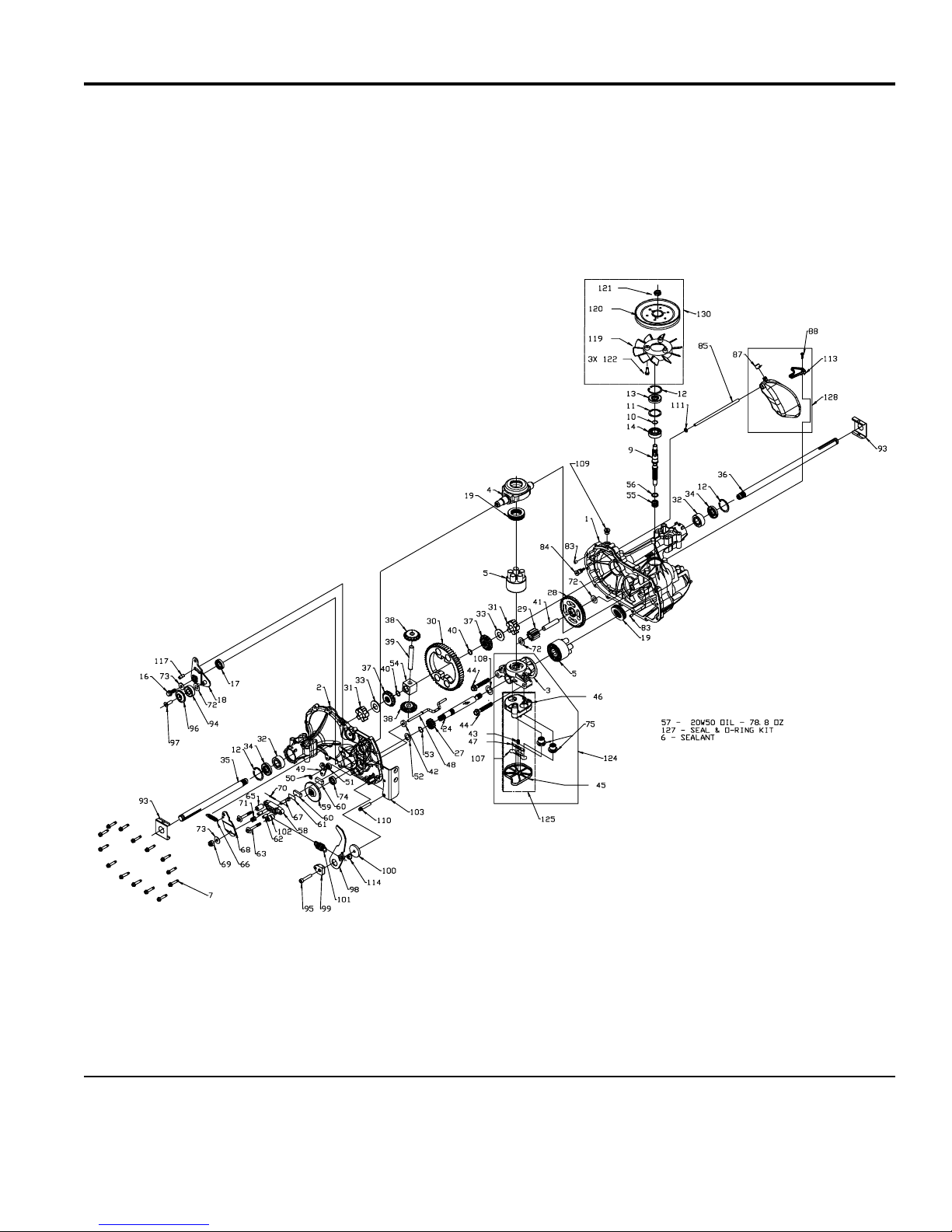

Transaxle SERVICE PARTS

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

5022905

The above parts group applies to the following Mfg. Nos.:

2003 8

1694494 - Pacer

TP 400-3886-00-PA-S

PART NO. DESCRIPTIONREF NO. QTY.

Transaxle SERVICE PARTS

Footnotes

6 50229051 10.5 SEALANT

9 50229052 1 SHAFT, INPUT

10 50229053 1 RING - RETAINING

11 50229054 1 SPACER

12 50229055 3 RING - RETAINING

14 50229056 1 BALL BEARING

32 50229057 2 OUTBOARD SLEEVE BEARING

35 50229058 1 AXLE SHAFT - RH

36 50229059 1 AXLE SHAFT - LH

55 502290510 1 SPRING - HELICAL COMPRESSION

56 502290511 1 WASHER

57 502290512 78.8 20W-50 OIL

101 5022967 1 HYDRO RETURN SPRING

119 502290513 1 FAN, 6”, 10 BLADE

128 502290514 1 EXPANSION TANK KIT

130 502290515 1 FAN/PULLEY KIT (includes Ref. 119)

The above parts group applies to the following Mfg. Nos.:

2003 9

1694494 - Pacer

TP 400-3886-00-PA-S

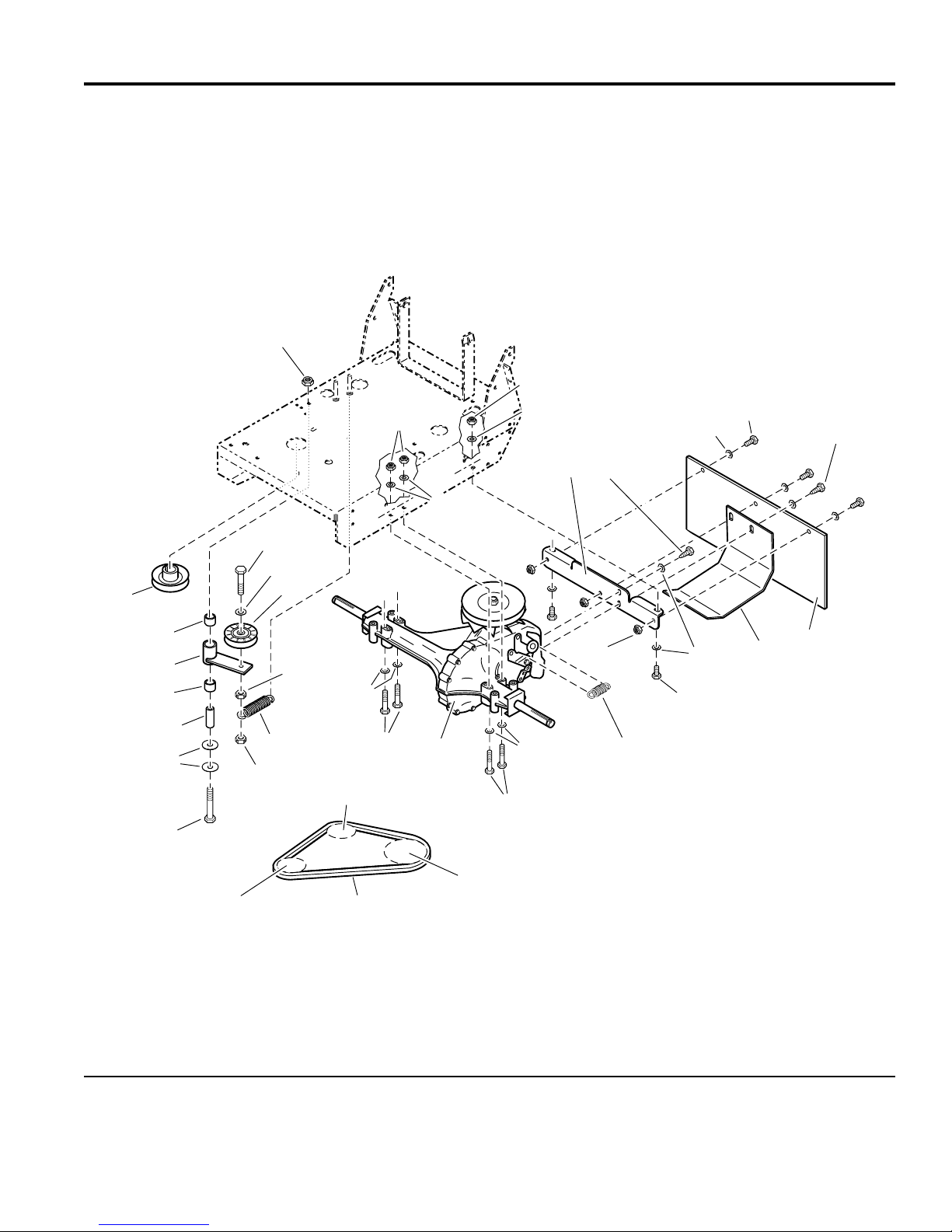

Transaxle, Mount & Drive Idler Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine Pulley

Idler Pulley

Transaxle Pulley

FI0002

The above parts group applies to the following Mfg. Nos.:

2003 10

1694494 - Pacer

TP 400-3886-00-PA-S
