SilverStone SST-PS06B Manual de usuario

PS06

Installation and system optimization guide:

The following manual and guides were carefully prepared by the SilverStone engineering team to help

you maximize the potential of your SilverStone product. Please keep this manual for future reference

when upgrading or performing maintenance on your system. A copy of this manual can also be

downloaded from our website at:

http://www.silverstonetek.com

Specifications

Disassemble Chart

Side panel installation

Power supply installation

Optical drive installation

3..5” / 2.5” hot-swappable HDD installation

Hard drive installation

Motherboard installation

Expansion card installation

Side panel installation

Fan filter removal steps

P.2

P.4

P.5

P.6

P.8

P.10

P.11

P.13

P.14

P.16

P.17

PS06

Precision crafted enclosure with class-leading

performance and features

PS06

To push the thermal performance envelop of the Precision series to a new level,

SilverStone engineers implemented the award-winning 180mm Air Penetrator fan

(AP181) into the PS06 tower chassis. With the AP181 and an included silent 120mm

fan, the PS06 is capable of top-level cooling performance usually reserved for chassis

with twice the cost. Two additional 120mm fan slots lets users further improve cooling

performance if necessary. To help keep the dust out while providing great performance,

all intake fan slots are also equipped with easily removable fan filters to work effectively

with the default positive pressure airflow scheme. Ergonomic features from previous

Precision series have also been retained with tool-less mechanisms for all drive bays

along with a newly added external accessible 3.5”/2.5” combo hot-swappable bay on

the front panel for convenient hard drive storage. Rounding up this superb package

are all black interior, cable routing holes, anti-vibration hard drive brackets, dual USB

3.0 ports, and a daring new high-tech exterior styling. For enthusiasts looking for the

most advanced mid-tower chassis available at a great price, the Precision PS06 is a

great choice.

Precision crafted enclosure with class-leading

performance and features

Special Features

Positive air pressure design optimizes cooling performance

Quick removal dust filters

Mid-size tower chassis for all around integration

Great cooling performance with top mounted 180mm Air Penetrator fan

Convenient tool-less installation for nearly all components

All black painted interior

Hot-swappable hard drive bay for maximum flexibility

Specifications

Model No.

Material

Motherboard

Drive Bay

Cooling System

Expansion Slot

Front I/O Port

Power Supply

Expansion Card

Net Weight

Dimension

SST-PS06B (Black), SST-PS06B-W (Black+ window)

Plastic & mesh front panel, 0.7mm steel body

CEB, ATX up to 10.6”, Micro ATX

External

Internal

Front

Rear

Top

Bottom

USB 3.0 x 2, Audio x 1, MIC x 1

1 x Optional standard PS2 (ATX)

Compatible with expansion card up to 12.2”

9.05 kg

210mm(W) x 525mm(H) x 520mm(D)

5.25" x 5, 3.5” / 2.5” Hot swap bay

3.5" x 4

1 x 120mm intake fan

1 x 120mm fan slot

180mm Air Penetrator 700 / 1200rpm, 18 / 34dBA

1 x 120mm fan slot

PS06

Precision crafted enclosure with class-leading

performance and features

SCREW A

PICTURE ITEM

PACKAGE CONTENT USB3.0 CONNETOR

HD AUDIO CONNETOR

PURPOSE

SECURE POWER SUPPLY

AND MOTHERBOARD

SECURE 5.25” DRIVE

AND FLOPPY

USB 3.0 TO USB 2.0

COVERTOR CABLE

MOTHERBOARD STANDOFF

SCREW B

SCREW C

MANUAL

USB CABLE

SIDE PANEL WINDOW

18032 FAN x 1

12025 FAN x 1 (OPTION)

EXPANSION SLOTS

x 8 (OPTION)

PS2 PSU (OPTION)

3.5” HDD TRAY

3.5” DRIVE BAY x 4

5.25” DRIVE BAY x 5

RIGHT SIDE PANEL

TOP I/O USB x 2 + SPK + MIC

12025 FAN x 1

POWER BUTTON

3.5” OR 2.5” HOTSWAP BAY x 1

RESET BUTTON

12025 FAN x 1 (OPTION)

Unscrew screws from the

side panel.

Remove side panels

from the case.

Снимите боковые панели с

корпуса.

Entfernen Sie die seitlichen

Blenden vom Gehäuse.

取下側板。

Retirez les panneaux latéraux

du boîtier.

取下侧板。

Quite los paneles laterales de

la carcasa.

側面パネルをケースから取り

外します。

Asportare il pannello laterale

dal case.

사이드패널을 케이스에서 제거

합니다.

Dévissez les vis du panneau

latéral.

先松开左右侧板锁固螺丝。

Quite los tornillos del panel

lateral.

側面パネルからネジをはず

します。

Rimuovere le viti dal pannello

laterale.

사이드패널에서 나사를

풀어 줍니다.

Отвинтите винты на боковых

панелях.

Lösen Sie die Schrauben von

der seitlichen Blende.

先鬆開左右側板鎖固螺絲。

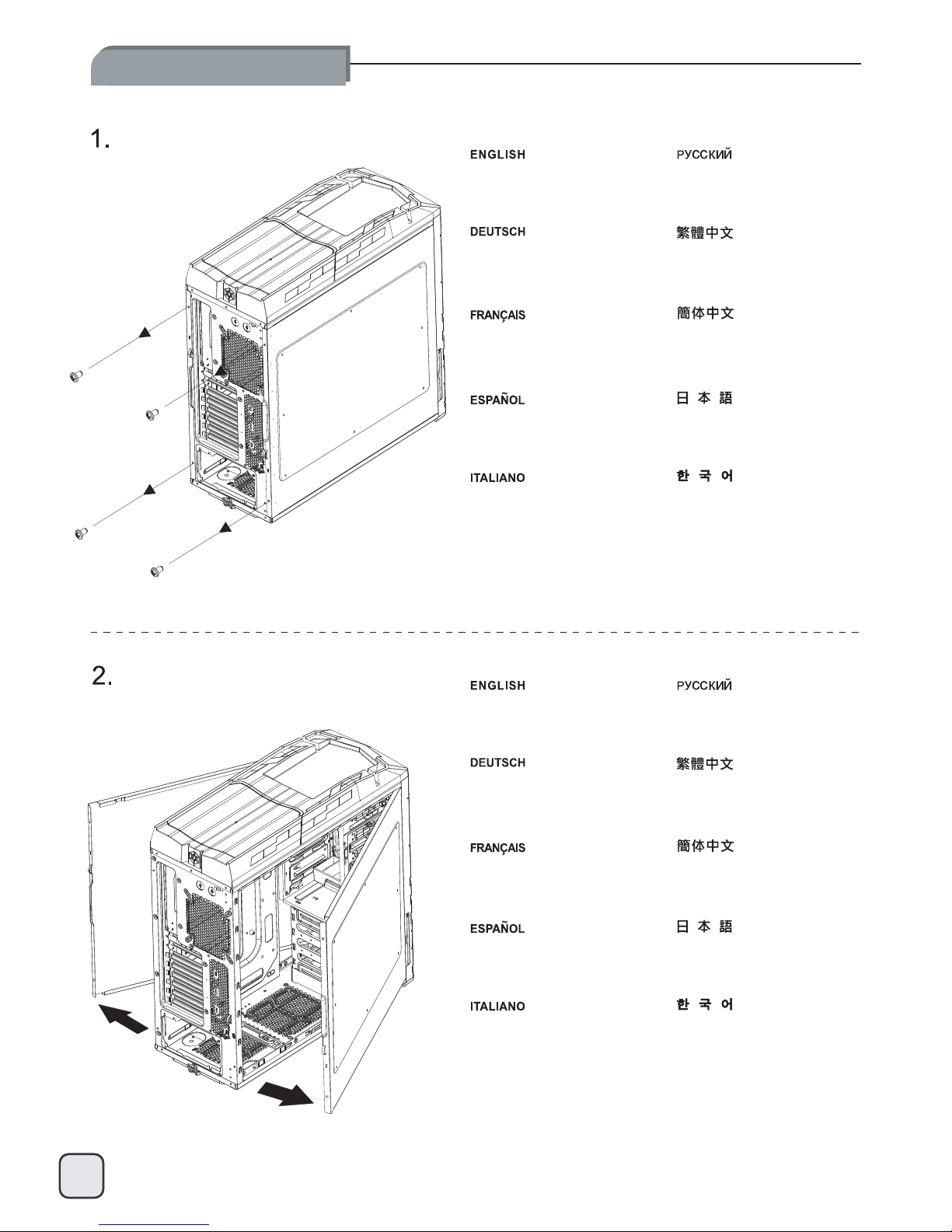

Side panel installation:

Unscrew screws from the

PSU holder.

Install PSU into the case

as shown.

Установите блок питания вкорпус,

как показано на рисунке.

Installieren Sie das Netzteil

wie dargestellt im Gehäuse.

再放入電源。

Installez l'alimentation dans

le boîtier comme montré.

再放入电源。

Instale la FA en la carcasa

como se muestra.

図のように、ケース内にPSUを

インストールします。

Installare l’alimentatore nel

case come mostrato.

PSU를 그림과 같이 케이스에

장착합니다.

Dévissez les vis su support de

l'alimentation.

先松开底部锁固电源支撑架的

两颗螺丝。

Quite los tornillos del soporte

de la FA.

PSUホルダーからネジをはず

します。

Rimuovere le viti dal supporto

dell’alimentatore.

PSU 홀더의 나사를 풀어줍니다.

Отвинтите винты на держателе

блока питания.

Lösen Sie die Schrauben

von der Netzteilhalterung.

先鬆開底部鎖固電源支撐架的

兩顆螺絲。

Power supply installation:

Adjust the PSU holder to fit the PSU.

Secure power supply and PSU holder with screws.

Ajustez le support pour bien fixer l'alimentation.

Fixez l'alimentation et son support avec des vis.

根据电源长短，调整支撑架位置。

将支撑架及电源锁固。

Ajuste el soporte de la FA para que se ajuste a la FA.

Fije la fuente de alimentación y el soporte de la FA con tornillos.

PSUに合わせて、PSUホルダーを調整します。

電源およびPSUホルダーをネジで固定します。

Ajuste el soporte de la FA para que se ajuste a la FA.

Fije la fuente de alimentación y el soporte de la FA con tornillos.

PUS 홀더를 조정해 PSU를맞추어 넣습니다.

파워서플라이와 PSU 홀더를 나사로 고정시킵니다.

Отрегулируйте держатель блока питания по размеру

блока питания.

Закрепите блок питания идержатель блока питания

спомощью винтов.

Richten Sie die Netzteilhalterung so aus, dass das

Netzteil hineinpasst.

Befestigen Sie Netzteil und Netzteilhalterung mit

Schrauben.

根據電源長短，調整支撐架位置。

將支撐架及電源鎖固。

Power supply installation:

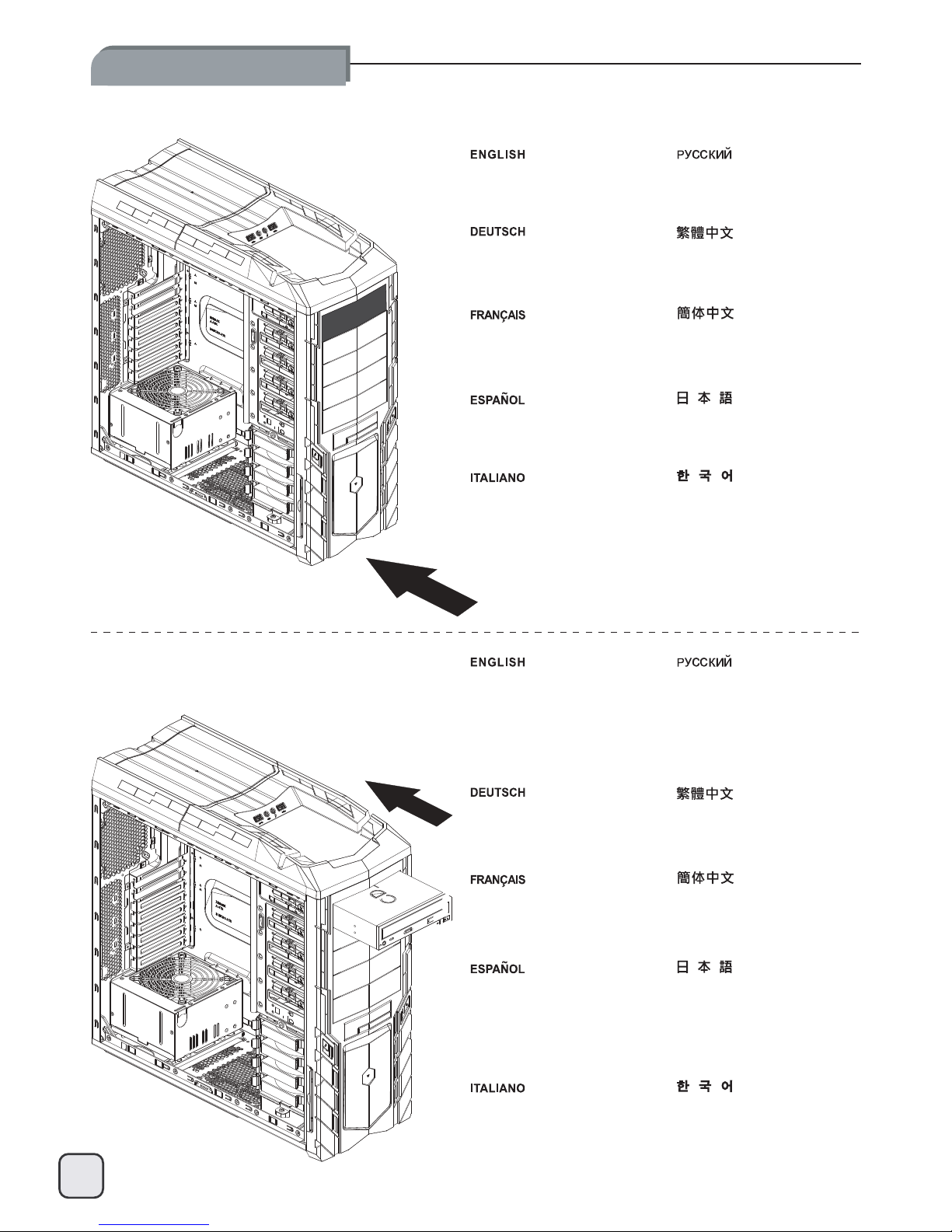

Remove the front panel

as shown.

Remove the 5.25” drive bay

covers as shown.

Снимите заглушки отсеков 5,25

дюйма, как показано на рисунке.

Entfernen Sie die 5,25 Zoll-

Laufwerkschachtabdeckungen

wie dargestellt.

再移除5.25寸擋片。

Retirez les caches des baies

5.25” comme montré.

再移除5.25寸挡片。

Retire las tapas para dispositivos

de 5,25” como se muestra.

図示されるように、5.25インチ

のドライブベイカバーを取り外

します。

Rimuovere i cover da 5.25” come

mostrato in figura.

5.25” 드라이브베이 커버를

그림과 같이 제거합니다.

Retirez le panneau frontal

comme montré.

先取下前塑料面板。

Retire el panel frontal como

se muestra.

図示されるように、フロントパ

ネルを取り外します。

Rimuovere il pannello frontale

come mostrato in figura.

전편패널을 그림과 같이

제거합니다.

Снимите переднюю панель,

как показано на рисунке.

Nehmen Sie die Frontblende

wie gezeigt ab.

先取下前塑膠面板。

Optical drive installation:

Reinstall the front panel.

Push the optical drive or 5.25”

device into the 5.25” drive bay

in all the way and PS06’s tool-less

mechanism will lock it automatically.

Вставьте привод оптических дисков

или другое устройство формата 5,25

дюйма вотсек 5,25 дюйма до упора

так, чтобы устройство автоматически

зафиксировалось механизмом корпуса

PS06, не требующим применения

инструментов.

Schieben Sie das optische

Laufwerke oder 5,25 Zoll-

Laufwerk bis zum Anschlag ein;

es wird automatisch verriegelt.

將光碟機由前方裝入機箱，

免工具機構會自動將其固定。

Poussez l'appareil 5,25” dans la

baie 5,25” et fixez-le en poussant

le mécanisme sans outils dans la

direction montrée pour le fixer.

将光驱由前方装入机箱，

免工具机构会自动将其固定。

Empuje el dispositivo óptico ó

dispositivo de 5,25” dentro de la

bahía para dispositivos de 5,25”

hasta el fondo y el mecanismo

sin herramientas de la PS06 lo

enganchará de forma automática

5,25インチデバイスを5,25イン

チドライブベイに入れ、工具不

要機構を押して固定します。

Spingere il drive ottico o la periferica

da 5,25” nel bay fino a quando il

sistema di bloccaggio tool-less di

PS06 non bloccherà automaticamente

il dispositivo.

넣으면 PS06의Tool-Less 메카니즘에

의해 자동으로 고정됩니다.

광드라이브 혹은 5.25” 장치를 5.25”

드라이브 베이로 끝까지 밀어.

Réinstallez le panneau frontal. 然后将面板装回机壳。

Reinstale el panel frontal. フロントパネルを戻します。

Reinstallare il pannello frontale. 전면패널을 재 설치합니다.

Установите на место

переднюю панель.

Bringen Sie die vordere

Blende wieder an.

然後將面板裝回機殼。

Optical drive installation:
