Silver Cross Pacific Manual de usuario

Pacific

Pushchair and Carrycot

IMPORTANT:

READ THE INSTRUCTIONS CAREFULLY

BEFORE USE AND KEEP FOR FUTURE

REFERENCE

Your child’s safety may be aected if you

do not follow these instructions.

Your Pacic Pushchair is a high quality

Silver Cross product. It meets current

safety standards and care and regular light

maintenance will ensure long service.

This pushchair is suitable from birth up to

9kg with the Carrycot from 6 months, up

to 22kg or 4 years whichever comes rst,

using the Seat Unit. If somebody unfamiliar

is using your Pacic Pushchair always

ensure that they read these instructions

carefully so that they understand how the

product works best. The Pacic Pushchair

is designed and tested to be used with the

Pacic Carrycot and the Simplicity Car

Seat (sold separately).

THE SAFETY OF YOUR CHILD IS YOUR

RESPONSIBILITY.

Contents

First check all your parts have been

supplied. Your Pacic pushchair includes:

1.1 Seat unit with harness

1.2 Seat unit bumper bar

1.3 Carrycot bumper bar

1.4 Chassis including basket

1.5 Front wheels

1.6 Rain cover

1.7 Seat unit hood

1.8 Carrycot hood

1.9 Carrycot outer

1.10 Carrycot liner

1.11 Carrycot mattress

1.12 Chest pads and crotch pad

1.13 Seat unit seat liner

1.14 Carrycot apron

1.15Cup holder

1.1 1.2

1.3

1.4

1.5

1.9 1.10 1.11

1.6 1.7 1.8

1.12 1.14

1.13

1.15

silvercrossbaby.com

Preparation for use

Remove all packaging material

from your Pacic pushchair. To use

your Pacic pushchair from birth

you must use the Pacic Carrycot

(included).

Pacic chassis

2.1 Attach the front wheels by

inserting the axles into the

Pacic frame until they ‘click’

into position.

2.2 Release the folding lock and

lift the handle upwards.

WARNING: CHECK THE WHEEL

IS SECURE BY PULLING GENTLY

DOWNWARDS.

WARNING: CHECK THAT THE

CARRYCOT OR SEAT UNIT OR

CAR SEAT ATTACHMENT DEVICES

ARE CORRECTLY ENGAGED

BEFORE USE.

2.1

2.2

Pacic chassis

2.3 Continue to lift the handle

upwards until the frame

‘clicks’ and locks into position.

Always check that the frame

is secure.

2.3

Using the brake

WARNING: ALWAYS APPLY THE

PARKING BRAKE WHEN YOU ARE

STANDING STILL.

WARNING: ALWAYS APPLY THE

BRAKE WHEN PLACING AND

REMOVING THE CHILD.

3.1 To engage the brake, press

down on the red brake pedal.

Listen for the ‘click’.

NOTE: Always check that

your brake is fully engaged by

gently rocking the pushchair.

To disengage the brake, gently

press down on the green

brake release button. Rock the

pushchair backwards before

moving forward.

3.1

silvercrossbaby.com

Operating the swivel wheels

Your Pacic chassis has lockable

front swivel wheels. We advise

locking the front wheels if pushing

the pushchair straight ahead for a

long period.

4.1 Rotate the swivel release lever

sideways to lock the wheels

into the xed position.

Always apply brake when

placing and removing the

child.

4.1

Operating the height adjustable

handle

Your Pacic has a 4-position

handle height.

5.1 Press and hold the handle

height adjustment/folding

button.

5.2 Slide the handle up or down

to required height and release

the adjustment button.

The handle will lock and ‘click’

into place.

5.2

5.1

Folding your Pacic chassis

NOTE: To ensure your Pacic

chassis folds correctly remove all

items from the shopping basket

before attempting to fold.

NOTE: If using as a travel system

(with a car seat) or pram (with

Pacic carrycot) please ensure

each part has been removed

before folding.

Your Pacic chassis can be folded

with the seat unit attached and

in a forward-facing, upright

position. In all other positions it is

recommended to remove the seat

unit.

6.1 Ensure the swivel wheels are

locked

6.2 Engage the brake pedal

6.1

6.2

silvercrossbaby.com

Folding your Pacic chassis

6.3 Press and hold the fold release

button. Pull the fold release

triggers towards you. Push the

handle downwards gently and

lower the handle downwards

until the fold lock engages.

Lift the handle upwards gently

to ensure that the chassis is

folded correctly.

WARNING: TO AVOID POSSIBLE

INJURY OR DAMAGE, ALWAYS

ENSURE THE STORAGE LATCH

HAS BEEN ENGAGED BEFORE

LIFTING THE PRAM/STROLLER.

CARRY THE PRAM USING THE

MAIN HANDLE, ONCE STORAGE

LATCH HAS BEEN ENGAGED.

WARNING: DUE CARE SHOULD

BE TAKEN WHEN FOLDING AND

UNFOLDING THIS PUSHCHAIR.

PLEASE ENSURE FOLDING

MECHANISMS ARE KEPT CLEAR

TO AVOID POSSIBLE FINGER

ENTRAPMENTS OR INJURIES TO

PARTS OF THE BODY.

6.3

Using your Pacic from birth

with the carrycot

Preparing the carrycot for use

Remove all packaging material

from your Pacic carrycot.

7.1 First erect the carrycot outer.

Lay the carrycot outer down

onto its base. Press the 2x

metal bars into the locators

on internal base of carrycot.

A small groove in the locator

holds the frame in position.

7.2 Attach the carrycot liner to

the carrycot outer. Fasten

each inner zip. There is one at

each end of the liner.

7.3 Pass the two D-shaped parts

of the liner between the liner

and the outer and fasten the

Velcro patches to secure the

liner in place.

7.4 Place the mattress into the

base of the liner.

WARNING: DO NOT LEAVE YOUR

CHILD UNATTENDED.

WARNING: NEVER USE THE

CARRYCOT ON A STAND.

WARNING: DO NOT LET OTHER

CHILDREN PLAY UNATTENDED

NEAR THE CARRYCOT.

CAUTION: Do not force the zip

7.1

7.2

7.3

7.4

silvercrossbaby.com

Attaching the apron to the

carrycot

8.1 Place the apron over the top

of the carrycot and secure in

place using the velcro tabs.

8.2 Slide the apron ap clips over

the attachment points inside

the carrycot frame.

THIS CARRYCOT IS SUITABLE

FOR A CHILD WHO CANNOT SIT

UP UNAIDED, ROLL OVER AND

CANNOT PUSH ITSELF UP ON ITS

HANDS AND KNEES. MAXIMUM

WEIGHT OF CHILD: 9KG

WARNING: USE A HARNESS AS

SOON AS YOUR CHILD CAN SIT

UNAIDED.

WARNING: ONLY USE ON A FIRM,

HORIZONTAL LEVEL AND DRY

SURFACE.

CAUTION: The head of the child

in the carrycot should never be

lower than the body of the child.

8.1

8.2

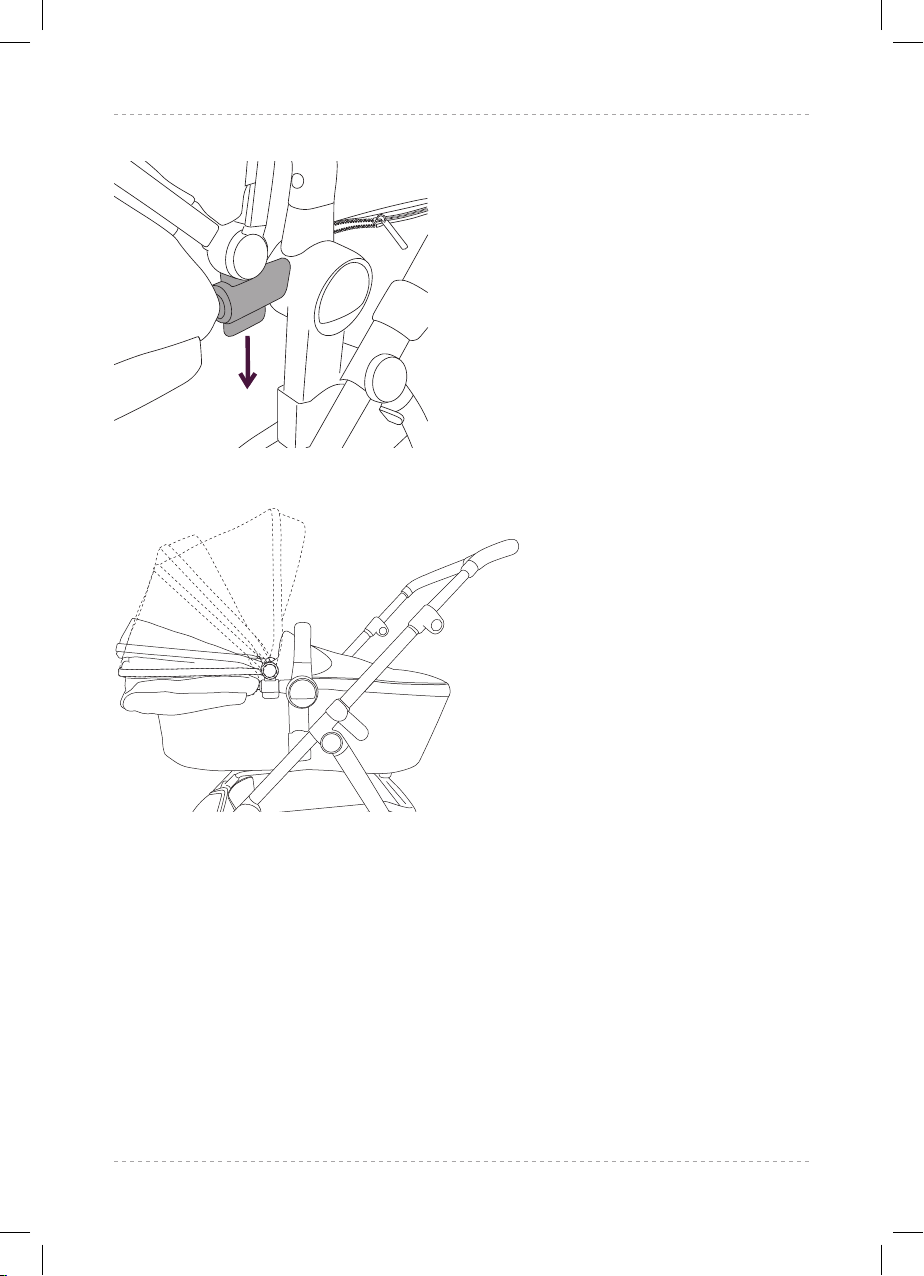

Attaching the carrycot hood to

the carrycot

9.1 Attach the hood by pressing

the hood clips onto the slots

on either side of the carrycot

frame.

Slide the back of the Pacic

hood over the rear edge of the

carrycot.

9.2 Your Pacic hood can be used

in 3 positions. Fully open,

semi-open and fully covered.

9.1

9.2
