Silver Cross Balmora Manual de usuario

请妥善保管本说明书以供日后参考

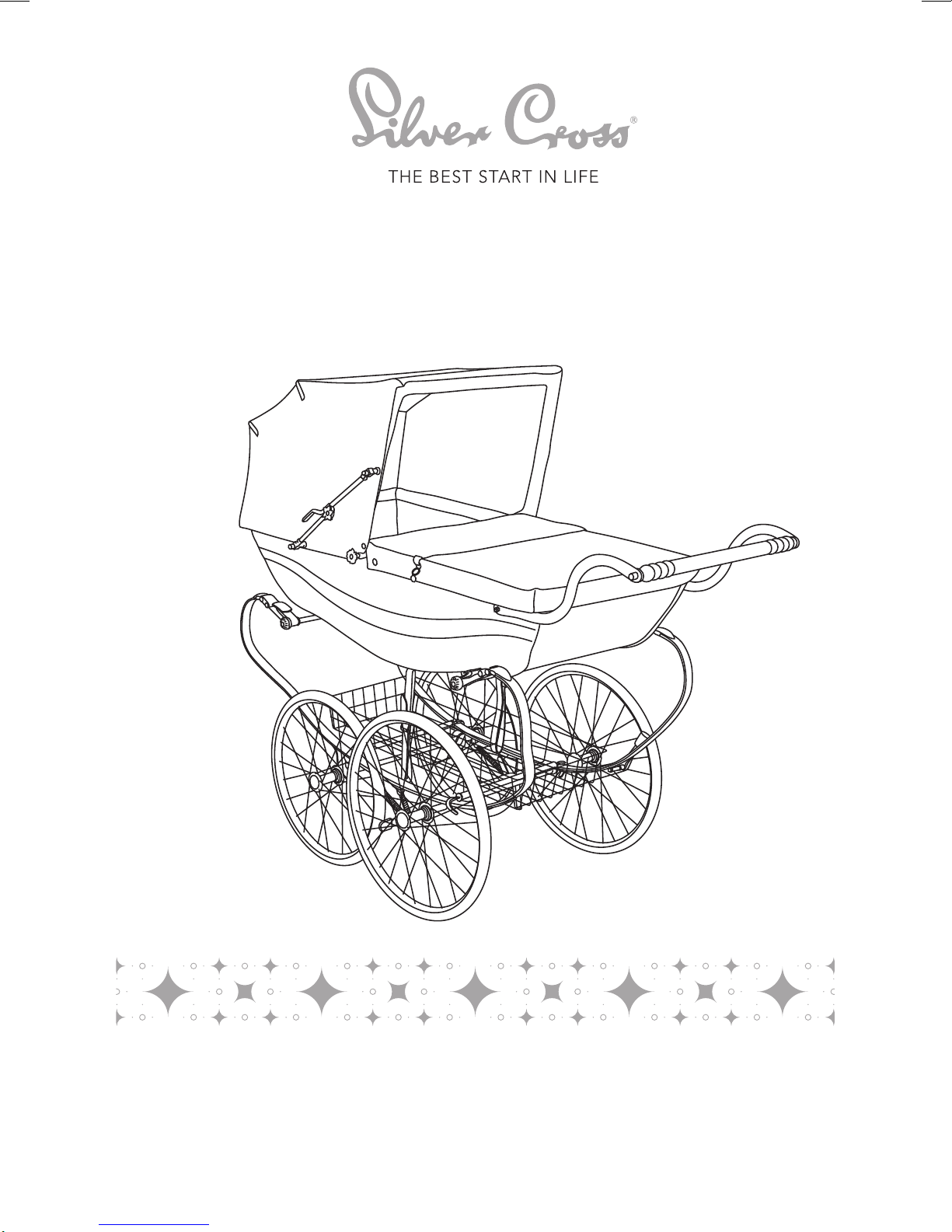

Balmoral

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

1.1

1.2

Contents

First check all your parts have been

supplied. Your Balmoral pram includes:

a) Body & Chassis

b) 2 x S-shaped metal bars

c) Handle

d) Hood

e) Apron

f) Tray (including 2 brackets)

g) Liner

h) Mattress with cover

i) After Care Kit

- Care instructions

- Brush

- Cloth

- Spanner

j) Certiﬁcate of Authenticity

k) 5 year guarantee application card

Fitting the handle

1.1 Attach the two S-shaped metal bars (C)

with the ﬂat side against the body onto

the threaded bolts. Then attach the

sleeved nut ‘A’ onto the outer most bolt

(do not tighten until dome nut ‘B’ has

also been attached). Attach dome nut

‘B’ onto the inner most bolt. Do this on

both sides. Do not fully tighten until the

handle has been attached.

1.2 Attach the gripping handle onto the

two S-shaped metal bars; ensure the

washer is between the dome bolt and

the S-shaped metal bars. Tighten using

the spanner enclosed in your After Care

Kit. Now tighten all nuts until the handle

is secure.

A B

silvercrossbaby.com

2.2

2.1 The hood and apron

CAUTION: The child should be clear of

moving parts while making adjustments.

2.1 Lift hood into position and push down

on the levers on both sides of the hood

to secure in place.

2.2 Fit the apron around the contour of the

pram body and fasten the press studs

on either side of the pram. To hold

the storm ﬂap in place, loop the metal

fastener over the nut on either side of

the hood.

Note: The apron can still be used in

conjunction with the liner.

Using the brake

3.1 To operate the brake, push down on the

lever with the black handle behind the

back right hand wheel.

3.2 To release the brake, lift the lever back

up.

Note: Always apply the brake when the

pram is stationary.

3.1

Using the liner and mattress

4.1 Ensure the hood is in the up position.

4.2 Secure the press studs which are half

way up the liner to the press studs that

are near the wing nut on both sides.

4.3 Secure the press studs that are attached

to the elastic on the liner to the press

studs that are built into the pram body

on top of the back ledge.

4.4 The mattress can be used with or

without the liner. If using the mattress

with the liner ensure the liner is in place

ﬁrst.

4.5 Before inserting mattress ensure back

support is folded ﬂat as shown in 6.4.

Insert mattress on top of back support.

Note: Ensure the head rest part of the

mattress is nearest the hood. For advice

on cleaning see the wash care label.

WARNING: Only use the mattress

provided by Silver Cross.

4.2

4.3

silvercrossbaby.com

Attaching the tray

5.1 To ﬁt the tray push the brackets through

the underside of the tray and twist so

the white plastic T bar lies on top of the

tray. Each bracket should lie parallel to

the cross wire as shown in 6.1a.

5.2 Pull the black hooks on each end of

the bracket over the frame of the pram

and release the clips so that the tray is

secure.

Note: Do not place items, bags of

shopping for example, in the pram unit

as it will cause it to become unstable.

5.1

5.1a

Safety Notes

Your Balmoral Pram is a high quality Silver

Cross product. This product conforms to

applicable safety standards of BSEN1888:2012

and with correct use and maintenance should

give good service. If however you should have

any problems with your Balmoral Pram, please

contact your Silver Cross retailer who will take

appropriate action.

This pram is intended to be used from birth

up to 6 months.

If somebody unfamiliar is using your pram

always ensure that they read these instructions

carefully so that they understand how the

product works best.

Always read all the instructions provided

carefully and remember, the safety of your

child is your responsibility.

Storing back support

6.1 Please ensure that the back support is

stored ﬂat as shown in fig. 6.1 - 6.4.

6.1

6.2

6.3

6.4

silvercrossbaby.com

Care and Maintenance

Please refer to the care guide instructions

included in your after care kit for information

on how to care for your Balmoral Pram.

Guarantee

All Silver Cross products are guaranteed

for a period of twelve months against faulty

workmanship. However please refer to the

extended guarantee details included with the

certiﬁcate of authenticity to register for your

free 5 year guarantee.

Please read these instructions carefully before

using your new Balmoral Pram and keep for

future reference.

Handmade in England.

Spares

A full range of spares for the entire Classic

Collection product range by Silver Cross is

available from www.heritage-prams.co.uk

WARNING:

Remove all packaging and

ties before use. Check your

Balmoral Pram regularly for

signs of damage during use and

discontinue use if found.

Keep away from ﬁre.

Adult assembly required.

This product is not suitable for

running or skating.

Never leave your child

unattended.

Do not carry more than one child

in this pram. You should never

carry another child in a seat on

top of this pram.

Check that the pram body is

correctly engaged before use.

Ensure all locking devices are

engaged before use.

Do not let your child play with

this product.

The parking device should be

fully engaged when placing or

removing the child.

Any load attached to the handle

and/or on the side of the vehicle

will affect the stability of the

pram.

Accessories which are not

approved by Silver Cross shall not

be used.

Only replacement parts supplied/

recommended by Silver Cross

should be used.

Do not use if any part is broken,

torn, or missing.

Only use the mattress provided

by Silver Cross.

Caution: The child should be clear

of all moving parts while making

adjustments.

1.1

1.2

内容包括

首先检查所有配件是否已经提供，

你的Balmoral豪爵婴儿车包括：

a)婴儿车车架及车身

b)2组S型金属棒

c)手柄

d)顶蓬

e) 围蓬

f) 底盘（包括2个支架）

g)衬垫

h)配有床罩的床垫

i)保养工具盒

-保养指南

-刷子

-布

-扳手

j)原厂保证书

k)5年保修卡

A B

安装手柄

1.1将两个S形手柄配件平面的一

面安装于车身上的螺栓，然后

将螺帽”A”套在左边的螺栓

上（先不要拧紧直到圆顶的螺

帽”B”被拧上），把圆顶的

螺帽”B”固定在右边的螺钉

上。两边同时操作，不要完全

拧紧直到手柄被固定。

1.2.将2个S形手柄部件与婴儿车手柄

固定，确保垫圈在圆顶螺栓和S

形手柄部件之间，使用扳手拧紧

（该扳手在保养工具盒中），现

在可以拧紧所有螺帽直到手柄牢

固。

silvercrossbaby.com

2.2

2.1

3.1

顶蓬及围罩

注意：在进行调节时，孩子应当远

离调节中的零件

2..1将顶蓬抬起至合适的位置，然

后向下压顶蓬两侧的支架杆

2.2将围罩沿着婴儿车车身的周边

安装，在婴儿车的每一边收紧

子母贴。在顶蓬上放置防雨

罩，金属拉链位于顶蓬两侧的

螺帽上，将金属拉链沿着周边

拉起

注意：围罩也可以与衬垫同时使用

使用刹车

3.1.离开时按下黑色手柄后面的手

轮子操作刹车

3.2.放开刹车抬起手柄倒车



注意：在婴儿车静止不动时始终保

持刹车状态

4.2

4.3

使用床垫与衬垫

注意: 当靠背位于竖立或者平躺状

态时，床垫与衬垫f都可以使用

4.1 靠背顶端的孔位于上方位

置，这样就确保了衬垫位置

的上下正确。

4.2 确保衬垫中间位置的子母扣

与车架二侧蝶形螺母处的子

母扣贴在一起

4.3 确保衬垫松紧带上的子母扣

与婴儿车车身下部后背支架

的子母扣粘贴在一起

4.4 D型环可轻易通过衬垫的孔穿

过

4.5 床垫可与衬垫同时使用或独

立使用。如果床垫与衬垫同

时使用，请先安装衬垫。

4.6 在放入床垫前请按照如图6.4

所示收起放平小靠背

警告：只使用Silver Cross提供

床垫卧兜内不应增加厚度超过

28MM 的棉垫。

注意：确保床垫的头枕部分是最靠

近车篷的一端

洗涤指导请参照水洗标
