SIIG AV-GM03T3-S1 Manual de usuario

VGA/Component Extender over Cat.X with Audio,

RS-232, PS/2, and Bi-directional IR

P/N: AV-GM03T3-S1

Safety and Notice

The AV-GM03T3-S1 VGA/Component Extender over Cat.X with Audio, RS-232, PS/2, and

Bi-directional IR has been tested for conformance to safety regulations and requirements, and

has been certified for international use. However, like all electronic equipments, the

AV-GM03T3-S1 should be used with care. Please read and follow the safety instructions to

protect yourself from possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the

device before cleaning.

TABLE OF CONTENTS

INTRODUCTION.................................................................................................................1

FEATURES.........................................................................................................................1

PACKAGE CONTENTS......................................................................................................1

SPECIFICATIONS..............................................................................................................2

PANEL DESCRIPTIONS.....................................................................................................3

Transmitting unit ►TX............................................................................................3

Receiving unit ► RX................................................................................................4

IR PASS-THROUGH...........................................................................................................6

CONNECTION DIAGRAM ..................................................................................................8

PIN DEFINITION.................................................................................................................9

NOTICE............................................................................................................................10

WARRANTY .....................................................................................................................11

INTRODUCTION

With only one cost effective Cat-5/5e/6 cable, the AV-GM03T3-S1 lets you extend VGA (at

WUXGA) or 720p component video, bi-directional IR control and half-duplex serial RS-232 at the

same time to cover the distance up to 330m (1,000ft). The AV-GM03T3-S1 comes in a set of a

transmitter and a receiver. The transmitting unit AV-GM03T3-S1-TX is installed near the signal

source, and the receiving unit AV-GM03T3-S1-RX is placed near the desired VGA display. With the

built-in equalization and signal gain control, the transmission path can be adjusted to adapt the

cable quality and video bandwidth. With commonly obtainable VGA-component breakout cables

connected to the VGA ports, the extender can support to transmit the component video for 330m

(1,000ft) as well.

AV-GM03T3-S1 also can extend popular PS/2 keyboard and mouse signal up to 330m (1,000ft).

With this computer control path, AV-GM03T3-S1 makes long range KVM applications more cost

effective and with no video or audio compression!

FEATURES

●Supports up to WUXGA [1920x1200@60] or UXGA [1600x1200@60] to 330m (1,000ft)

●Supports 720p component video signal to 330m (1,000ft)

●Supports RS-232 half-duplex & bi-directional IR pass-through

●Supports analog stereo audio and digital S/PDIF stereo audio

●Supports PS/2 keyboard and mouse extension

●Video and audio local out on transmitting unit for easy monitoring

●Adjustable equalization and gain control on receiving unit for signal tuning

●De-skew compensation available for RGB delay

●Wall mounting case & interlocked power jack for secure installation

PACKAGE CONTENTS

●1x AV-GM03T3-S1 [TX & RX]

●1x IR receiver

●1x IR blaster

●2x DC 5V 2A power supply

●1x User Manual

SPECIFICATIONS

Model Name

AV-GM03T3-S1

Technical

AV-GM03T3-S1[TX]

AV-GM03T3-S1[RX]

Role of usage

Transmitter [TX]

Receiver [RX]

Video bandwidth

350MHz

Video support

VESA

Transmission

WUXGA [1920x1200] / 720p —330m (1,000ft) [CAT5e]

Audio support

Stereo

RS-232 signal type

Half-duplex

Input video signal

1.2 Volts [peak-to-peak]

Equalization

Continuous analog control

RGB delay control

Yes

Keyboard & Mouse

control

Yes

Loop-out

1 VGA local-out + 1 audio local-out at TX

ESD protection

[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact

discharge]

[2] Core chipset —±8kV

Input

1x VGA + 1x RS-232 + 2x 3.5mm

+ 1x RCA + 1x RS-232

2x 3.5mm + 1xRJ-45

Output

2x RJ-45 + 1x VGA

+ 2x 3.5mm + 1x RCA

1x VGA + 1x RS-232

+ 1x RCA + 1x 3.5mm

VGA connector

HD-15 [15-pin D-sub female]

RJ-45 connector

WE/SS 8P8C with 2 LED indicators

RS-232 connector

DE-9 [9-pin D-sub female]

RCA connector

S/PDIF digital audio

PS/2 connector

Mini DIN-6

3.5mm connector

Earphone jack for analog stereo audio or IR cable

Mechanical

Housing

Metal enclosure

Dimensions

[L x W x H]

Model

TBA

Package

330 x 200 x 95mm [1'1" x 7.9" x 3.7"]

Carton

495 x 440 x 380mm [1'7" x 1'5" x 1'3"]

Weight

Model

TBA

Package

TBA

Fixedness

Wall-mounting case with screws

Power supply

Inter-locked 5V 2A DC

Power consumption

6 Watts [max]

Operation

temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

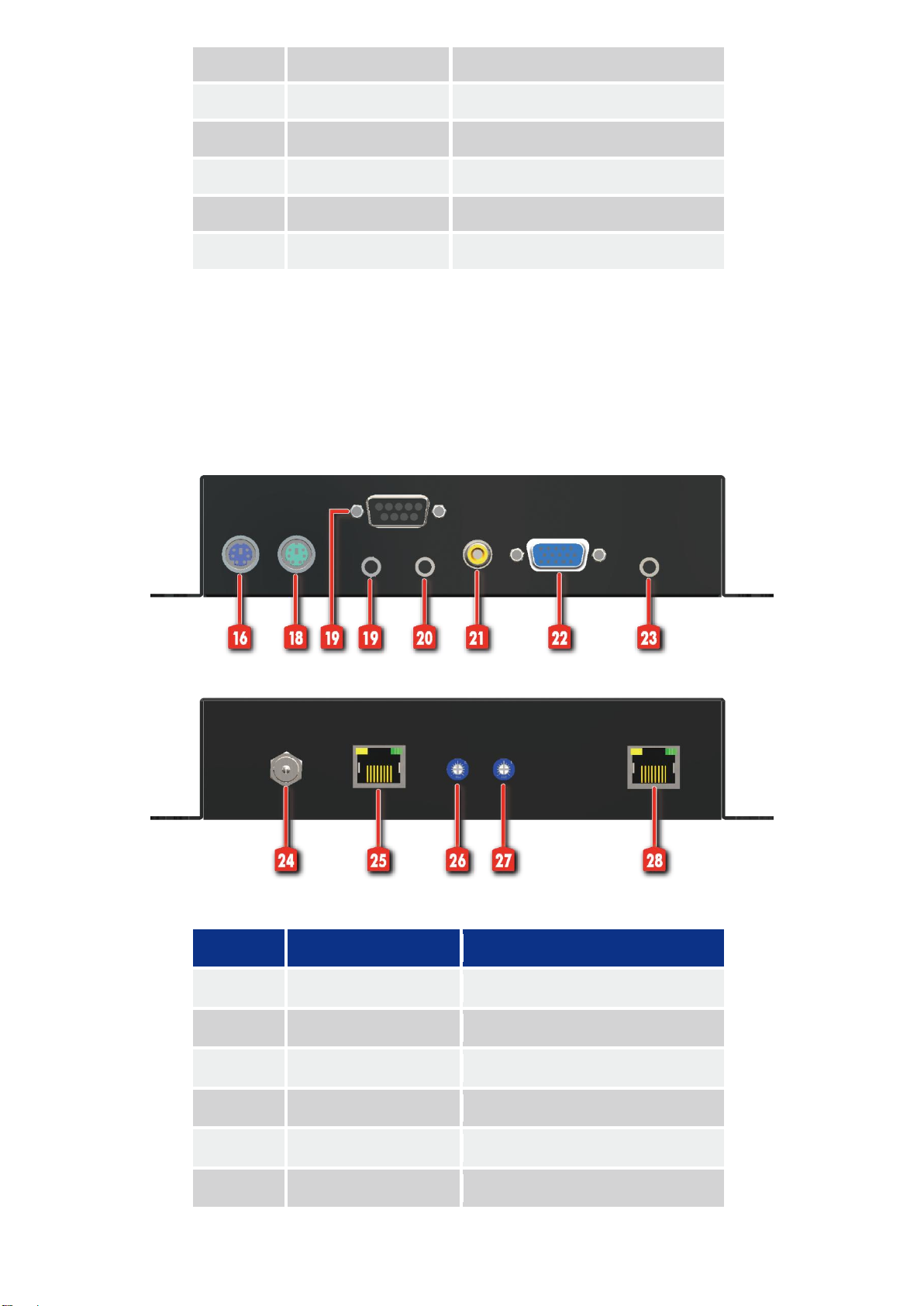

PANEL DESCRIPTIONS

Transmitting unit ►AV-GM03T3-S1-TX

Connector

Function

PS/2

Mouse input

PS/2

Keyboard input

RS-232

Serial channel

3.5mm

IR sender

3.5mm

Stereo audio input

RCA

S/PDIF audio input

Push button

Audio selection

VGA

VGA input

IR receiver

Power

+5V DC latch-locking

VGA

Local VGA output

RJ45

Cat.X output

RCA

Local S/PDIF audio output

3.5mm

Local stereo audio output

RJ45

Cat.X output

Receiving unit ►AV-GM03T3-S1-RX

Connector

Function

PS/2

Mouse output

PS/2

Keyboard output

RS-232

Serial channel

3.5mm

IR receiver

3.5mm

Stereo audio output

RCA

S/PDIF audio output

VGA

VGA output

3.5mm

IR sender

Power

+5VDC latch-locking

RJ45

Cat.X input

Rotary control

Gain

RJ45

Cat.X input

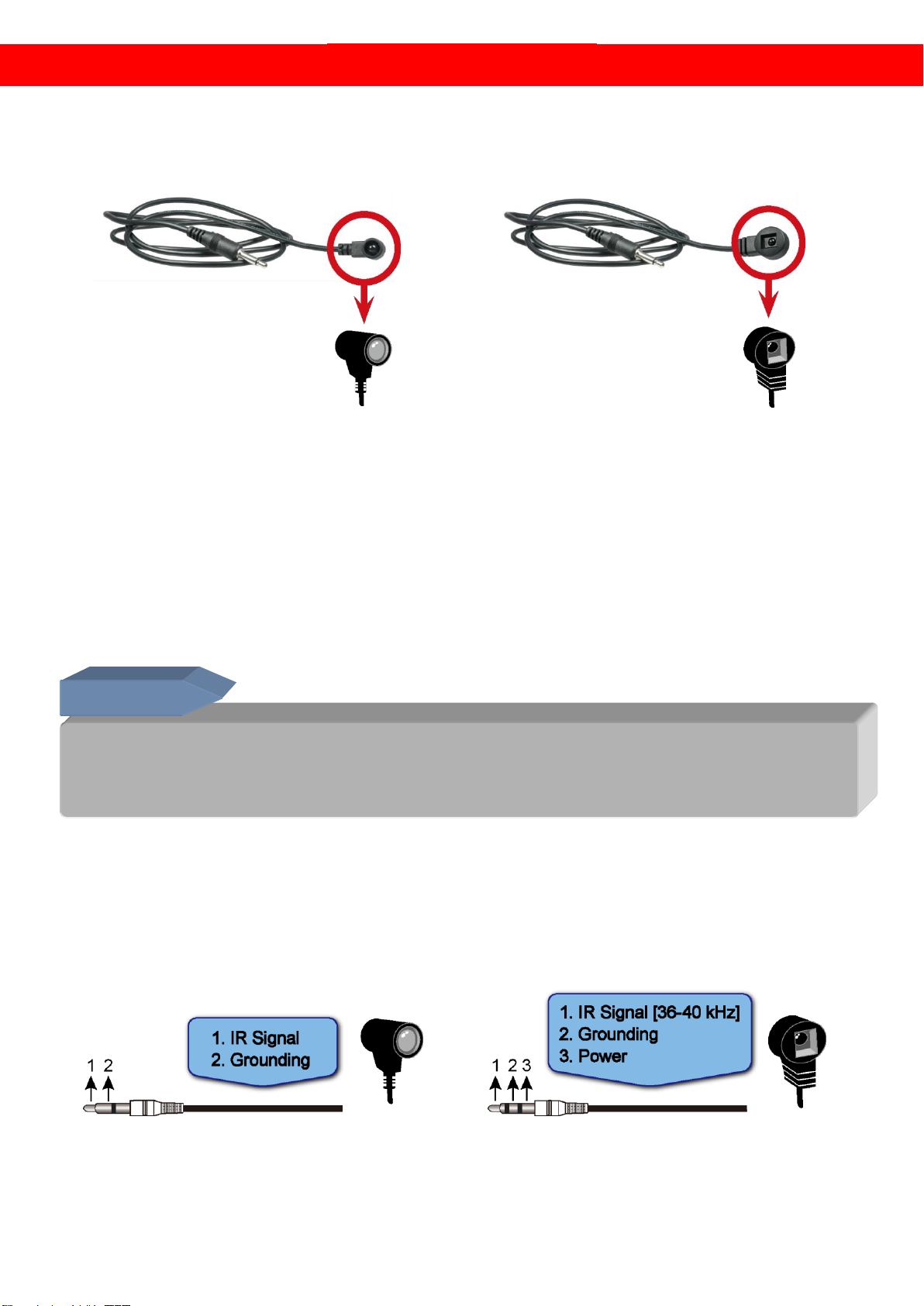

IR PASS-THROUGH

IR Extenders

IR Blaster

IR Receiver

IR Sockets

IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from

the other end to control the devices corresponding to the IR signals.

IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of

the corresponding devices.

Definition of IR Earphone Jack

IR Blaster

IR Receiver

Incorrect placement of IR Blaster and Receiver may result in the failure of the IR

extenders. Please check carefully before plugging in the IR extender to the

respective IR sockets. Warranty will not cover the damage.

CAUTION!

Supported IR Data Format

Data Format

Suitable

Not Recommended

NEC

RC5

TOSHIBA MICOM CODE

GRUNDIG CODE

SONY 12 BIT CODE

SONY 15 BIT CODE

SONY 20 BIT CODE

RCA CODE

RCM CODE

MATSUSHITA CODE

MITSUBISHI CODE

ZENITH CODE

JVC CODE

M50560-001P

MN6125H

MN6125L

MN6014_C5D7

MN6014-C6D6

MC14457P

LC7464(AHEA)

GEMINI_CM

You can buy any IR extension cables in the market that are compatible to the definition of

the IR sockets for the matrix if necessary for replacement use. However, IR cables longer

than 2m (6-ft) may not work.

CONNECTION DIAGRAM
