SIIG CE-H20S11-S1 Manual de usuario
1
Full HD 1080P HDMI
Wireless Extender
Quick Installation Guide
04-0711B
Introduction
The Full HD 1080P HDMI Wireless Extender
transmits HDMI signals wirelessly up to 50ft.
Key Features and Benefits
• Compliant with WDHI 1.0, HDCP 2.0, and
HDMI standards
• 5GHz unlicensed band with support for
Dynamic Frequency Selection (DFS)
• Supports video bandwidth up the 3Gb/s
• Supports 1080p/60GHz non-compressing
video
System Requirements
• PC or A/V devices with an available HDMI
output port
• HDMI display
2
Package Contents
• HDMI Transmitter (Tx)
• HDMI Receiver (Rx)
• DC 12V Power Supply (2)
• IR cable
• HDMI cable (2)
• Quick installation guide
Layout
Figure 1: Transmitter (Tx)
On/ Off Switch
Power LED Indicator
Wireless LED
Indicator
Remote Extender
Reset Button
HDMI Input
Antenna
Power Jack
3

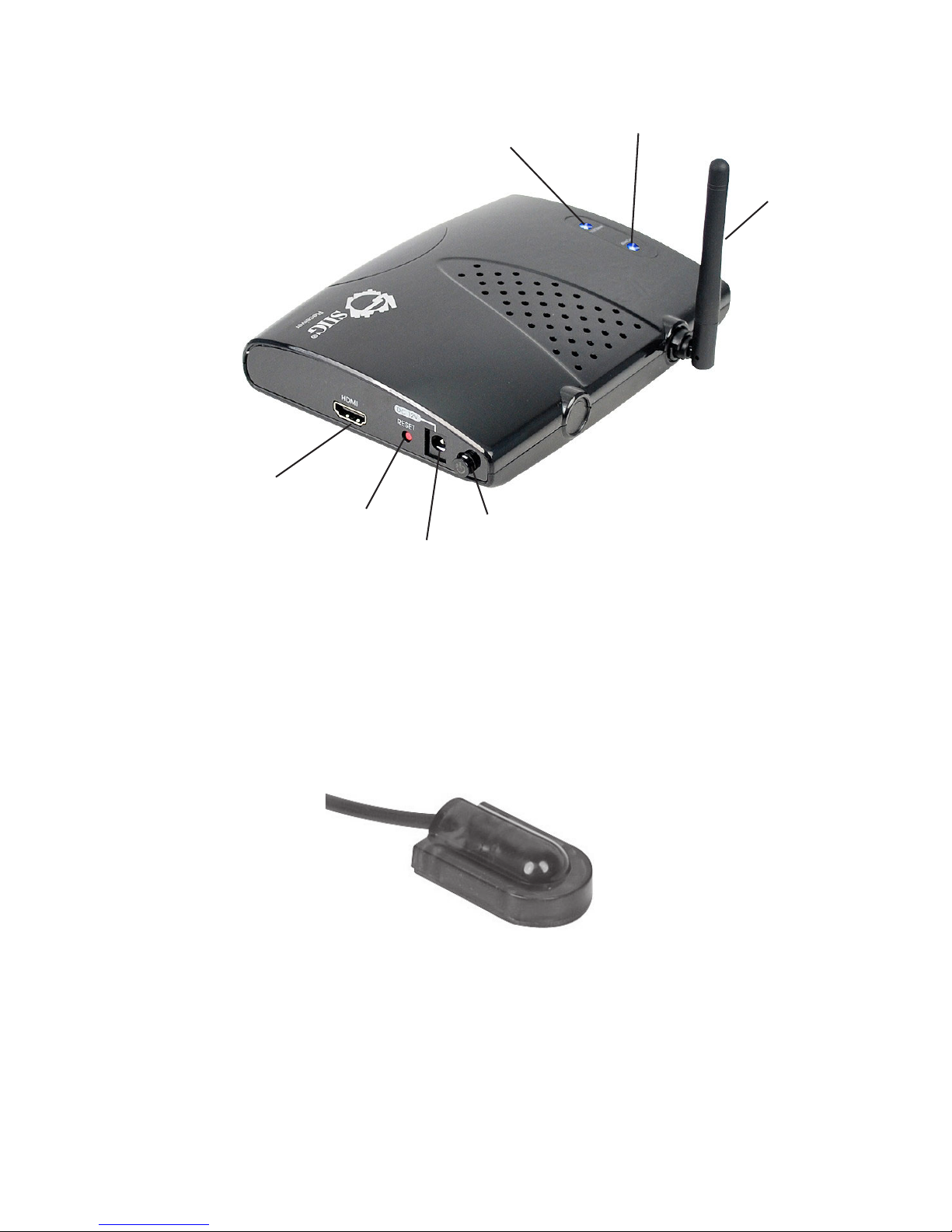

Figure 2: Receiver (Rx)
On / Off Switch
HDMI Output
Antenna
Power LED Indicator
Wireless LED
Indicator
Reset Button
Power Jack
Figure 3: IR cable
4
LED Indicators
Power LED
• Red: Power Off
• Blue: Power On
Wireless LED
• Red: Wireless Dis-connected
• Blue: Wireless Connected
• Red and Blue Blinking: Search Signal
Hardware Installation
1. Power off all devices, including the source
HDMI device and HDMI display.
2. Connect an HDMI cable (included) from
the HDMI device to the Transmitter's HDMI
Input.
3. Connect the IR emitter cable to the HDMI
Transmitter (Tx) and point the emitter
directly to the HDMI device's IR.
Note: Please make sure that you place the
IR emitter close to the HDMI device's IR for
a good signal.
5
4. Connect an HDMI cable (included) from
the Receiver's HDMI Output to the TV's
HDMI Input.
5. Plug the DC 12V Power Supply into the
Transmitter's power jack, then plug it into
a reliable power source.
6. Plug the DC 12V Power Supply into the
Receiver's power jack, then plug it into a
reliable power source.
7. Push the On/Off switch to power on both
the Transmitter (Tx) and Receiver (Rx).
8. The Full HD 1080P HDMI Wireless Extender
is ready for use.
FAQ
Question 1: The power indicator (red LED)
doesn’t light up.
Answer: Verify that the proper cables have been
selected and installed between the Transmitter's
input and your HD device's output.
Question 2: No video is displayed on your TV
screen.
6
Answer: Make sure you select HDMI as the input
source in your TV.
• Wireless LED Lighting up in Red
- Make sure the proper cables are connected
between the Transmitter (Tx) and your AV
devices.
- Make sure your source devices connected
to the Transmitter (Tx) are powered on.
- Make sure the proper cables are connected
between the Receiver (Rx) and your HDTV.
• Make sure the transmission range between
Transmitter (Tx) and Receiver (Rx) is not
over 66 feet (LOS-line of sight) transmission
distance. Move the Transmitter (Tx) closer
to the Receiver (Rx).
• Verify the Power LED Indicator and
Wireless LED Indicator of both Transmitter
(Tx) and Receiver (Rx). Wireless LED
Lighting up in Red OSD shows: Searching
available channels…..
• Check if the power adapters of Transmitter
(Tx) and Receiver (Rx) are inserted into a
functioning power outlet properly.
7
Question 3: Poor picture quality or intermittent
video.
Answer: Make sure the transmission distance is
less than 66 feet (LOS).
• Check if the video resolution of your HDMI
source device matches the Transmitter (Tx)
and Receiver (Rx) Specification.
Question 4: No audio.
Answer: Check your TV’s volume is properly set
and not set in “MUTE” mode.
• Check if the audio connectors are properly
connected.
• Make sure the audio bit rate from the source
device can be supported by Transmitter
(Tx) and Receiver (Rx).
Question 5: IR Blaster can’t control source device.
Answer: Check the position of IR sensor of source
device. Make sure the IR emitter's sensor is close
and points to the source devices IR sensor.
8
Blank Page
9
Blank Page
10
Blank Page
