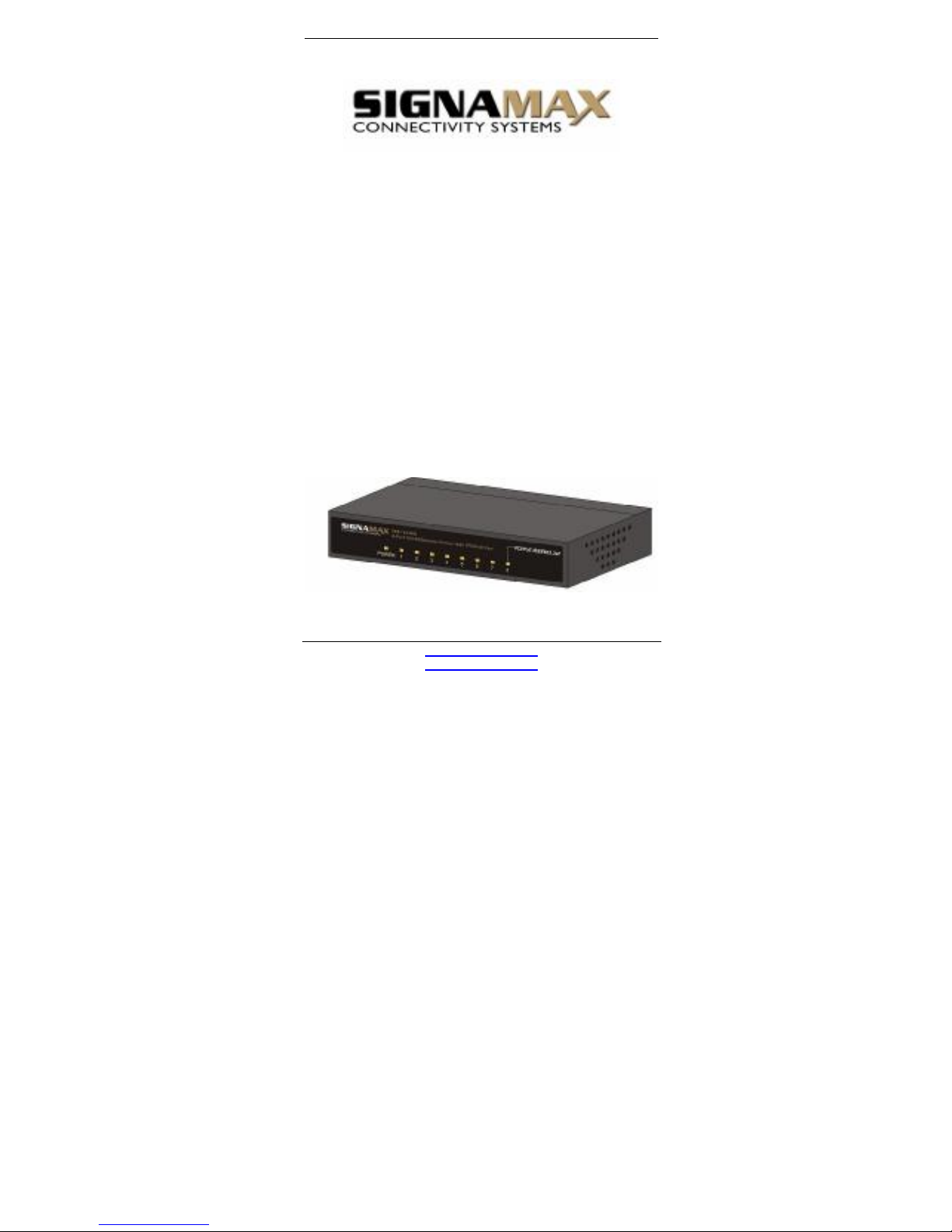

SignaMax 065-7013PD Manual de usuario

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

SignamaxConnectivitySystems

8PortsNway

FastEthernetSwitchwith

IEEE-802.3afPD/PoEPort

Model:065-7013PD

User’sManual

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

FCC Warning

Thisdevicehasbeentested andfoundto

complywithlimitsforaClassAdigitaldevice,

pursuanttoPart15oftheFCCRules.These

limitsaredesigned toprovidereasonable

protectionagainstharmfulinterferencewhen

theequipmentisoperated inacommercial

environment.Thisequipmentgenerates,

usesand radiatesradiofrequency energy

and,ifnotinstalledandusedinaccordance

withtheuser'smanual,maycause

interferenceinwhichcaseuserwillbe

requiredtocorrecttheinterferenceat hisown

expense.

CEMarkWarning

ThisisaClassAproduct. Inadomestic

environment,thisproductmaycauseradio

interferenceinwhichcasetheusermaybe

requiredtotakeadequatemeasures.

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

8PortsNwayFastEthernetSwitch

Introduction

065-7013PDSwitchprovides810/100Mbps

ports.065-7013PDSwitchwasdesignedfor

easy installationandhighperformanceinan

environmentwheretrafficonthenetworkand

thenumberof userincreasecontinuously.

065-7013PDSwitchbuildPowerDevice(PD)

featureonitsport8,usingthisportcanget

powersourcefromotherPSE portthrough

Cat5cable.

Thesmallcompactpalmsizewasspecifically

designedforsmalltomediumworkgroups.

065-7013PDSwitchcan beinstalledwhere

spaceislimited;moreoverit providessmooth

networkmigration andeasyupgradeto

networkcapacity.

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

KeyFeatures

8Port10/100BaseT/TXNway

(Auto-negotiation)SwitchwithRJ-45

connectors.Port8buildinIEEE-802.3af

PowerDevice(PD)feature, can get power

sourcefromotherPSE port

Palmsizewithtransparent enclosure

design

Autolearningofnetworkingconfigurations

Auto-detectofFull/Half-duplexmodesin

allports

Dedicatedfull-duplex200Mbpsbandwidth

on eachport

Store&Forwardswitchingmethods

IEEE802.3xflowcontrolforFull-duplex

Zero-Packet LossBack-pressureflow

controlforHalf-duplex

Non-blocking&Non-head-of-lineblocking

full wirespeedforwarding

LEDStatus:Power,Link/Activity

SupportsAutoMDIXfunctiononeachport

Smartplug&play

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

PackageContents

Beforeyoustarttoinstall065-7013PDSwitch,

pleaseverifyyourpackagethatcontainsthe

followingitems:

One065-7013PDFast Ethernet

Switch

OnePowerAdapter

OneCD withUser’sManual

Note:If anyof theseitemsisfound missingor

damaged,pleasecontactyourlocalsupplier

forreplacement.

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

FrontPanel Layout

.8RJ-4510/100MbpsSwitchPorts

Thereare1~8RJ-45connectorsonthefront

panelforconnectingtoservers,workstation

orotherdevices.065-7013PDSwitch

provides810/100Mbpsswitchingportsthat

couldsensethe10/100Mspeedand

negotiateFull/Half-duplexmode

automatically.Theseswitchingportsallow

usersconnecttheSwitchto10Base-Tand

100Base-TXdevices.

.PowerDC 7.5V

Poweradapter

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

.PD/PoEPort

ThePort8BuildinPDfunction, usingthisport

toconnecttothePSEportofPoEswitch,

Besidesdatauplinkalsocangetthepower

sourcefromPSE port overtheCat5cable.

.LEDIndicatorsof8Port10/100Mps

Switch

LED StatusDescription

On PoweronPower Off Poweroff

On 10/100Mbpsport for

connection

Off 10/100Mbpsport

link

fail

LINK/ACT.

Flashing

10/100Mbpsfordata

activating

.LEDDefinitions

PowerLED

On Theunitispoweredon and

readyforuse.

Off Theunitispoweredoff.

LINK/ACTLED

On Theport isreadyfor

10/100Mbpsconnection.

Flashing Thedataistransmittedor

receivedon theport.

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

Installation

.ToconnecttheSwitchtoPCs,servers,

and othernetworkdevices.

Usetwistedpaircable(Cat. 5)toconnect the

SwitchtoPCs,serversandothernetwork

devices.All theportofthisswitchhas

Auto-MDI/MDIXfeature;socanuseeither

straightthroughorcrossCat5cable.

.ToconnecttheSwitchtoaSwitchora

Hub

UsetwistedpaircabletoconnecttheSwitch

toanotherSwitchorHubon through anyone

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

portoftheswitch.

Sincealltheportofthisswitchhas

Auto-MDI/MDIXfeature,socanuseeither

straightthroughorcrossCat5cable.

Technical Specifications

1. StandardsCompliance

-IEEE 802.310BASE-T

-IEEE 802.3u100BASE-TX

-IEEE 802.3af

2. NumberOf Ports

-8integratedports(10/100MbpsNway

port)

-Port8(theportnumber8)build

IEEE-802.3afPD

3. FullyFlowControlSupported

-Half-duplexmode: Backpressure

-Full-duplexmode:IEEE802.3x

4. NetworkTransmissionMedia

SignamaxConnectivitySystem

065

13PD

www.signamax-us.com

www.signamax-eu.com

-10Base–TCat. 3,4,5UTP/STP

-100Base–TXCat. 5UTP/STP

5. NetworkStatusMonitoringLEDs

-Perport: LINK/ACT

-System:POWER

6. BufferMemory: 768Kbits

7. Filter/ForwardRate

-Packet Filtering/ForwardingRates

-100Mbpsport-148,800pps

-10Mbpsport–14,880pps

8. MACAddress: 1K

9.Power:AdapterDC 7.5V,or48Vfrom

PSE/PoEthroughPort8PDport

10. PowerConsumption:4Watts(Max)

11.OperatingTemperature:0 ~55

12. StoreTemperature:-20~ 90

13. Humidity

-10%~90%RH(Non-condensing)

14. Dimension(L×W×H)

-130mm ×77mm×25mm

15.Weight: 0.28Kg

16. Safety&EMI Certificates

-CE&FCC-A
