SignaMax 065-7032A Manual de usuario

User‘s Guide

16 Port Nway

Fast Ethernet Switch

Model

:065-7032A

SIGNAMAX LLC • www.signamax.eu

FCC Warning

This device has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 2 and 15 of FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates and

radiates radio frequency energy and, if not installed and used in

accordance with the user’s manual, it may cause interference in

which case users will be required to correct interference at their

own expenses.

CE Warning

This is a Class B product. In a domestic environment, this

product may cause radio interference in which case the user may

be required to take adequate measures.

SIGNAMAX LLC • www.signamax.eu

Introduction

065-7032A switch provides 16 10/100M ports. 065-7032A switch

was designed for easy installation and high performance in an

environment where traffic is on the network and the number of

users increases continuously.

The small compact palm size was specifically designed for small

to medium workgroups. 065-7032A switch can be installed where

space is limited; moreover, it provides smooth network migration

and easy upgrade to network capacity.

SIGNAMAX LLC • www.signamax.eu

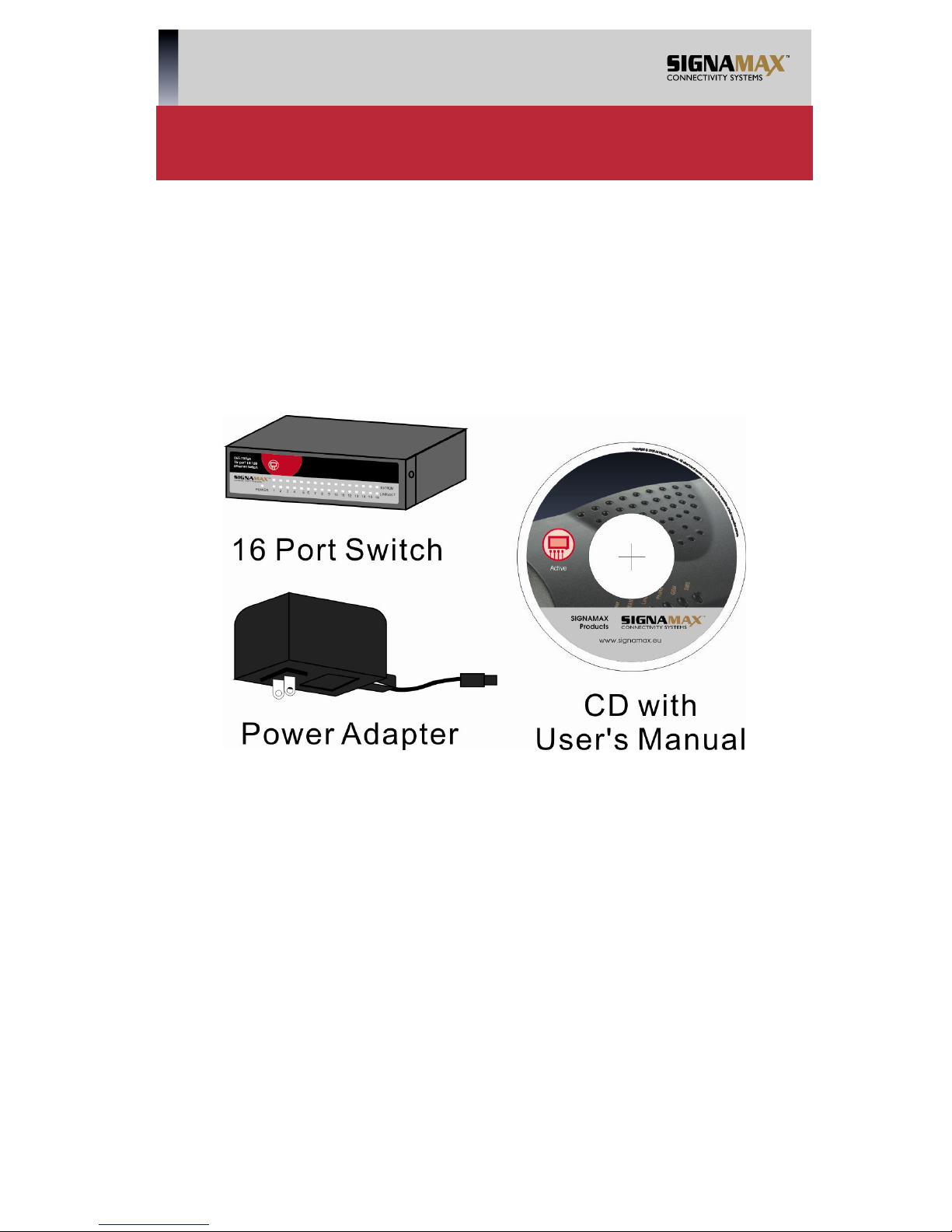

Package Contents

Before you start to install this switch, please verify your package

that contains the following items:

One 065-7032A Fast Ethernet Switch

One Power Adapter

One CD with User’s Manual

Note: If any of these items is found missing or damaged, please

contact your local supplier for replacement.

SIGNAMAX LLC • www.signamax.eu

Key Features

16 Port 10/100M Nway (Auto-negotiation) Switch

Palm size with metal case

Auto-learn of networking configurations

Auto-detect full/half-duplex modes for any port

Dedicated full-duplex 200Mbps bandwidth

Store-and-Forward switching methods

IEEE 802.3x flow control for full-duplex and back-pressure

flow control for half-duplex

Non-blocking & Non-head-of-line blocking full wire speed

forwarding

Auto-MDI/MDI-X function for any port

Smart plug & play

Power

Power is supplied through an external DC power adapter.

SIGNAMAX LLC • www.signamax.eu

Front Panel (LEDs)

LED Indicators of 16 Port 10/100M Switch

LED Status Operation

On Power is on.Power

Off Power is off.

On Port is for connection

Off No connection.

LINK/ACT

Flashing

Data is transmitting or

receiving.

On Port is on 100M status.10/100M

Off Port is on 10M status.

Rear Panel (Connections)

This switch provides automatic crossover detection functionality

for any port. It is simple and friendly to up-link to another switch

without crossover cable.

SIGNAMAX LLC • www.signamax.eu

Technical Specifications

Standards IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3x Flow control

Features Number of Ports: 16

MAC Address: 4K

Buffer Memory: 768K bits

Transmission Method:

Store and Forward

Filtering/Forwarding

Rates

100Mbps port –

148,800pps

10Mbps – 14,880pps

Transmission Media 10BaseT Cat. 3, 4, 5

UTP/STP

100BaseTX Cat. 5

UTP/STP

LED Indicators Per Port: LINK/ACT

Per Unit: Power

Power Supply DC 7.5V/0.8A

Power Consumption 10 Watts (Max)

Dimensions 130 x 80 x 35 mm (L x W x

Weight 0.45 kg

Operating

Temperature 0 to 55℃

Storage

Temperature -20 to 90℃

Humidity 10 to 90% RH

(non-condensing)

Certifications FCC Class B, CE
