Siemens SITRANS FCT030 Manual de usuario

SITRANS F

Coriolis Flowmeters

SITRANS FCT030 transmitter

Quick Start

Before installing, including in hazardous areas, refer to the Operating Instructions on the internet or on the SITRANS F

literature CD-ROM. They contain detailed safety regulations, information and specifications which must be observed when

installing. Documentation and approvals can be found on the internet:

Flowdocumentation (http://www.siemens.com/flowdocumentation)

CAUTION

Correct, reliable operation of the device requires proper transport, storage, positioning and assembly. The device must be

carefully operated and maintained. Only qualified personnel should install or operate this device.

Items supplied

Compact system

● SITRANS FC430 sensor and compact mounted

transmitter

● Packet of cable glands

● Quick Start guide

● CD containing software, certificates and device manuals

/

Remote system

With M12 connection

● SITRANS FCS400 sensor

● SITRANS FCT030 transmitter with M12 socket assembled

● Mounting bracket and cushion pad

● Sensor cable with M12 connector

● Packet of cable glands

● Quick Start guide

● CD containing software, certificates and device manuals

/

A5E03922778-01, 03/2012 1

*A5E03

922778

With terminal housing

● SITRANS FCS400 sensor

● SITRANS FCT030 transmitter with terminal housing

assembled

● Mounting bracket and cushion pad

● Sensor cable

● Packet of cable glands

● Quick Start guide

● CD containing software, certificates and device manuals

/

Note

Scope of delivery may vary, depending on version and add-ons. The contents list in the product package lists all included

parts.

Note

Sensor installation

The installation of the FCS400 sensor is described in the SITRANS FCS400 Quick Start (A5E03649755).

Remote mounting

Wall mounting

1. Prepare holes with aid of mounting bracket.

2. Fasten mounting bracket with cushion pad to wall (torque 10 Nm).

Pipe mounting

1. Mount mounting bracket with cushion pad on pipe using fastening brackets/U-bolts and supplied pipe adaptor. Note: U-

bolts and other miscellaneous hardware are not supplied with the flowmeter.

2. Tighten nuts (torque 10 Nm).

SITRANS FCT030 transmitter

2 A5E03922778-01, 03/2012

Mounting the transmitter

1. Remove screw from mounting bracket.

2. Mount transmitter on mounting bracket taking care that the flutes on the mating faces are correctly engaged.

3. Firmly tighten screw on mounting bracket (torque: 25 Nm).

Turning the transmitter

In a remote configuration, the transmitter can be turned horizontally and vertically. In a compact configuration, the transmitter

can be turned horizontally only.

Horizontal rotation

1. Unscrew cap from lock screw.

2. Loosen lock screw at transmitter pedestal using 5 mm Allen key.

3. Carefully rotate transmitter into desired position.

/

r

4. Firmly tighten lock screw (torque: 10 Nm).

5. Replace cap onto lock screw (torque: 10 Nm).

SITRANS FCT030 transmitter

A5E03922778-01, 03/2012 3

Vertical rotation

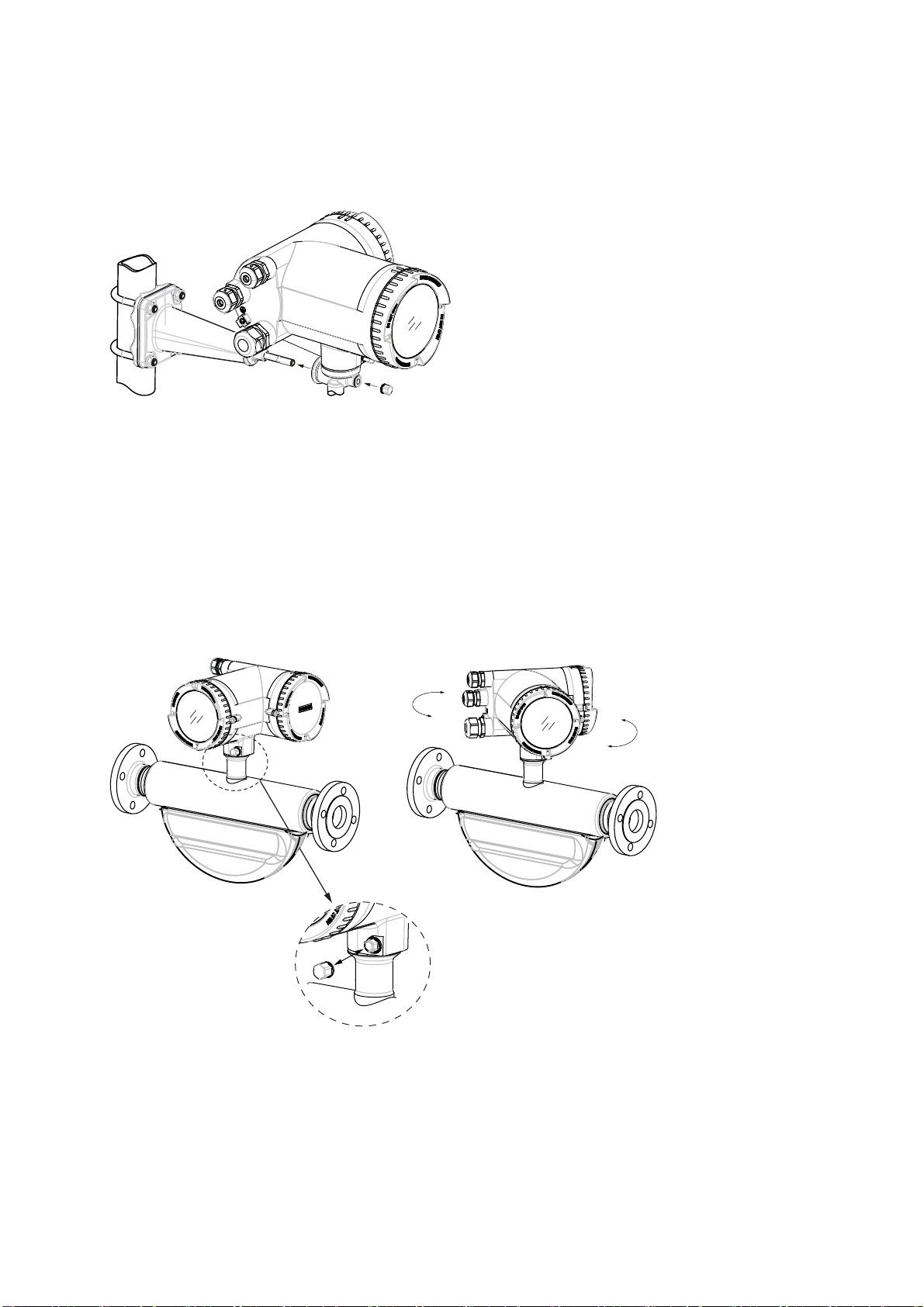

1. Loosen locking cap at end of mounting bracket by three turns.

2. Carefully loosen and rotate transmitter into desired position (15° steps).

3. Firmly tighten locking cap (torque: 25 Nm).

Connecting

WARNING

As long as the device is energized, the lid of the housing on the sensor connection area may only be opened by qualified

personnel.

Before removing the terminal cover, the auxiliary power must be switched off from all poles.

Following installation, the terminal cover must be screwed back on again.

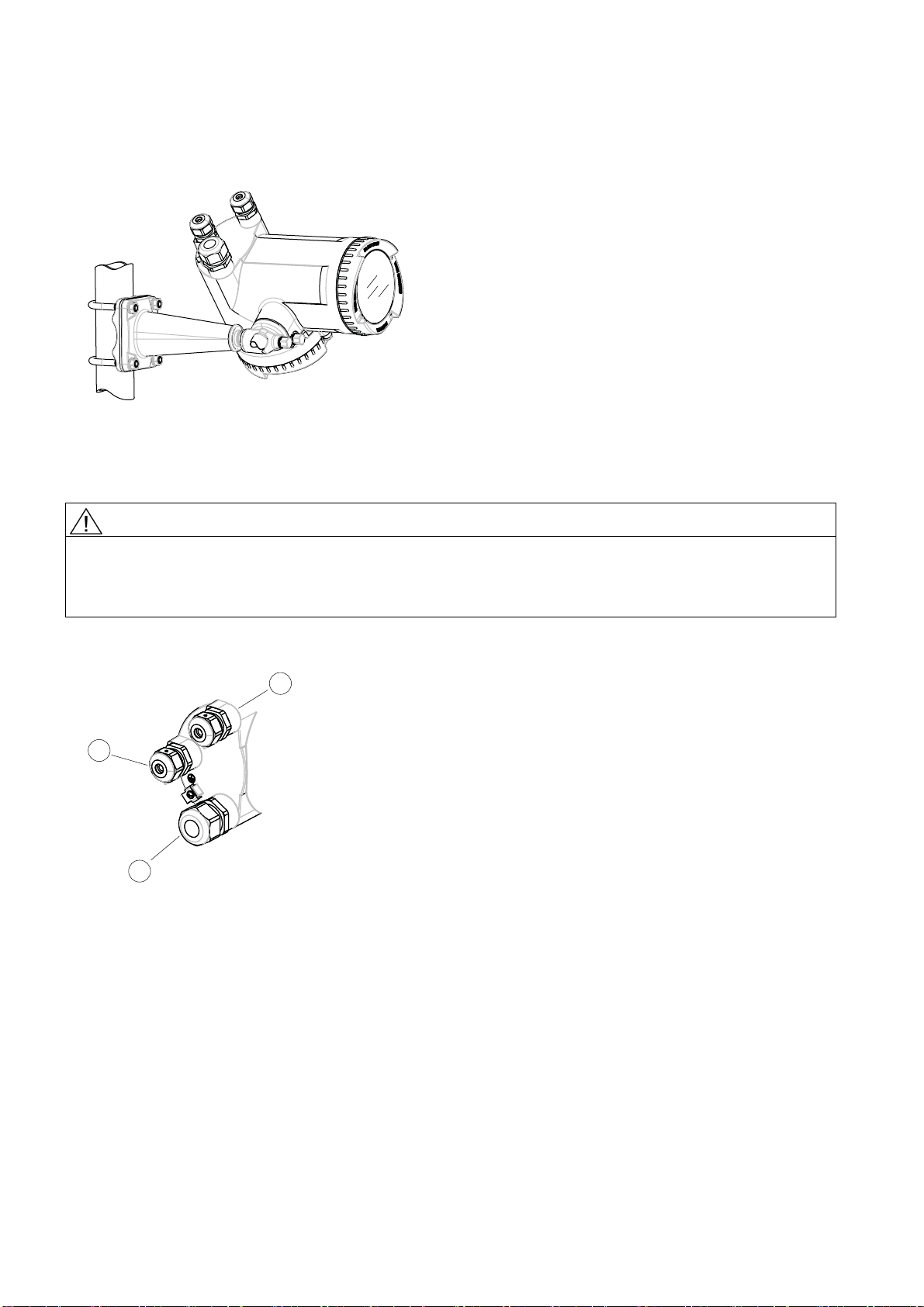

1. Remove blind plugs where required and mount cable glands.

① Input/output connection (channels 2 to 4)

② Power supply connection

③ Current output/HART connection (channel 1)

2. Remove lid lock screw for terminal connections lid.

3. Remove lid for terminal connections.

SITRANS FCT030 transmitter

4 A5E03922778-01, 03/2012

Application terminals

A label with a graphic showing the terminal connections is placed at the back of the terminal connections lid.

)&

① L/+ Line

② N/- Neutral

③ Ground

④ Ca+ Used in current output active configuration

⑤ C Used in current output active and passive configuration

⑥ Cp- Used in current output passive configuration

⑦ --- Not used

⑧ IO2+ Signal output active channel 2 positive

⑨ IO2 Signal output channel 2 common

⑩ IO2- Signal output channel 2 negative

⑪ IO3+ Input/output channel 3 positive

⑫ IO3 Input/output channel 3 common

⑬ IO3- Input/output channel 3 negative

⑭ IO4+ Input/output channel 4 positive

⑮ IO4 Input/output channel 4 common

⑯ IO4- Input/output channel 4 negative

SITRANS FCT030 transmitter

A5E03922778-01, 03/2012 5

SITRANS FCT030 transmitter

6 A5E03922778-01, 03/2012

Wiring tool

Use the wiring tool for connecting the cables.

The wiring tool is located in the application terminal space.

/

Wiring tool location

/

1. Insert wiring tool hook into receptor slot.

2. Press wiring tool wedge into top slot to spread clamp plates.

3. Insert wire.

4. Release wiring tool.

Power supply

1. Flip open power supply terminal protection cover.

2. Remove cap and ferrule from cable gland and slide onto cable.

3. Push cable through open gland and cable path.

4. Restore ferrule and tighten cap to lightly hold cable in place.

5. Connect ground to terminal and power to terminals L/+ and N/- using wiring tool in the manner shown below at right.

/

① L/+

② N/-

③

AC connection DC connection

/

1

/

Power: 100 to 240 V AC +10/-15%, 47 to 63 Hz

/

1

/

Power: 24 to 90 V DC +20/-20%

6. Anchor cable with clamp bar.

7. Close and latch power supply terminal protection cover.

8. Tighten cable gland.

Current output/HART (channel 1)

1. Remove cap and ferrule from cable gland and slide onto cable.

2. Push cable through open gland and cable path.

3. Restore ferrule and tighten cap to lightly hold cable in place.

4. Signal cable screen is folded back over outer sheath and grounded beneath cable clamp.

5. Connect wires to terminals using wiring tool.

SITRANS FCT030 transmitter

A5E03922778-01, 03/2012 7

Active current output Passive current output

⑤ C ⑥Cp-

④ Ca+ ⑤C

Active current output Passive current output

,VLJQDO

)&

Ca+

Cp-

LQW

,VLJQDO

H[W



Ca+

Cp-

)&

6. Tighten cable gland.

Note

Active or passive current output is preselected at ordering.

Note

Load

Current output (channel 1): < 500 Ω (HART ≥ 230 Ω)

Inputs and outputs (channels 2 to 4)

1. Remove cap and ferrule from cable gland and slide onto cable.

2. Push cable through open gland and cable path.

3. Restore ferrule and tighten cap to lightly hold cable in place.

4. Signal cable screen is folded back over outer sheath and grounded beneath cable clamp.

5. Connect wires to terminals using wiring tool.

SITRANS FCT030 transmitter

8 A5E03922778-01, 03/2012

Active current output Passive current output

⑫ IO[3] (common) ⑬ IO[3]- (passive)

⑪ IO[3]+ (active) ⑫ IO[3] (common)

Termination example for channel 3

6. Tighten cable gland.

Note

Active or passive current output is preselected at ordering.

Factory

configuration

Software

configuration

Channel

Signal output

Active

Analog, pulse,

frequency or

status output

If status: alarm

class, alarm

number, one-

stage dosing, or

two-stage dosing

X X X

,VLJQDO

)&

IOXa+

IOXp-

IOXC

LQW

Signal output

Passive

Analog, pulse,

frequency or

status output

If status: alarm

class, alarm

number, one-

stage dosing, or

two-stage dosing

X X X

,VLJQDO

H[W



IOXC

IOXa+

IOXp-

)&

IOXp

Signal input

Active

Start dosing, stop

dosing, reset tot.

1, reset tot. 2,

reset tot. 3, reset

all totalizers, start

zero point

adjustment,

pause/resume

dosing, force

output, or freeze

output

X X

)&

IOXa+

IOXp-

IOXC

LQW

,VLJQDO

SITRANS FCT030 transmitter

A5E03922778-01, 03/2012 9

SITRANS FCT030 transmitter

10 A5E03922778-01, 03/2012

Signal input

Passive

Start dosing, stop

dosing, reset tot.

1, reset tot. 2,

reset tot. 3, reset

all totalizers, start

zero point

adjustment,

pause/resume

dosing, force

output, or freeze

output

X X

H[W



IOXC

IOXa+

IOXp-

)&

IOXC

IOXa+

IOXp- ,VLJQDO

Relay output Alarm class, alarm

number, one-

stage dosing, or

two-stage dosing

X X

IOXC

IOXa+

IOXp-

)&

IOXC

IOXa+

IOXp-

Normally open

Relay output Alarm class, alarm

number, one-

stage dosing, or

two-stage dosing

X X

)&

IOXa+

IOXp-

IOXC

Normally closed

Note

Load

Signal output: < 500 Ω

Relay output: 30 V AC/DC, 100 mA

Connection check-up

1. Check individual wire installation by tugging firmly.

2. Firmly tighten cable glands and insert blanking plugs in unused cable entries.

3. Remove o-ring from lid.

4. Reinstate lid and screw in until mechanical stop. Wind back lid by one turn.

5. Mount o-ring by pulling it over the lid and tighten lid cover until you feel friction from the o-ring on both sides. Wind lid by

one quarter of a turn to seal on the o-ring.

6. Reinstate and tighten lid lock screw where supplied.

7. Ensure that moisture does not penetrate to inside of electronics housing by creating a drip loop (bend cables downward)

immediately before cable glands.
