Siemens Sitrans LR250 Manual de instrucciones

Quick Start Manual April 2007

sitrans

English

Cesky

Dansk

Deutsch

Español

Français

Italiano

Nederlands

Português

Suomi

Svenska

LR250 (HART)

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7ML1234-56789-0ABC-D

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 24V Max., 4 - 20mA

Nom., 30 V

Serial No: GYZ / S1034567

IECEx SIR 05.0031X

Ex ia IIC T4

Ex tD A20 IP67 T90°C

1 G EEx ia IIC T4

1 D EEx tD A20 IP67 T90°C

SIRA 06ATEX2358X

0518

HART

Ui=30V

Ii = 120 mA

Pi = 0.8 W

Ci=15nF

Li = 0.1 mH

SITRANS LR250

7ML1234-56789-0ABC-D

Serial No: GYZ / S1034567

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 24V Max., 4 - 20mA

Nom., 30 V

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

Exia per drawing: 23650653

Class I, Div 1, Gr. A, B, C, D;

Class III

Class II, Div 1, Gr. G;

Pmax = 0.8 W

Ci=15nF Temp.Code:T4

Vmax =30V

Li= 0.1 mH

Imax = 120 mA

IC: 267P-LR250

FCC ID: NJA-LR250

N117

159134

HART

WARNING:PossibleStaticHazard,DoNot RubOrCleanOnSite

SITRANS LR250

7ML1234-56789-0ABC-D

Serial No: GYZ / S1034567

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 24V Max., 4 - 20mA

Nom., 30 V

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

Class I, Div. 2,

Gr.A,B,C,D;

Temp. Code: T5

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions

1)This device may not cause harmful interference and

2)This device must accept any interference received,

including interference that may cause undesired operation

IC: 267P-LR250

FCC ID: NJA-LR250

HART

N117

159134

7ML19985QX81 SITRANS LR250 (HART) – QUICK START MANUAL Page EN-1

mmmmm

English

SITRANS LR250 (HART) Quick Start Manual

This manual outlines the essential features and functions of the SITRANS LR250 (HART). We

strongly advise you to acquire the detailed version of the manual so you can use your device to

its fullest potential. The complete manual can be downloaded from the SITRANS LR250

product page of our web site at: www.siemens.com/LR250. The printed manual is available

from your local Siemens Milltronics representative.

Questions about the contents of this manual can be directed to:

Siemens Milltronics Process Instruments Inc.

1954 Technology Drive, P.O. Box 4225

Peterborough, Ontario, Canada, K9J 7B1

Email: tec[email protected]

MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments Inc.

Technical Support

Support is available 24 hours a day.

To find your local Siemens Automation Office address, phone number, and fax number, go to:

www.siemens.com/automation/partner:

• Click on the tab Contacts by Product then find your product group (+Process Automation

> +Process Instrumentation > +Level Measuring Instruments).

• Select the team Technical Support. Click on Next.

• Click on a continent, then a country, followed by a city. Click on Next.

For on-line technical support go to: www.siemens.com/automation/support-request

• Enter the device name (SITRANS LR250) or order number, then click on Search, and

select the appropriate product type. Click on Next.

• Enter a keyword describing your issue. Then either browse the relevant documentation,

or click on Next to email a description of your issue to Siemens Technical Support staff.

Siemens A&D Technical Support Center: phone +49 180 50 50 222

fax +49 180 50 50 223+

Process Instruments Inc. 2007.

Disclaimer of Liability

We encourage users to purchase autho-

rized bound manuals, or to view elec-

tronic versions as designed and

authored by Siemens Milltronics Process

Instruments Inc. Siemens Milltronics

Process Instruments Inc. will not be

responsible for the contents of partial or

whole reproductions of either bound or

electronic versions.

While we have verified the contents of this manual

for agreement with the instrumentation described,

variations remain possible. Thus we cannot guar-

antee full agreement. The contents of this manual

are regularly reviewed and corrections are

included in subsequent editions. We welcome all

suggestions for improvement.

Technical data subject to change.

Page EN-2 SITRANS LR250 (HART) – QUICK START MANUAL 7ML19985QX81

mmmmm

English

Safety Guidelines

Warning notices must be observed to ensure personal safety as well as that of others, and to

protect the product and the connected equipment. These warning notices are accompanied by

a clarification of the level of caution to be observed.1

FCC Conformity

US Installations only: Federal Communications Commission (FCC) rules

SITRANS LR250

SITRANS LR250 is a 2-wire 25 GHz pulse radar level transmitter for continuous monitoring of

liquids and slurries in storage vessels including high pressure and high temperature, to a range

of 20 m (66ft). It is ideal for small vessels and low dielectric media.

The device consists of an electronic component coupled to a horn antenna and either a

threaded or flange type process connection.

SITRANS LR250 supports HART communication protocol, and SIMATIC PDM software. Signals

are processed using Process Intelligence.

WARNING: relates to a caution symbol on the product, and means that failure to

observe the necessary precautions can result in death, serious injury, and/or

considerable material damage.

WARNING1: means that failure to observe the necessary precautions can result

in death, serious injury, and/or considerable material damage.

Note: means important information about the product or that part of the operating manual.

1. This symbol is used when there is no corresponding caution symbol on the product.

WARNING: Changes or modifications not expressly approved by Siemens

Milltronics could void the user’s authority to operate the equipment.

Notes:

• This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

• This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference to radio communications, in which case the user will

be required to correct the interference at his own expense.

WARNING: SITRANS LR250 is to be used only in the manner outlined in this manual,

otherwise protection provided by the equipment may be impaired.

7ML19985QX81 SITRANS LR250 (HART) – QUICK START MANUAL Page EN-3

mmmmm

English

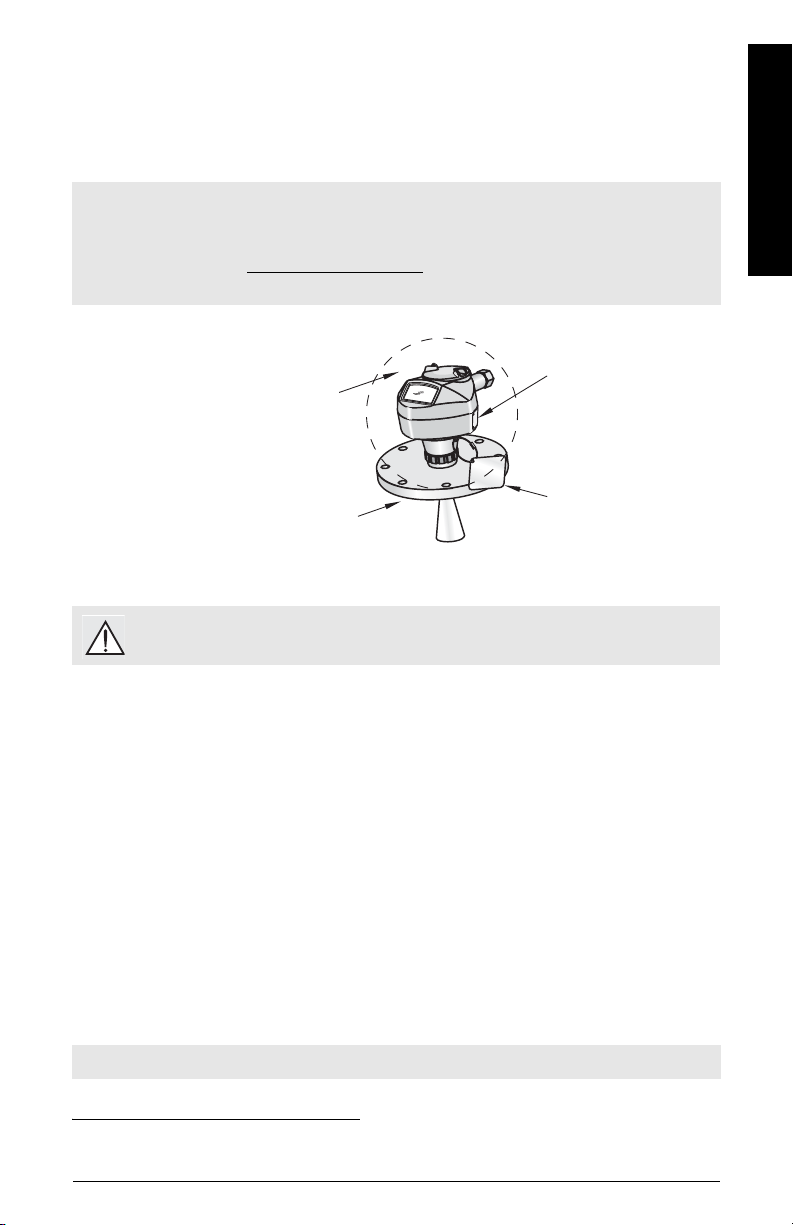

Specifications

For a complete listing, see the SITRANS LR250 (HART) Instruction Manual. For Approvals

information, please refer to the device nameplate and the process device tag.

Ambient/Operating Temperature

Power

• Maximum 30 V DC • 4 to 20 mA

Approvals

• General CSAUS/C, FM, CE

• Radio Europe ETSI EN302-372, FCC, Industry Canada

• Hazardous Intrinsically Safe:

(Europe) ATEX II 1G, EEx ia IIC T4

ATEX II 1D, EEx tD A20 IP67 T90 °C

(International) IECEx SIR 05.0031X, Ex ia IIC T4,

EX tD A20 IP67 T90 °C

(US/Canada) FM/CSA: (barrier required)1

Class I, Div. 1, Groups A, B, C, D

Class II, Div. 1, Groups E, F, G

Class III T4

(see next page for Non-Incendive Class I, Div. 2 approval)

Notes:

• Process temperature and pressure capabilities are dependent upon information on the

process device tag. The reference drawing listed on the tag can be downloaded from the

Siemens website at: www.siemens.com/LR250.

• See

Maximum Process Temperature Chart

on page 20, for more details.

Nominal 24 V DC with max. 550 Ohm loop resistance. (Check the device

nameplate for the characteristics of the device, and confirm the loop load.)

1. See Appendix A for

FM/CSA Intrinsically Safe connection drawing (23650653) (North America only)

page A-1.

Note: Use appropriate conduit seals to maintain IP or NEMA rating.

process temperature (at process

connection, with FKM O-ring)

–40 oC to +150 oC (–40 oF to +302 oF)

ambient temperature

(surrounding enclosure)

–40 °C to 80 °C (–40 °F to 176 °F)

device nameplate

process device

tag

Page EN-4 SITRANS LR250 (HART) – QUICK START MANUAL 7ML19985QX81

mmmmm

English

Approvals (continued)

• Hazardous Non-incendive:

(US/Canada) FM/CSA1Class I, Div. 2,

Groups A, B, C, D T5

Pressure Application

Installation

1. See Appendix A for

FM/CSA (Non-incendive) Class 1, Div 2 connection drawing (23650673)(North

America only)

on page A-2.

Note: Use appropriate conduit seals to maintain IP or NEMA rating.

WARNINGS:

• This product is designated as a Pressure Accessory per Directive 97 / 23 / EC, and

is not intended for use as a safety device.

• Do not attempt to loosen, remove, or disassemble process connection or

instrument housing while vessel contents are under pressure.

• Improper installation may result in loss of process pressure.

2. The process pressure boundary assembly comprises the components that act as a barrier against

pressure loss from the process vessel: that is, the combination of process connection body and

emitter, but normally excluding the electrical enclosure.

WARNINGS:

• Installation shall only be performed by qualified personnel and in

accordance with local governing regulations.

• Materials of construction are chosen based on their chemical compatibility (or

inertness) for general purposes. For exposure to specific environments, check

with chemical compatibility charts before installing.

Notes:

• For European Union and member countries, installation must be according to ETSI EN

302372.

• The Process Device Tag shall remain with the process pressure boundary assembly2. In

the event the device package is replaced, the Process Device Tag shall be transferred to

the replacement unit.

• SITRANS LR250 units are hydrostatically tested, meeting or exceeding the requirements

of the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment

Directive.

7ML19985QX81 SITRANS LR250 (HART) – QUICK START MANUAL Page EN-5

mmmmm

English

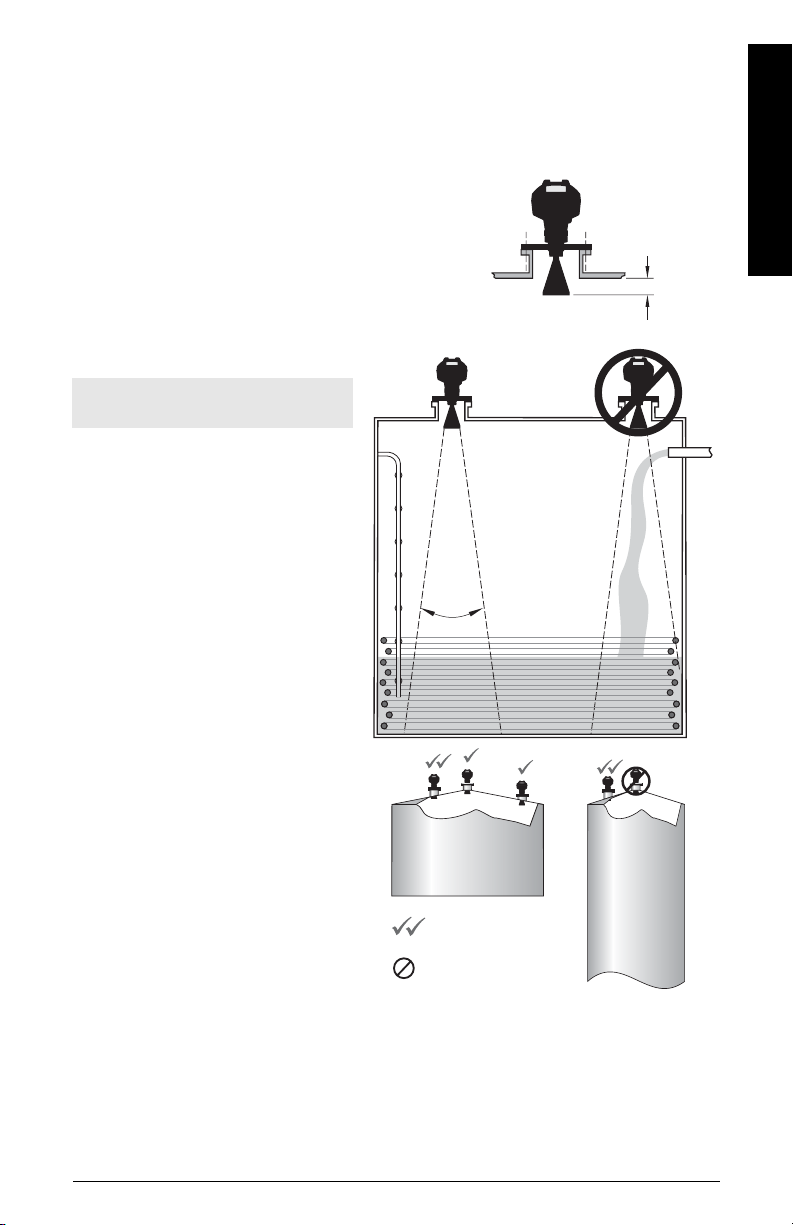

Installation guidelines

• Provide easy access for viewing the display and programming via the hand programmer.

• Provide an environment suitable to the housing rating and materials of construction.

• Provide a sunshield if the device will be mounted in direct sunlight.

Nozzle design

• The end of the horn must protrude a minimum of

10 mm (0.4”) to avoid false echoes being reflected

from the nozzle.

• An antenna extension: (100 mm / 3.93") is

available.

Nozzle location

• Keep emission cone free of

interference from ladders, pipes,

I-beams or filling streams.

• Make allowance for the emission

code spreading, to avoid

interference with vessel walls or

obstructions. (Beam angle

depends on horn size.)

• Avoid central locations on tall,

narrow vessels, which can

generate false echoes

Note: Beam angle depends on horn

size.

min. clearance:

10 mm (0.4")

beam angle:

1.5" horn = 19°

2" horn = 15°

3" horn = 10°

4" horn = 8°

19°

emission

cone

preferred

undesirable

Page EN-6 SITRANS LR250 (HART) – QUICK START MANUAL 7ML19985QX81

mmmmm

English

Mounting instructions

Threaded Version

1. Before inserting the device into its mounting connection, check to ensure the threads are

matching to avoid damaging them.

2. Simply screw the device into the process connection, and hand tighten, or use a wrench.

A torque of 40 N m (30 ft.lbs) is recommended.

Flanged Version

Wiring

Power

Connecting SITRANS LR250

WARNING: For pressure applications, it will be necessary to use PTFE tape or other

appropriate thread sealing compound, and to tighten the process connection

beyond hand-tight.

WARNING: The user is responsible for the selection of bolting and gasket materials

which will fall within the limits of the flange and its intended use, and which are

suitable for the service conditions.

WARNINGS:

The DC input terminals shall be supplied from a source providing electrical

isolation between the input and output, in order to meet the applicable safety

requirements of IEC 61010-1.

All field wiring must have insulation suitable for rated voltages.

WARNINGS:

• Check the device nameplate and process device tag, to verify the approval rating.

• Use appropriate conduit seals to maintain IP or NEMA rating.

•Read

Instructions specific to hazardous area installations

on page 10.

Notes:

• For detailed wiring instructions, please refer to the full Instruction Manual.

• Use twisted pair cable: AWG 22 to 14 (0.34 mm2to 2.5 mm2).

• Separate cables and conduits may be required to conform to standard instrumentation

wiring practices, or electrical codes.

7ML19985QX81 SITRANS LR250 (HART) – QUICK START MANUAL Page EN-7

mmmmm

English

2. Strip the cable jacket for approximately 70 mm (2.75") from the end of the cable, and

thread the wires through the gland.

3. Connect the wires to the terminal as shown: the polarity is identified on the terminal

block.

4. Ground the device according to local regulations.

5. Tighten the gland to form a good seal.

Connecting HART

Typical PLC/mA configuration with HART

Wiring setups for hazardous area installations

There are two wiring options for hazardous area installations. In all cases, check the device

nameplate and process device tag to verify the approval rating.

Reference drawings are available from the product page of our website at:

www.siemens.com/LR250, or in Appendix A, on the pages noted below.

Reference Drawing Page

No.

FM/CSA Intrinsically Safe connection drawing (23650653) A- 1

FM/CSA (Non-incendive) Class 1, Div 2 connection drawing (23650673) A- 2

2 mm lid-lock

set screw.

1. Use a 2 mm Allen key to loosen the lid-lock set

screw. Then using a screwdriver for leverage if

necessary, unscrew the cover.

cable shield

(if used)

active PLC

HART modem

SITRANS

LR250

power

supply

Notes:

• Depending on the system

design, the power supply

may be separate from the

PLC, or integral to it.

• Loop resistance (total of

cable resistance plus 250

Ohm [resistor]) must be

less than 550 Ohm for the

device to function

properly.

R= 250 Ω

HART

communicator

Page EN-8 SITRANS LR250 (HART) – QUICK START MANUAL 7ML19985QX81

mmmmm

English

1. Intrinsically Safe wiring method (barrier required)

• For power demands see

Loop Voltage versus Loop Resistance

on page 21.

• For wiring requirements:

Europe/International: Follow local regulations.

US/Canada: Download

FM/CSA Intrinsically Safe connection drawing

(23650653)

from the product page of our website at:

www.siemens.com/LR250 or see Appendix A: page A-1.

• Use appropriate conduit seals to maintain IP or NEMA rating.

• Recommended Intrinsically Safe barriers are listed under

Passive Shunt Diode Barriers

on page 8 and

Active barriers (repeating barriers)

on page 9.

• Refer to

Instructions specific to hazardous area installations

on page 10.

Passive Shunt Diode Barriers

Approval Rating Valid for:

ATEX II 1 G, EEx ia IIC T4

ATEX II 1 D, EEx tD A20 IP67 T90 °C Europe

IECEx SIR 05.0031X, Ex ia IIC T4, Ex tD A20 IP67 T90 °C International

FM/CSA:

Class I, Div. 1, Groups A, B, C, D

Class II, Div. 1, Groups E, F, G

Class III

US/Canada

Note: Selecting a suitable PLC input module, power supply, or barrier requires knowledge

about Intrinsic Safety and the application. It is the responsibility of the installer to ensure that

the intrinsically safe installation complies with both the apparatus approval requirements

and the relevant national code of practice.

Note: A well regulated supply voltage is required.

Manufacturer Part Number

MTL 787SP+ (Dual Channel)

MTL 7787P+ (Dual Channel)

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7ML1234-56789-0ABC-D

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.:–40°Cto80°C

Power Rating: 24V Max., 4 - 20mA

Nom., 30 V

Serial No: GYZ / S1034567

IECEx SIR 05.0031X

Ex ia IIC T4

Ex tD A20 IP67 T90°C

1 G EEx ia IIC T4

1 D EEx tD A20 IP67 T90°C

SIRA 06ATEX2358X

0518

HART

Ui=30V

Ii = 120 mA

Pi = 0.8 W

Ci=15nF

Li = 0.1 mH

SITRANS LR250

7ML1234-56789-0ABC-D

Serial No: GYZ / S1034567

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 24V Max., 4 - 20mA

Nom., 30 V

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

Exia per drawing: 23650653

Class I, Div 1, Gr. A, B, C, D;

Class III

Class II, Div 1, Gr. G;

Pmax = 0.8 W

Ci=15nF Temp.Code:T4

Vmax =30V

Li= 0.1 mH

Imax = 120 mA

IC: 267P-LR250

FCC ID: NJA-LR250

N117

159134

HART

WARNING:PossibleStaticHazard,DoNot RubOrCleanOnSite

Otros manuales para Sitrans LR250

Tabla de contenidos

Idiomas:

Otros manuales de Transmisor de Siemens

Siemens

Siemens SITRANS Series Manual de usuario

Siemens

Siemens Sitrans LR250 Guía del administrador

Siemens

Siemens Sitrans LR200 Manual de instrucciones

Siemens

Siemens RPT Manual de usuario

Siemens

Siemens SITRANS TH320 Manual de usuario

Siemens

Siemens SITRANS TH100 Manual de usuario

Siemens

Siemens SITRANS P500 Guía del administrador

Siemens

Siemens SITRANS Probe LU240 Guía del administrador

Siemens

Siemens SITRANS F C MASSFLO MASS 6000 Manual de usuario

Siemens

Siemens Sitrans LR200 Manual de usuario

Siemens

Siemens SITRANS P series Guía del administrador

Siemens

Siemens SITRANS TH400 Manual de usuario

Siemens

Siemens Sitrans LR250 Manual de usuario

Siemens

Siemens sitrans PROBE LU Manual de usuario

Siemens

Siemens SITRANS TF2 Manual de usuario

Siemens

Siemens 5WK4 9046 Manual de usuario

Siemens

Siemens Sitrans LR250 Guía del administrador

Siemens

Siemens SITRANS L Series Manual de usuario

Siemens

Siemens SITRANS F MASS 6000 Ex d Manual de usuario

Siemens

Siemens SITRANS L Series Manual de usuario

Siemens

Siemens SITRANS L LU240 Guía del administrador

Siemens

Siemens Sitrans LR200 Manual de instrucciones

Siemens

Siemens SITRANS LR560 Manual de usuario

Siemens

Siemens SITRANS TH Series Guía del administrador

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
